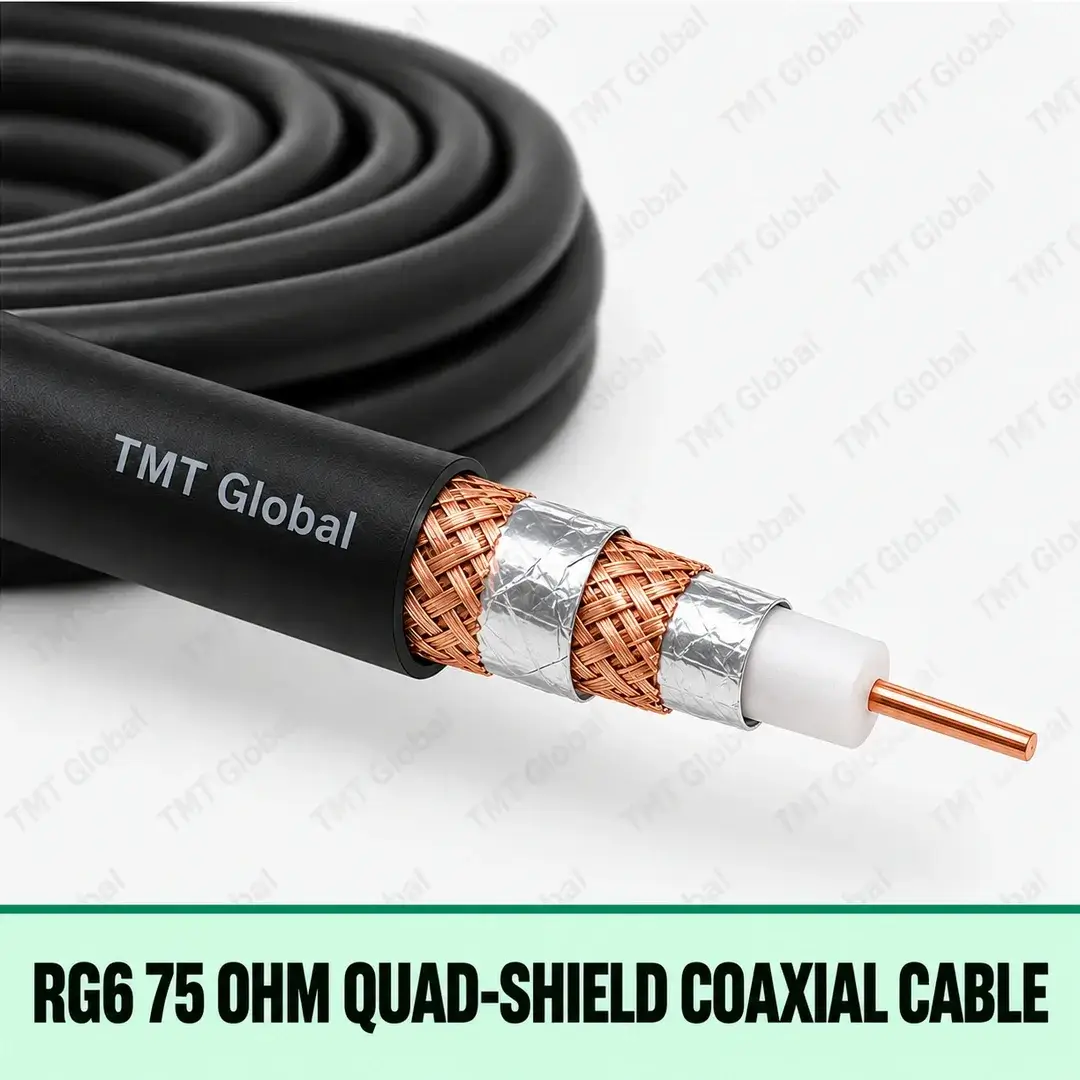

RG6 75 Ohm Quad-Shield Coaxial Cable

KEY FEATURES

  • RG6 construction
  • 75 Ω nominal impedance family
  • 18 AWG copper-clad steel centre conductor
  • Quad shield screening construction
  • 305 m standard package

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!
chat with sales
Description

Choosing the RG6 75 Ohm Quad-Shield Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG6, 75 Ω nominal
  • Conductor size: 18 AWG Copper-Clad Steel
  • Screen: Quad shield
  • Package: 305 m

Related options in this range: RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG6 75 Ohm Foil + Braid Coaxial Cable · RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable · RG58 50 Ohm RF Coaxial Cable

Order code: RG6-QUAD-R6. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable Series

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Series-6 quad-shield construction for RF/video distribution where higher screening performance is required. It is separated from standard RG6 because the shield stack and centre-conductor construction change materially. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG6 construction
  • 75 Ω nominal impedance family
  • 18 AWG copper-clad steel centre conductor
  • Quad shield screening construction
  • 305 m standard package

APPLICATIONS

  • Satellite distribution
  • CATV / broadband video
  • High-interference RF routes

Technical Specification

Additional information
AWG18 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
