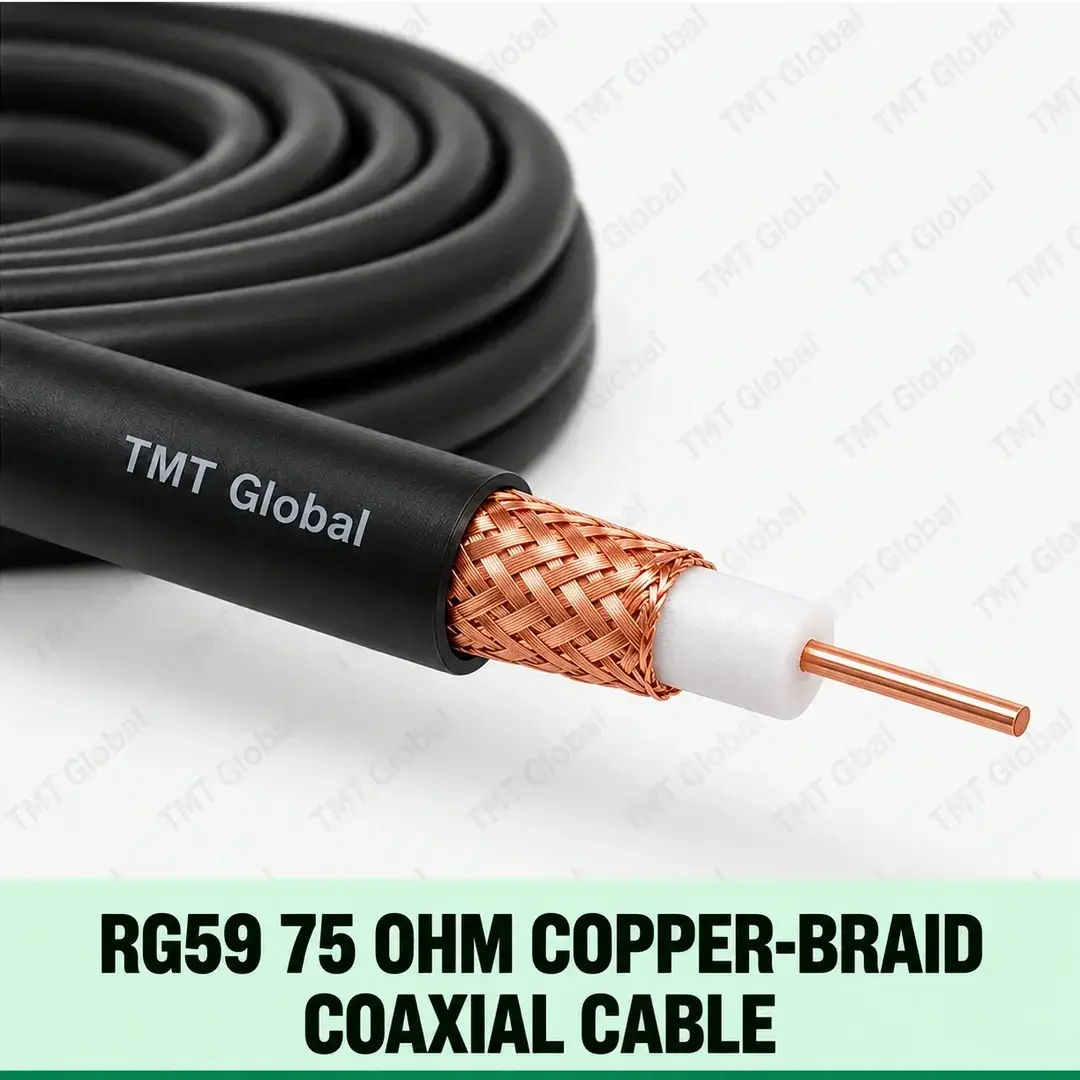

RG59 75 Ohm Copper-Braid Coaxial Cable

KEY FEATURES

  • RG59 construction
  • 75 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • 95% braid class screening construction
  • 305 m standard package

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!
chat with sales
Description

Choosing the RG59 75 Ohm Copper-Braid Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG59, 75 Ω nominal
  • Conductor size: 20 AWG Bare Copper
  • Screen: 95% braid class
  • Package: 305 m

Related options in this range: RG6 75 Ohm Foil + Braid Coaxial Cable · RG6 75 Ohm Quad-Shield Coaxial Cable · RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable

Order code: RG59-BRAID-R5. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable Series

TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Classic RG59 analogue-video / CCTV construction with a 20 AWG centre conductor and braid screen. This reuses the existing RG59 product position rather than creating a duplicate generic coax page. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG59 construction
  • 75 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • 95% braid class screening construction
  • 305 m standard package

APPLICATIONS

  • Analogue CCTV video
  • Baseband video
  • Security video links

Technical Specification

Additional information
AWG20 awg
BrandTMT Global
Jacket TypePVC, LSZH, PE Outdoor
ColourBlack, White
Length305 m
CONDUCTORBare Copper
