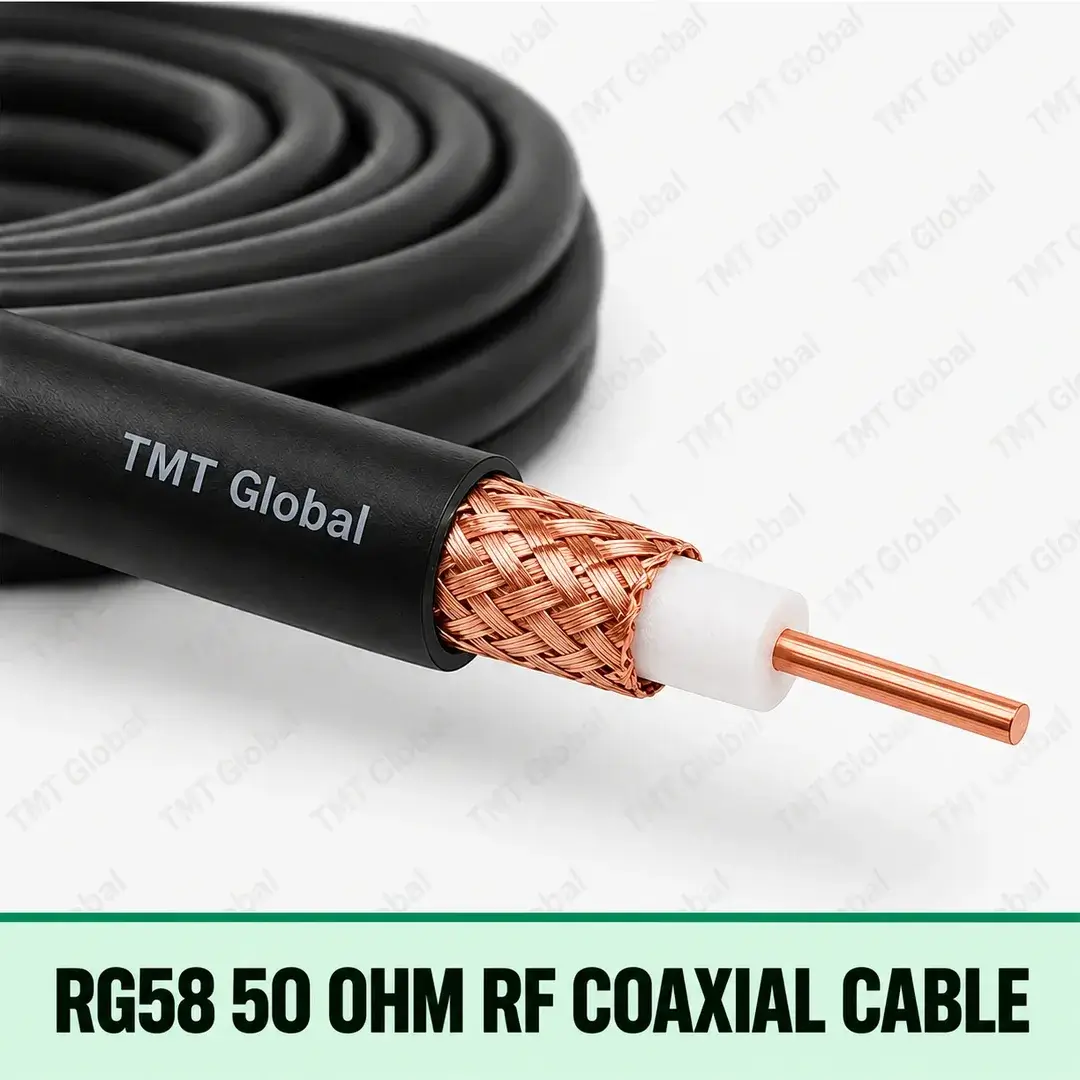

RG58 50 Ohm RF Coaxial Cable

KEY FEATURES

  • RG58 construction
  • 50 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • Copper braid screening construction
  • 305 m standard package

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!
chat with sales
Description

Choosing the RG58 50 Ohm RF Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG58, 50 Ω nominal
  • Conductor size: 20 AWG Bare Copper
  • Screen: Copper braid
  • Package: 305 m

Related options in this range: RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable · RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG6 75 Ohm Quad-Shield Coaxial Cable · RG6 75 Ohm Foil + Braid Coaxial Cable

Order code: RG58-RF-R8. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG58 50 Ohm RF Coaxial Cable Series

TMT Global RG58 50 Ohm RF Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Compact 50 ohm RG58 RF construction for selected radio, antenna, telemetry and equipment links. It is a controlled extension because the existing TMT coaxial category already identifies RG58 as a common coaxial type. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG58 construction
  • 50 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • Copper braid screening construction
  • 305 m standard package

APPLICATIONS

  • RF equipment links
  • Antenna / radio connections
  • Telemetry and test equipment

Technical Specification

Additional information
AWG20 awg
BrandTMT Global
ColourBlack
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
