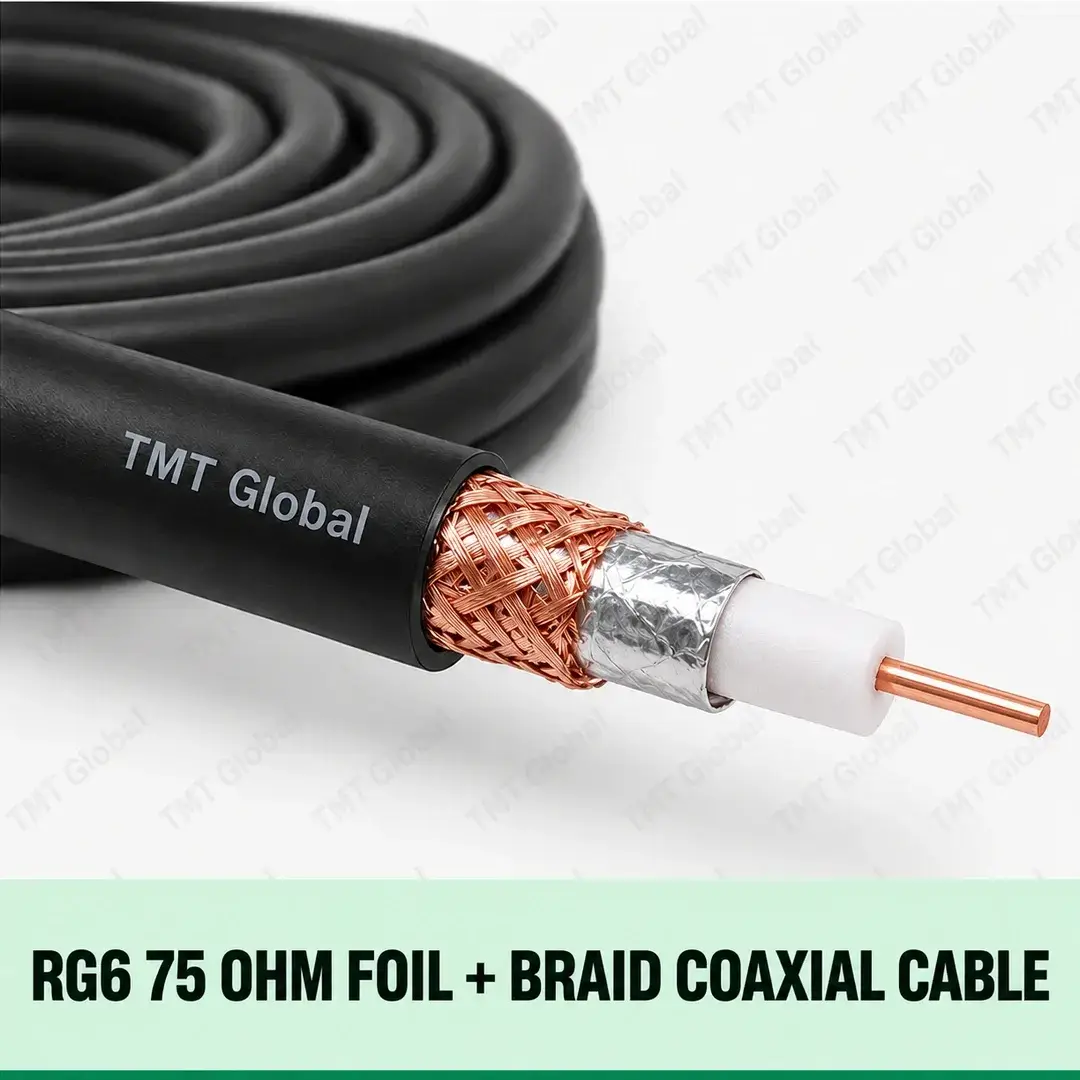

RG6 75 Ohm Foil + Braid Coaxial Cable

KEY FEATURES

  • RG6 construction
  • 75 Ω nominal impedance family
  • 18 AWG bare copper centre conductor
  • Foil + braid screening construction
  • 305 m standard package

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!
chat with sales
Description

Choosing the RG6 75 Ohm Foil + Braid Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG6, 75 Ω nominal
  • Conductor size: 18 AWG Bare Copper
  • Screen: Foil + braid
  • Package: 305 m

Related options in this range: RG6 75 Ohm Quad-Shield Coaxial Cable · RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG59 75 Ohm Copper-Braid Coaxial Cable · RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable

Order code: RG6-FB-R. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG6 75 Ohm Foil + Braid Coaxial Cable Series

TMT Global RG6 75 Ohm Foil + Braid Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Low-loss RG6 75 ohm construction for television, satellite, broadband-video and higher-bandwidth video distribution. The existing RG6 product page is retained as the primary standard RG6 family. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG6 construction
  • 75 Ω nominal impedance family
  • 18 AWG bare copper centre conductor
  • Foil + braid screening construction
  • 305 m standard package

APPLICATIONS

  • TV distribution
  • Satellite IF links
  • Video / MATV systems

Technical Specification

Additional information
AWG18 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
