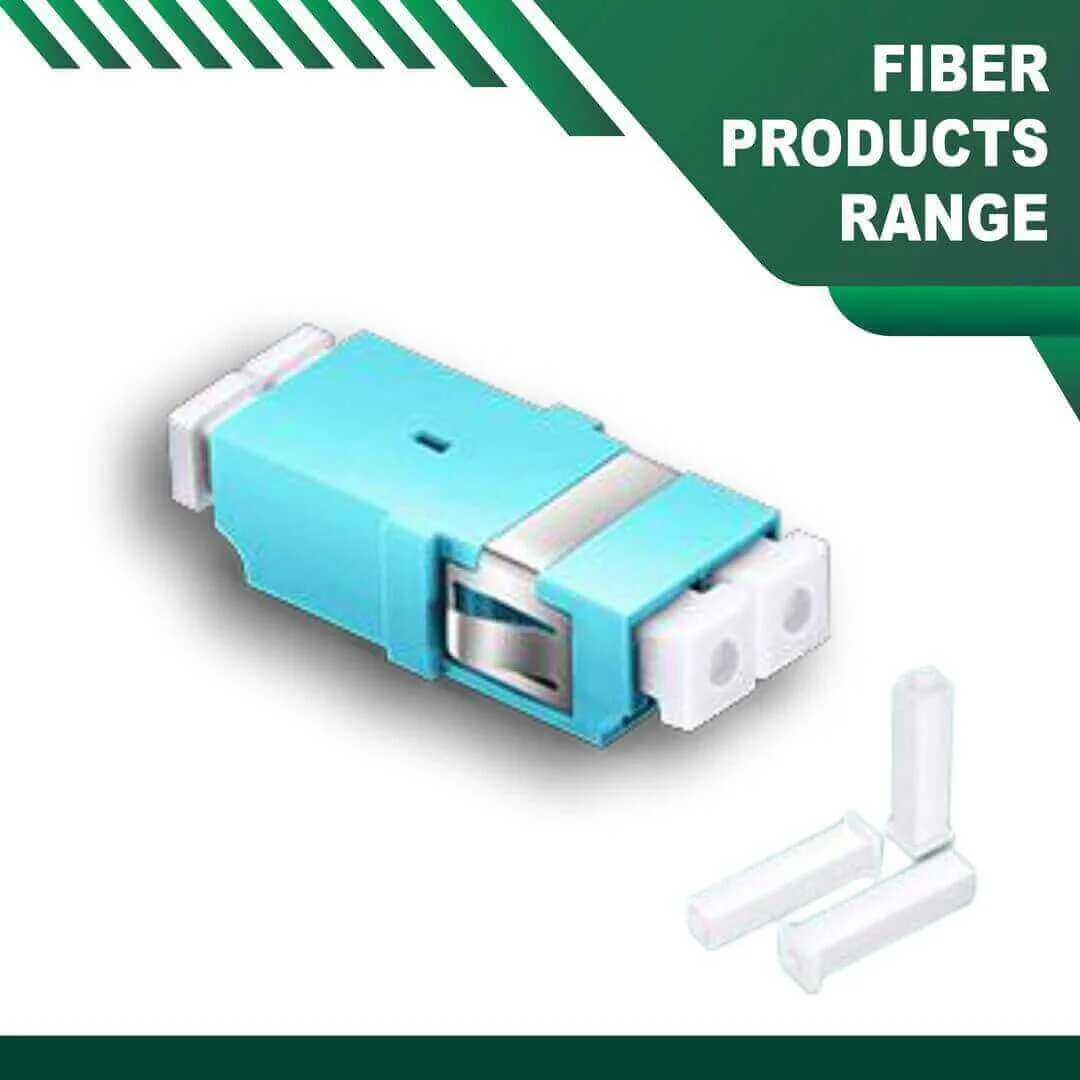

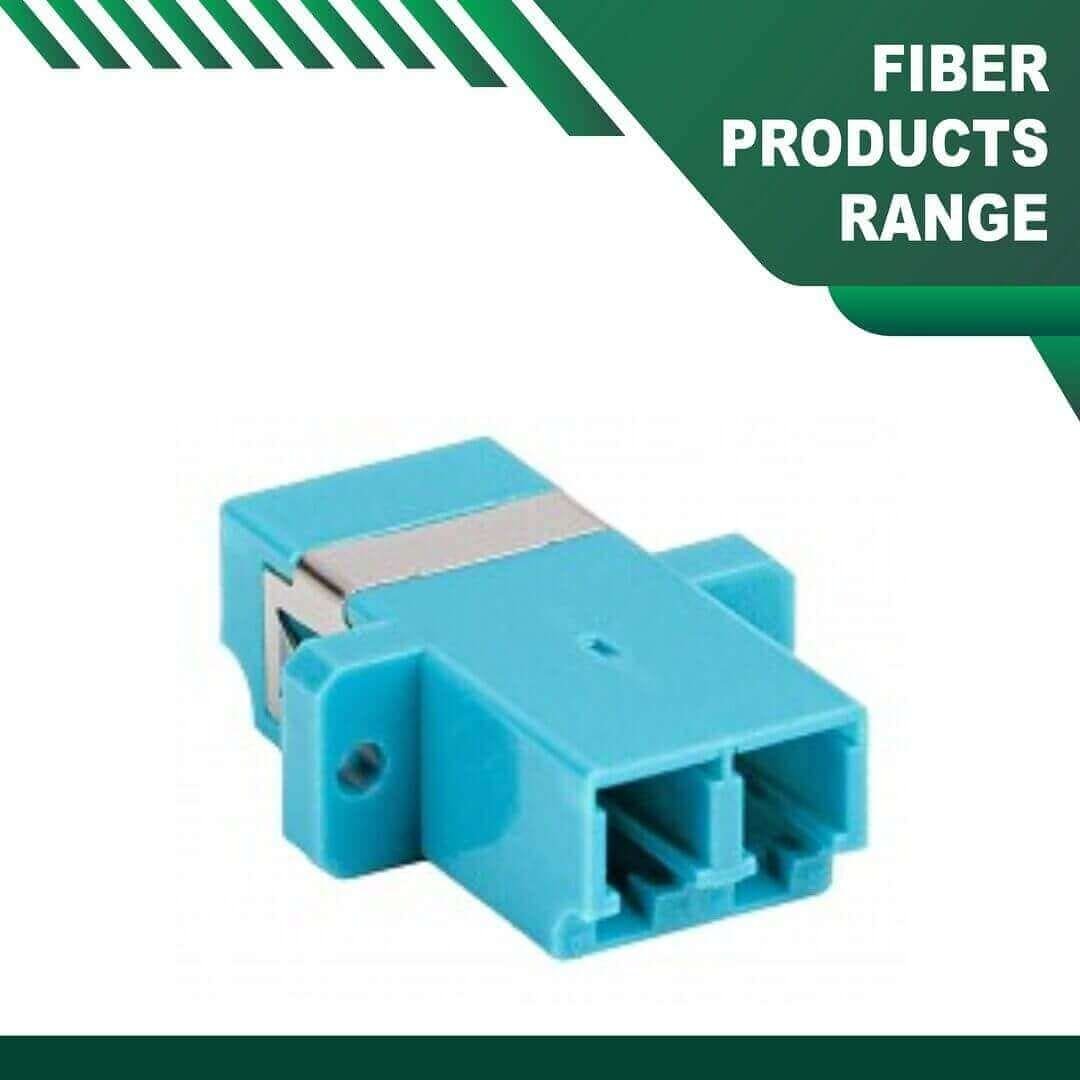

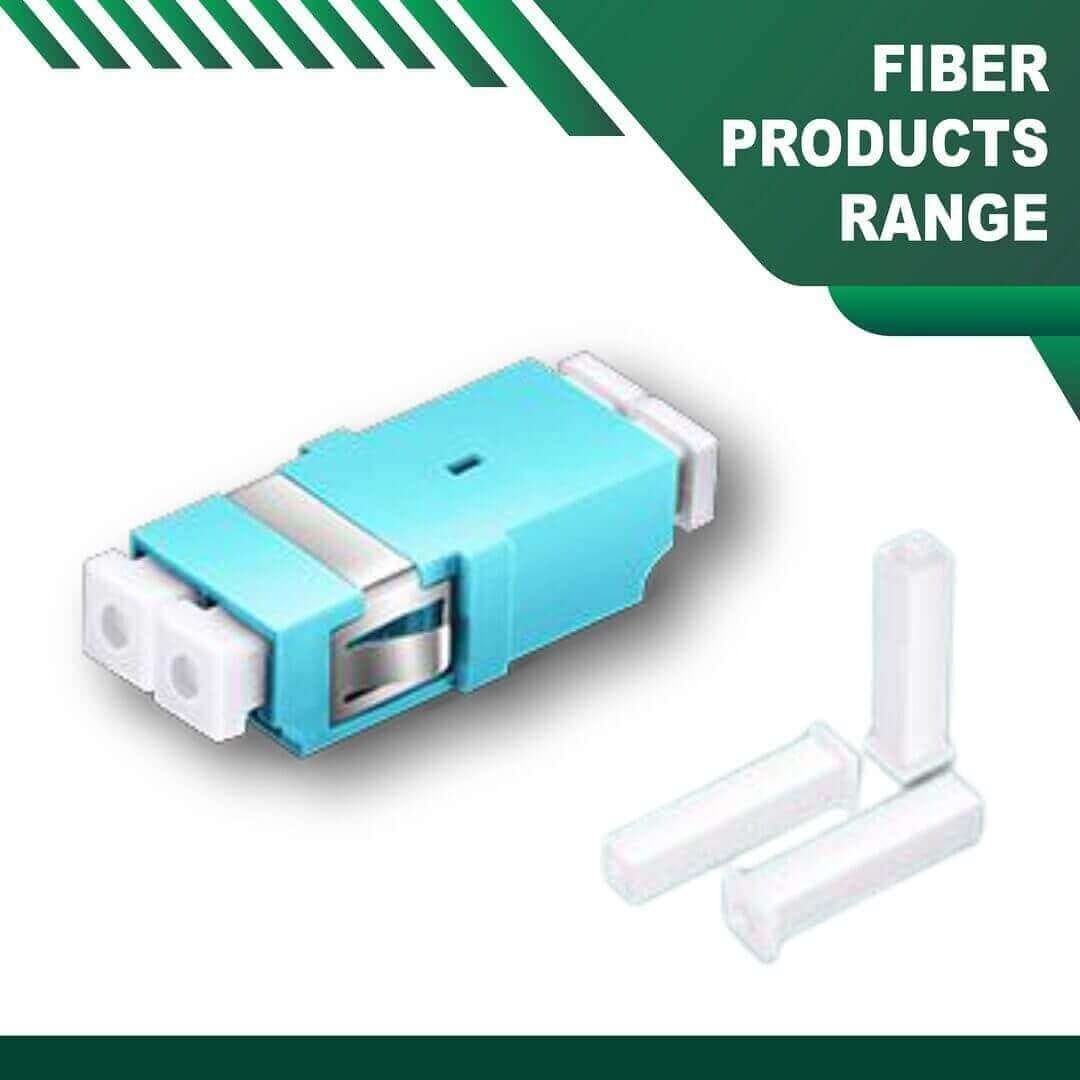

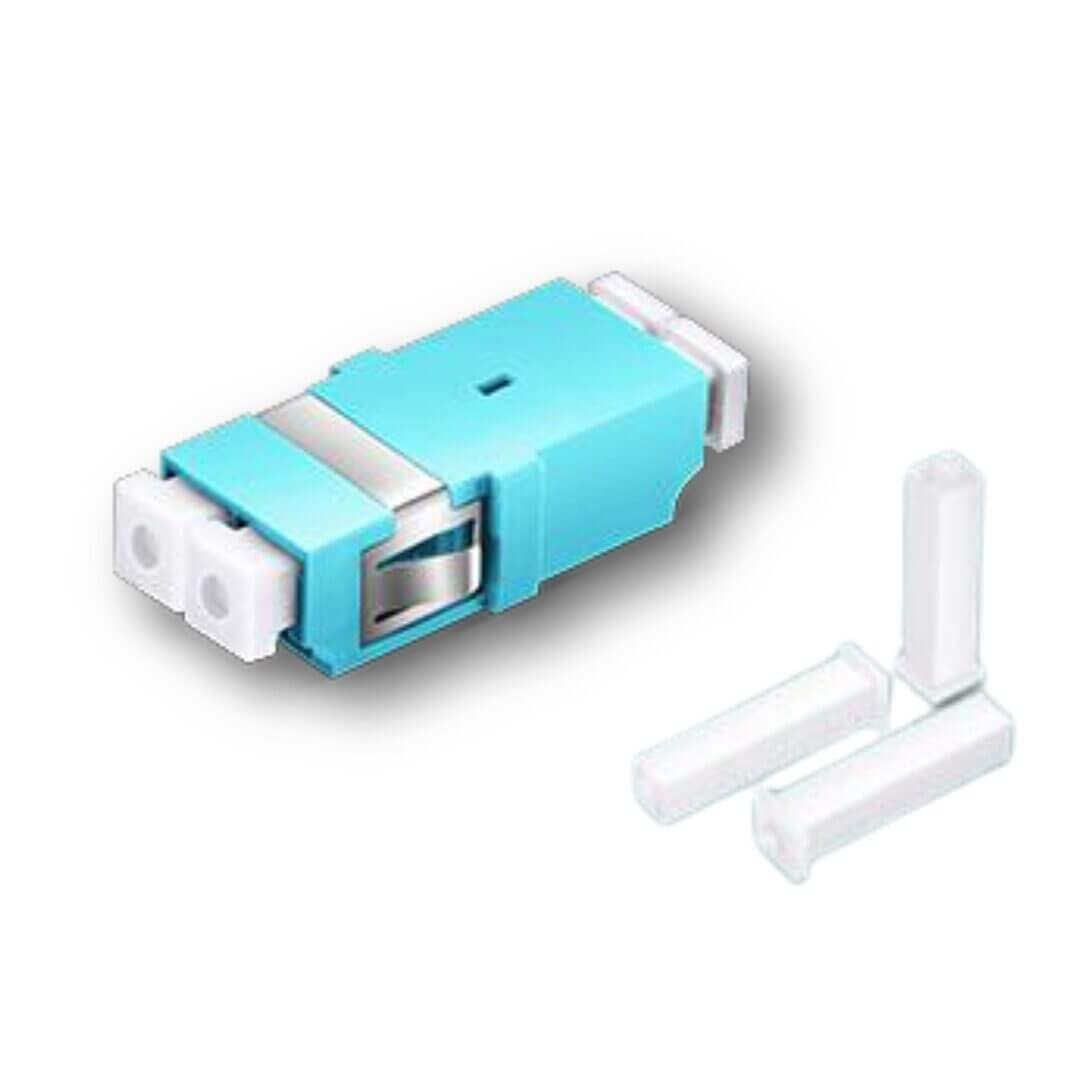

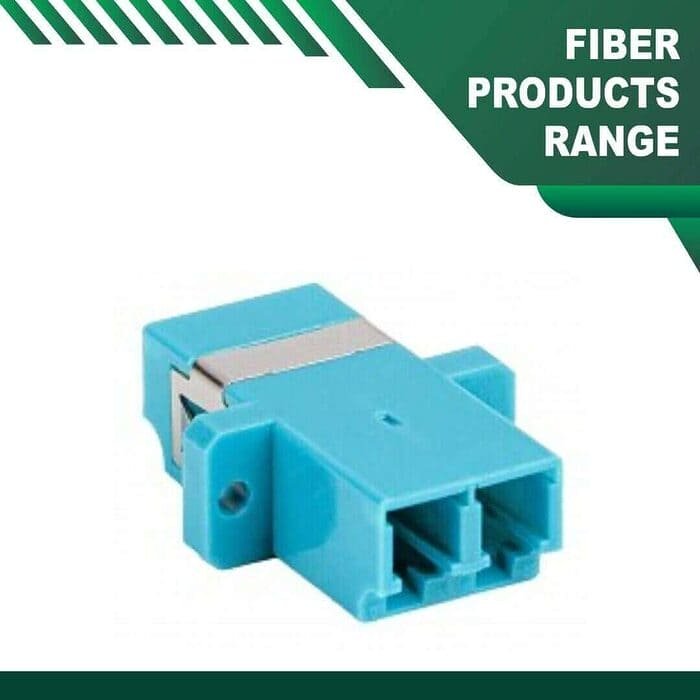

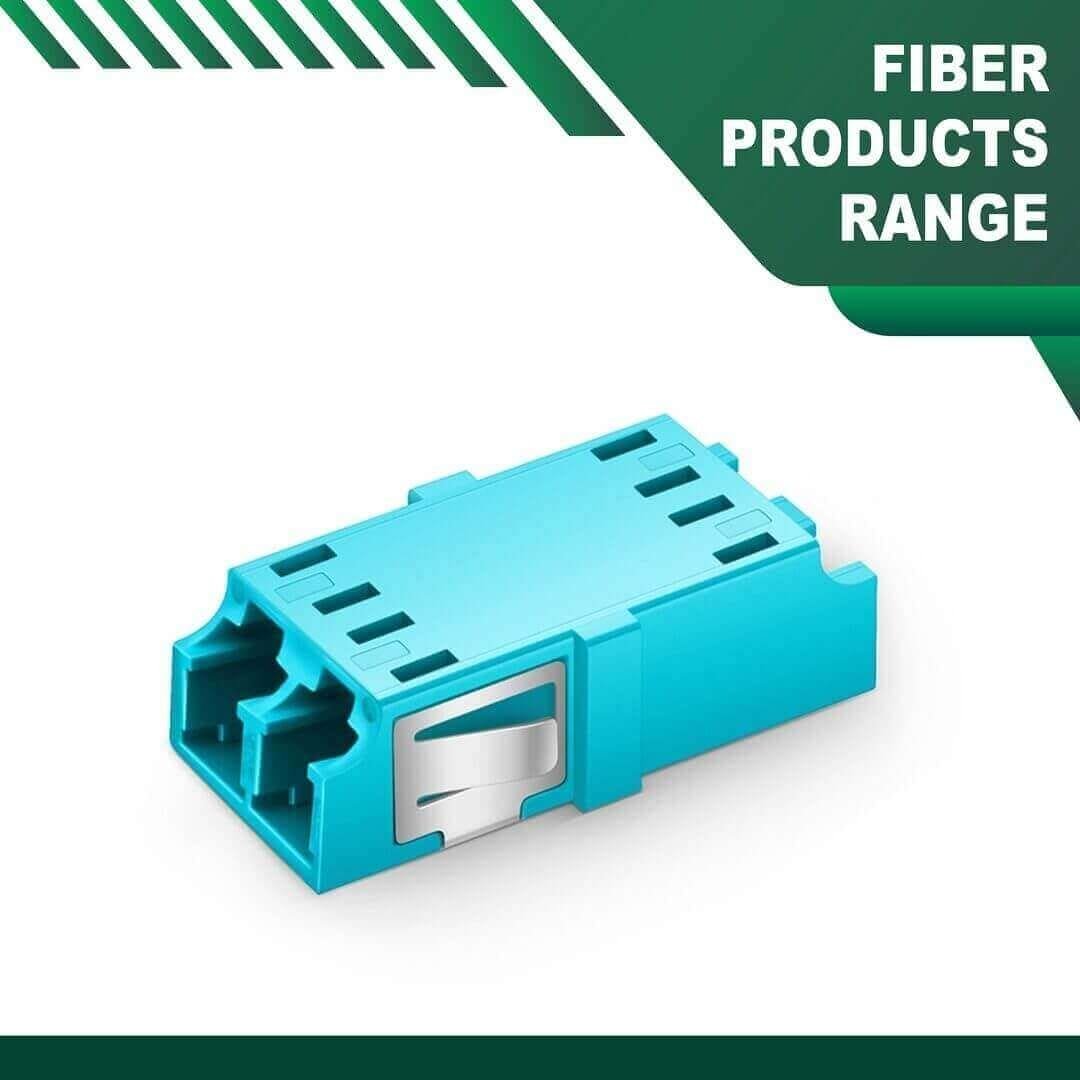

Optical Connector adapter om3 LC-UPC Multimode Duplex
د.إ18.00
General Specification
Adapter Type : LC
Polish Type : UPC
Body Type : Duplex
Fiber Mode : Multi Mode
Insertion Loss : ≤0.2dB
Durability : 1000 time
Flammability Rate : UL94-V0
Alignment Sleeve Material : Ceramic
Storage Temp（℃ : -40～+85
Products ID : TMT-LCDXU3A
TMT GLOBAL Optical Connector adapter om3 LC-UPC Multimode Duplex
Explore the importance of optical connector adapters in fiber optic systems, highlighting the versatile OM4 SC/UPC multimode simplex adapter for high-speed data transmission. Understand the different types of optical connectors including OM2, OM3, and single-mode options, and learn why TMT Global Technology Ltd. is a trusted manufacturer in this field. Enhance your networking capabilities with industry-standard, high-quality connectors designed for reliable performance in data centers and high-bandwidth environments.
Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Products Specifications
Adapter Type: LC-LC,SC-SC
Polish Type: UPC
Body Type: Simplex, Duplex
Fiber Mode: Multi Mode
Insertion Loss: ≤0.2dB
Durability: 1000 time
Flammability Rate: UL94-V0
Alignment Sleeve Material: Ceramic
Storage Temp（℃）: -40～+85
General Specification
Adapter Type : SC-SC
Polish Type : UPC
Body Type : Duplex
Fiber Mode : Multi Mode
Insertion Loss : ≤0.2dB
Durability : 1000 time
Flammability Rate : UL94-V0
Alignment Sleeve Material : Ceramic
Storage Temp（℃ : -40～+85
Products ID : TMT-SCDXU4P
Environment and Mechanical
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC， 95%， 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC
Storage Temperature -40ºC to +85ºC
| Brand |
TMT GLOBAL |
|---|
Specification PDF
Download
