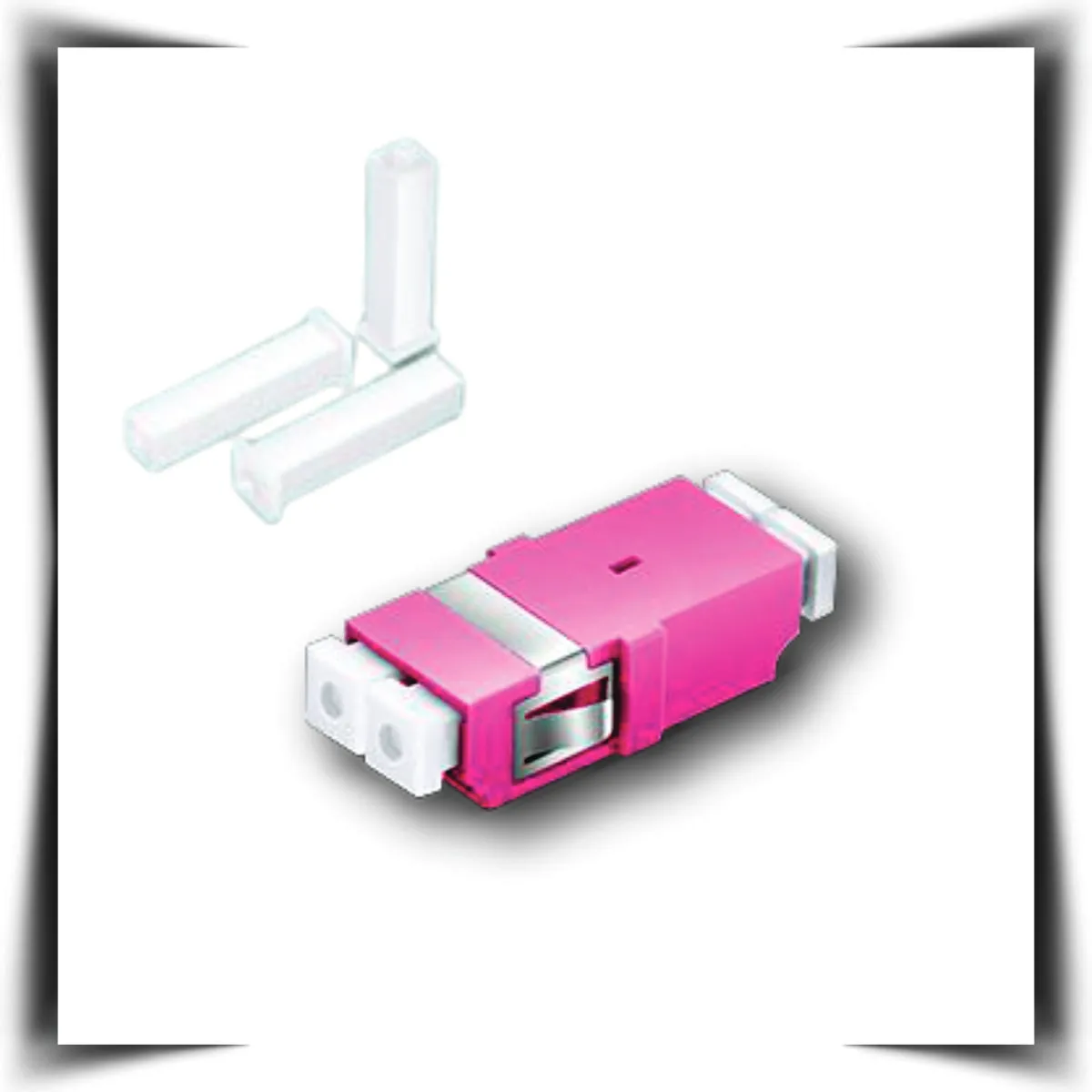

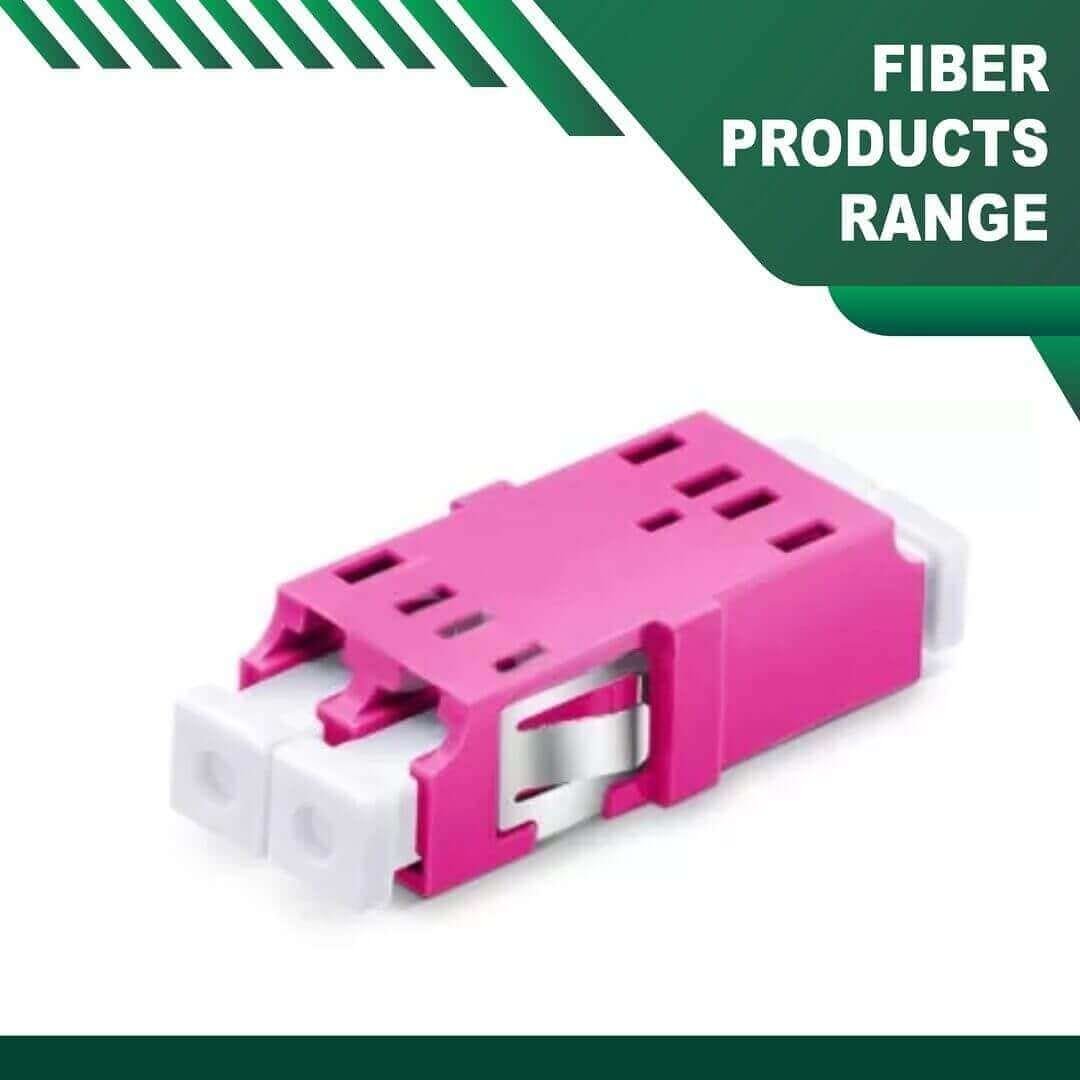

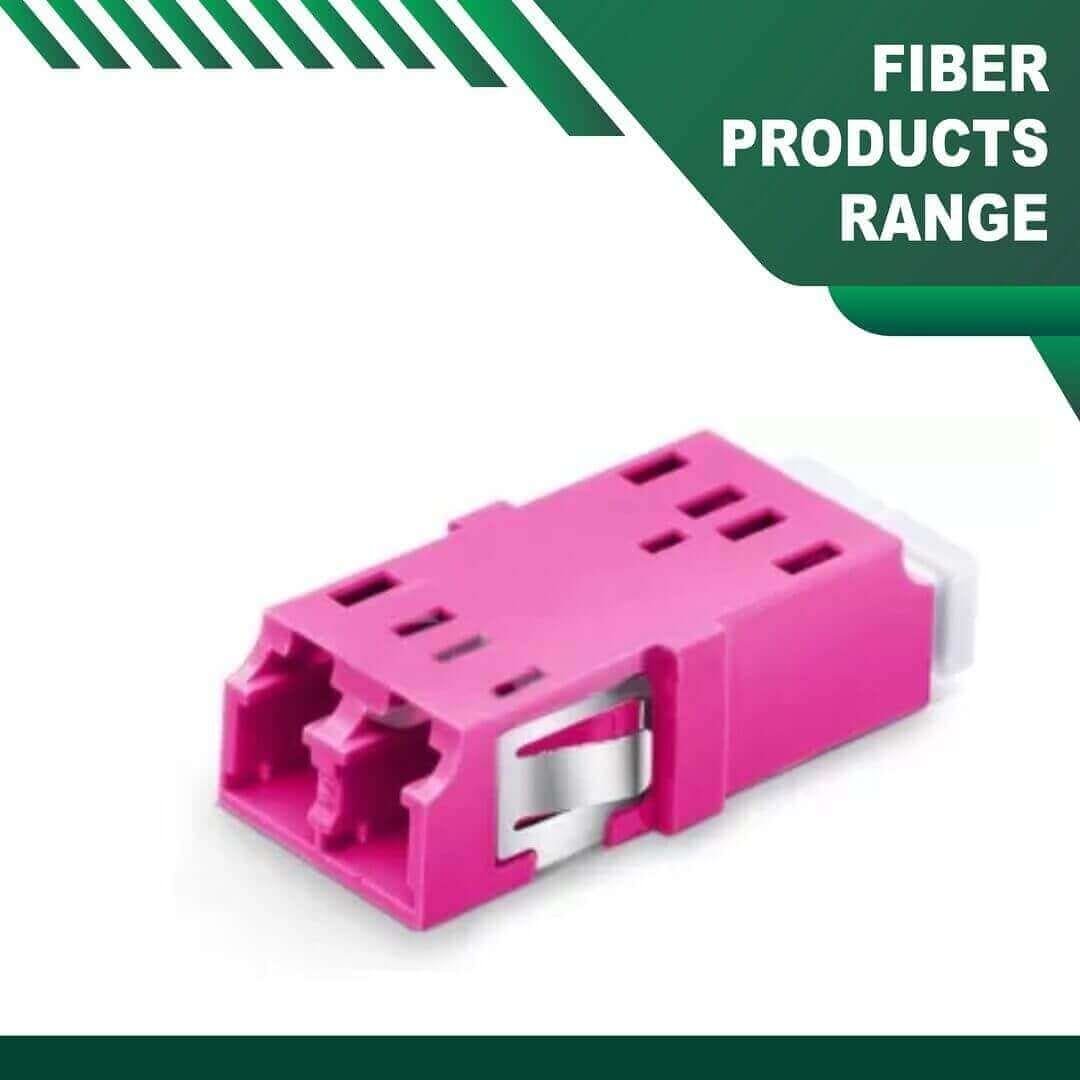

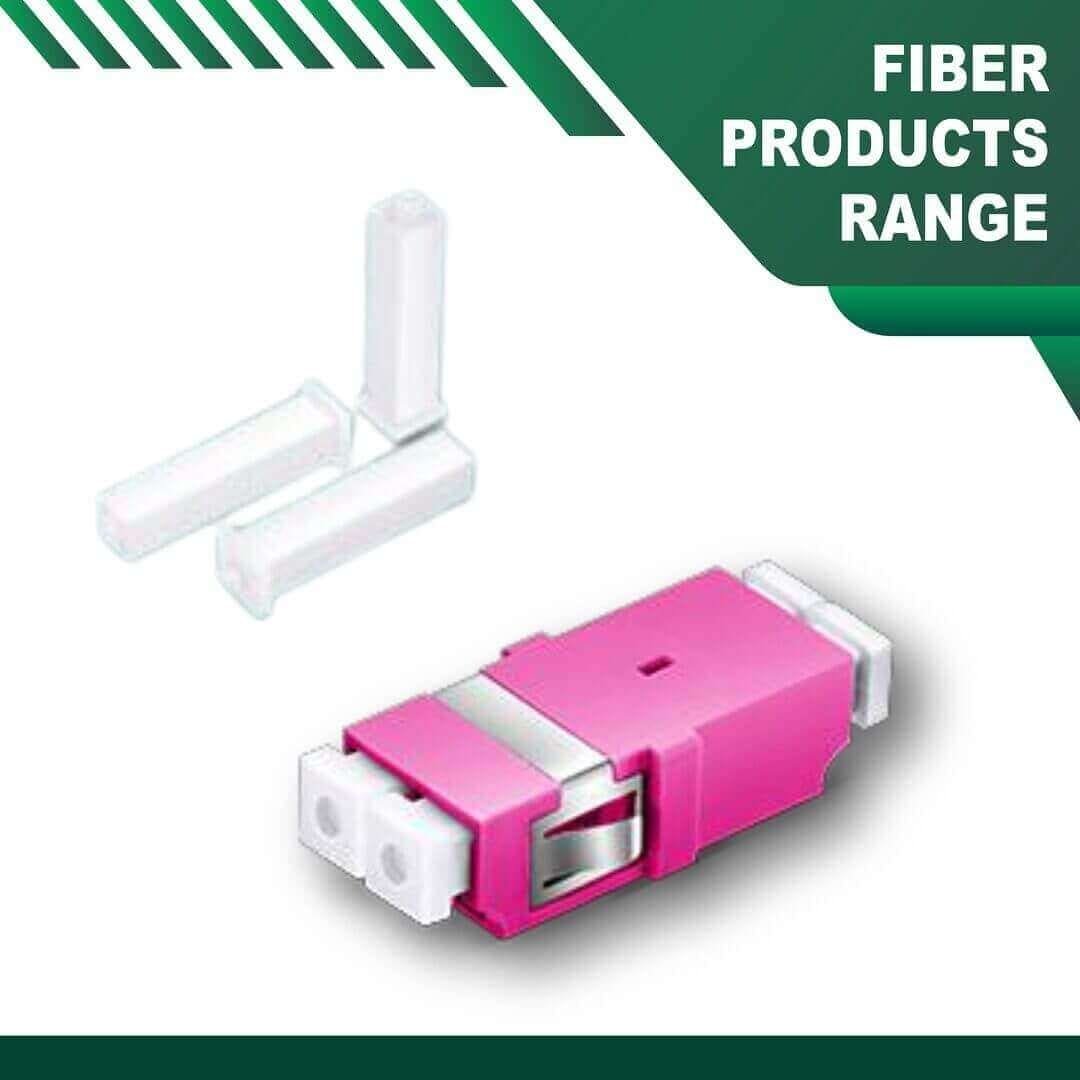

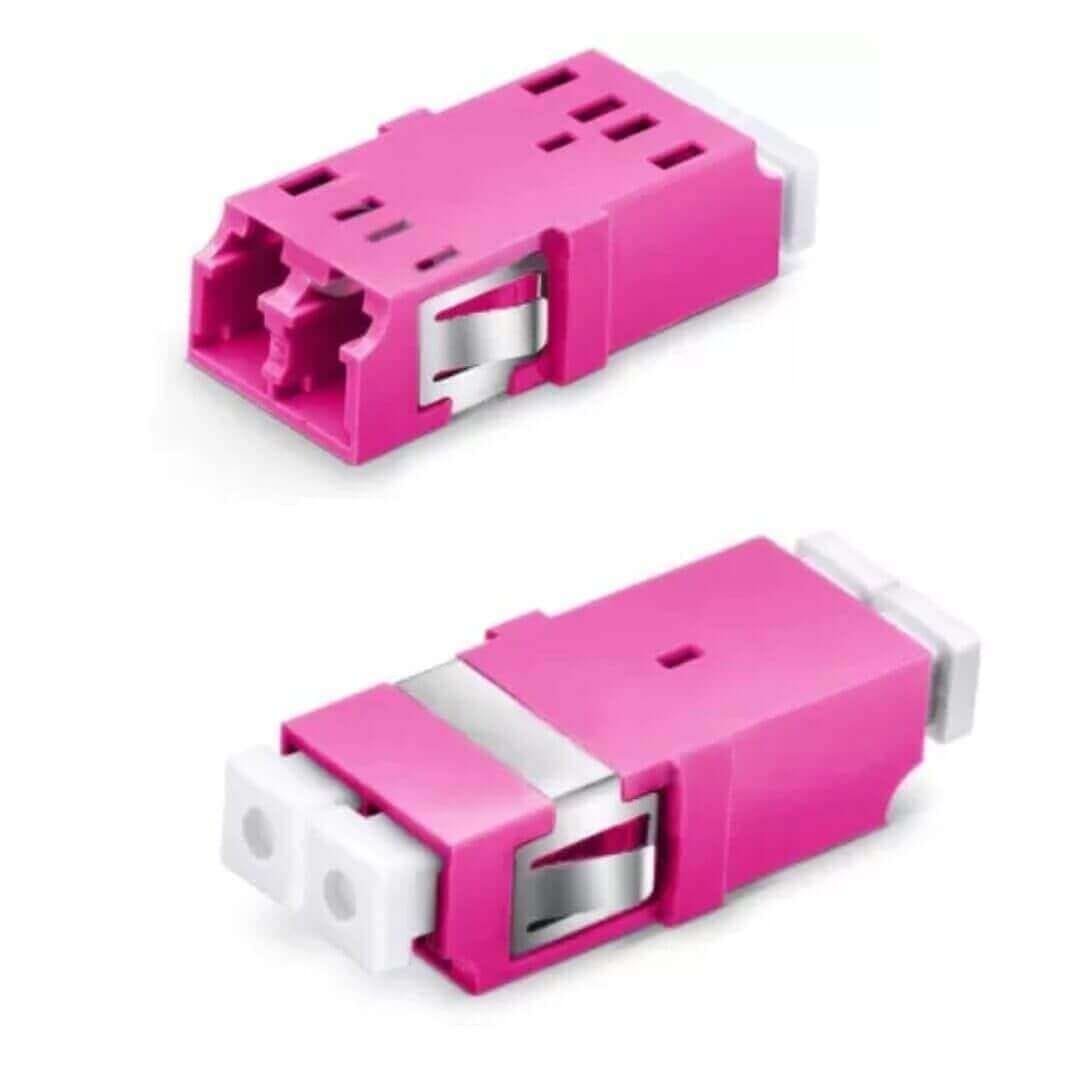

Optical Connector adapter om4 SC-UPC Multimode Duplex
د.إ25.00
General Specification
Adapter Type : SC-SC
Polish Type : UPC
Body Type : Duplex
Fiber Mode : Multi Mode
Insertion Loss : ≤0.2dB
Durability : 1000 time
Flammability Rate : UL94-V0
Alignment Sleeve Material : Ceramic
Storage Temp（℃ : -40～+85
Products ID : TMT-SCDXU4P
TMT GLOBAL Optical Connector adapter om4 SC-UPC Multi Mode Duplex
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.
Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Products Specifications
Adapter Type: LC-LC,SC-SC
Polish Type: UPC
Body Type: Simplex, Duplex
Fiber Mode: Multi Mode
Insertion Loss: ≤0.2dB
Durability: 1000 time
Flammability Rate: UL94-V0
Alignment Sleeve Material: Ceramic
Storage Temp（℃）: -40～+85
Environment and Mechanical
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC， 95%， 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC
Storage Temperature -40ºC to +85ºC
| Brand |
TMT GLOBAL |
|---|
Specification PDF
Download
