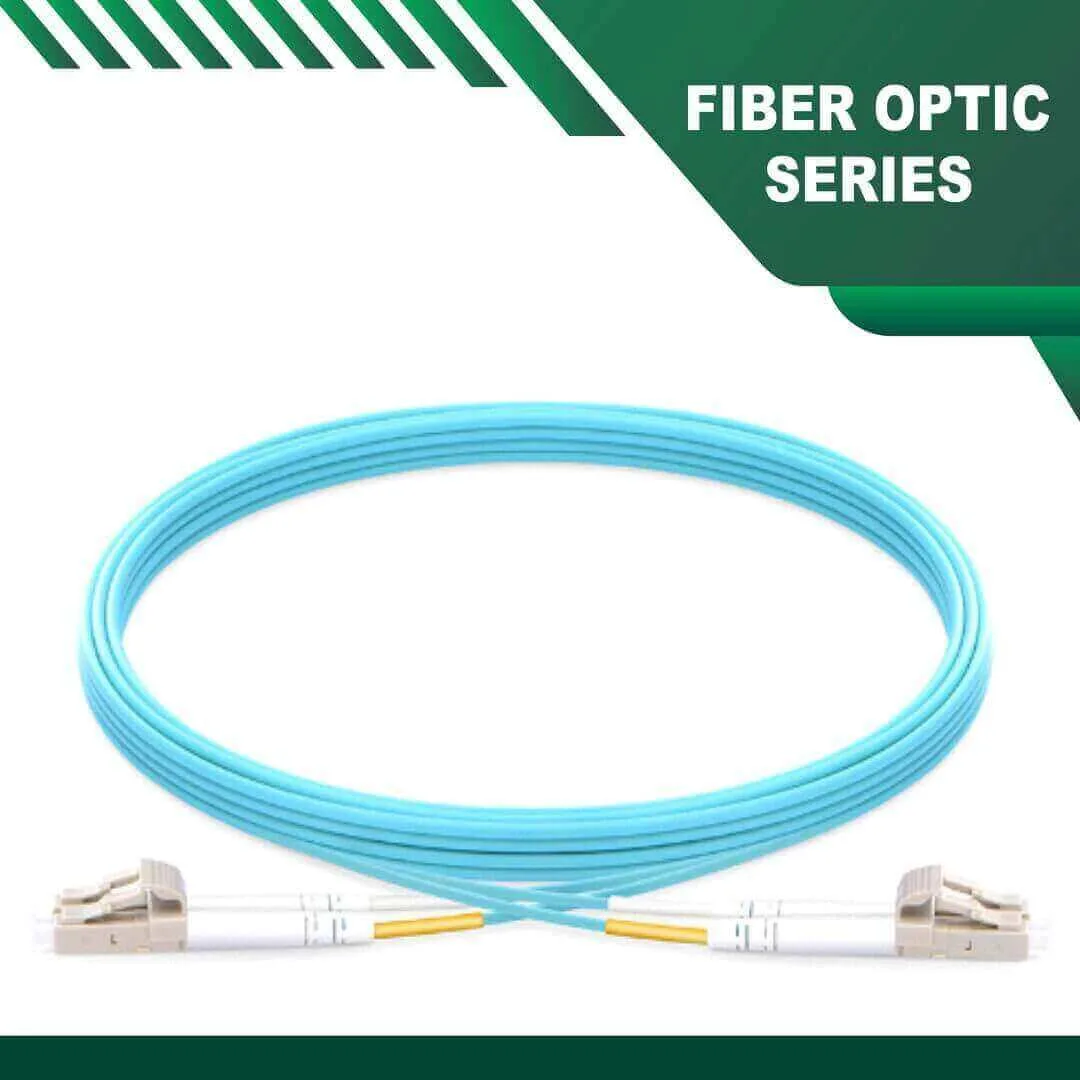

Fiber Optic Patch Cord MM LC-LC-UPC Duplex LSZH OM3

TMT GLOBAL Fiber Optic Patch Cord Multi Mode LC-LC-UPC Duplex LSZH OM3

TMT Global  Patch cables  are manufactured and  tested  in  compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance. Fiber Optic Patch Cord MM LC-LC-UPC Duplex LSZH OM3

Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.

Optical Specifications

• Mode type: Single mode / multi mode
• Cable Type: Simplex/Duplex
• Connector Style: SC, FC, ST, LC, MTRJ,
• Polish Type: PC,UPC,APC
• Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
• Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
• Strength Member: Aramid Yarn
• Outer Jacket: LSZH/PVC/OFNR/OFNP
• Interchangeability &Vibration: ≤0.2dB
• Minimum Bend radius: 10 -13mm
• Wavelength: SM:1310/1550nm MM:850nm
• Operating temperature: -40~75°C
• Jacket Color
• Single mode: Yellow / Green, Yellow Blue
• Storage temperature: -45~85°C
• Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
• Fiber type: ITU-T G.652D, G.657A1 /A2

Multi mode OM-2                   Multi mode OM-3        Multi mode OM-4
≤0.3dB                                            ≤0.3dB                               ≤0.3dB
≥30dB                                             ≥30dB                                 ≥30dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
