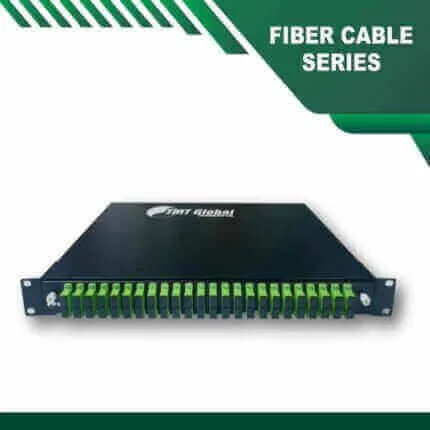

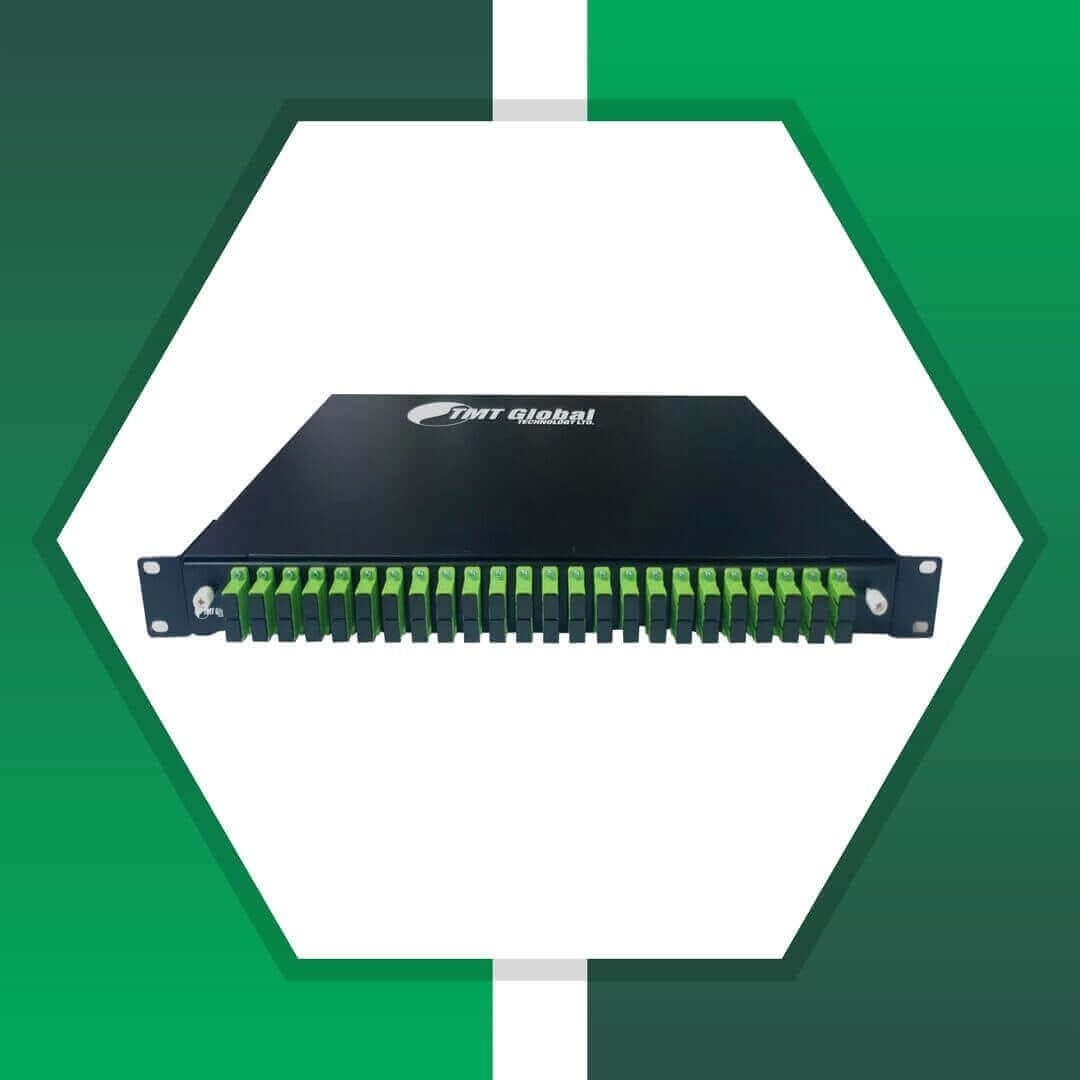

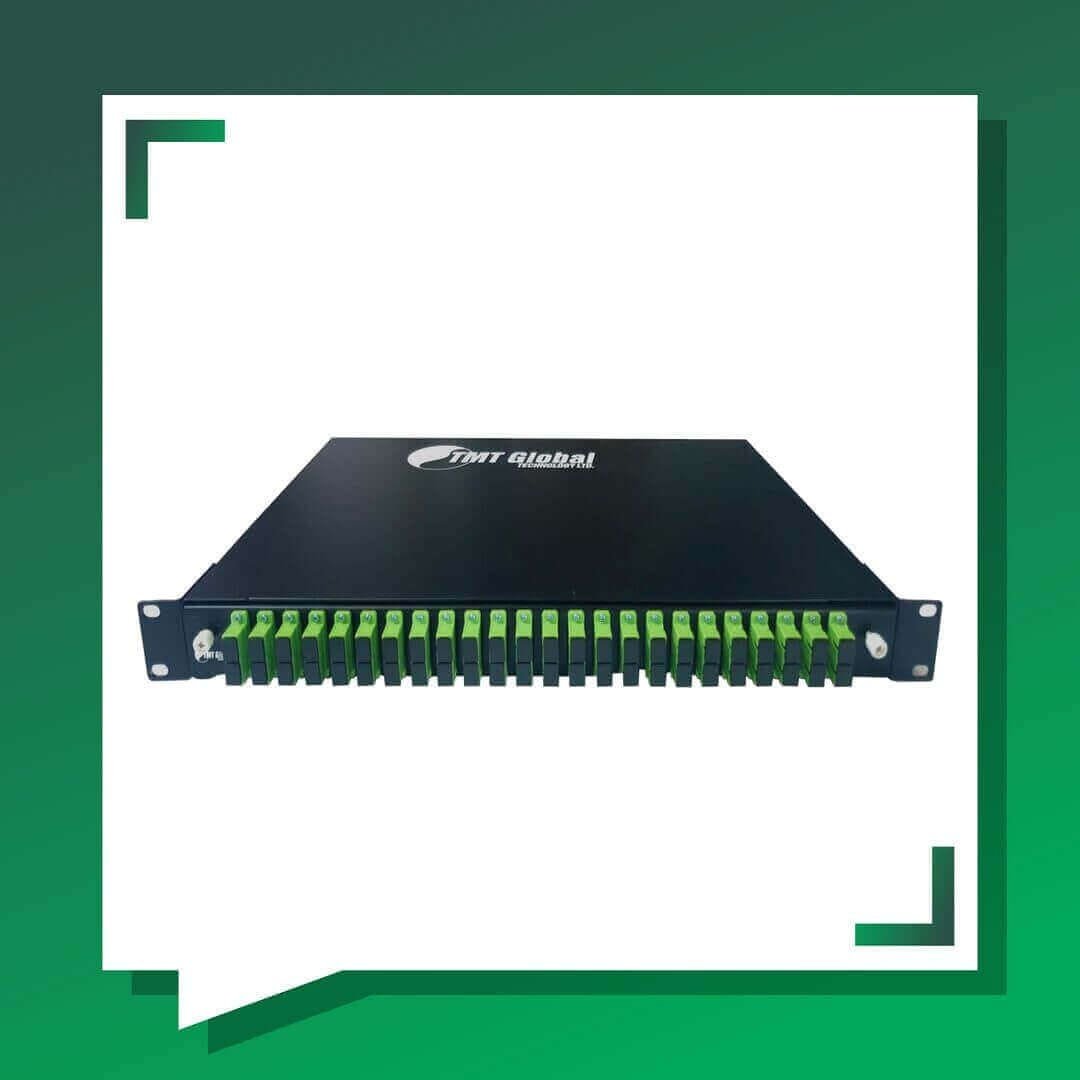

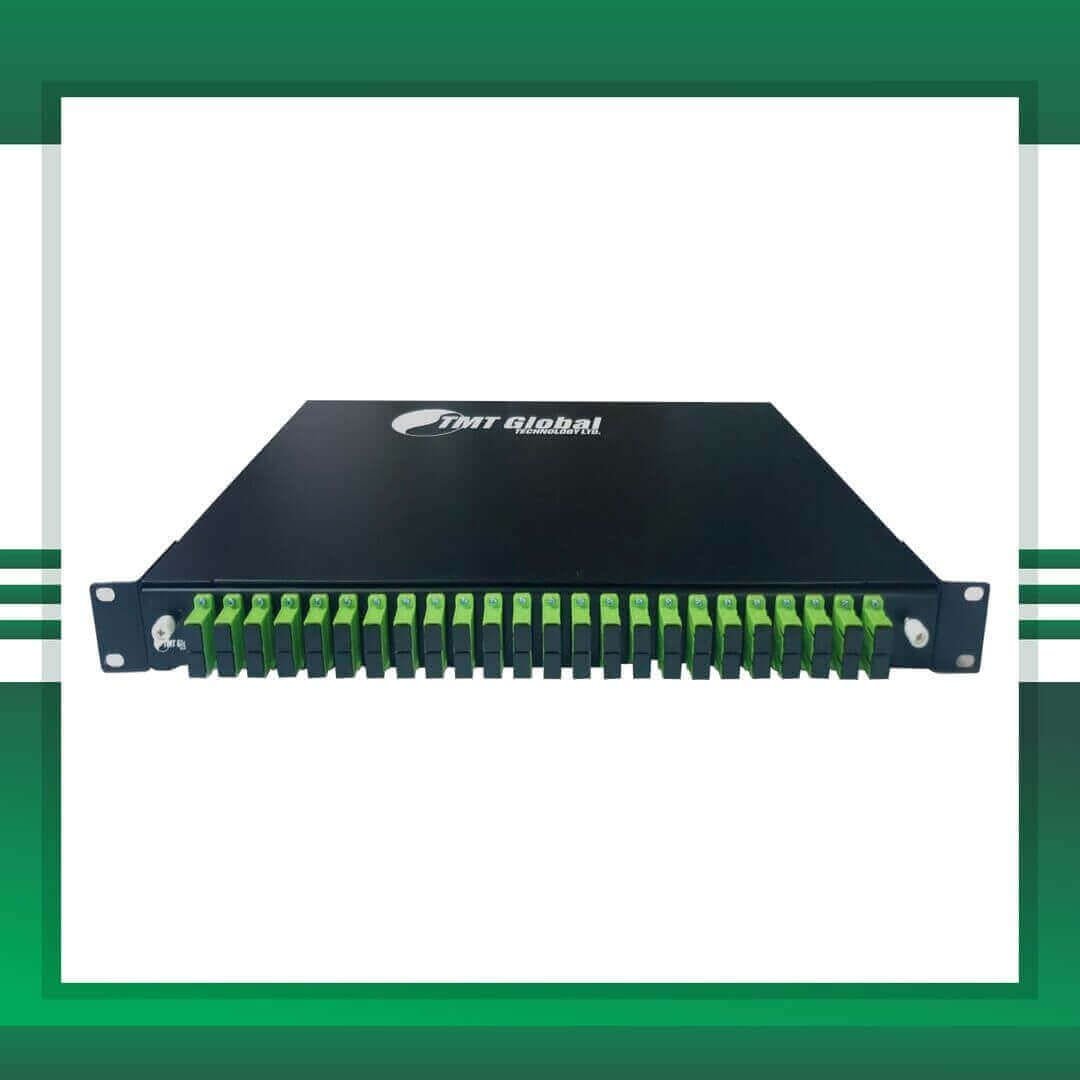

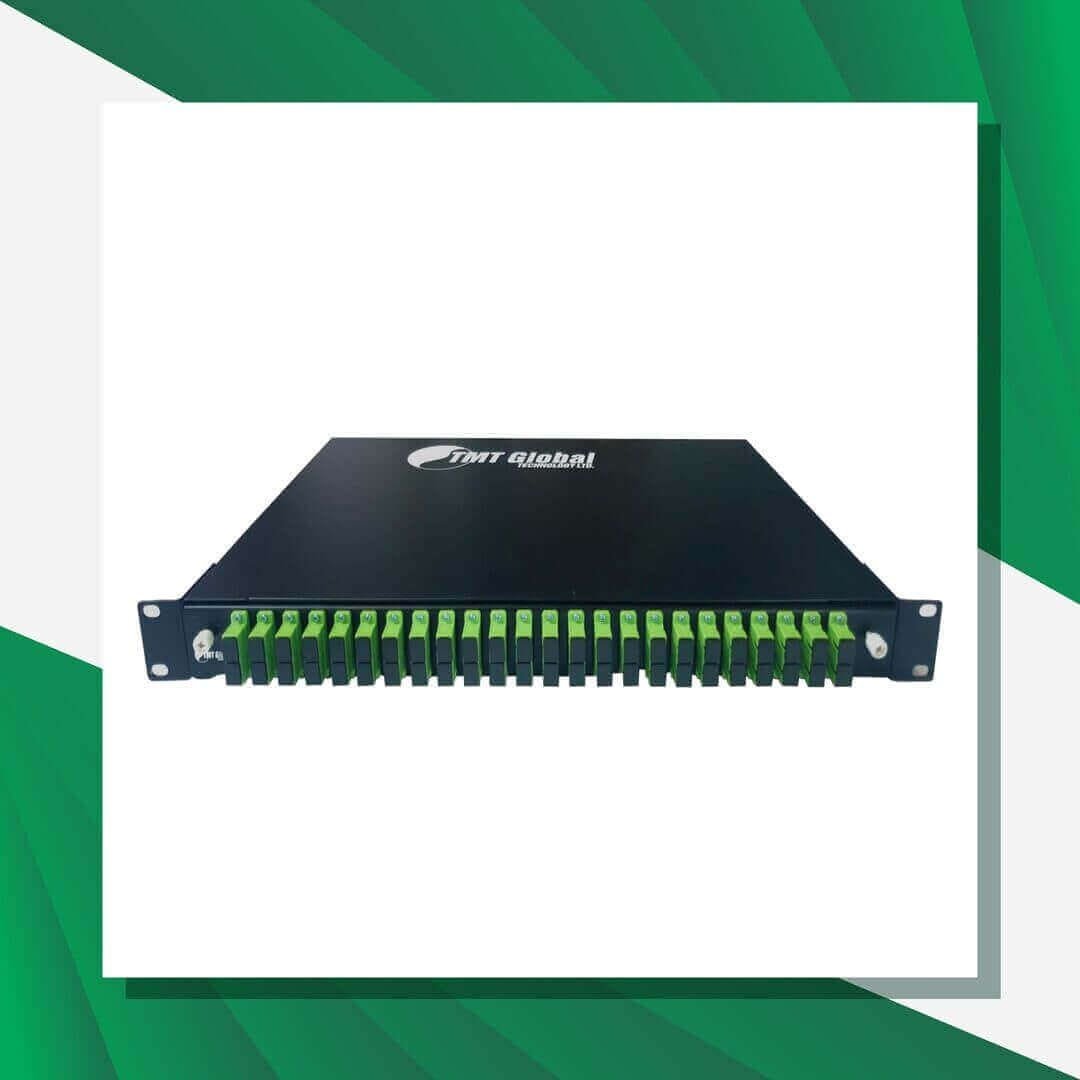

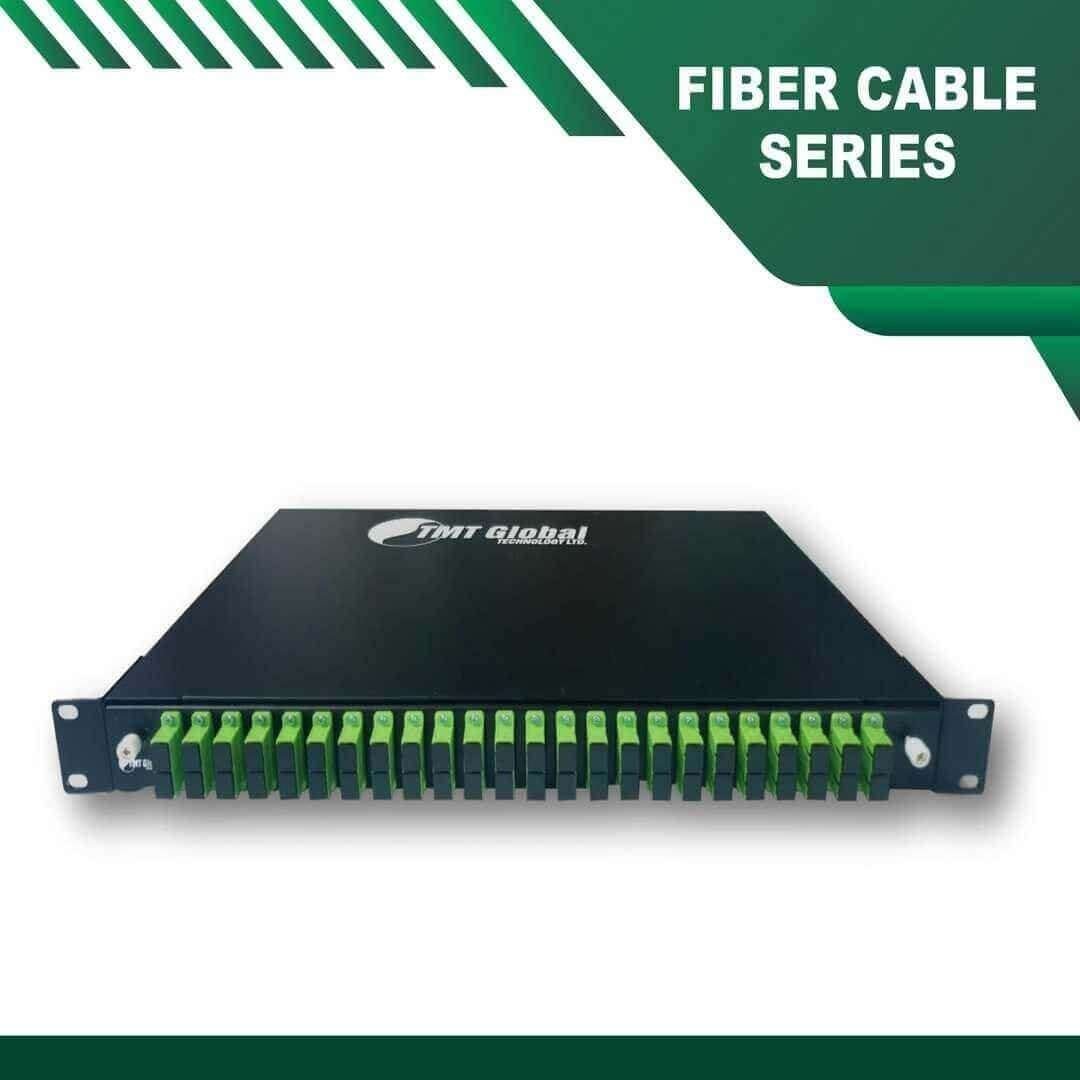

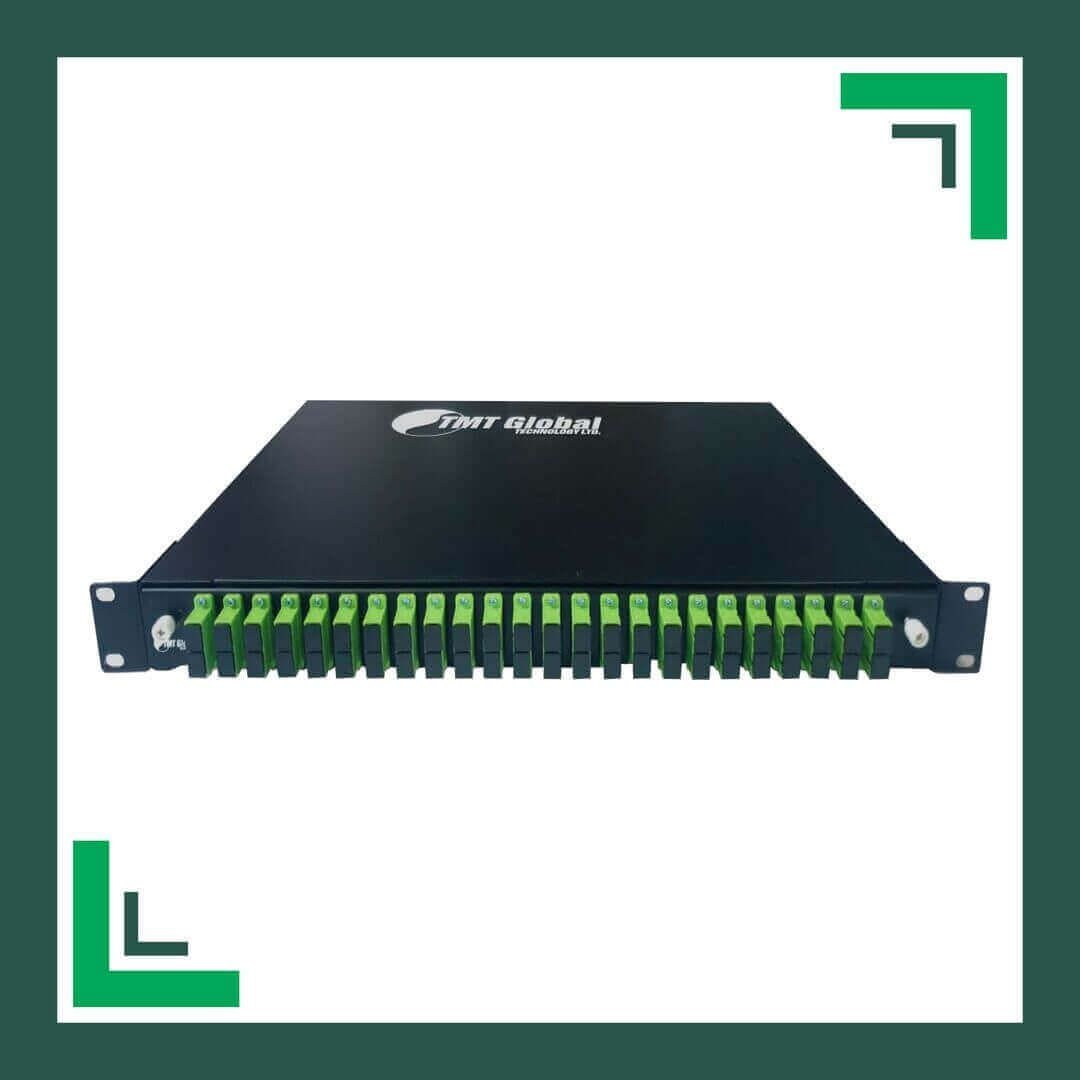

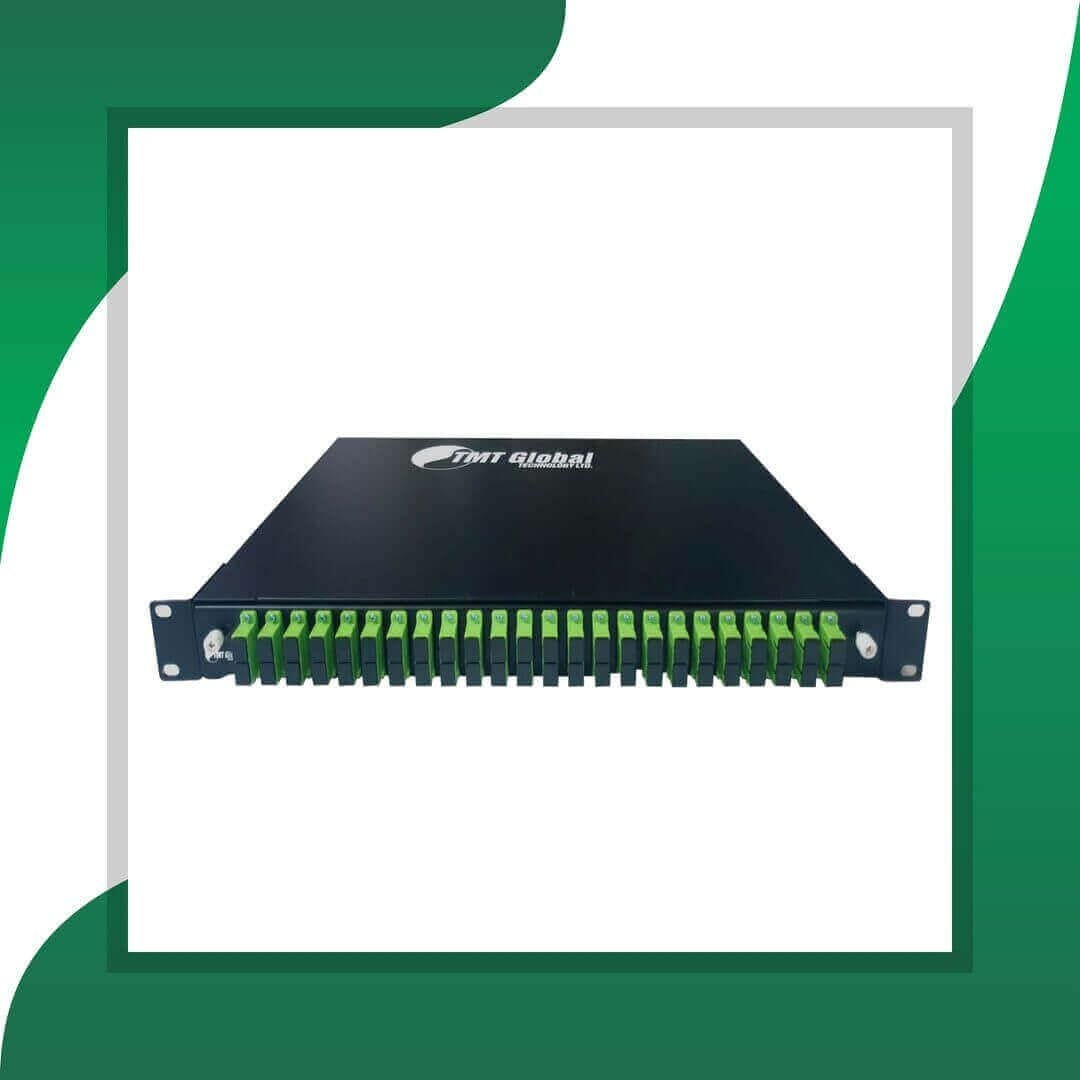

Fiber Patch Panel 48port SC-APC Duplex Adapter Sliding
د.إ250.00
General Specification
Element : 48 port
Mounting Type :Rack
Rack Type : Slide
U Size : 1U (44 mm)
Width : 483mm
Depth : 230mm
Weight : 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating : P20
Adapter Options : SC /LC /FC
Number of ports : 24
Cable Entry 20mm : 2
Material : Cold Rolled Steel
Color : Black/white
Products ID : TMT-482SADL
TMT GLOBAL Fiber Patch Panel 48port SC-APC Duplex Adapter Sliding Type
TMT GLOBAL provides high-quality fiber optic splitter SC LC single-mode multimode OS2 multimode OM2 OM3 OM4 fiber optic equipment for use in various industrial and building automation indoor and outdoor applications. They can be easily used with their flexible construction in narrow applications like CCTV systems, SMATV systems, audio-video intercom systems, public address systems, access control systems, burglar alarm systems, lighting control systems, gate automation systems, smart home automation, building automation systems, computer systems, and many more ELV systems. The products have unique properties and benefits for different types of use.Fiber Patch Panel 48port SC-APC Duplex Adapter Sliding
Features
Sliding patch panel for easy rework and maintenance
Front Panel equipped with SC,LC ,FC, Adaptors
Connection Point to fix Fiber Cassette
Cold rolled steel Constructional Structure
Fixed Splice tray
Applications
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
CCTV
IPTV
Specification
ELEMENT: 12/24/48 Port
Mounting Type: Rack
Rack Type : Slide
U Size: 1U (44 mm)
Width: 483mm
Depth: 230mm
Weight: 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating: P20
Adapter Options: SC /LC /FC
Number of ports: 48
Cable Entry 20mm: 2
Mounting adjustment range: 50mm
Material: Cold Rolled Steel
Material thickness: 1.2mm
Material coating: Powder coating
Color: Black/white
Operating Temperature: -40°c to + 50°c
Compliant to: RoHS, Reach / SVHC
Designed in accordance: TIA/EIA 568.C, ISO/IEC 11801, EN 50173,IEC 60304, IEC 61754, EN 297-1
General Specification
Element : 48port
Mounting Type :Rack
Rack Type : Slide
U Size : 1U (44 mm)
Width : 483mm
Depth : 230mm
Weight : 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating : P20
Adapter Options : SC /LC /FC
Number of ports : 24
Cable Entry 20mm : 2
Material : Cold Rolled Steel
Color : Black/white
Products ID : TMT-482LUDL
Item Name Fiber Patch Panel 48port SC-APC Duplex Adapter Sliding Type
| Brand |
|---|
Specification PDF
Download
