24 port sc apc fiber patch panel duplex adapter sliding type
General Specification
Element : 12/24 Port
Mounting Type :Rack
Rack Type : Slide
U Size : 1U (44 mm)
Width : 483mm
Depth : 230mm
Weight : 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating : P20
Adapter Options : SC /LC /FC
Number of ports : 24
Cable Entry 20mm : 2
Material : Cold Rolled Steel
Color : Black/white
Products IDÂ : TMT-242SASL
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

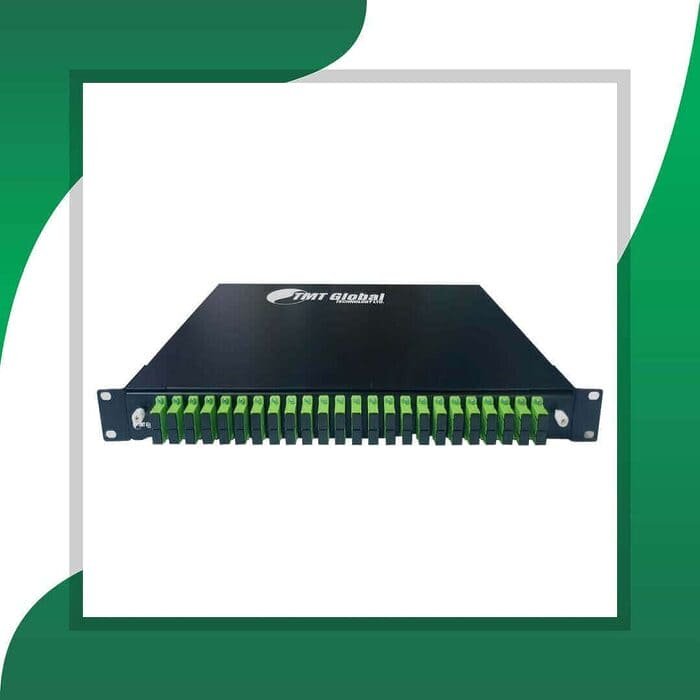

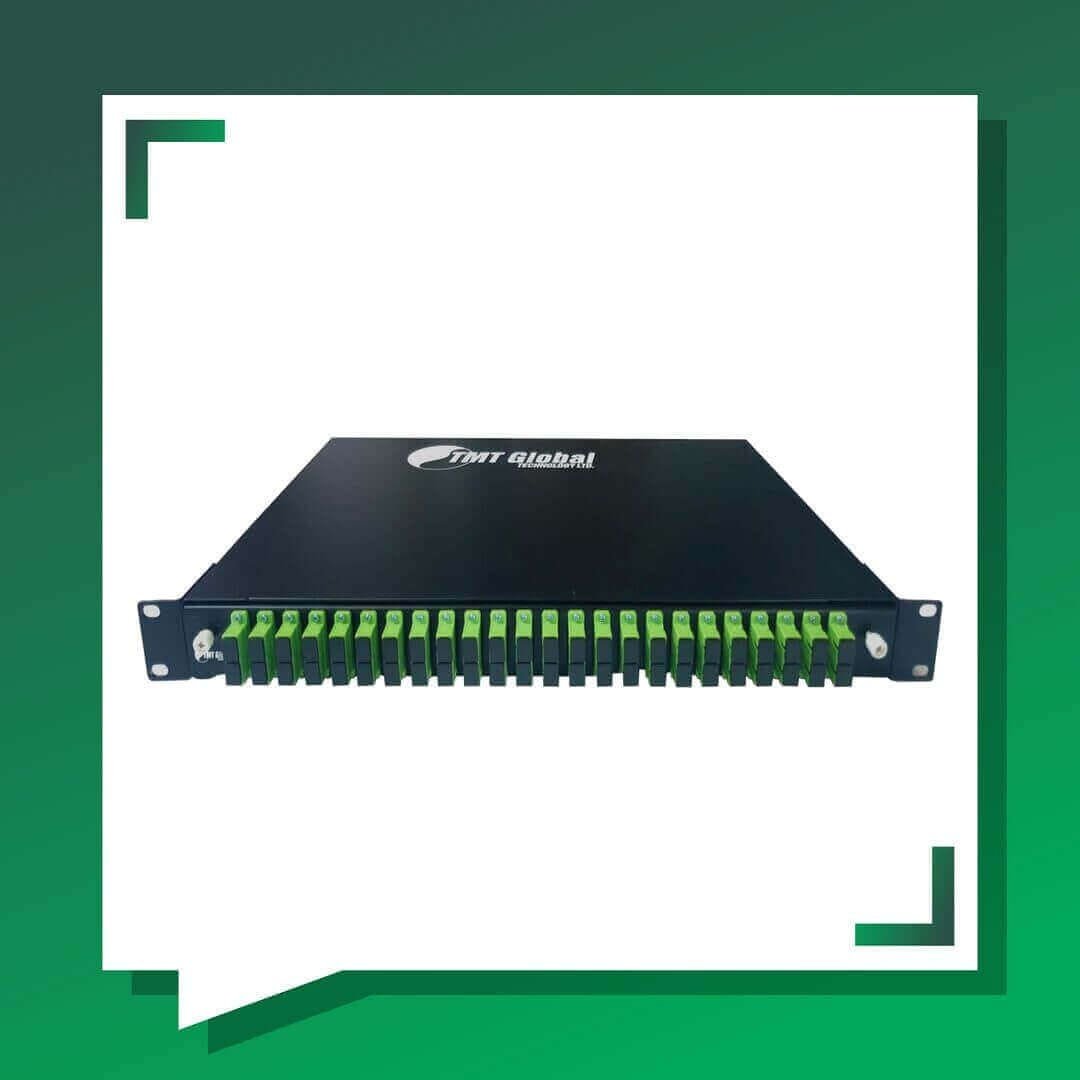

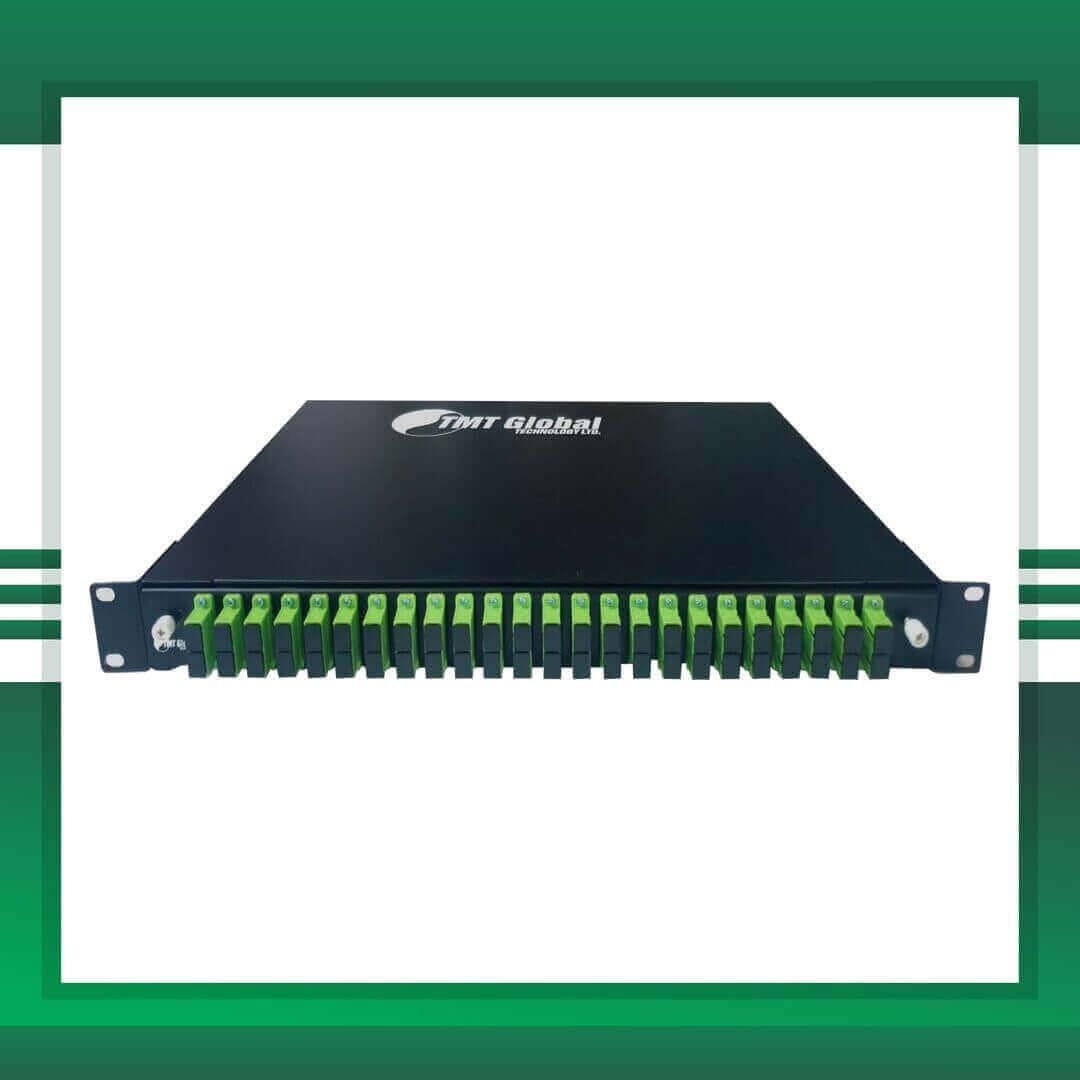

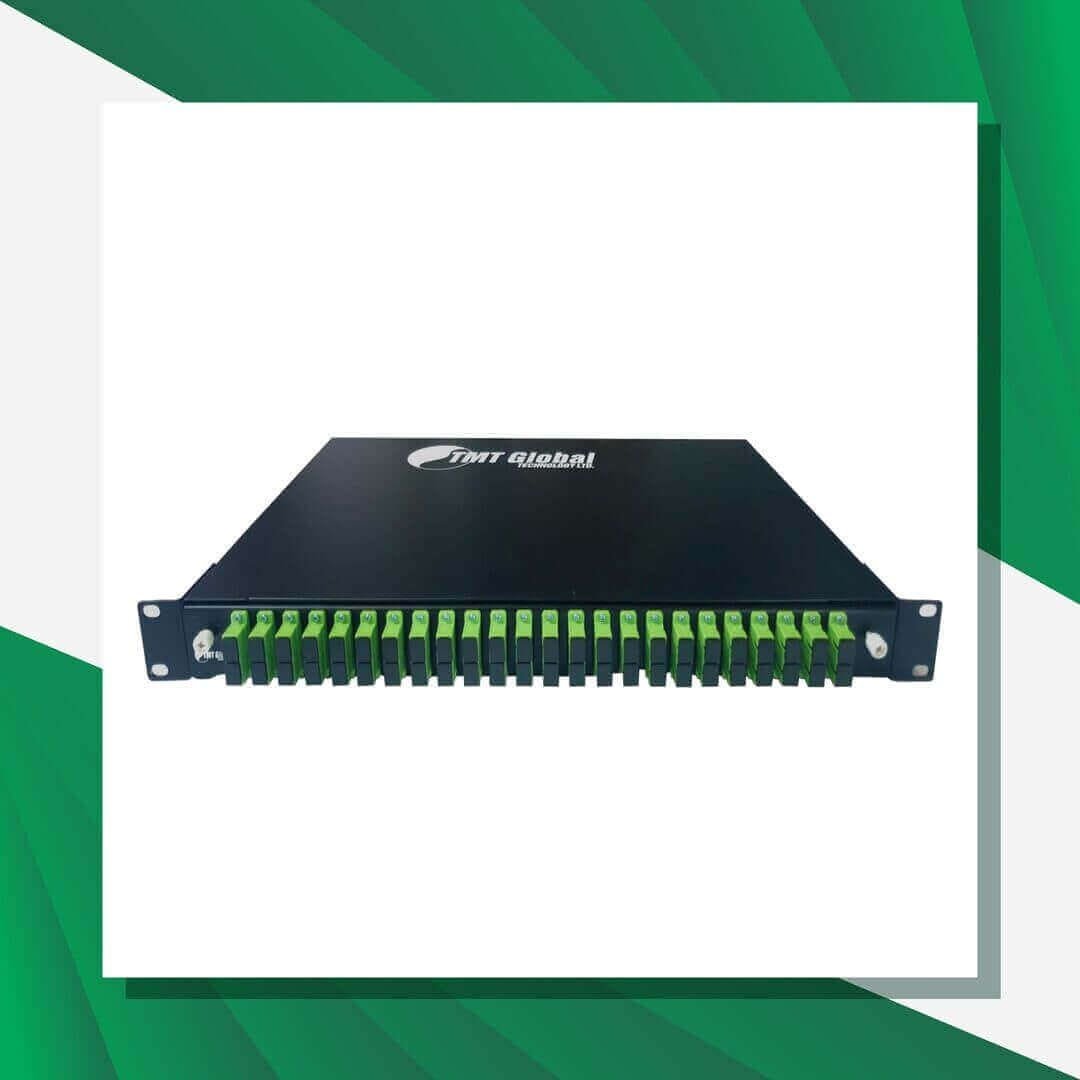

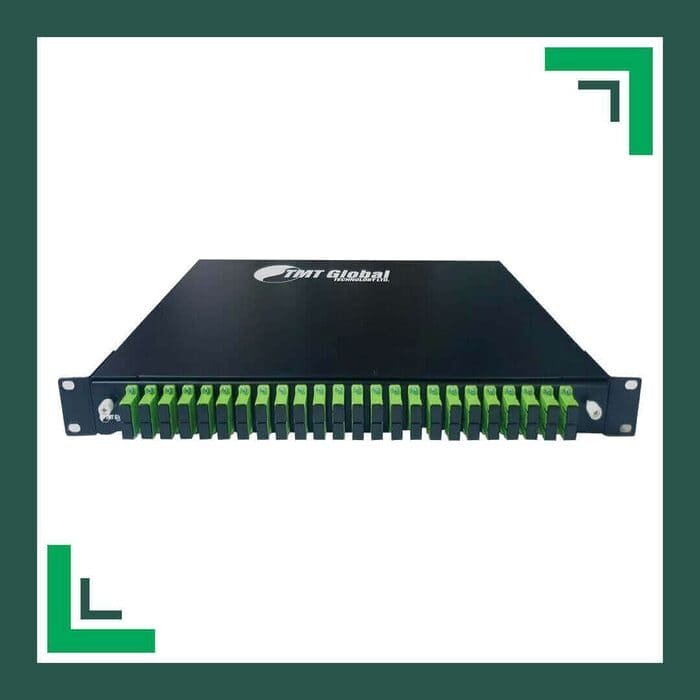

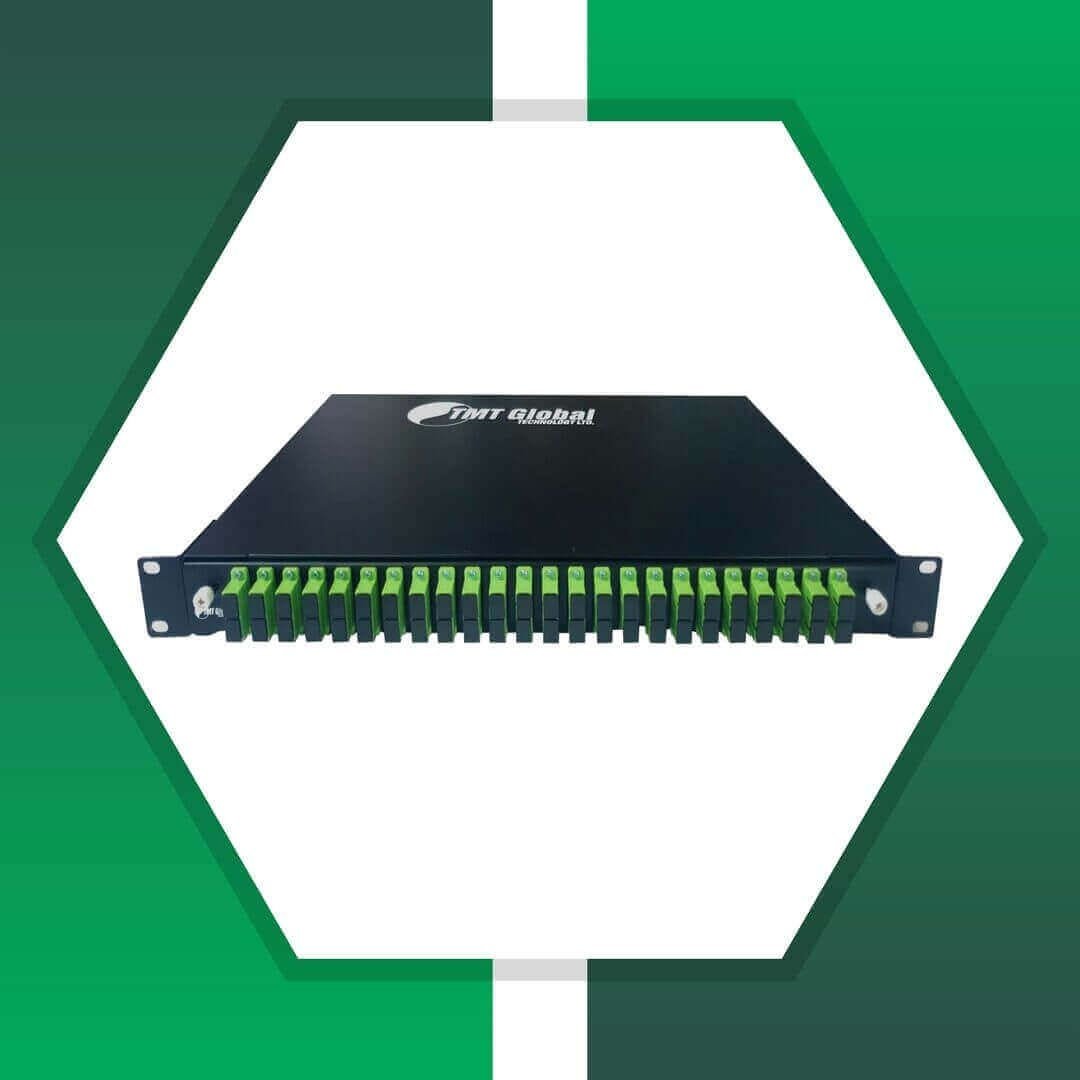

TMT Global Fiber Patch Panel 24port SC-APC Duplex Adapter Sliding Type
TMT Global Technology LTD aims to provide the best quality products 24 port sc apc fiber patch panel duplex adapter sliding type r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.
Features
Sliding patch panel for easy rework and maintenance
Front Panel equipped with SC,LC ,FC, Adaptors
Connection Point to fix Fiber Cassette
Cold rolled steel Constructional Structure
Fixed Splice tray
Applications
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
CCTV
IPTV
Specification
ELEMENT: 12/24/48 Port
Mounting Type: Rack
Rack Type : Slide
U Size: 1U (44 mm)
Width: 483mm
Depth: Â 230mm
Weight: 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating:Â P20
Adapter Options: SC /LC /FC
Number of ports: 48
Cable Entry 20mm:Â 2
Mounting adjustment range: 50mm
1 Material: Cold Rolled Steel
2 Material thickness: 1.2mm
3 Material coating: Powder coating
Color: Black/white
Operating Temperature: -40°c to + 50°c
Compliant to: RoHS, Reach / SVHC
Designed in accordance: TIA/EIA 568.C, ISO/IEC 11801, EN 50173,IEC 60304, IEC 61754, EN 297-1
