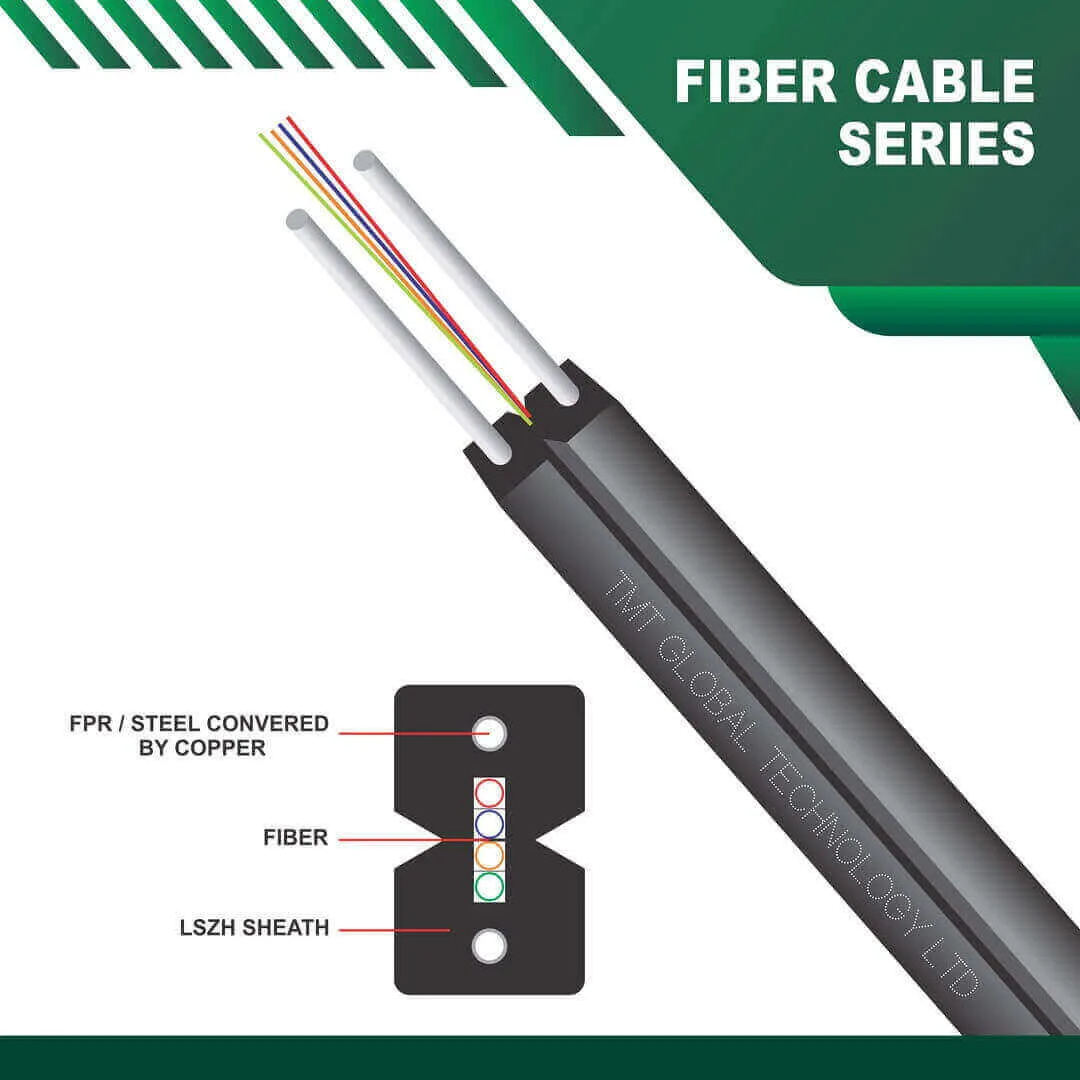

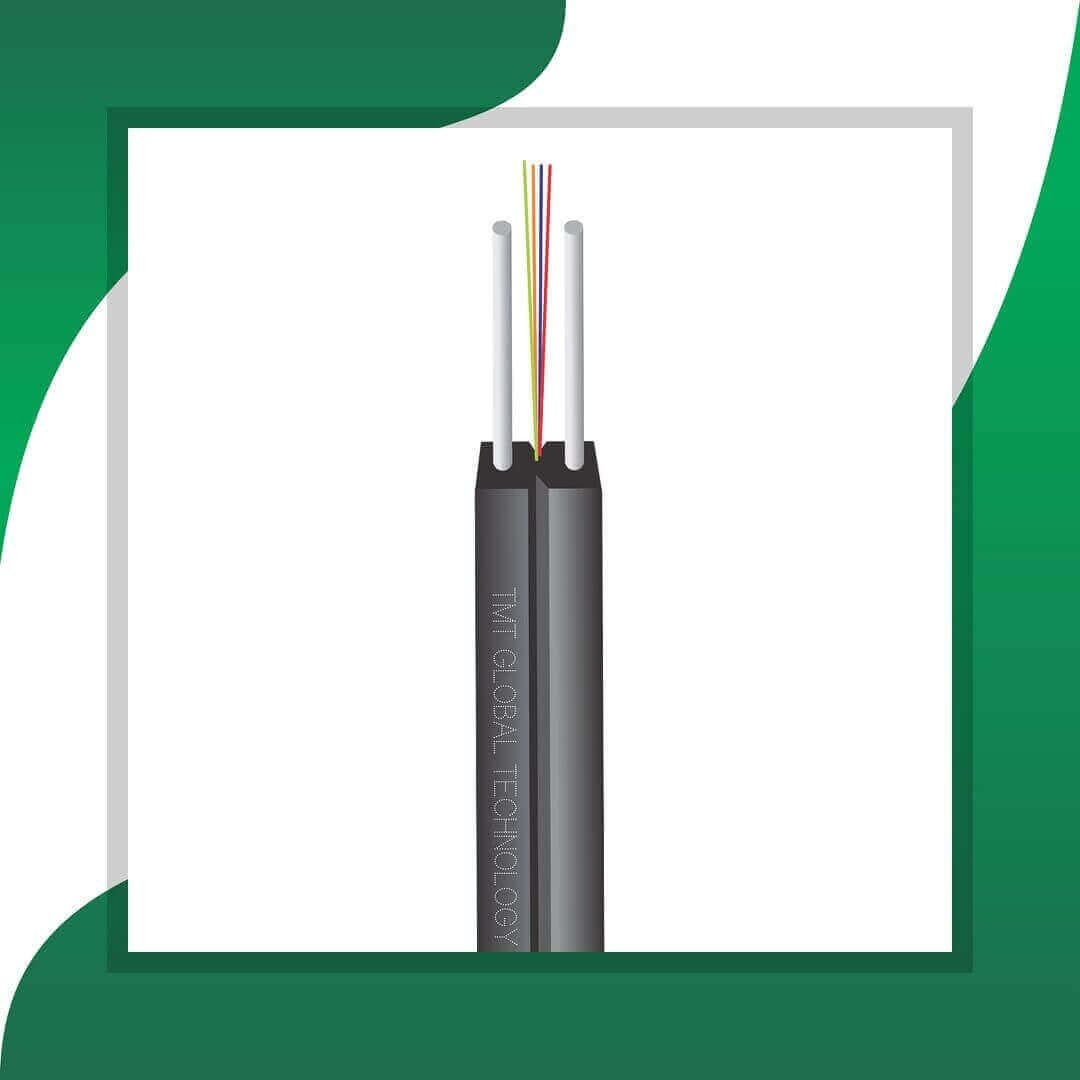

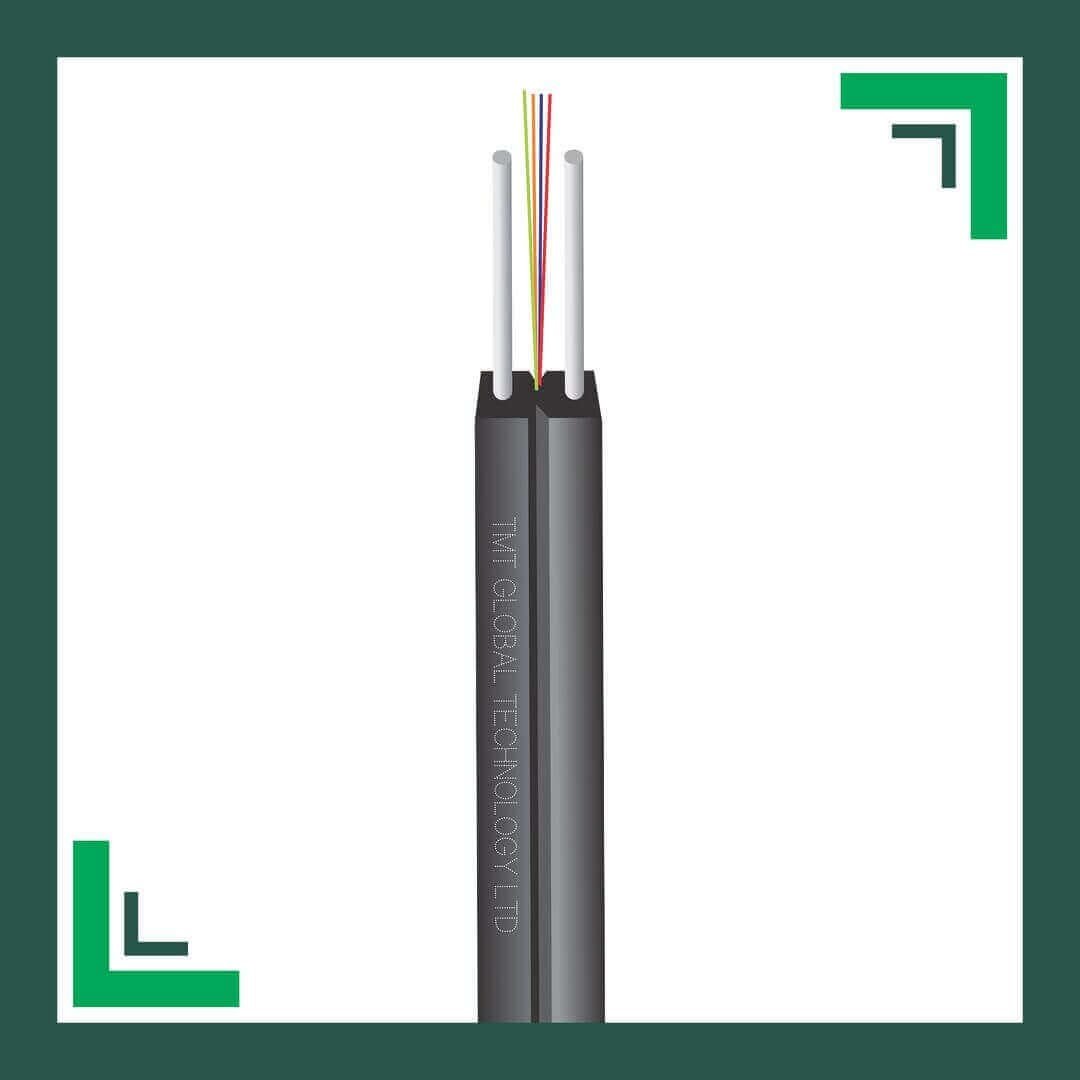

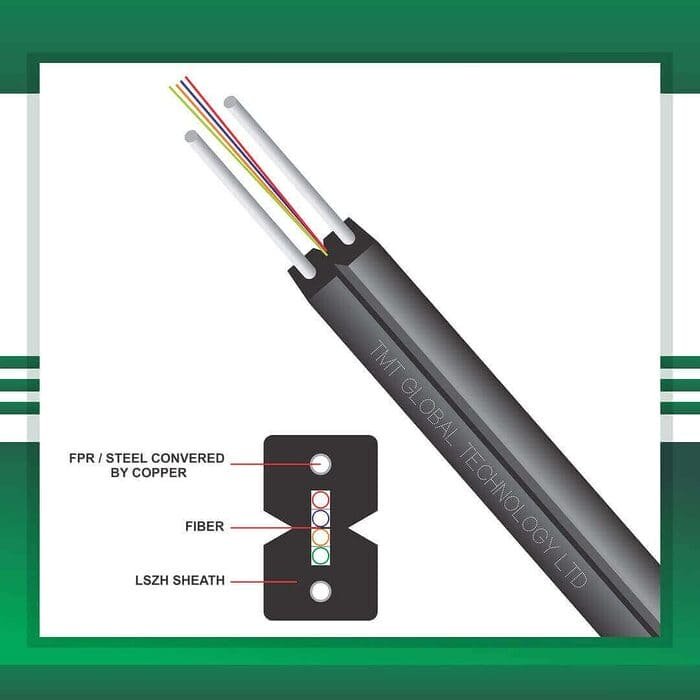

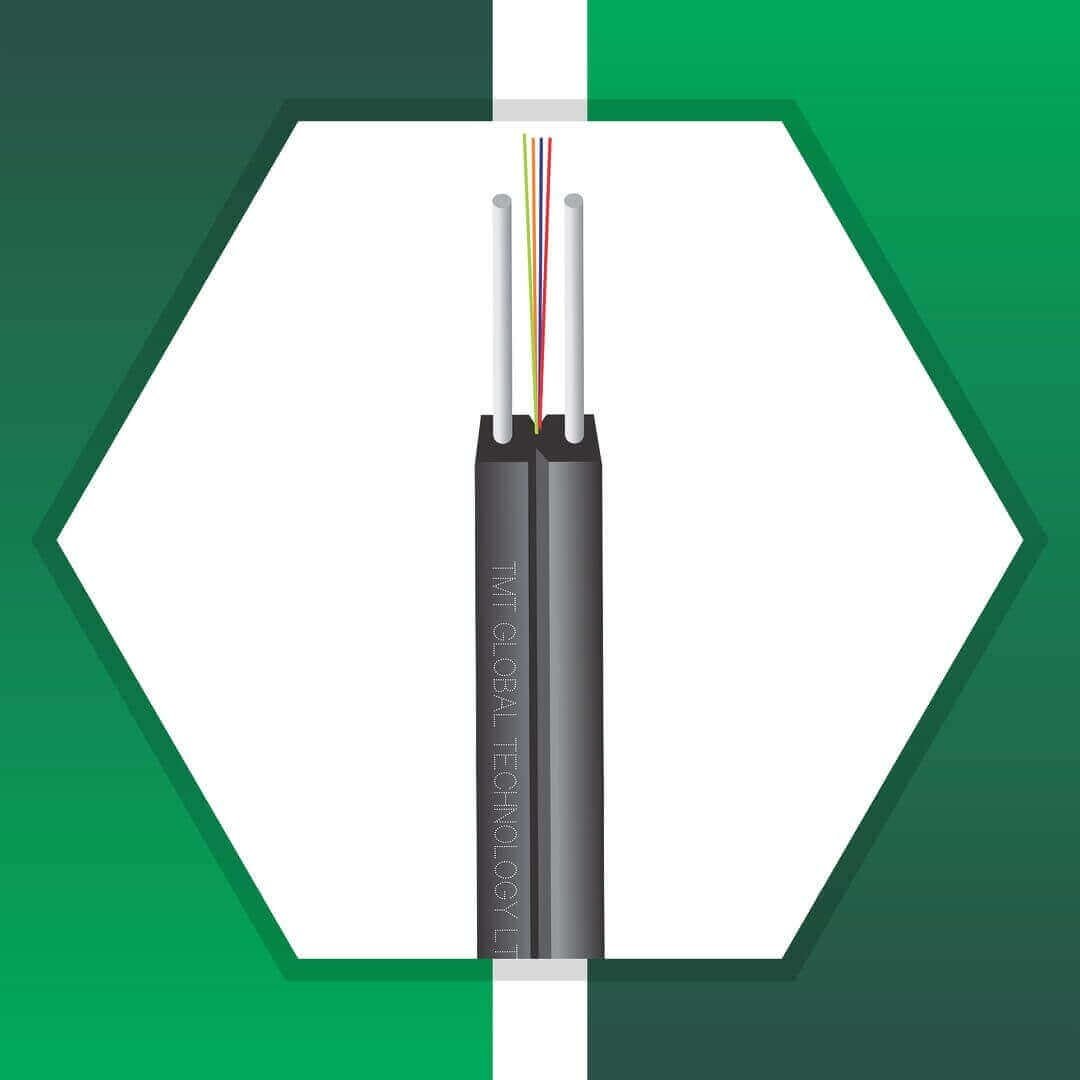

FTTH fiber optic Drop cable 4 Core SM outd g.657.a2
د.إ2.00
General Specification
Products : FTTH Fiber optic cable single mode
Fiber Count : 4
Fiber Type :ITU-T G.657A1/A2,G.652D
Outer Jacket : LSZH, BLACK
Attenuation (max/KM) :0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±
Product ID : TMT-045TPK
0
People watching this product now!
Description
TMT GLOBAL FTTH fiber optic Drop cable 4 Core single mode g.657.a2
TMT GLOBAL FTTH fiber optic Drop cable 4 Core SM outd g.657.a2 singlemode Indoor/outdoor FTTH fiber optic Drop cable 4 Core SM ind-outd g.657.a2
PHYSICAL DESCRIPTION
- Products: multi mode Fiber optic cable
- Tube Filling Compound: Thixotropic jelly /N
- Fiber Type: 50/125 OM4
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: N
- Packing Detail
- Fiber Count: 6,8,12,24,
- Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
- Cable Diameter(mm): 4.2*-12
- Cable Weight(kg/km): 45±
- Length/ Drum: 2000 m Drum ±5%
- Ripcord: Polyester cord
- Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Physical tests Value Standard
Tensile Strength 2700 N (During Installation) IEC 60794-1-E1
1700 N (During Operation)
Impact Resistance 10J, 3 impacts IEC 60794-1-E4
Crush Resistance 220 N/cm IEC 60794-1-E3
Temperature Cycling -40 to +70 °C IEC 60794-1-F1
Flame Retardancy According to IEC 60332-3 IEC 60332-3
Cable Bending Radius
Bend Radius (during installation) 20x Cable Diameter IEC 60794-1-2-E11A
Bend Radius (during Service) 1 0x Cable Diameter IEC 60794-1-E11
Repeating Bending 20x Cable Diameter IEC 60794-1-E6
Temperature Range)
Operation Temperature -40 to +70 C IEC 60794-1-2-F1
Storage and Transportation Temperature -40 to +70 C
Installation Temperature -30 to +60 C
Optical Characteristics
Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
Specification PDF
Specification PDF
Download
Download
