CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A135BOK

Choosing the CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A135BOK

Category 6A supports 10GBASE-T to the full 100 m channel, the right choice for Wi-Fi 6/7 access points, new office floors and anything planned to last 15+ years. U/UTP has no screen: it is the lightest and fastest to install, best for offices and homes away from heavy electrical noise. The black PE outer jacket is UV and moisture resistant for outdoor ducts, external walls and runs between buildings; it is not for indoor risers where low-smoke cable is required.

Related options in this range: CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A137BOK · CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A137BLX Series · CAT6A U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A137BPX Series · CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A135BLX Series · CAT6A U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A135BPX Series

Order code: 6A135BOK. Send us the length, jacket and quantity for a project quotation and datasheet.

Discover the TMT Global Cat6a U/UTP PE Outdoor Network Cable, designed for high-performance applications. With robust specifications including a 23 AWG construction and 500 MHz bandwidth, this cable facilitates reliable data transmission for both residential and commercial use. Its U/UTP design minimizes interference, ensuring clearer signals for streaming and gaming. Built for durability, the polyethylene outer jacket withstands harsh outdoor conditions, making it a perfect choice for extensive installations. With a length of 305 meters, the TMT Global cable reduces the need for frequent splicing while maintaining peak performance. Trust this high-quality networking solution to meet the challenges of modern data-intensive applications and enhance your outdoor connectivity.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

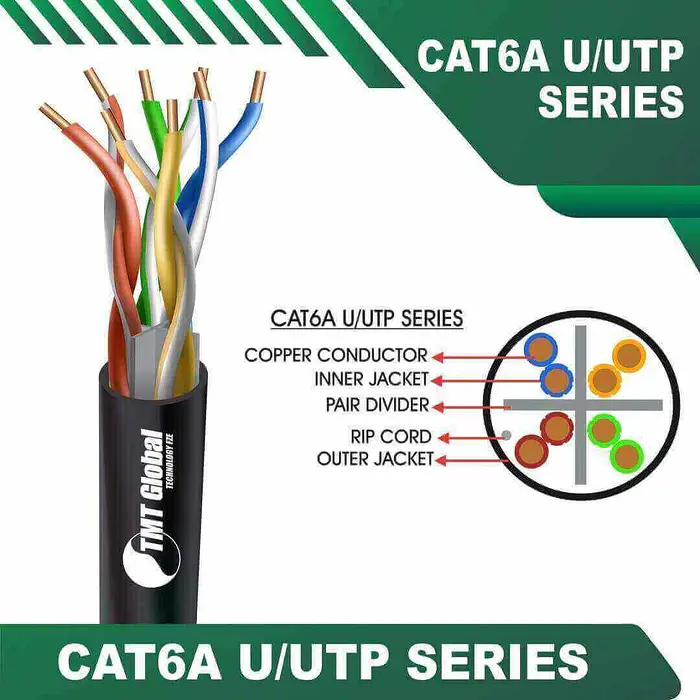

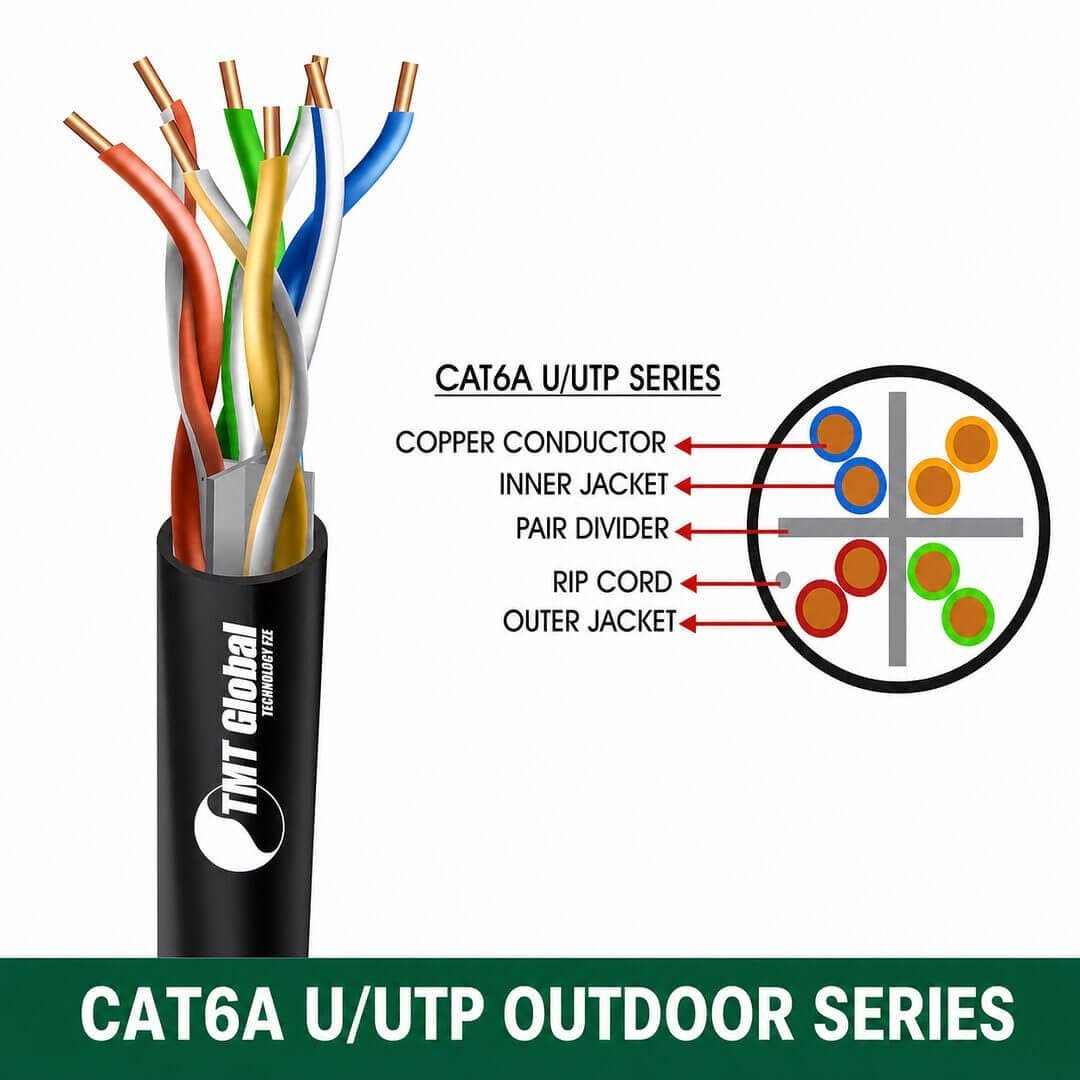

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PE OUTDOOR
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A135BOK
