CAT6A U/UTP 23AWG Indoor LSZH Cable
Key features
- CAT6A U/UTP • 100 Ω • 4-pair horizontal cable
- 23AWG bare copper conductor • nominal 0.57 mm release code
- Blue LSZH / HFFR indoor jacket
- Dedicated new TMT CPR model
- 500 MHz category performance target
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

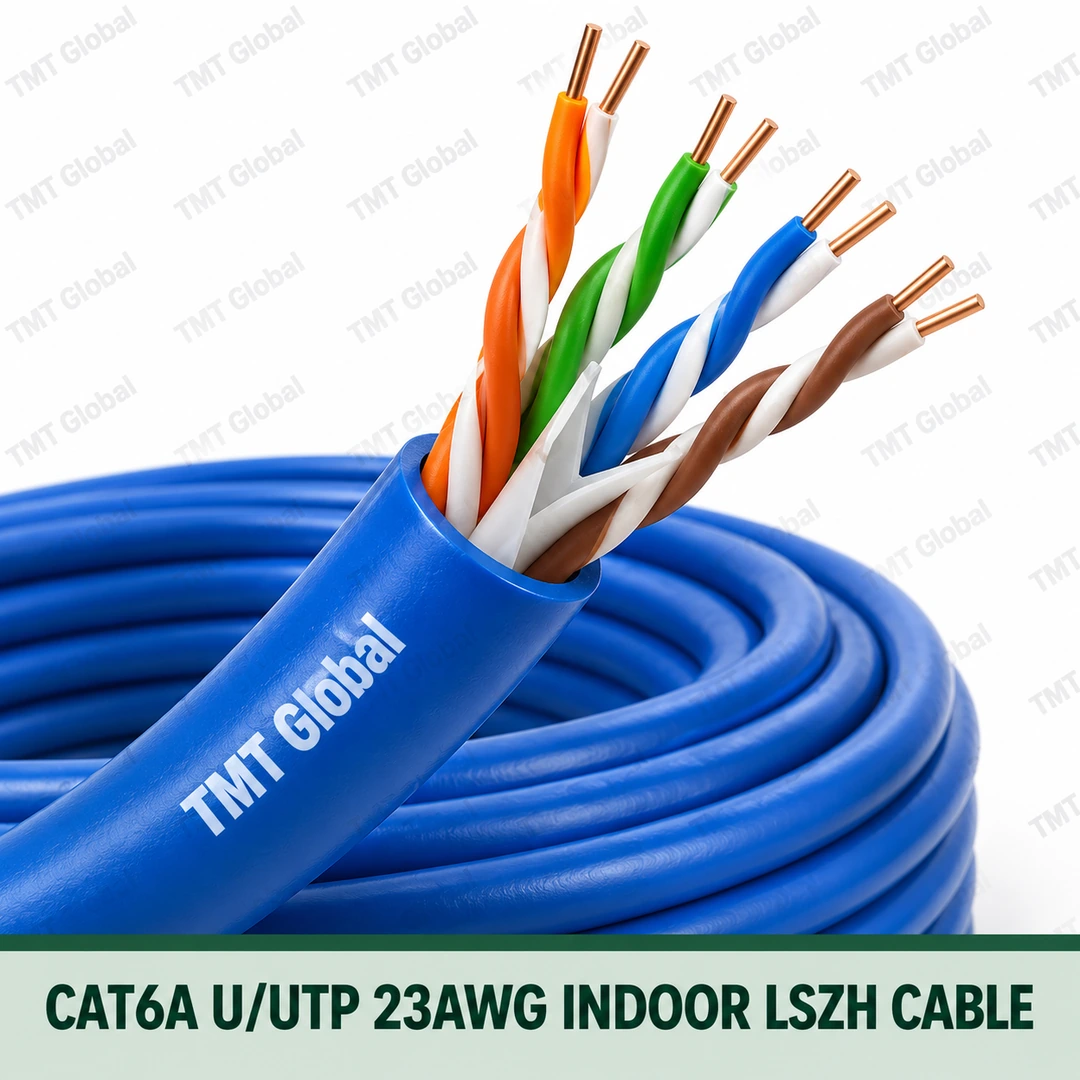

TMT Global Series CAT6A U/UTP 23AWG Indoor LSZH Cable
The TMT CAT6A U/UTP 23AWG Indoor LSZH Cable is a new 500 MHz-class bare-copper horizontal data cable developed for permanent UAE building telecommunications routes. The model uses a controlled blue LSZH jacket and a dedicated new TMT item code so the final factory construction, accredited performance testing, CPR certificate, DoP, CE marking and e& submission all refer to one exact product.
Key features
- CAT6A U/UTP • 100 Ω • 4-pair horizontal cable
- 23AWG bare copper conductor • nominal 0.57 mm release code
- Blue LSZH / HFFR indoor jacket
- Dedicated new TMT CPR model
- 500 MHz category performance target
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Typical applications
- 10 Gigabit Ethernet horizontal links subject to final CAT6A verification
- High-performance commercial building structured cabling
- Data-centre edge / enterprise horizontal distribution
- PoE applications subject to final verified performance
- Permanent indoor routes requiring halogen-free cable
PRODUCT RECORDS
PRELIMINARY DEVELOPMENT / PRE-TEST
FORMAL CPR SYSTEM 1+ RELEASE
E& SUBMISSION CONTROL
CONSTRUCTION / ELECTRICAL BASELINE
PERFORMANCE / TEST CONTROL
STANDARDS / CPR CONTROL
| Brand | TMT Global |
|---|---|
| Jacket Type | LSZH |
| AWG | 23 awg |
