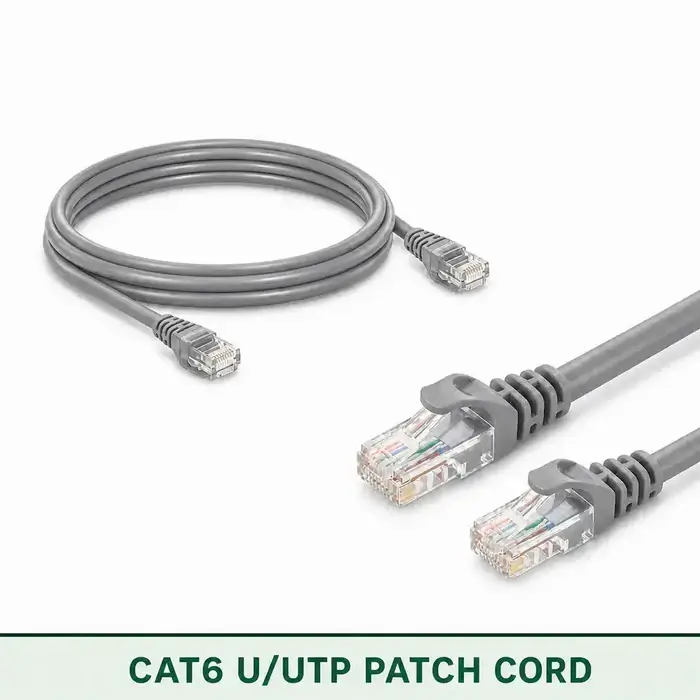

Cat6 U/UTP 6X3PMULXXX Series | 23 AWG Network Patch Cord
Features
- Snagless RJ45 connectors
- Premium tmt copper conductors
- Multiple colours
- Multiple lengths
- Flexible PVC / LSZH jacket options
- Factory tested
- Backward compatible where applicable
- Backward compatible with Cat5e/Cat5 infrastructure
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
TMT Global Cat6 U/UTP 6X3PMULXXX Series Data Patch CordsÂ
The TMT GLOBAL Cat6 Data Ethernet Patch Cord is engineered for structured cabling and enterprise networking environments requiring higher bandwidth than Cat5e. Manufactured by TMT Global Technology Ltd, this patch cord delivers stable, higher-frequency performance for installers, systems integrators, and structured cabling contractors specifying Cat6 links for LAN, data centre, and building infrastructure projects. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless RJ45 connectors
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
- Backward compatible with Cat5e/Cat5 infrastructure
Application
- Structured Cabling
- Data Centres
- Enterprise LAN
- VoIP
- Wireless Access Points
- Smart Buildings
- Industrial Networks
Electrical & Mechanical Specifications
ISO/IEC 11801 Class E / TIA/EIA-568-C.2
Physical Properties, Length & Compliance
Physical & Mechanical Properties
Compliance & Certification
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | LSZH |
| Length | 15 cm, 20 cm, 25 cm, 30 cm, 50 cm, 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 6 m, 8 m, 10 m, 12 m, 15 m, 20 m, 25 m, 30 m, 35 m, 40 m, 45 m, 50 m, 60 m, 70 m, 80 m, 90 m |
