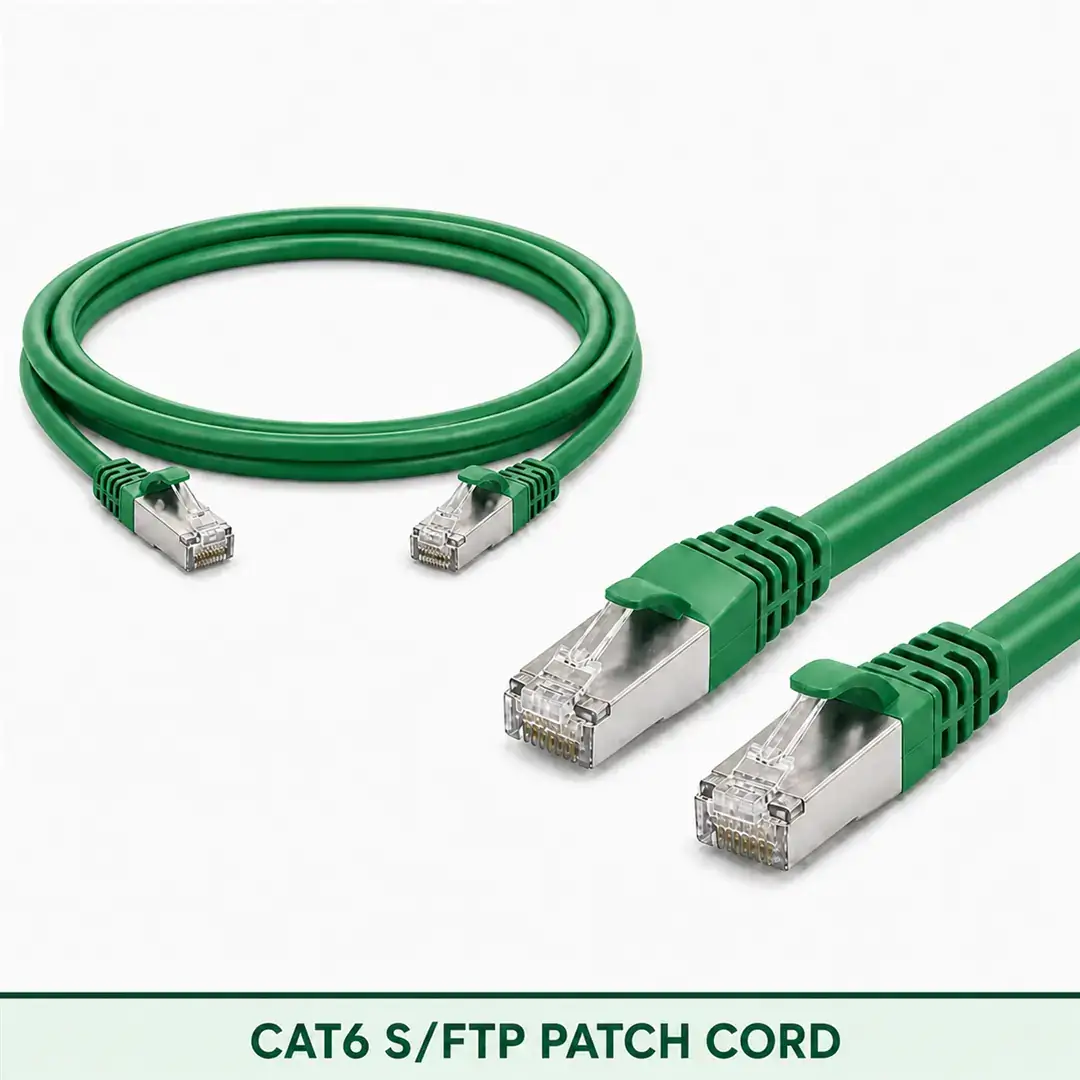

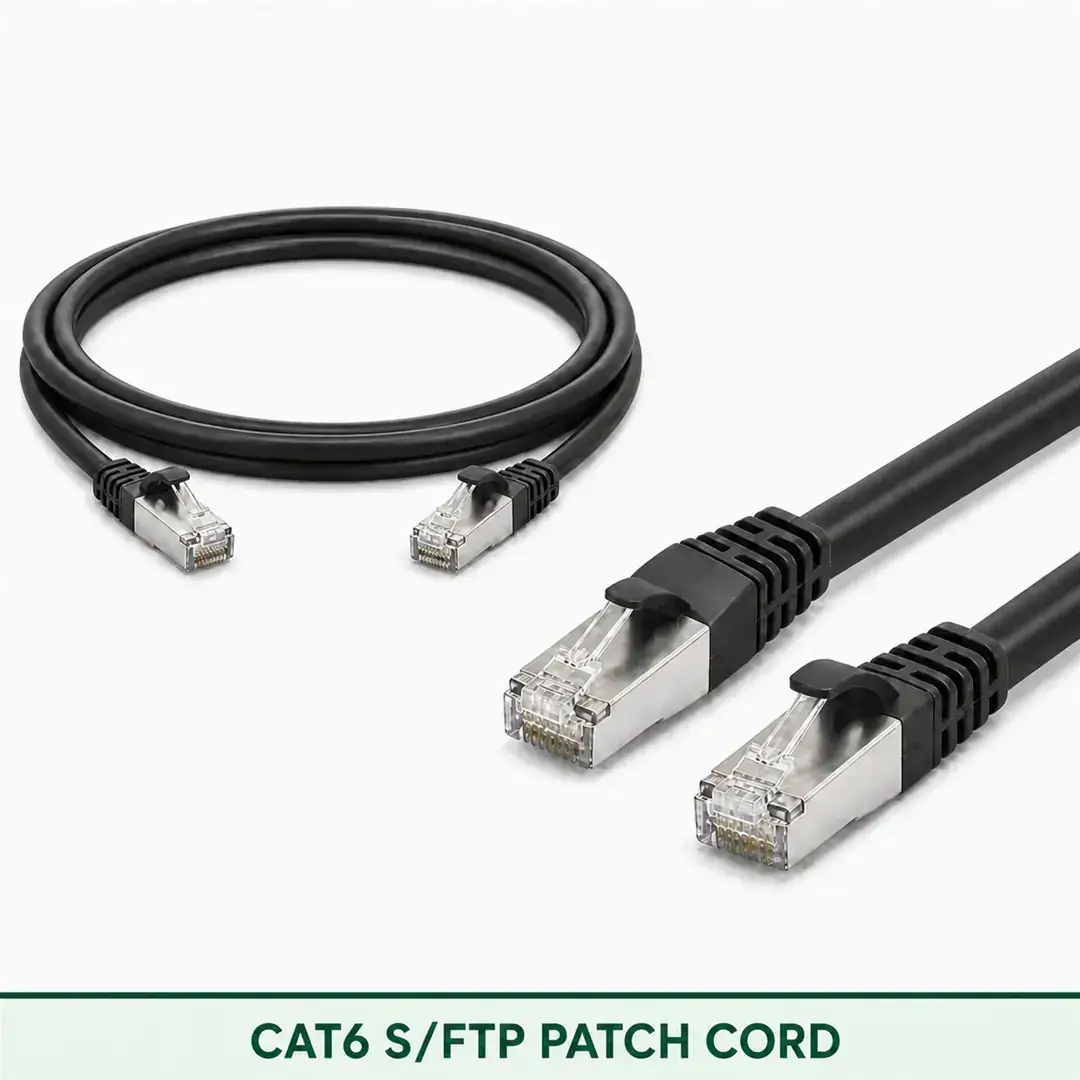

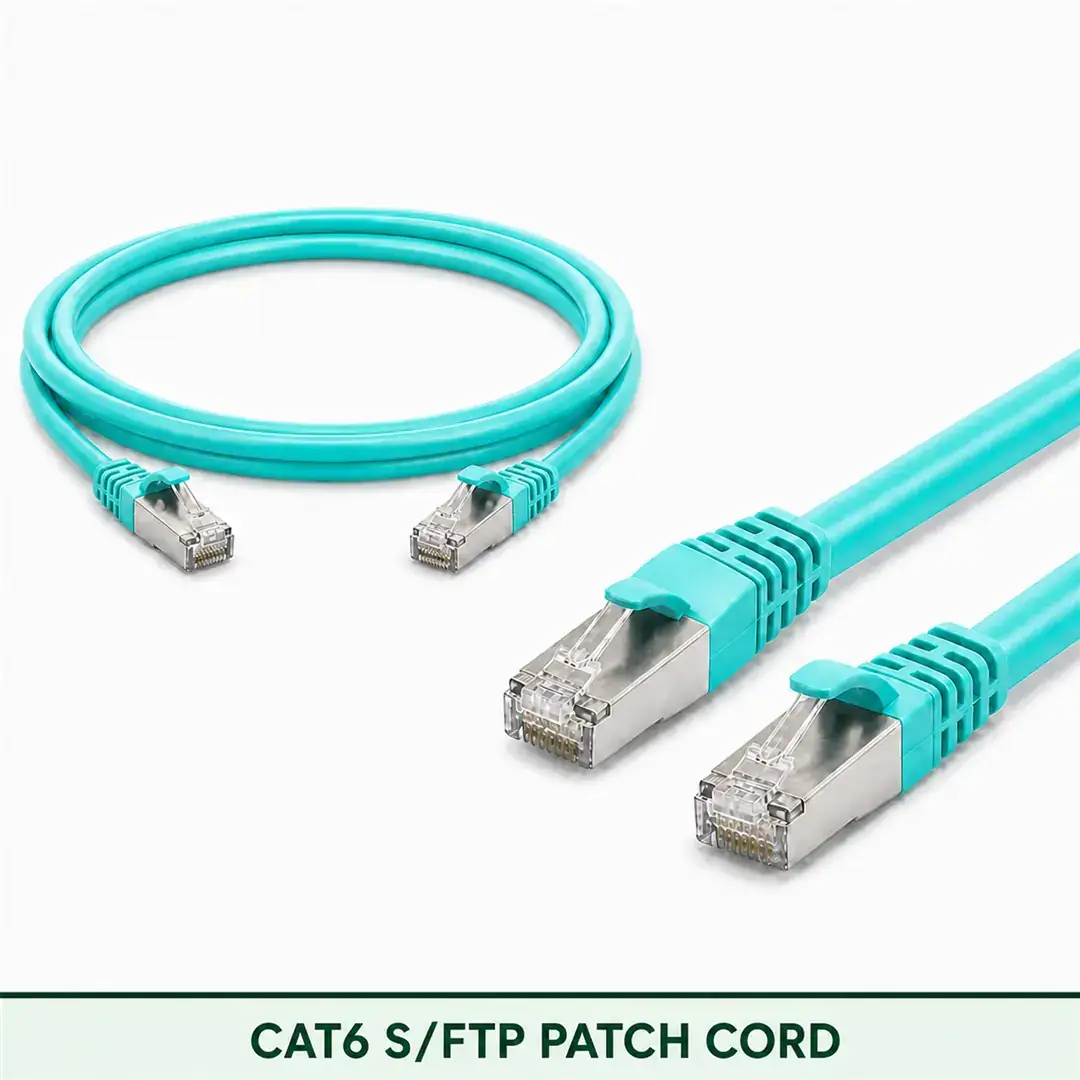

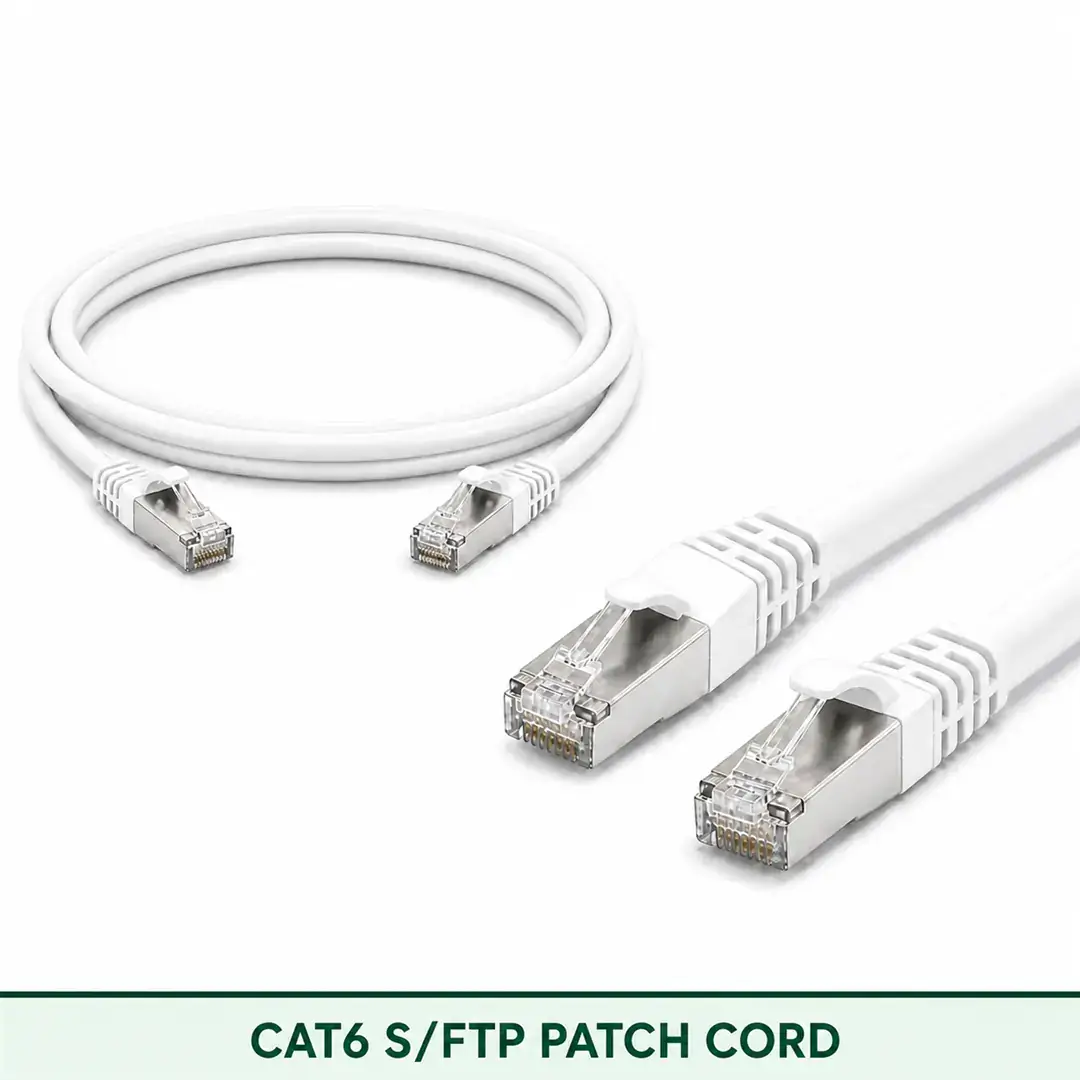

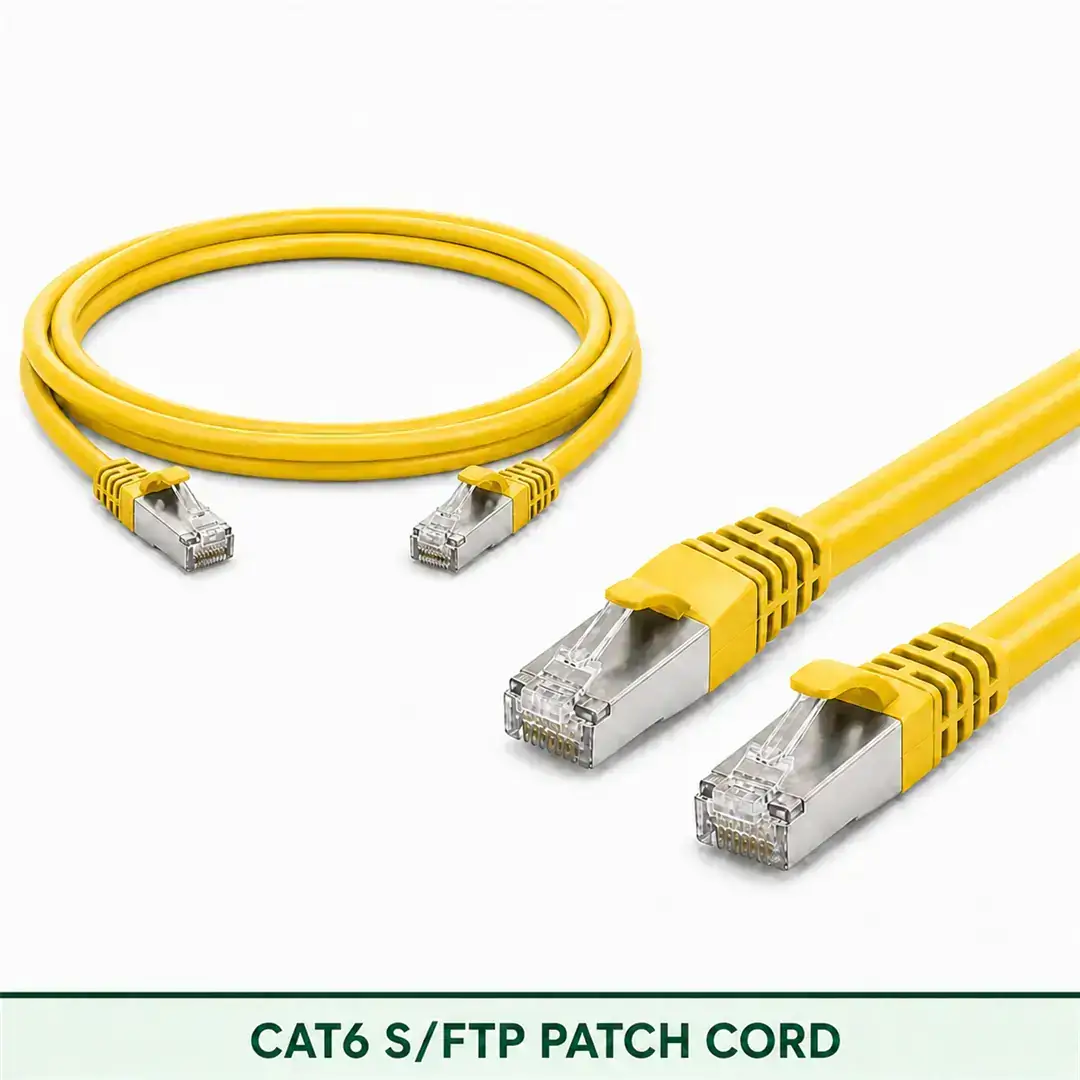

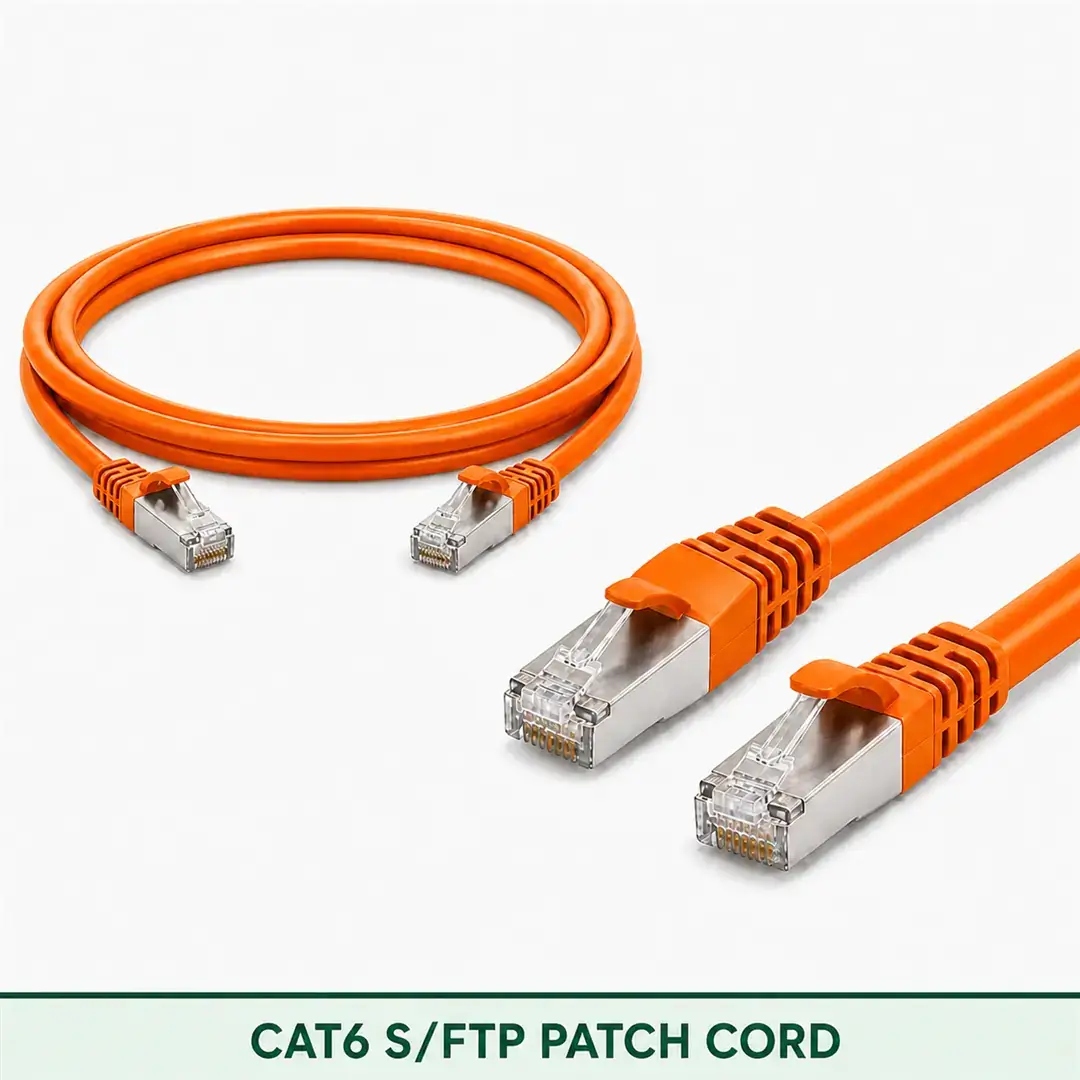

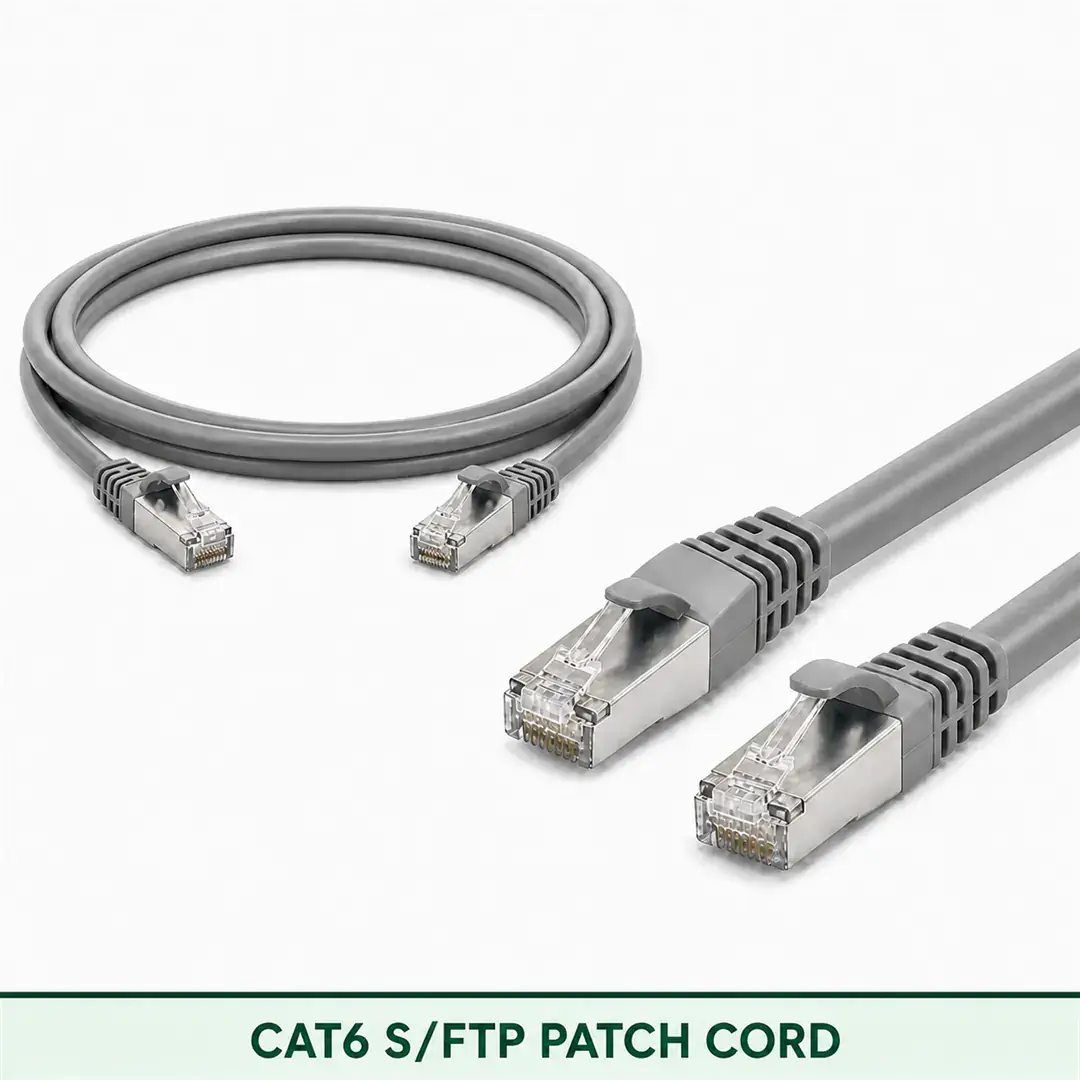

Cat6 S/FTP 6X3SBSLXXX Series | 23 AWG Network Patch Cord
Features
- Snagless RJ45 connectors
- Premium tmt copper conductors
- Multiple colours
- Multiple lengths
- Flexible PVC / LSZH jacket options
- Factory tested
- Backward compatible where applicable
- Backward compatible with Cat5e/Cat5 infrastructure
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
Choosing the Cat6 S/FTP 6X3SBSLXXX Series, 23 AWG Network Patch Cord
Category 6 runs 1 Gb Ethernet over 100 m and 10 Gb over shorter links (up to about 55 m), a cost-effective choice for desks, CCTV and general office networks. Factory-made patch cords give tested, repeatable performance between patch panels, switches and outlets, in a range of lengths and colours for clear colour-coding.
Related options in this range: Cat6 U/UTP 6X3PMUOKXX Series | 23 AWG Outdoor Network Patch Cord · Cat6 F/UTP 6X3SMFLXXX Series | 23 AWG Network Patch Cord · Cat6 S/FTP 6X4SBSLXXX Series | 24 AWG Network Patch Cord · Cat6 S/FTP 6X3SMSLXXX Series | 23 AWG Network Patch Cord · Cat6 U/UTP 6X4PBULXXX Series | 24 AWG Network Patch Cord
Order code: 6X3SBSLXXX-. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global Cat6 S/FTP 6X3SBSLXXX Series Data Patch CordsÂ
The TMT GLOBAL Cat6 S/FTP Shielded Patch Cord is engineered for structured cabling environments that combine higher-bandwidth requirements with exposure to electromagnetic interference. Manufactured by TMT Global Technology Ltd, its overall foil shield delivers stable, higher-frequency performance for installers, systems integrators, and structured cabling contractors working in industrial or EMI-dense settings. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless RJ45 connectors
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
- Backward compatible with Cat5e/Cat5 infrastructure
Application
- Structured Cabling
- Data Centres
- Enterprise LAN
- VoIP
- Wireless Access Points
- Smart Buildings
- Industrial Networks
Electrical & Mechanical Specifications
ISO/IEC 11801 Class E / TIA/EIA-568-C.2
Physical Properties, Length & Compliance
Physical & Mechanical Properties
Compliance & Certification
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | PVC, LSZH |
| Length | 15 cm, 20 cm, 25 cm, 30 cm, 50 cm, 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 6 m, 8 m, 10 m, 12 m, 15 m, 20 m, 25 m, 30 m, 35 m, 40 m, 45 m, 50 m, 60 m, 70 m, 80 m, 90 m |
