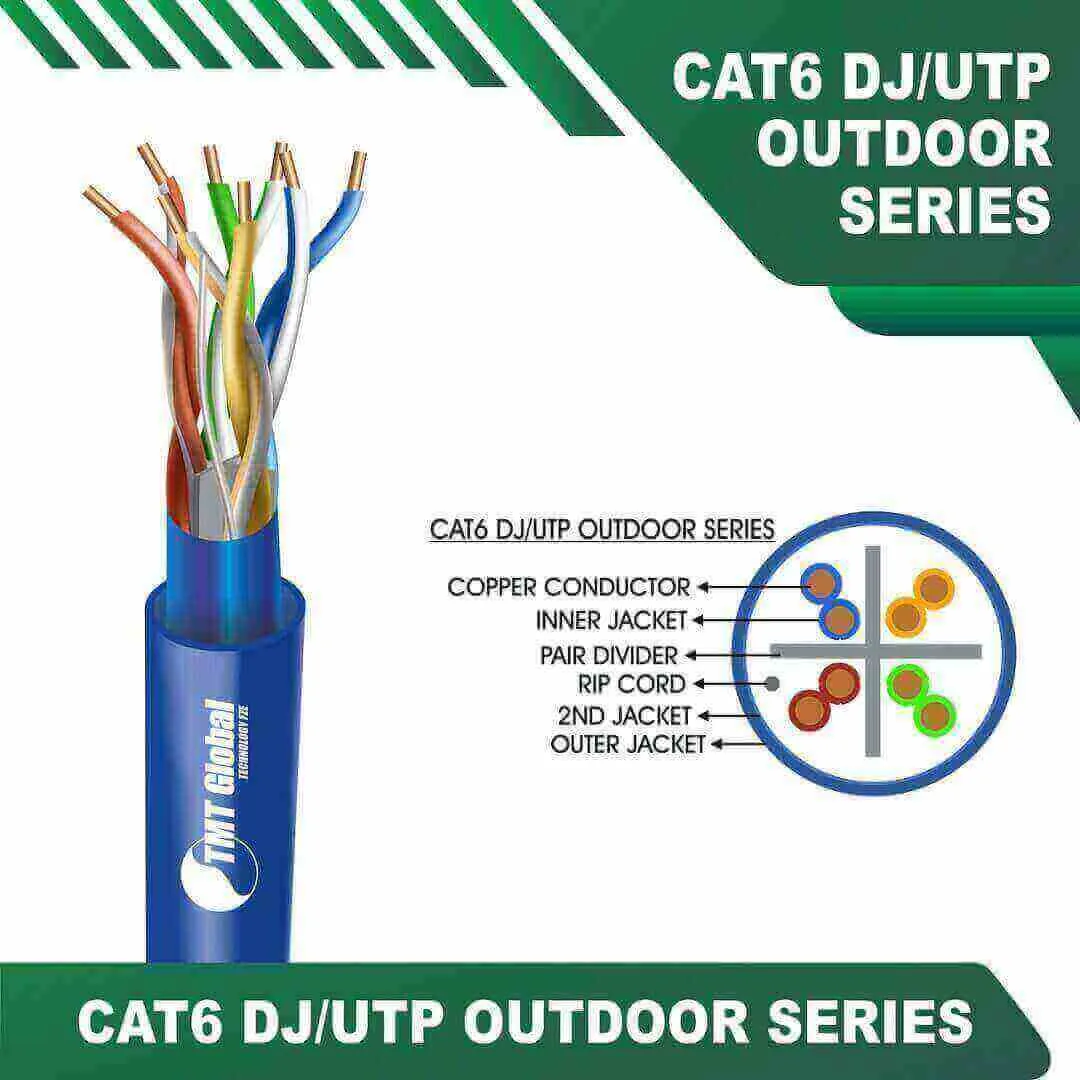

cat6 cable 305 meter 23 awg 4 twisted pair UTP Solid 305m

TMT GLOBAL cat6 size 23awg 4 twisted pair UTP Solid Cable 305m

Experience exceptional connectivity with the cat6 cable 305 meter 23 awg 4 twisted pair UTP Solid 305m. Spanning an impressive 305 meters, this cable is crafted to meet stringent industry standards, including ANSI/TIA/568.2-D, CENELEC EN 50288-5, and IEC 61156-5. Designed for optimal performance, this solid cable ensures minimal interference and reliable data transmission, making it ideal for various networking applications. Elevate your networking infrastructure with this durable and compliant Cat6 cable.

PHYSICAL AND MECHANICAL PROPERTIES

• Basic Conductor: 23AWG TMT Copper
• Insulation: HDPE
• Number of insulated conductors: 8 twisted in 4 pairs
• Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
• Outer Jacket: LSZH
• Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
• Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
• Pulling force: 100 N MAX
• Short Term Bend Radius: 6xOD (Mm)
• Storage Temperature: -20 To +80C
• Temperature operating range: -20 to +60C
• Installation temperature range: 0 to +50C
• Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS

• Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
• DC Resistance: 93 Ohm/Km max.
• Resistance unbalance: 2% max.
• Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
• Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
• Voltage rating: 72 Vdc max.
• Dielectric strength: 1500 Volts/1 minute min rms
• Velocity of Propagation (NVP): 67-69%
• Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
• Coupling attenuation: IEC 61156-5 TYPE III

General Specification:
• Conductor: TMT Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: N/L
• Outer Jacket: PVC+PE
• Jacket Color: Blue/Black/Grey/Violet/Orange
• Packing: 305m / Wooden/ Plastic Reel
• Model No: TMT-4027
• Item Code: 6X136MDK
