CAT6A U/UTP 23AWG Indoor LSZH Cable
Key features
- CAT6A U/UTP • 100 Ω • 4-pair horizontal cable
- 23AWG bare copper conductor • nominal 0.57 mm release code
- Blue LSZH / HFFR indoor jacket
- Dedicated new TMT CPR model
- 500 MHz category performance target
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
0
People watching this product now!
chat with sales
Description

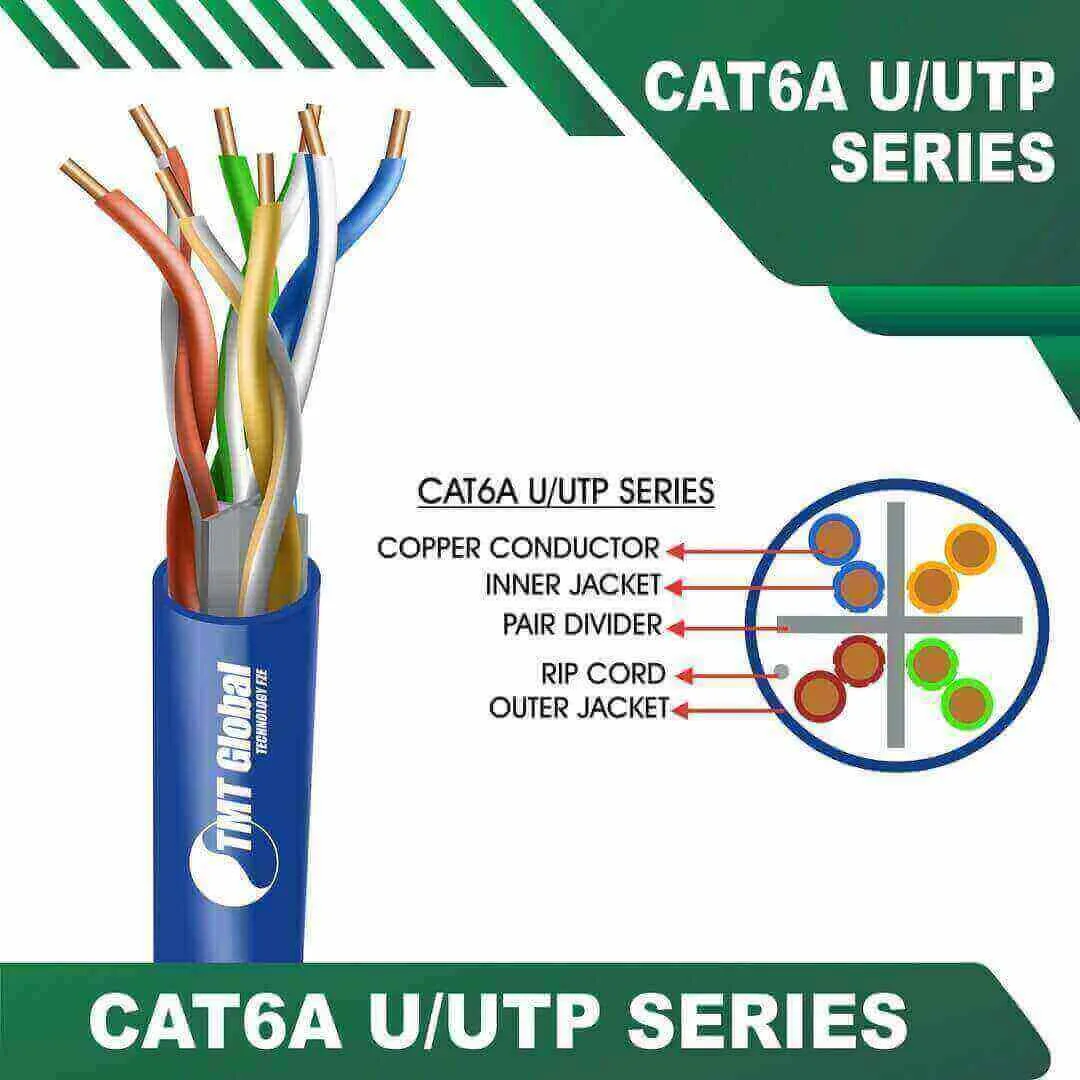

TMT Global Series CAT6A U/UTP 23AWG Indoor LSZH Cable
The TMT CAT6A U/UTP 23AWG Indoor LSZH Cable is a new 500 MHz-class bare-copper horizontal data cable developed for permanent UAE building telecommunications routes. The model uses a controlled blue LSZH jacket and a dedicated new TMT item code so the final factory construction, accredited performance testing, CPR certificate, DoP, CE marking and e& submission all refer to one exact product.
Key features
- CAT6A U/UTP • 100 Ω • 4-pair horizontal cable
- 23AWG bare copper conductor • nominal 0.57 mm release code
- Blue LSZH / HFFR indoor jacket
- Dedicated new TMT CPR model
- 500 MHz category performance target
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Typical applications
- 10 Gigabit Ethernet horizontal links subject to final CAT6A verification
- High-performance commercial building structured cabling
- Data-centre edge / enterprise horizontal distribution
- PoE applications subject to final verified performance
- Permanent indoor routes requiring halogen-free cable
PRODUCT RECORDS
| FIELD | CAT6 | CAT6A |
| Product title | CAT6 U/UTP 23AWG Indoor LSZH Cable | CAT6A U/UTP 23AWG Indoor LSZH Cable |
| SKU | TMT-6X136BLB | TMT-6A137BLB |
| Core code | 6X136BLB | 6A137BLB |
| Cable type | U/UTP | U/UTP |
| Conductor | 23AWG • 0.56 mm • Bare copper | 23AWG • 0.57 mm • Bare copper |
| Jacket | LSZH • Blue | LSZH • Blue |
| Category target | CAT6 • 250 MHz | CAT6A • 500 MHz |
| Website category | CAT6 Network Cables | CAT6A Network Cables |
| Compliance status | CPR development • certification pending | CPR development • certification pending |
PRELIMINARY DEVELOPMENT / PRE-TEST
| CAT6 sample | TMT-6X136BLB • final factory build only |
| CAT6A sample | TMT-6A137BLB • final factory build only |
| Reaction-to-fire tests | EN 50399 • EN 60332-1-2 • EN 61034-2 • EN 60754-2 |
| Classification | EN / BS EN 13501-6 • target Cca-s1b,d2,a2 or higher |
| Performance validation | CAT6 / CAT6A electrical performance must be tested independently from CPR fire classification |
FORMAL CPR SYSTEM 1+ RELEASE
| Product standard | EN 50575 |
| AVCP | System 1+ |
| Factory control | Initial FPC / factory assessment + surveillance as required by certification body |
| Certificate | Certificate of Constancy of Performance (CoCP / CoCoP terminology per body) |
| Manufacturer DoP | Issued under Fahad Cables Industry FZE for exact certified product scope |
| CE / label | CE mark + Euroclass + DoP reference on product / packaging / datasheet as applicable |
E& SUBMISSION CONTROL
| Manufacturer | Fahad Cables Industry FZE |
| Brand | TMT Global |
| Exact part numbers | TMT-6X136BLB • TMT-6A137BLB |
| Required evidence | CoCP / DoP • CE / label proof • performance reports • technical datasheet |
| Publication rule | Do not state “certified Cca-s1b,d2,a2” until all exact documents are issued and aligned |
CONSTRUCTION / ELECTRICAL BASELINE
| Category / impedance | CAT6A • 100 Ω nominal • 4 balanced pairs |
| Cable type | U/UTP |
| Conductor | 23AWG bare copper • code basis 0.57 mm |
| Insulation | HDPE / PE system — exact material and wall thickness to be frozen |
| Pair / separator | Pair geometry / separator / alien-crosstalk control per released CAT6A design |
| Outer jacket | LSZH / HFFR indoor jacket • blue |
| Application | Permanent indoor horizontal structured cabling |
| Nominal frequency | Up to 500 MHz category target |
| Packaging | 305 m standard pack unless project order specifies otherwise |
| Cable OD / mass | TBC from final released factory construction |
| Category / impedance | CAT6A • 100 Ω nominal • 4 balanced pairs |
| Cable type | U/UTP |
| Conductor | 23AWG bare copper • code basis 0.57 mm |
| Insulation | HDPE / PE system — exact material and wall thickness to be frozen |
| Pair / separator | Pair geometry / separator / alien-crosstalk control per released CAT6A design |
| Outer jacket | LSZH / HFFR indoor jacket • blue |
| Application | Permanent indoor horizontal structured cabling |
| Nominal frequency | Up to 500 MHz category target |
| Packaging | 305 m standard pack unless project order specifies otherwise |
| Cable OD / mass | TBC from final released factory construction |
PERFORMANCE / TEST CONTROL
| Category performance | Insertion loss, NEXT, PSNEXT, return loss, ACR-F / PSACR-F, alien crosstalk and delay parameters to meet exact released CAT6A standard set |
| Accredited testing | Performance report from ISO/IEC 17025 laboratory / ILAC-recognised scope as required by e& |
| DC resistance / PoE | Publish only after final conductor, DCR, temperature-rise and bundle data are verified |
| Routine factory tests | Conductor diameter, DCR, continuity, spark, OD and pair-performance controls per released QC plan |
STANDARDS / CPR CONTROL
| Data standards | ANSI/TIA-568.2-D • ISO/IEC 11801 • IEC 61156 / exact e&-accepted edition |
| Fire tests / class | EN 50399 • EN 60332-1-2 • EN 61034-2 • EN 60754-2 • EN 13501-6 classification |
| Formal CPR route | EN 50575 • AVCP System 1+ • CoCP / DoP / CE only after Notified Body release |
| Manufacturer / brand | Fahad Cables Industry FZE / TMT Global |
Additional information
| Brand | TMT Global |
|---|---|
| Jacket Type | LSZH |
| AWG | 23 awg |
Download Spec.
Ordering Information
| Item Name | Item Code / SKU | Controlled Description | Series | Brand | Jacket Type | AWG | QR Code |
|---|---|---|---|---|---|---|---|
| CAT6A Network Cables | CAT6A Network Cables | CAT6A Cables | TMT Global | LSZH | 23 awg |  |
