6 core single mode fiber optic cable Multi Core LSZH
د.إ13.00
General Specification
Products : Fiber optic cable single mode
Fiber Count : 6
Fiber Type :ITU-T G.652D
Outer Jacket : LSZH
Attenuation (max/KM) :0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID : TMT-061TLY
0
People watching this product now!
Description

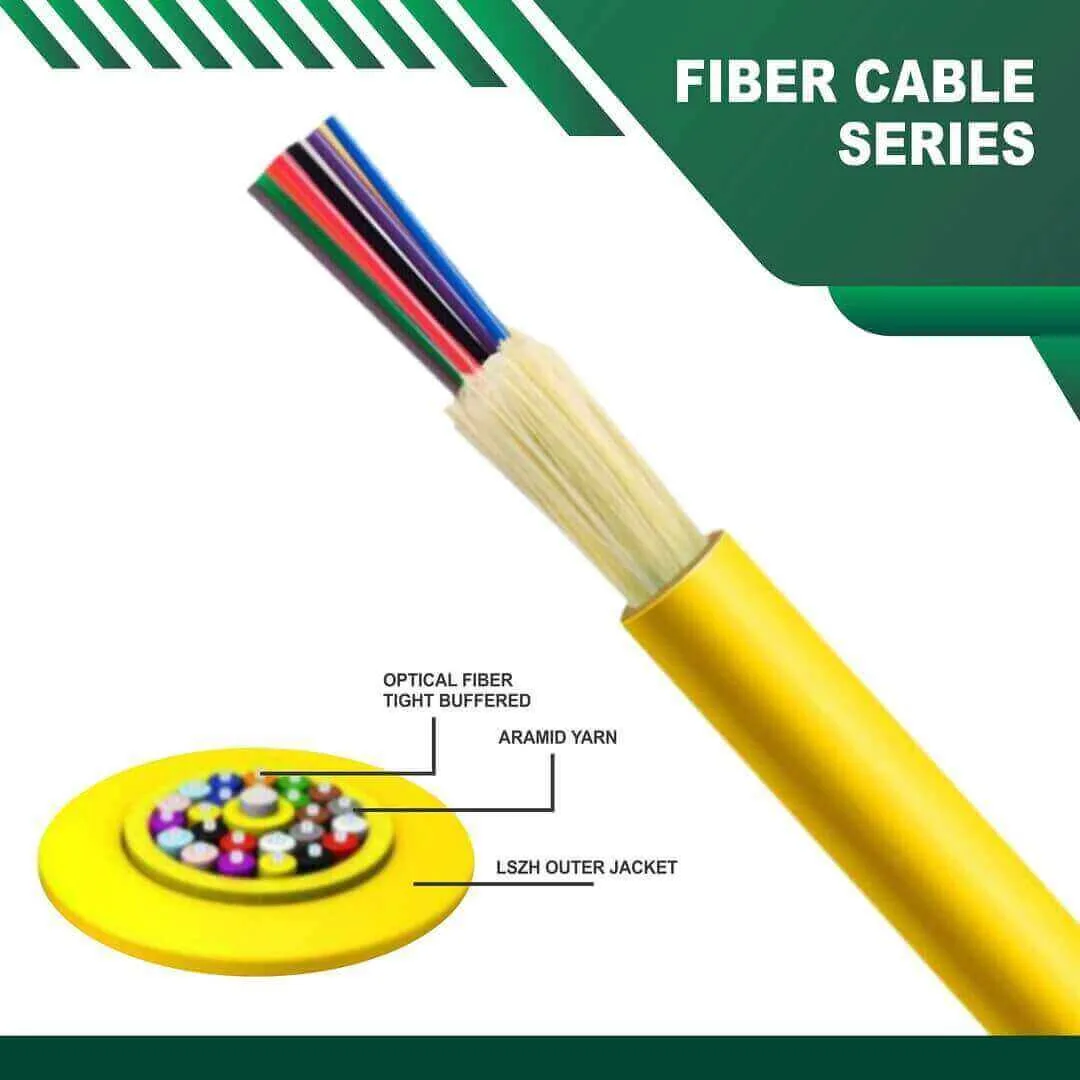

TMT GLOBAL 6 core single mode fiber optic cable Multi Core LSZH
TMT GLOBAL 6 core single mode fiber optic cable Multi Core LSZH provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications.8core 12core 24core 48core single 24core 48core single mode optical
PHYSICAL DESCRIPTION
Products: Fiber optic cable single mode
Tube Filling Compound: Thixotropic jelly
Fiber Type: ITU-T G.657A1/A2,G.652D
Tube material: PBT ( Polybutylene Terephthalate)
Armored: Corrugated steel tape
Fiber Count: 6,8,12,24,48,96,128
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 7.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Physical tests Value Standard
Tensile Strength 2700 N (During Installation) IEC 60794-1-E1
1700 N (During Operation)
Impact Resistance 10J, 3 impacts IEC 60794-1-E4
Crush Resistance 220 N/cm IEC 60794-1-E3
Temperature Cycling -40 to +70 °C IEC 60794-1-F1
Flame Retardancy According to IEC 60332-3 IEC 60332-3
Cable Bending Radius
Bend Radius (During Installation) 20x cable Diameter IEC 60794-1-2-E11A
Bend Radius (During Service) 1 0x cable Diameter IEC 60794-1-E11
Repeating Bending 20x cable Diameter IEC 60794-1-E6
Temperature Range)
Operation Temperature -40 to +70 C IEC 60794-1-2-F1
Storage and Transportation Temperature -40 to +70 C
Installation Temperature -30 to +60 C
Optical Characteristics
Fiber type ITU-T G.652D ITU-T G.657/A1 ITU-T G.657/A2
Attenuation (max) 0.40 dB/km (1310 nm) 0.40 dB/km (1310 nm) 0.35 dB/km (1310 nm)
0.25 dB/km (1550 nm) 0.25 dB/km (1550 nm) 0.22 dB/km (1550 nm)
MFD 9.0±0.4 μm (1310 nm) 9.0±0.4 μm (1310 nm) 8.6 ± 0.4 μm (1310 nm)
10.1±0.5 μm (1550 nm) 10.1±0.5 μm (1550 nm)
Cladding diameter 125 ± 0.3 μm 125 ± 0.7 μm 125 ± 0.7 μm
Core/Clad Concentricity error ≤ 0.5 μm ≤ 0.5 μm ≤ 0.5 μm
Zero dispersion wavelength 1300nm≤ ≤1324nm 1300nm≤ ≤1324nm 1302nm≤ ≤1322nm
Cladding non-circularity ≤ 0.7 % ≤ 0.7 % 1%
Coating diameter 245 ± 10 μm 242 ± 7 μm 240 ± 5 μm
Cut Off Wavelength ≤ 1260nm ≤ 1260nm ≤ 1260nm
Proof Test ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa)
Macro bending Attenuation : (10 turn on a 15 mm radius mandrel) ≤ 0.25 dB @1550 nm ≤ 0.5dB @1550 nm
Reviews (1)
1 review for 6 core single mode fiber optic cable Multi Core LSZH
Only logged in customers who have purchased this product may leave a review.
Download
tmtuae –
The 6 Core Single Mode Fiber Optic Cable Multi Core LSZH is a commendable product designed for high-performance data transmission. Its six-core configuration enables efficient handling of multiple data streams, making it suitable for demanding networking applications. The use of Low Smoke Zero Halogen (LSZH) material enhances safety by minimizing toxic emissions in case of fire, an essential feature for installations in confined spaces.
While the cable offers impressive speed and bandwidth capabilities, potential limitations include a higher installation cost compared to multimode fibers and a need for specialized connectors and equipment. Overall, this fiber optic cable is a robust choice for professionals seeking reliable and efficient connectivity solutions.
