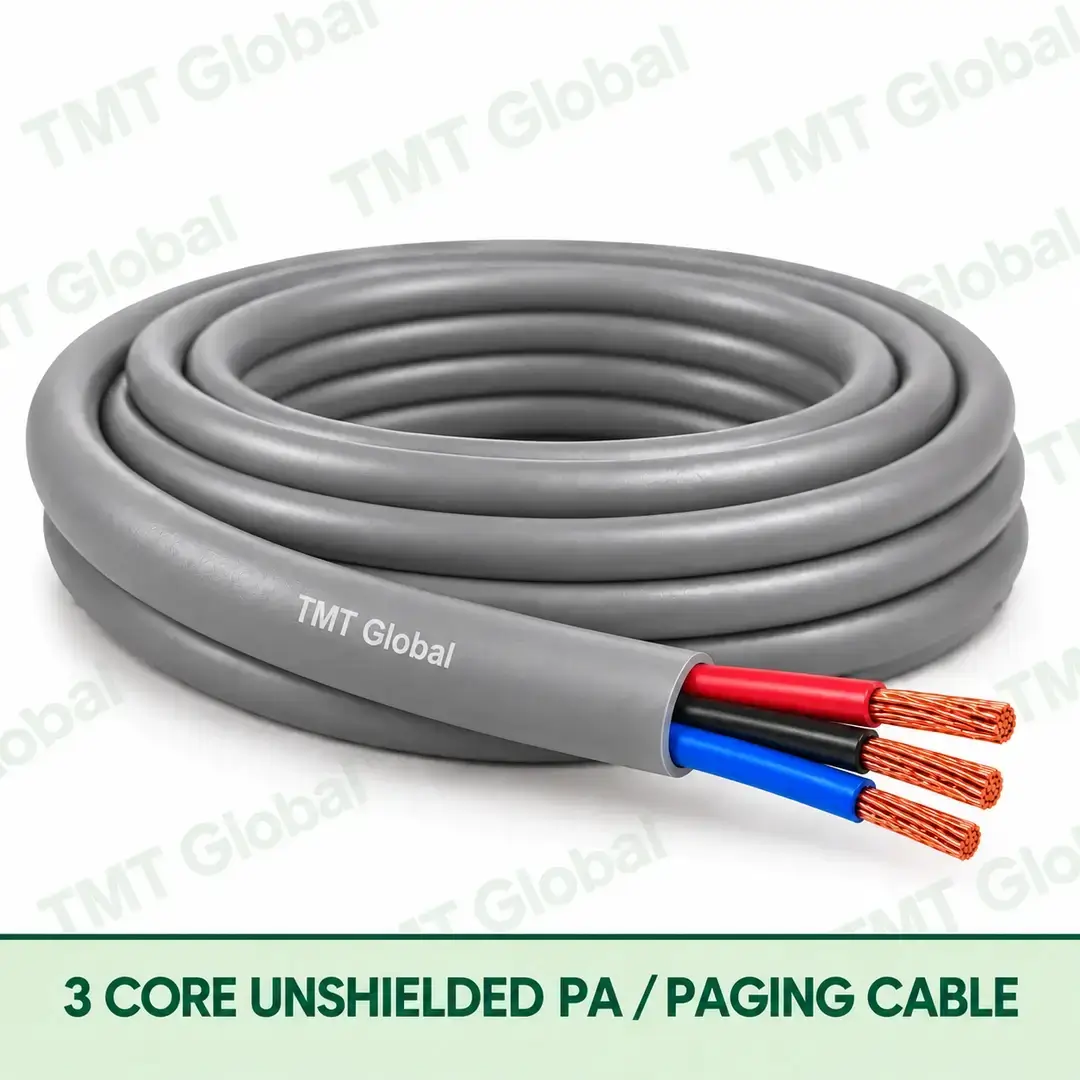

3 Core Unshielded PA / Paging Cable
KEY FEATURES
- Three colour-coded bare-copper conductors
- Unshielded round cable construction
- PVC, LSZH and PE Outdoor variants
- Designed for paging and PA control circuits
- Exact searchable ordering rows
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
Choosing the 3 Core Unshielded PA / Paging Cable
A 3-core cable suits single circuits: one sensor, one relay contact or a low-voltage power feed. No metallic screen keeps it light, flexible and quick to terminate; choose it for clean electrical environments where the route stays away from mains power and motor drives.
Order code: 03C-U-PA. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global 3 Core Unshielded PA / Paging Cable Series
TMT Global 3 Core Unshielded PA / Paging Cable is a multi-conductor family for paging stations, common/return circuits, control contacts and commercial-audio wiring that does not require an overall screen. Core count defines the product page; AWG and jacket remain ordering-row attributes.
KEY FEATURES
- Three colour-coded bare-copper conductors
- Unshielded round cable construction
- PVC, LSZH and PE Outdoor variants
- Designed for paging and PA control circuits
- Exact searchable ordering rows
TYPICAL APPLICATIONS
- Paging call stations
- PA control and common circuits
- Intercom signalling
- Commercial-audio contact wiring
- Building communication systems
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | PA / paging / commercial-audio bulk cable |
| Geometry / configuration | 3 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper conductors |
| Available conductor sizes | 14 AWG / 16 AWG / 18 AWG / 20 AWG |
| Conductor identification | Colour-coded insulated conductors |
| Core / pair construction | 3 colour-coded insulated conductors |
| Screening | Unshielded |
| Drain wire | Not applicable |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey (PVC/LSZH) / Black (PE Outdoor) |
| Package length | 305 m standard package |
| Typical applications | Paging stations, PA control circuits, intercom signalling and building communication |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 14 AWG | 2.08 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 20 AWG | 0.519 mm² | PVC / LSZH / PE Outdoor • 305 m |
| Brand | TMT Global |
|---|---|
| Jacket Type | PVC, LSZH, PE Outdoor |
| AWG | 14 awg, 16 awg, 18 awg, 20 awg |
| Length | 305 m |
| Colour | Black, Grey |
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 14 awg | PVC | Grey | 305 m |  | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 14 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 14 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 16 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 16 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 16 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 18 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 18 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 18 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 20 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 20 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded PA / Paging Cable | 03C-U-PA | 20 awg | PE Outdoor | Black | 305 m | |
