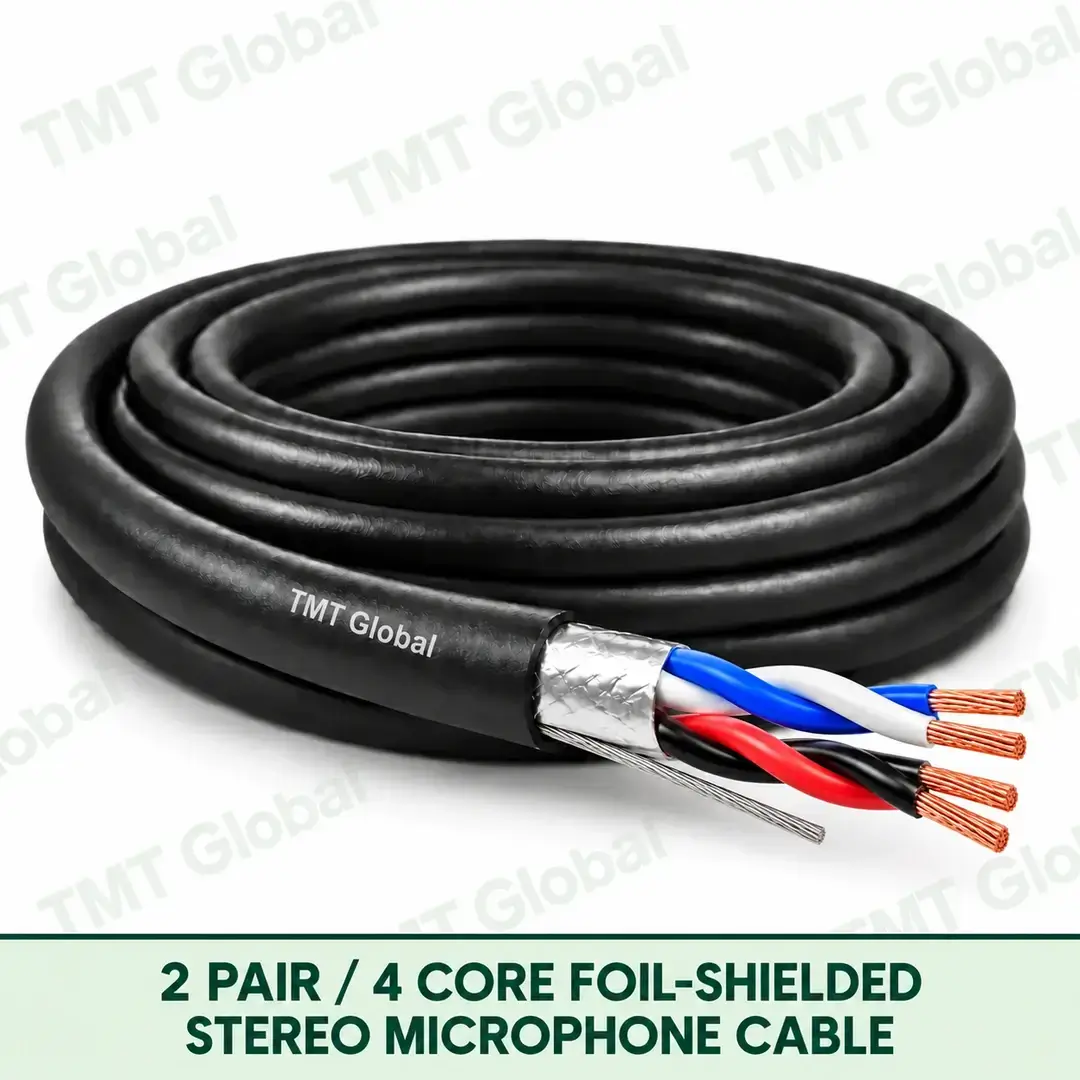

2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable
KEY FEATURES
- Two balanced pairs / four insulated conductors
- Foil screen and drain-wire architecture
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Separate MS suffix prevents collision with star-quad geometry
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
0
People watching this product now!
chat with sales
Description
TMT Global 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable Series
TMT Global 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable provides two balanced audio channels in one round jacket for stereo microphones, dual-capsule systems, talkback plus programme audio, and compact dual-channel interconnection. Pair identification and screening details are controlled by the released construction drawing.
KEY FEATURES
- Two balanced pairs / four insulated conductors
- Foil screen and drain-wire architecture
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Separate MS suffix prevents collision with star-quad geometry
TYPICAL APPLICATIONS
- Stereo and dual-capsule microphones
- Dual-channel stage and studio interconnection
- Talkback plus programme audio
- Compact patching and broadcast systems
- Specialised microphone arrays and conference systems
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Stereo / dual-channel balanced microphone and analogue audio cable |
| Geometry / configuration | 2 balanced pairs / 4 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | Two identified balanced pairs under one jacket |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Foil screen + drain wire architecture |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Stereo microphone and dual-channel balanced audio circuits |
| Construction use | Two-pair stereo / dual-channel microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| Colour | Black |
|---|---|
| Jacket Type | PUR / TPU, PVC, LSZH |
| Brand | TMT Global |
| AWG | 20 awg, 22 awg, 24 awg |
| Length | 305 m |
Download Spec.
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 20 awg | PVC | Black | 305 m |  | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 20 awg | LSZH | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 20 awg | PUR / TPU | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 22 awg | PVC | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 22 awg | LSZH | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 22 awg | PUR / TPU | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 24 awg | PVC | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 24 awg | LSZH | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 24 awg | PUR / TPU | Black | 305 m | |
