2 Core Copper-Braid Shielded Flexible Microphone Cable
KEY FEATURES
- Two stranded, colour-coded balanced conductors
- Flexible copper braid / served screen for handling and EMI protection
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Exact searchable item code for every standard combination
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
0
People watching this product now!
chat with sales
Description
TMT Global 2 Core Copper-Braid Shielded Flexible Microphone Cable Series

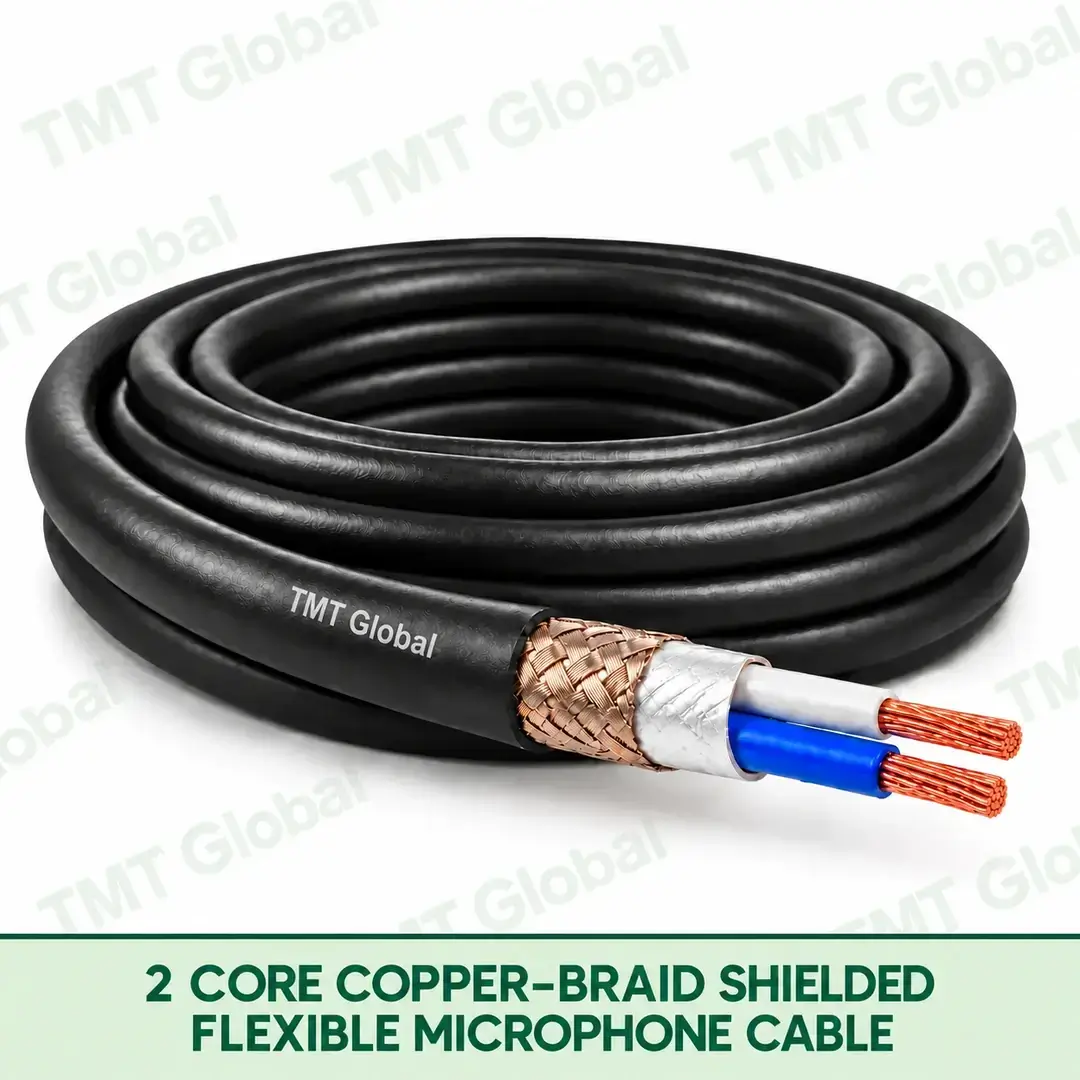

TMT Global 2 Core Copper-Braid Shielded Flexible Microphone Cable is a configurable professional microphone cable family for balanced low-level analogue audio between microphones, stage boxes, wall plates, patch systems, mixers and audio interfaces. The product page fixes the two-core flexible construction and copper braid / served shield, while the TMT Series ordering table provides exact AWG and jacket-specific item codes.
KEY FEATURES
- Two stranded, colour-coded balanced conductors
- Flexible copper braid / served screen for handling and EMI protection
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Exact searchable item code for every standard combination
TYPICAL APPLICATIONS
- Handheld, condenser and dynamic microphone circuits
- Stage, studio and broadcast microphone leads
- Wall plates, patch bays and audio interfaces
- Theatres, houses of worship and hospitality AV
- Bulk cable for connectorised XLR assemblies
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Professional balanced microphone and low-level analogue audio cable |
| Geometry / configuration | 1 balanced pair / 2 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | One balanced pair / two insulated signal conductors |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Copper braid / served shield |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Stage, studio, broadcast and professional microphone circuits |
| Construction use | Flexible microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| AWG | 20 awg, 22 awg, 24 awg |
|---|---|
| Colour | Black |
| Length | 305 m |
| Jacket Type | PUR / TPU, PVC, LSZH |
| Brand | TMT Global |
Download Spec.
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 20 awg | PVC | Black | 305 m |  | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 20 awg | LSZH | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 20 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 22 awg | PVC | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 22 awg | LSZH | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 22 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 24 awg | PVC | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 24 awg | LSZH | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 24 awg | PUR / TPU | Black | 305 m | |
