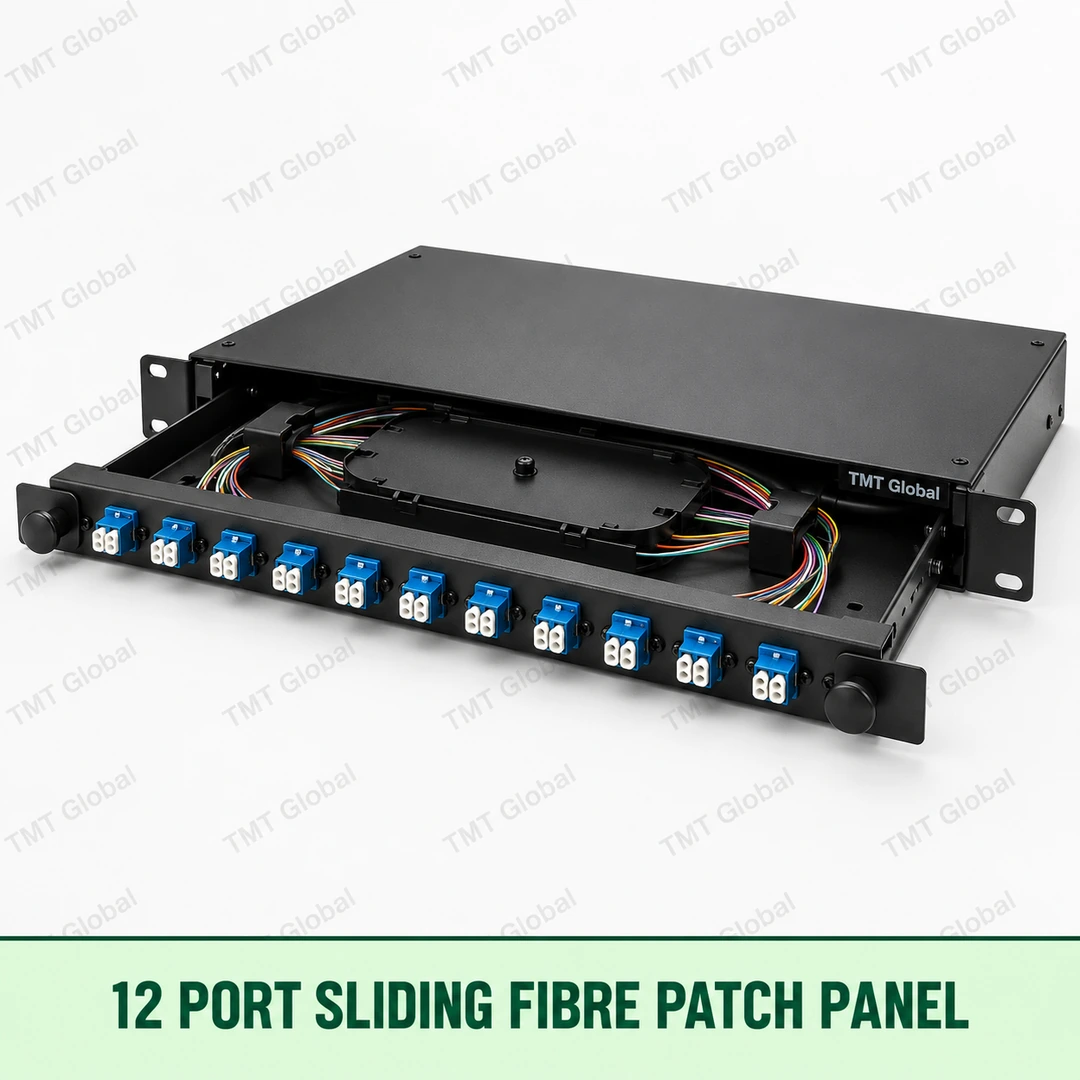

12-port sliding fibre patch panel, TMT Global

12 Port Sliding Fibre Patch Panel

KEY FEATURES

  • 19 in rack-oriented fibre patching platform
  • 12 SC adapter positions / 12 LC duplex positions / 24 SC adapter positions / 24 LC duplex positions / 48 SC adapter positions / 48 LC duplex positions / 72 fibre LC density / 96 fibre LC density
  • 1U / 2U fibre patch panel
  • SC UPC/APC / LC UPC/APC interface configuration
  • Cable entry and fibre management provisions
  • Suitable for unloaded or selected loaded supply
View / Print DatasheetContact Sales
0 People watching this product now!
chat with sales
Description

TMT Global 12 Port Sliding Fibre Patch Panel Series

The TMT Global 12 Port Sliding Fibre Patch Panel is designed for structured fibre termination and patching in enterprise, data-centre, telecom-room and backbone distribution environments. The TMT-FPS12-SC provides a controlled fibre interface for 12 sc adapter positions with SC UPC/APC connectivity and 1U rack integration.

KEY FEATURES

  • 19 in rack-oriented fibre patching platform
  • 12 SC adapter positions / 12 LC duplex positions / 24 SC adapter positions / 24 LC duplex positions / 48 SC adapter positions / 48 LC duplex positions / 72 fibre LC density / 96 fibre LC density
  • 1U / 2U fibre patch panel
  • SC UPC/APC / LC UPC/APC interface configuration
  • Cable entry and fibre management provisions
  • Suitable for unloaded or selected loaded supply

APPLICATIONS

  • Fibre backbone termination
  • Telecom rooms and ODF areas
  • Enterprise LAN fibre distribution
  • Data centre rack patching
  • FTTx and CCTV fibre networks

OEM / PUBLICATION POSITIONING

Applicable compliance depends on selected adapter, fibre, pigtail and loading configuration.

STANDARDS / TEST BASIS

  • Designed for structured fibre cabling systems using recognised rack, optical interface and passive-component practices.
  • Applicable compliance depends on selected adapter, fibre, pigtail and loading configuration.

QUALITY / ACCEPTANCE

  • Select TMT-FPS12-SC base model
  • Confirm SC / LC / MPO-MTP interface and UPC/APC where applicable
  • Confirm OS2 / OM3 / OM4 / OM5 loaded components
  • Confirm loaded or unloaded supply and accessory kit

TECHNICAL SPECIFICATION

Parameter TMT Declared Specification
Product family Sliding 19 in Patch Panels
Item code / SKU TMT-FPS12-SC
Capacity / porting 12 SC adapter positions / 12 LC duplex positions / 24 SC adapter positions / 24 LC duplex positions / 48 SC adapter positions / 48 LC duplex positions / 72 fibre LC density / 96 fibre LC density
Rack format 1U / 2U fibre patch panel
Interface SC UPC/APC / LC UPC/APC
Fibre application OS2 / OM3 / OM4 / OM5
Panel construction Sliding drawer / tray construction
Material Powder-coated steel chassis; flame-retardant polymer accessories where applicable
Cable management Rear cable entry, strain relief and bend-radius management
Splice management Integrated splice tray / protection management where applicable
Loading type Unloaded or selected adapter/pigtail loaded configuration
Operating environment Indoor telecom-room / rack environment
Colour / finish Black or grey powder-coated finish according to TMT series
Packaging Individual protective carton with accessory kit
Additional information
BrandTMT Global
Download Spec.

visit: www.tmtglobal.co.uk

Intertek
IEC
ISO
sira tmt global
du certificates tmt global
tmt global icc certificate
Ordering Information
Item NameItem Code / SKUControlled DescriptionSeriesQR Code
12 Port Sliding Fibre Patch Panel12 Port Sliding Fibre Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS12-SC
12 Port Sliding Fibre Patch Panel12 Port Sliding Fibre Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS12-LC
24 Port Sliding Fibre Patch Panel24 Port Sliding Fibre Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS24-SC
24 Port Sliding Fibre Patch Panel24 Port Sliding Fibre Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS24-LC
48 Port Sliding Fibre Patch Panel48 Port Sliding Fibre Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS48-SC
48 Port Sliding Fibre Patch Panel48 Port Sliding Fibre Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS48-LC
72 Fibre Sliding LC Patch Panel72 Fibre Sliding LC Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS72-LC
72 Fibre Sliding LC Patch Panel72 Fibre Sliding LC Patch PanelSliding Fibre Patch PanelQR code for TMT-FPS96-LC
