1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable
KEY FEATURES
- 1 Pair (2 Core) controlled twisted-pair construction
- Overall aluminium/polyester foil screen with drain wire
- 100 Ω nominal at 31.25 kHz protocol-design target
- 16, 18 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Exact searchable ordering code for every standard combination
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
TMT 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable – Series

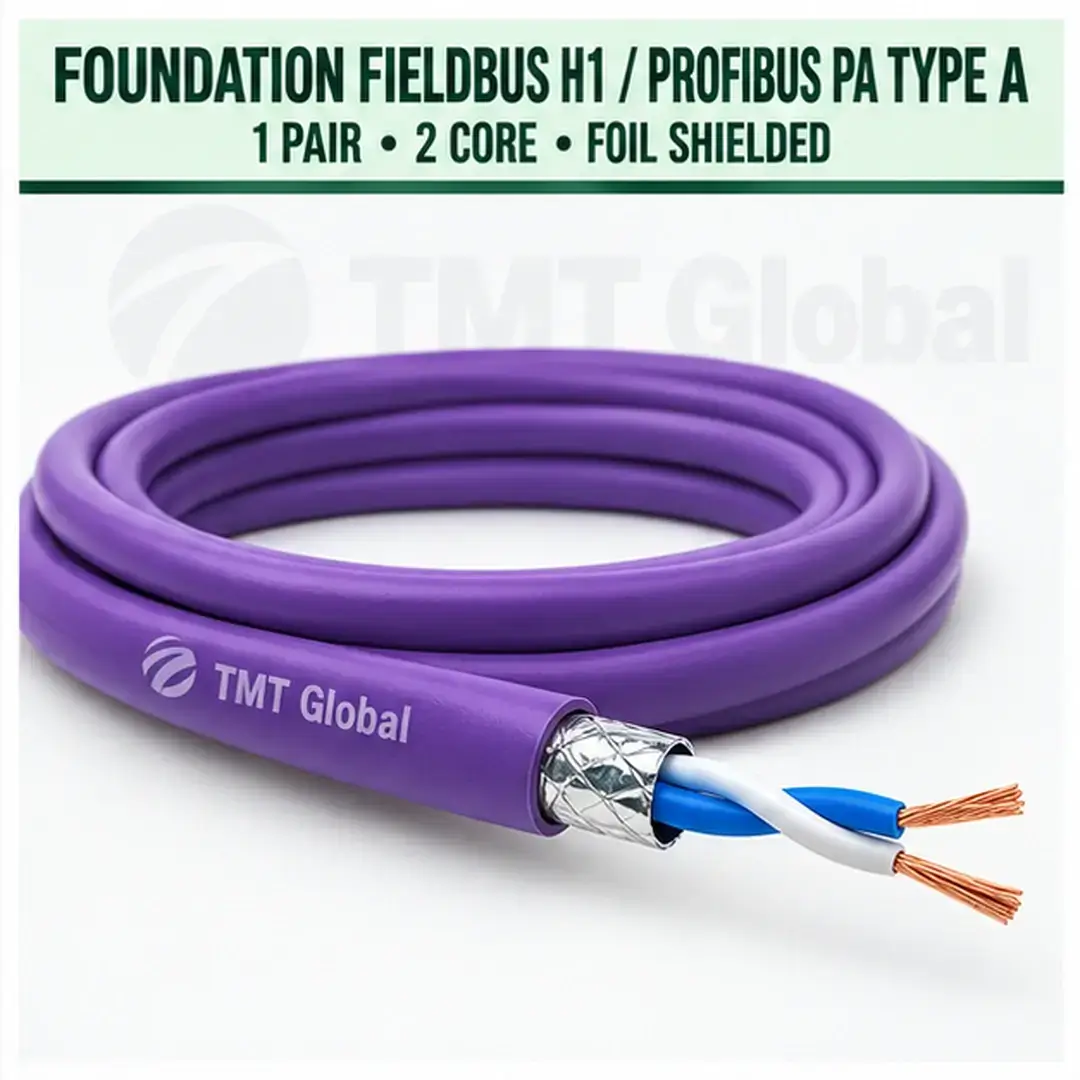

TMT Global 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable is a controlled protocol-bus cable family for foundation fieldbus h1 trunk and spur circuits and related industrial or building-automation networks. The product page fixes the 1 pair (2 core), foil shielded and 100 Ω nominal at 31.25 kHz electrical family, while the TMT Series ordering table provides exact jacket and conductor-size item codes for customer search, quotation and project selection.
KEY FEATURES
- 1 Pair (2 Core) controlled twisted-pair construction
- Overall aluminium/polyester foil screen with drain wire
- 100 Ω nominal at 31.25 kHz protocol-design target
- 16, 18 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- FOUNDATION Fieldbus H1 trunk and spur circuits
- PROFIBUS PA process-automation networks
- Transmitters, positioners, valves and process instruments
- Oil and gas, chemical, water, pharmaceutical and utility plants
- Multi-pair families require individual pair screens plus an overall screen where released by the factory design.
Technical Specification
| PARAMETER | SPECIFICATION |
| Protocol family | FOUNDATION Fieldbus H1 / PROFIBUS PA Type A |
| Pair / core configuration | 1 Pair (2 Core) |
| Conductor material | Bare copper |
| Conductor construction | Solid or stranded bare-copper conductor |
| Available conductor sizes | 16 AWG / 18 AWG |
| Pair insulation | PE / foam-skin PE, Series dependent |
| Shielding | Overall aluminium/polyester foil screen with drain wire |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Orange indoor; Orange outdoor / process identification |
| Characteristic impedance | 100 Ω nominal at 31.25 kHz |
| Series code | 02S-FB |
| Ordering variants | Conductor size × jacket, as listed on Page C |
| Package length | 305 m standard package |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m |
| AWG | 16 awg, 18 awg |
|---|---|
| Brand | TMT Global |
| Colour | Orange |
| Jacket Type | PVC, LSZH, PE Outdoor |
| Length | 305 m |
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 16 awg | PVC | Orange | 305 m |  | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 16 awg | LSZH | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 16 awg | PE Outdoor | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 18 awg | PVC | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 18 awg | LSZH | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 18 awg | PE Outdoor | Orange | 305 m | |
