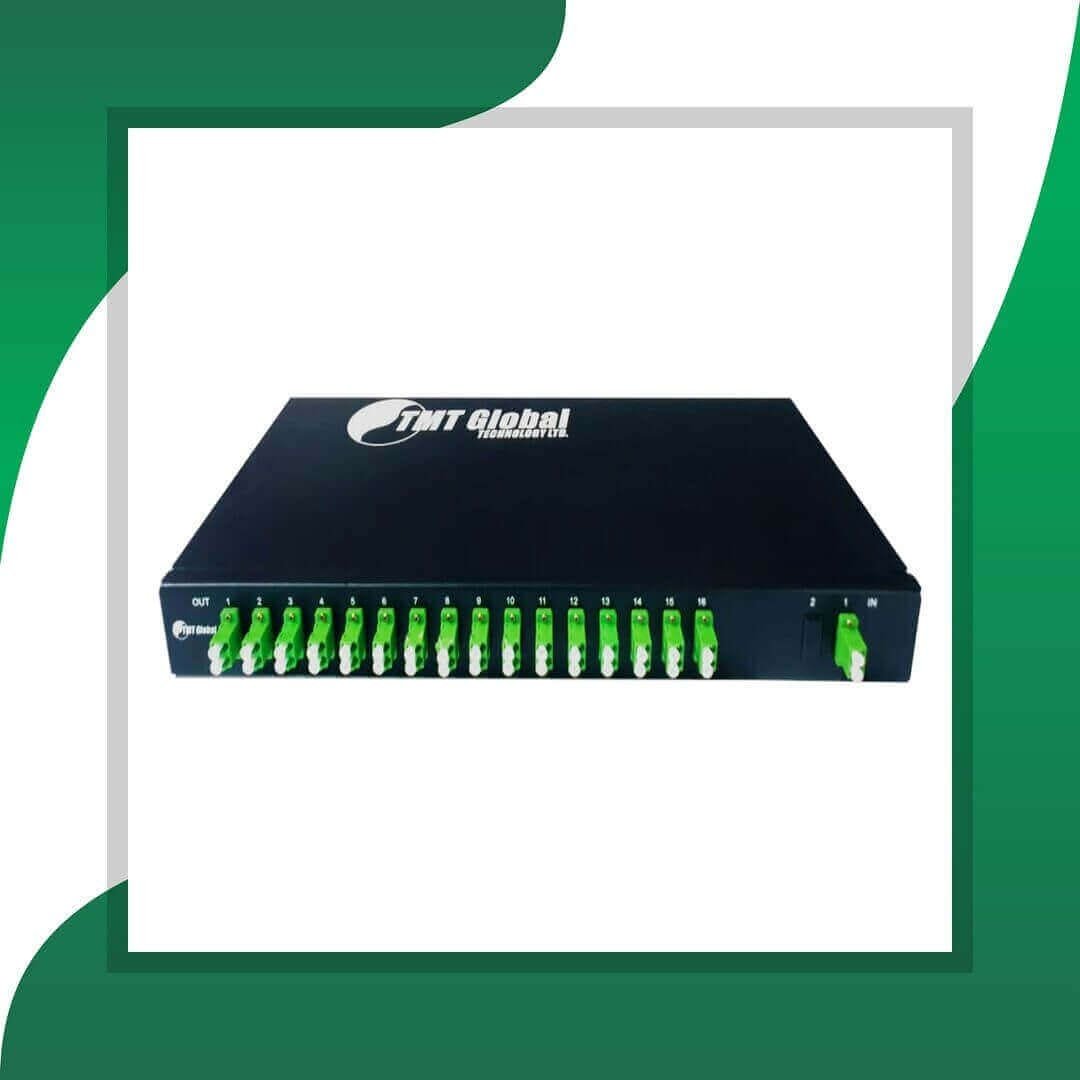

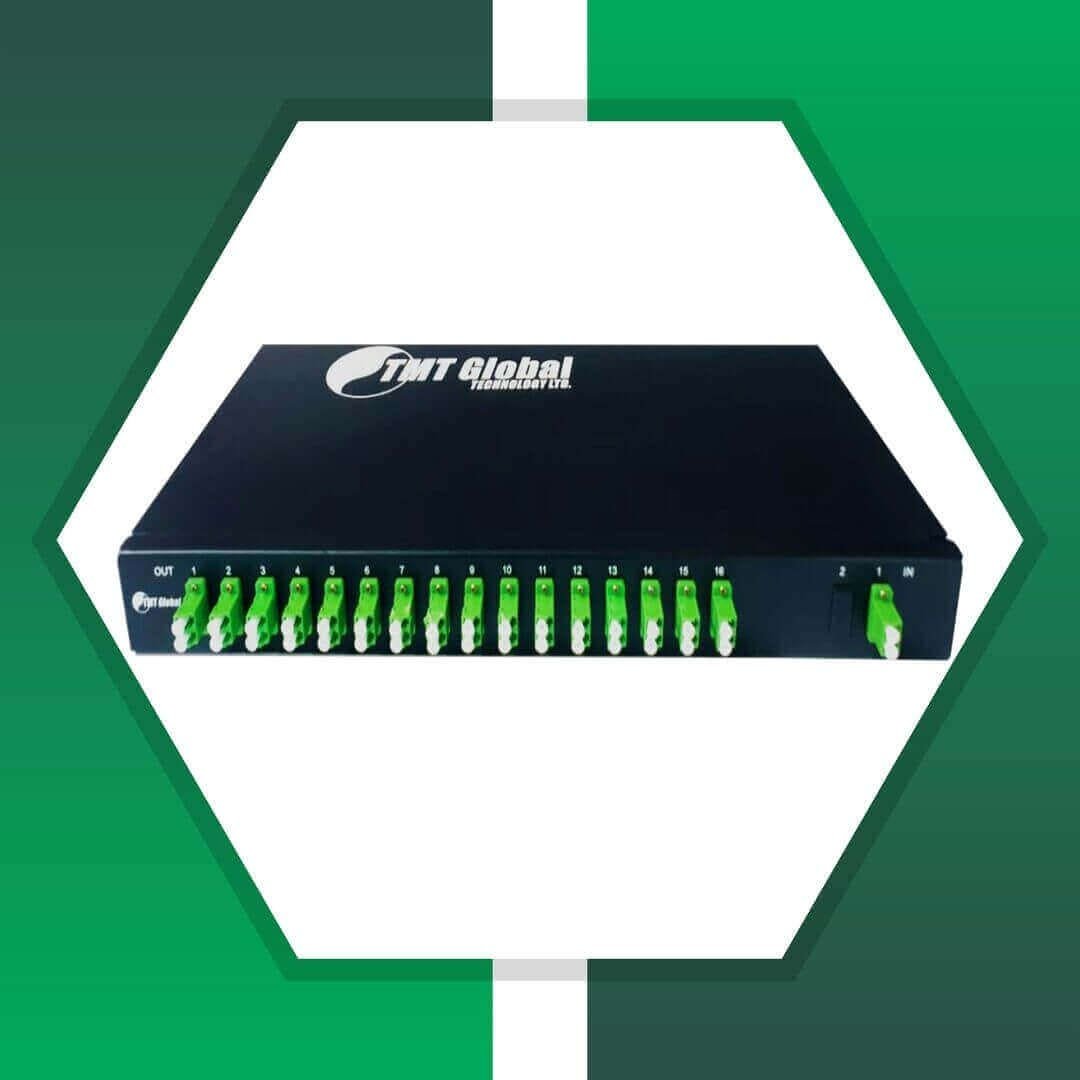

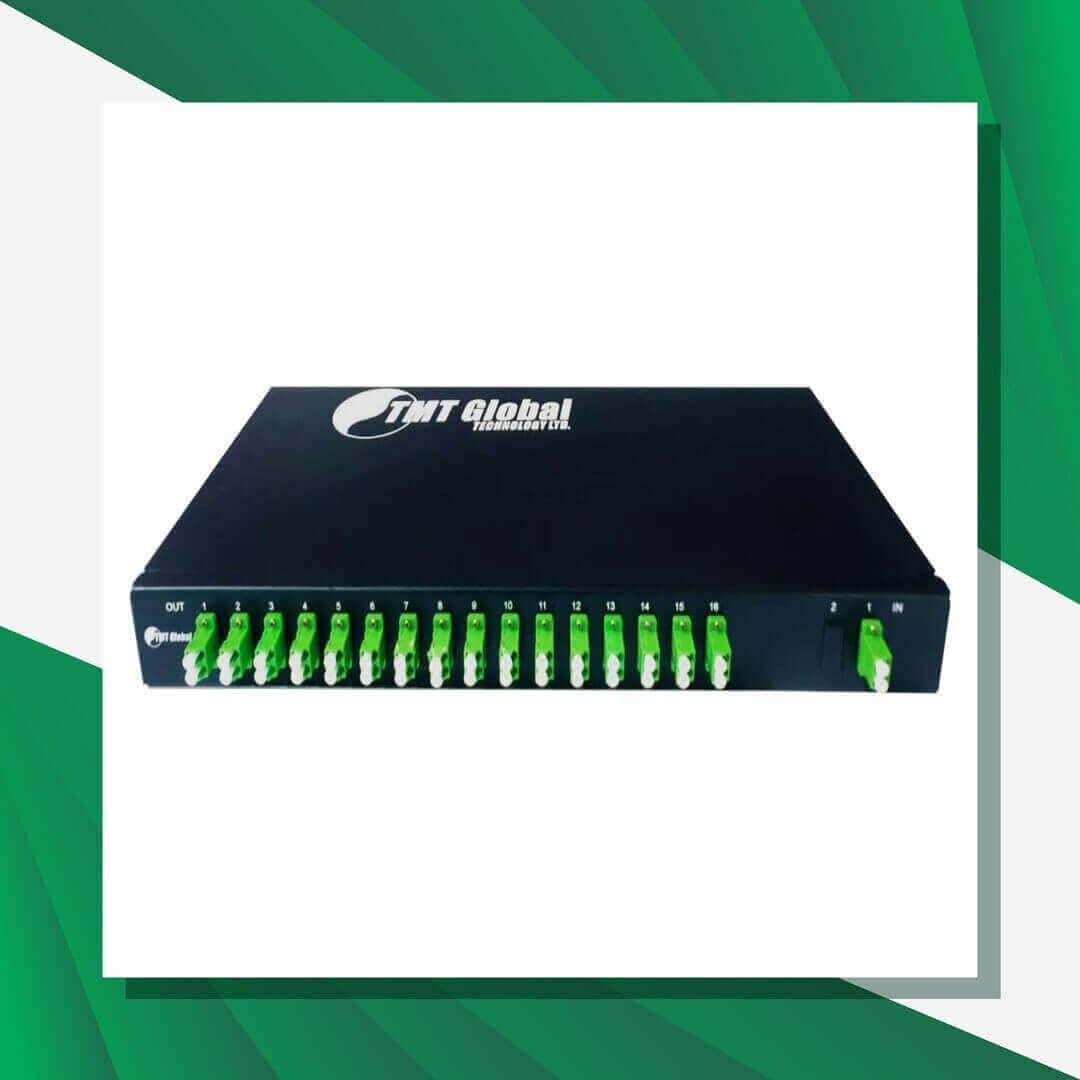

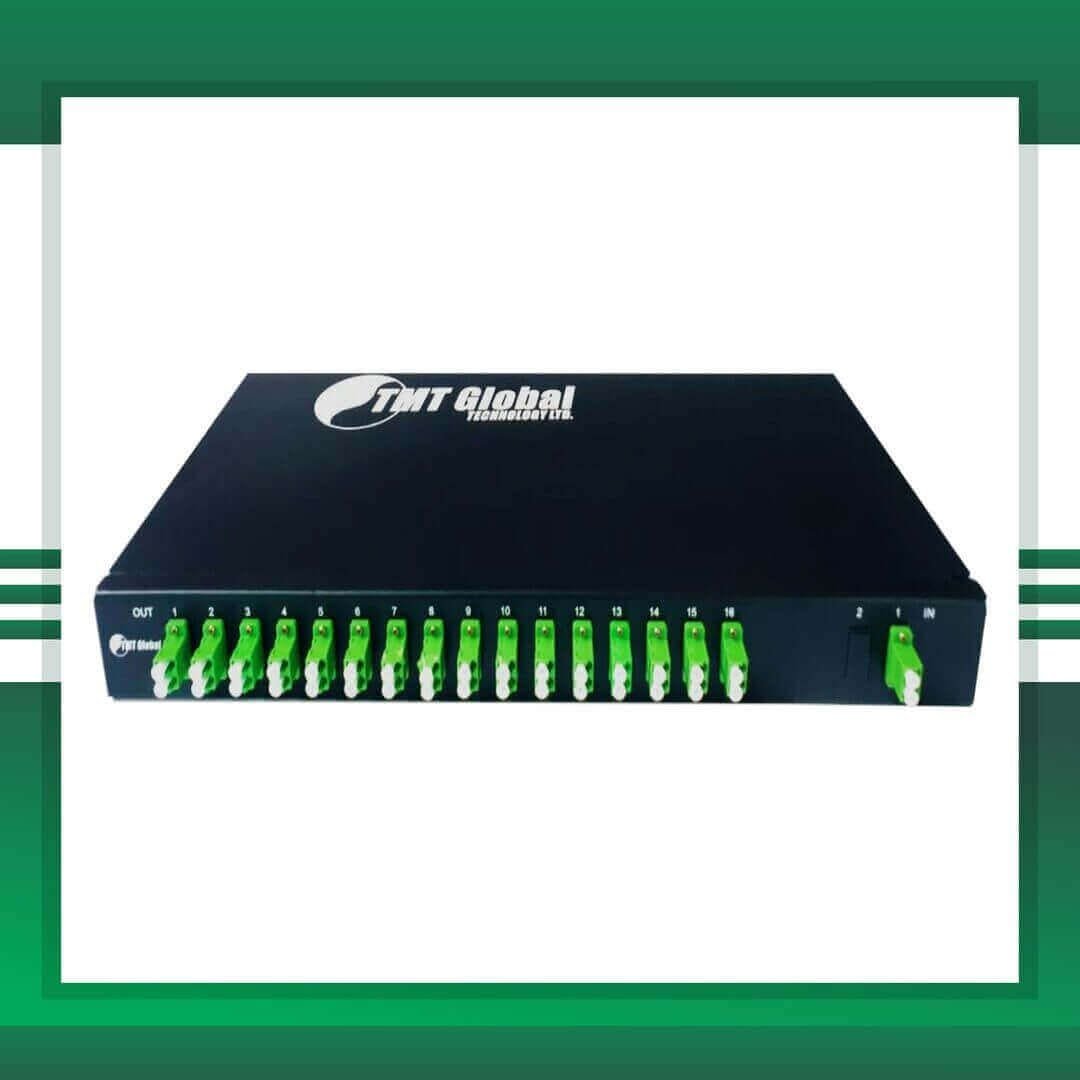

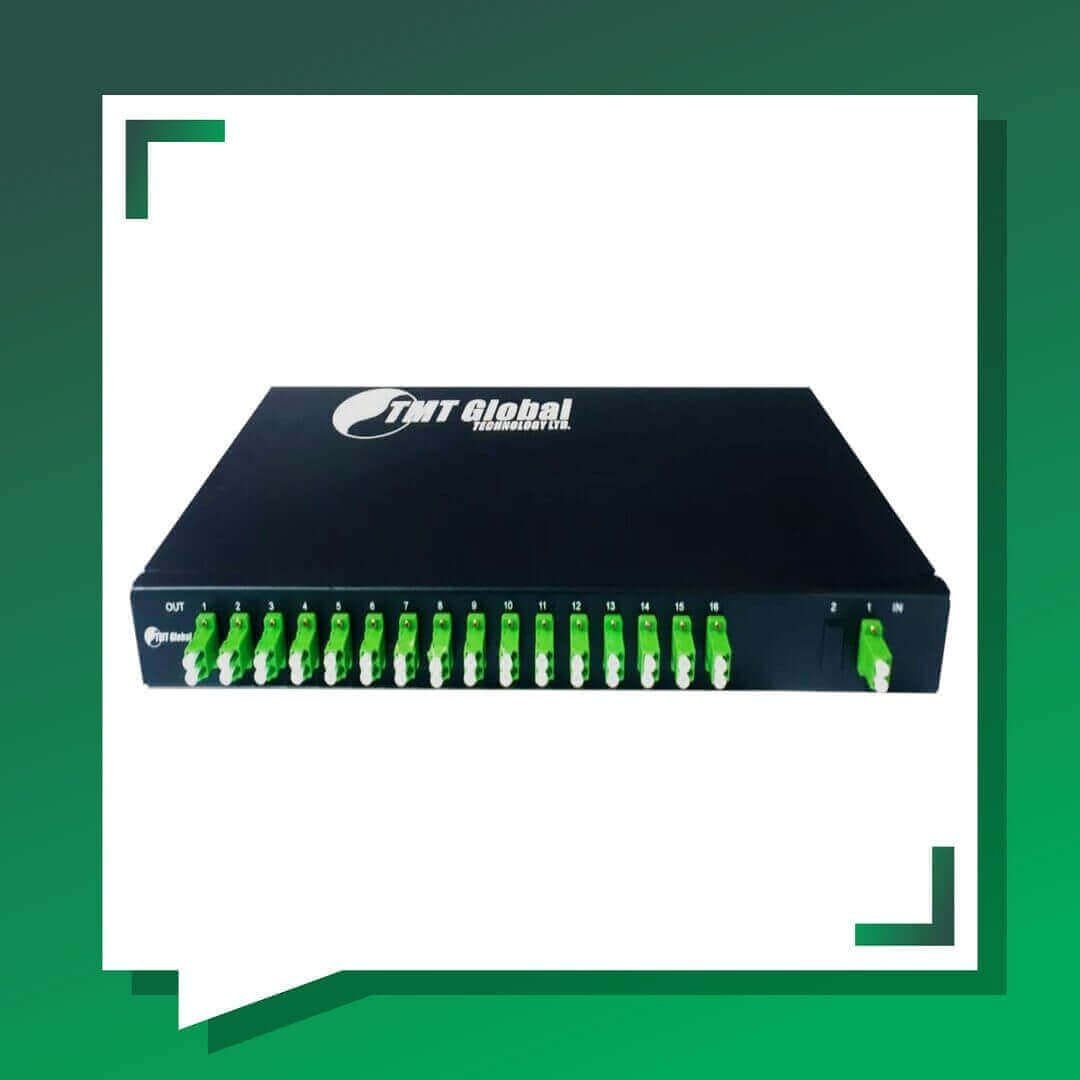

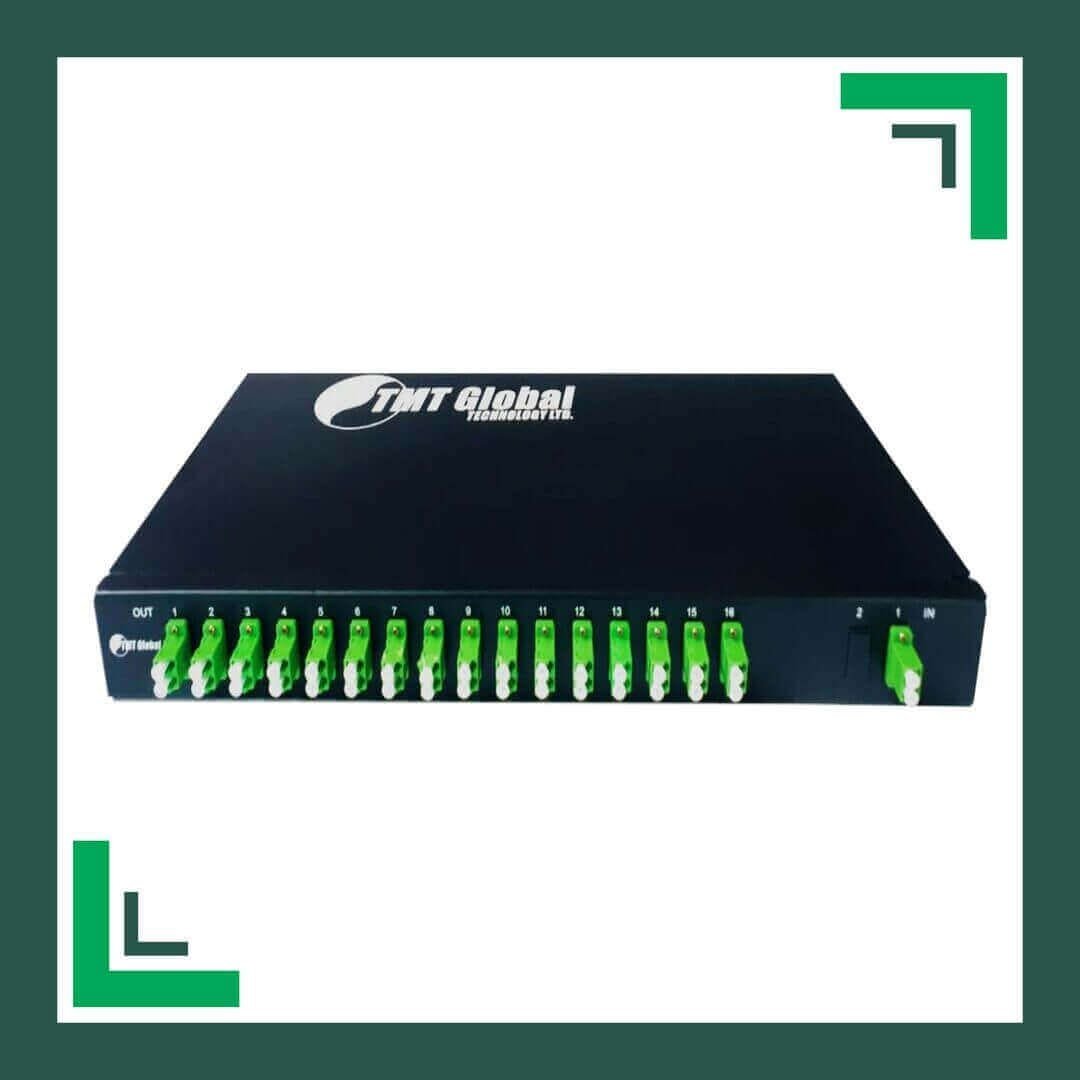

Fiber Splitter LC-APC Rack Mounted 2X32 apc 32

TMT GLOBAL Fiber Splitter LC-APC Rack Mounted 2X32 apc 32 apc 32

TMT GLOBAL provides high-quality fiber optic splitters, including SC, LC, single-mode, multimode, OS2, OM2, OM3, and OM4 fiber optic equipment for use in various industrial and building automation applications, both indoor and outdoor. They can be easily used in narrow applications due to their flexible construction, such as CCTV systems, SMATV systems, audio-video intercom systems, and more.

The latest regulations require transparency in environmental impacts, particularly regarding APC 32 port console servers and low-CO2 products. For compliance details, please read about European Union markets and the latest rack PDU regulations. The products are suitable for public address systems, access control systems, burglar alarm systems, lighting control systems, gate automation systems, smart home automation, building automation systems, computer systems, and many other ELV systems. The products offer unique properties and benefits for different types of use. Fiber Splitter LC-APC Rack Mounted 2X32.

Features

Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting

Applications

Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB)

OPTICAL PARAMETERS

Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:16.8dB/Max: 17.8dB
Channel Uniformity: Typ:2.0dB / Max: 2.5dB
PDL: Typ:0.2dB / Max: 0.4dB
Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB
Temperature stability: Typ:0.4dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type :  G.652D,G.657A1/A2
Connector Type :LC/APC
