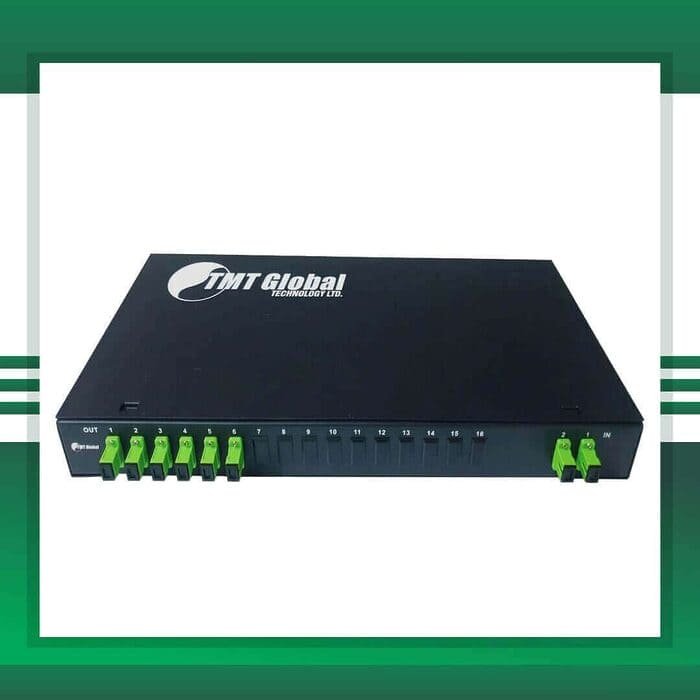

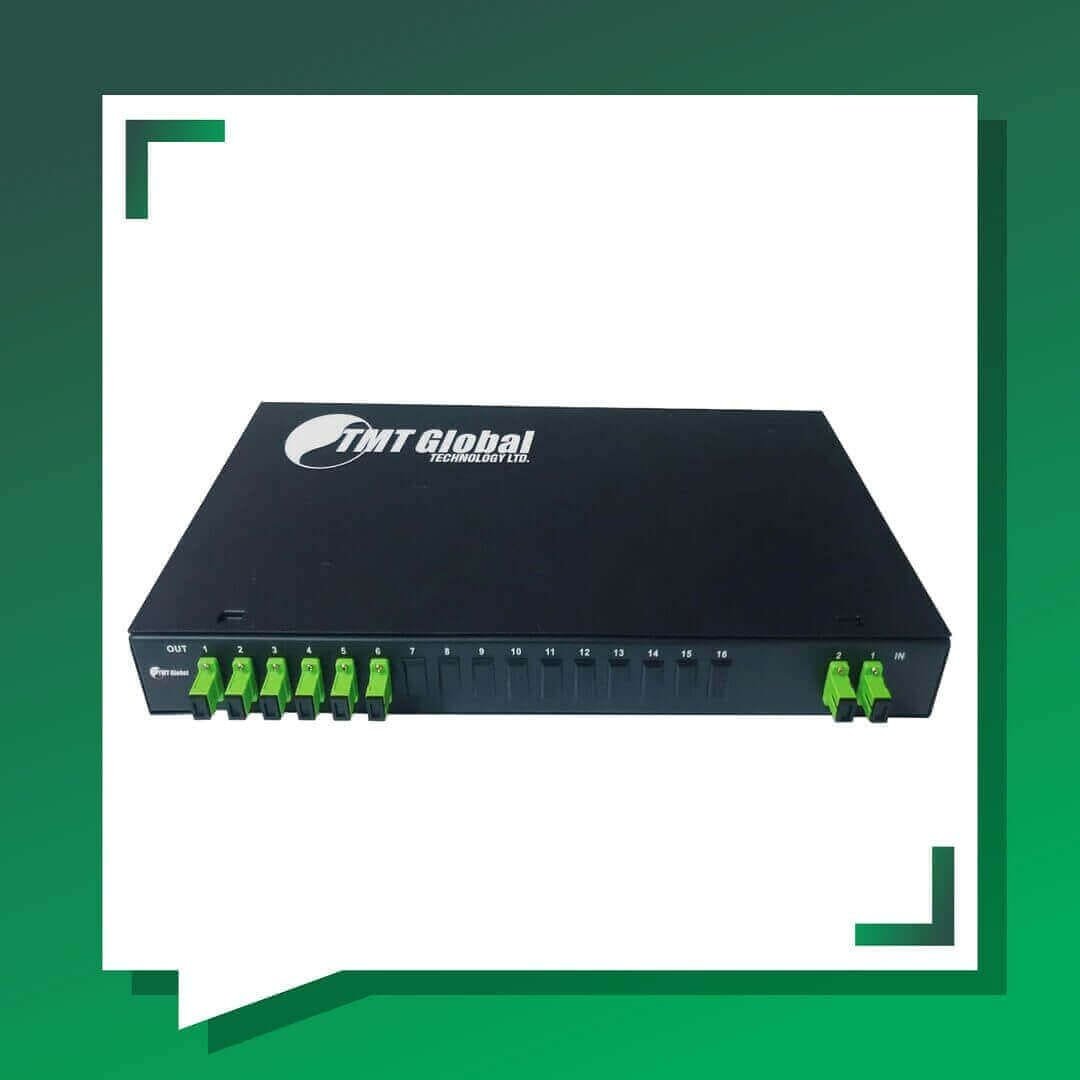

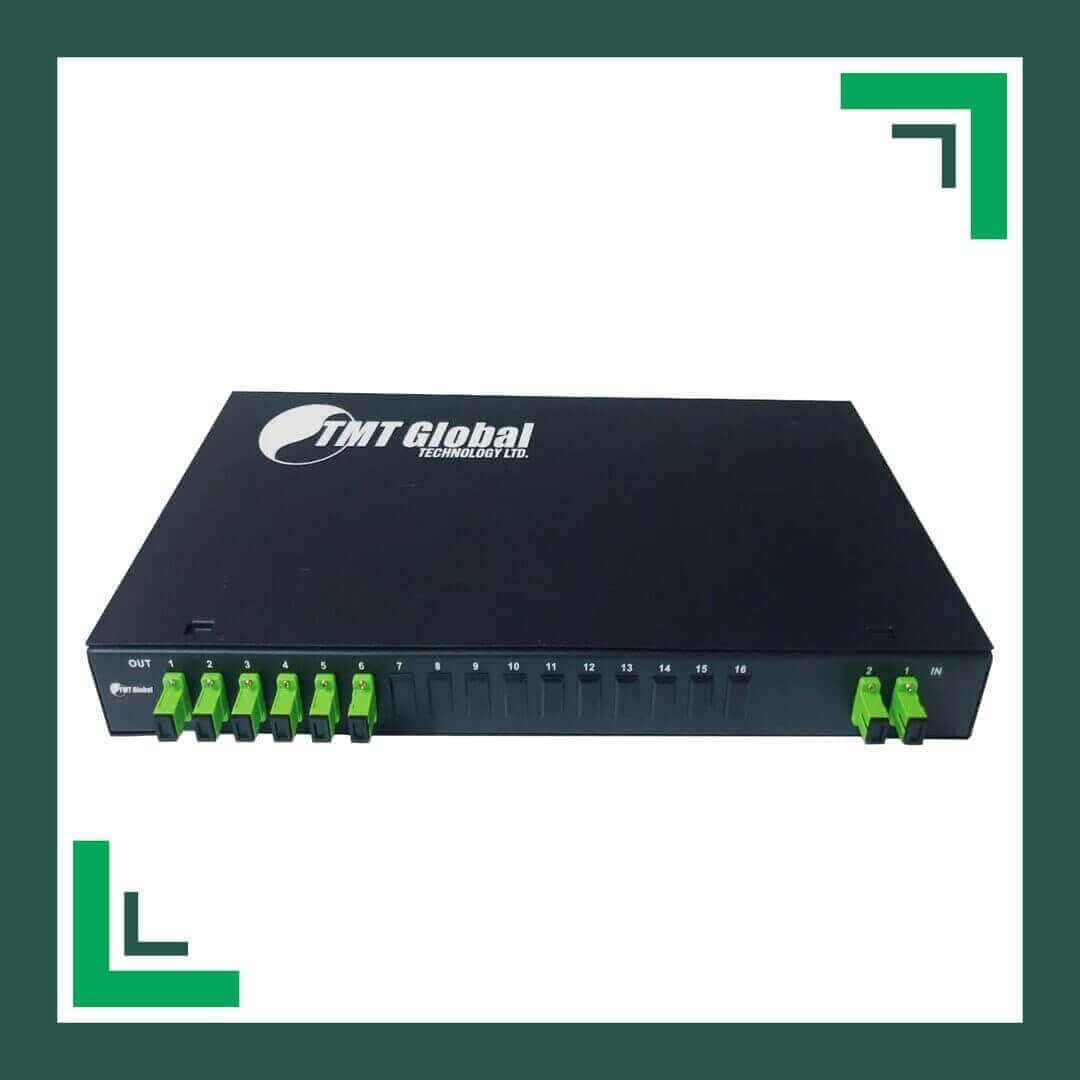

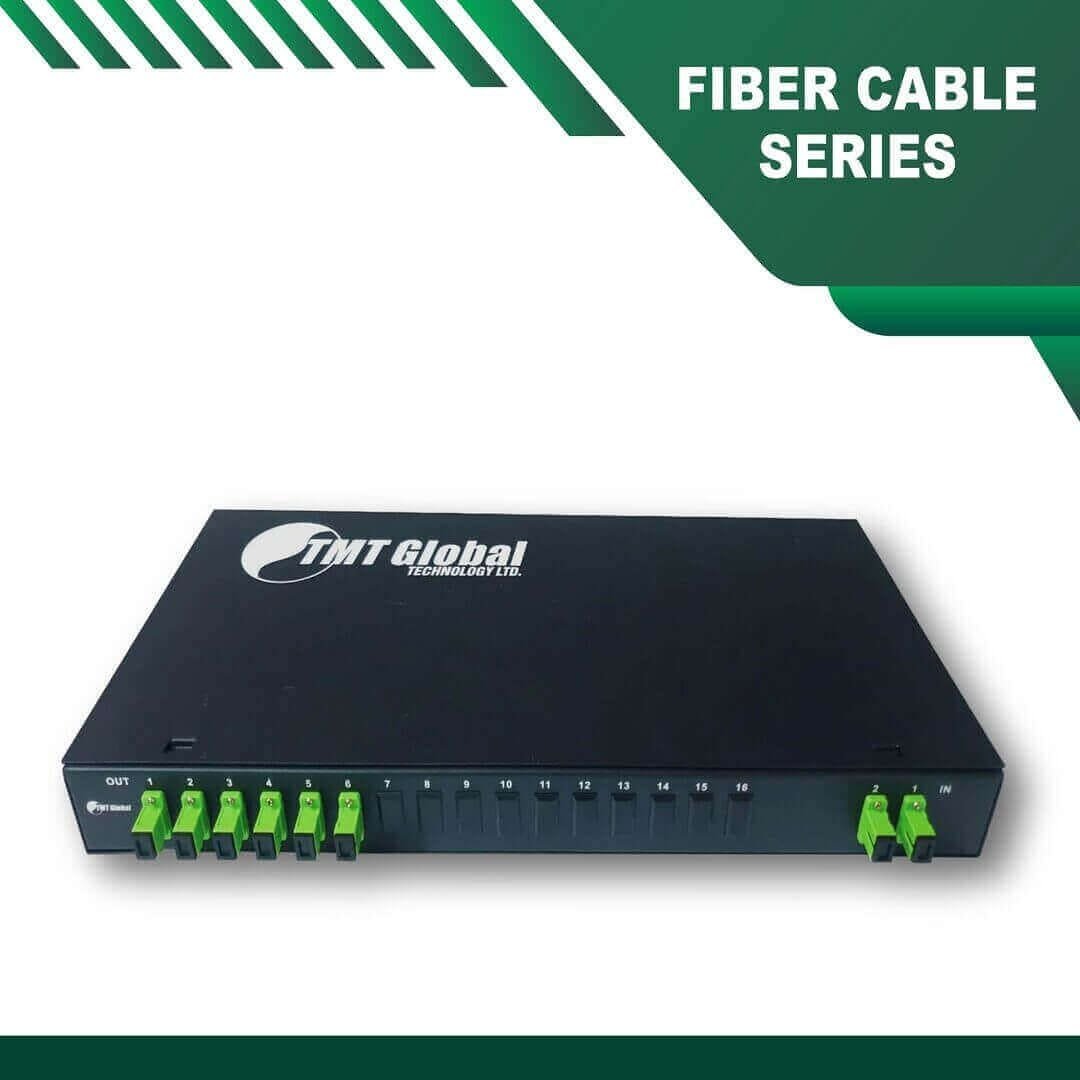

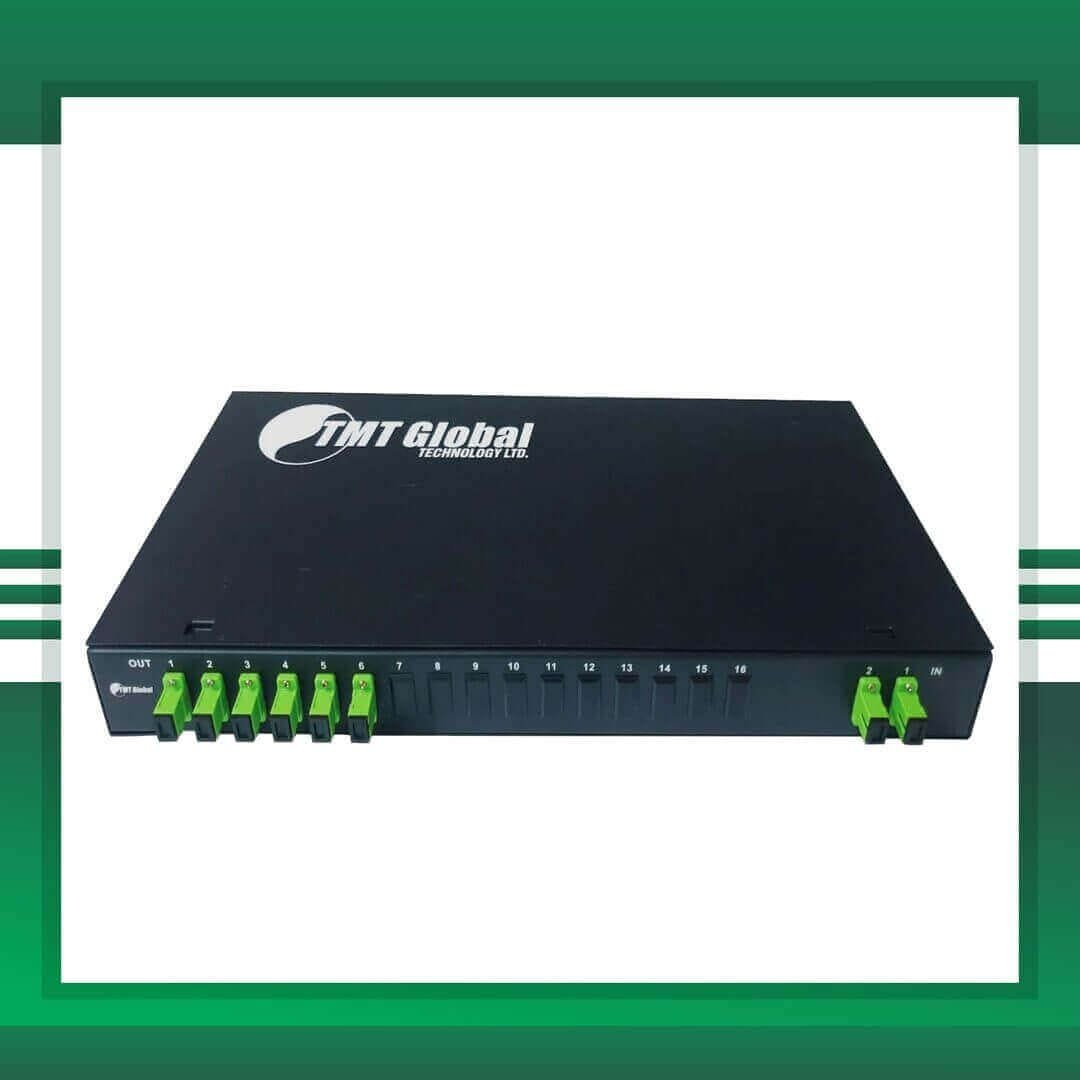

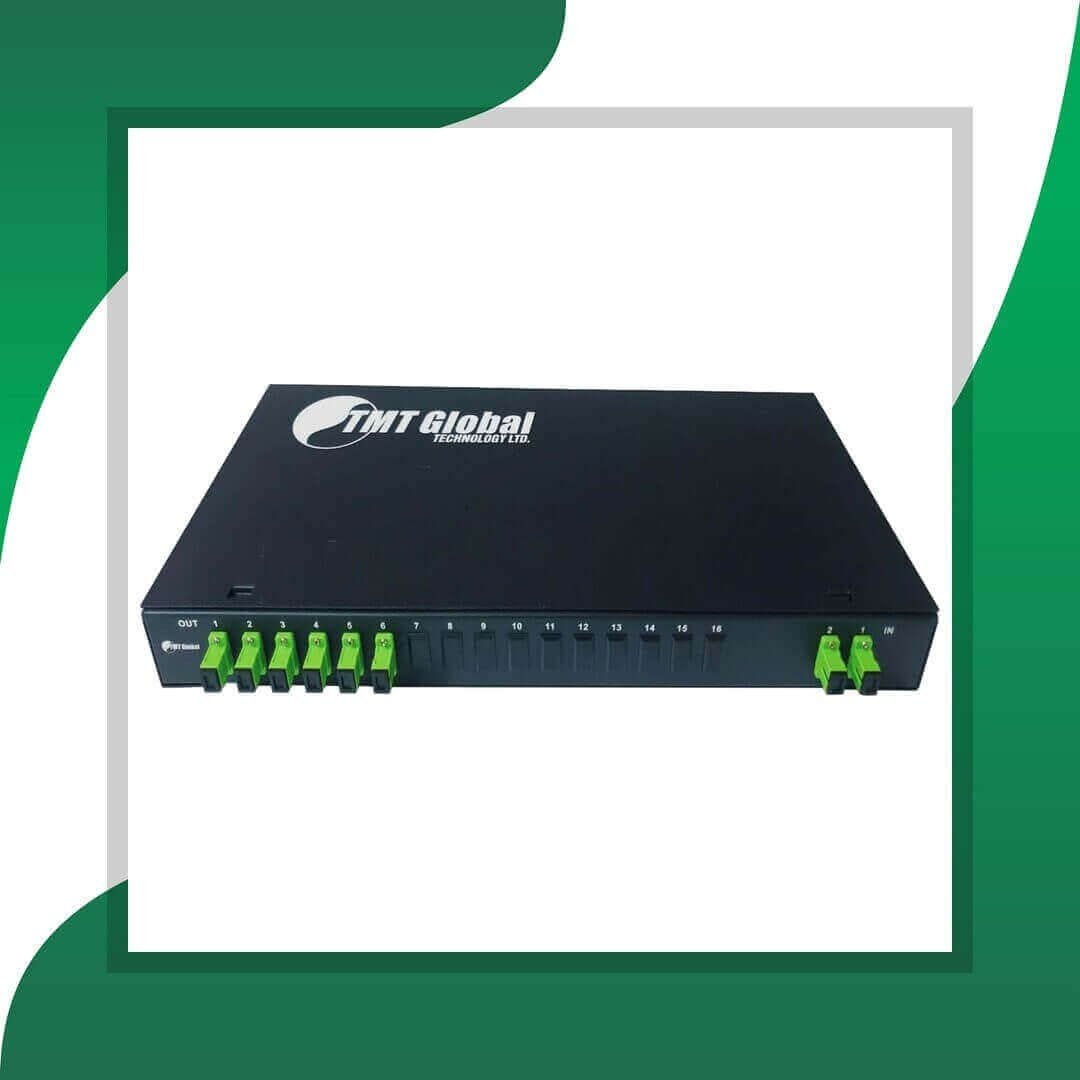

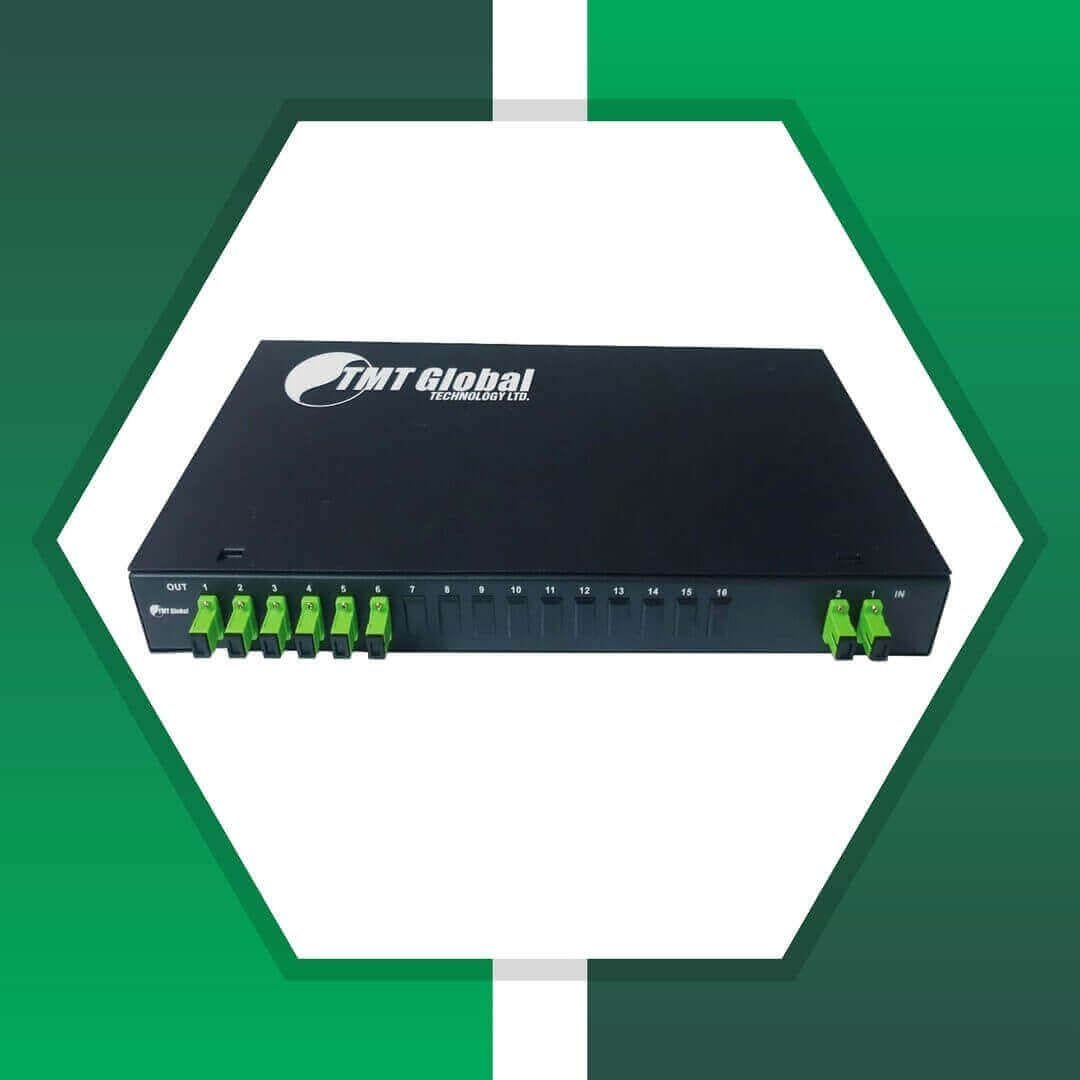

Fiber Splitter SC-APC Rack Mounted 2X6
د.إ270.00
General Specification
Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ: 8.5dB/Max: 9.2dB
Return Loss : Min.dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type : G.652D,G.657A1/A2
Connector Type :SC/APC
Product ID : TMT-Y061SSL
0
People watching this product now!
Description
TMT GLOBAL Fiber Splitter SC-APC Rack Mounted 2X6
TMT GLOBAL provides high-quality fiber optic splitter SC LC single-mode multimode OS2 multimode OM2 OM3 OM4 fiber optic equipment for use in various industrial and building automation indoor and outdoor applications. They can be easily used with their flexible construction in narrow applications like CCTV systems, SMATV systems, audio-video intercom systems, public address systems, access control systems, burglar alarm systems, lighting control systems, gate automation systems, smart home automation, building automation systems, computer systems, and many more ELV systems. The products have unique properties and benefits for different types of use.Fiber Splitter SC-APC Rack Mounted 2X6
Features
Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting
Applications
Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB)
OPTICAL PARAMETERS’
Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:16.8dB/Max: 17.8dB
Channel Uniformity: Typ:2.0dB / Max: 2.5dB
PDL: Typ:0.2dB / Max: 0.4dB
Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB
Temperature stability: Typ:0.4dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type : G.652D,G.657A1/A2
Connector Type :LC/APC
Reviews (1)
1 review for Fiber Splitter SC-APC Rack Mounted 2X6
Only logged in customers who have purchased this product may leave a review.
Download
tmtuae –
The Fiber Splitter SC-APC Rack Mounted 2X6 is an essential component for efficient fiber optic network management. This device allows for the splitting of a single optical signal into multiple outputs, making it ideal for applications requiring connectivity to multiple endpoints. With its SC-APC connectors, it ensures low insertion loss and optimal performance, enhancing overall network reliability.
One of the notable benefits of this splitter is its rack-mounted design, which facilitates organized installation and easy access within data centers. The 2X6 configuration allows for the distribution of signals to up to six different fibers, maximizing resource utilization. Furthermore, its robust construction promises longevity and resilience, even in demanding environments.
However, potential users should consider some limitations. The splitter’s rack-mounted format may require additional space in equipment racks, which could pose challenges in more compact setups. Additionally, while it provides excellent performance, the initial investment may be higher compared to passive splitters, potentially impacting budget-conscious projects.
In summary, the Fiber Splitter SC-APC Rack Mounted 2X6 is a reliable choice for those seeking efficient signal distribution in fiber optic networks, granted that users account for the spatial and financial considerations.
