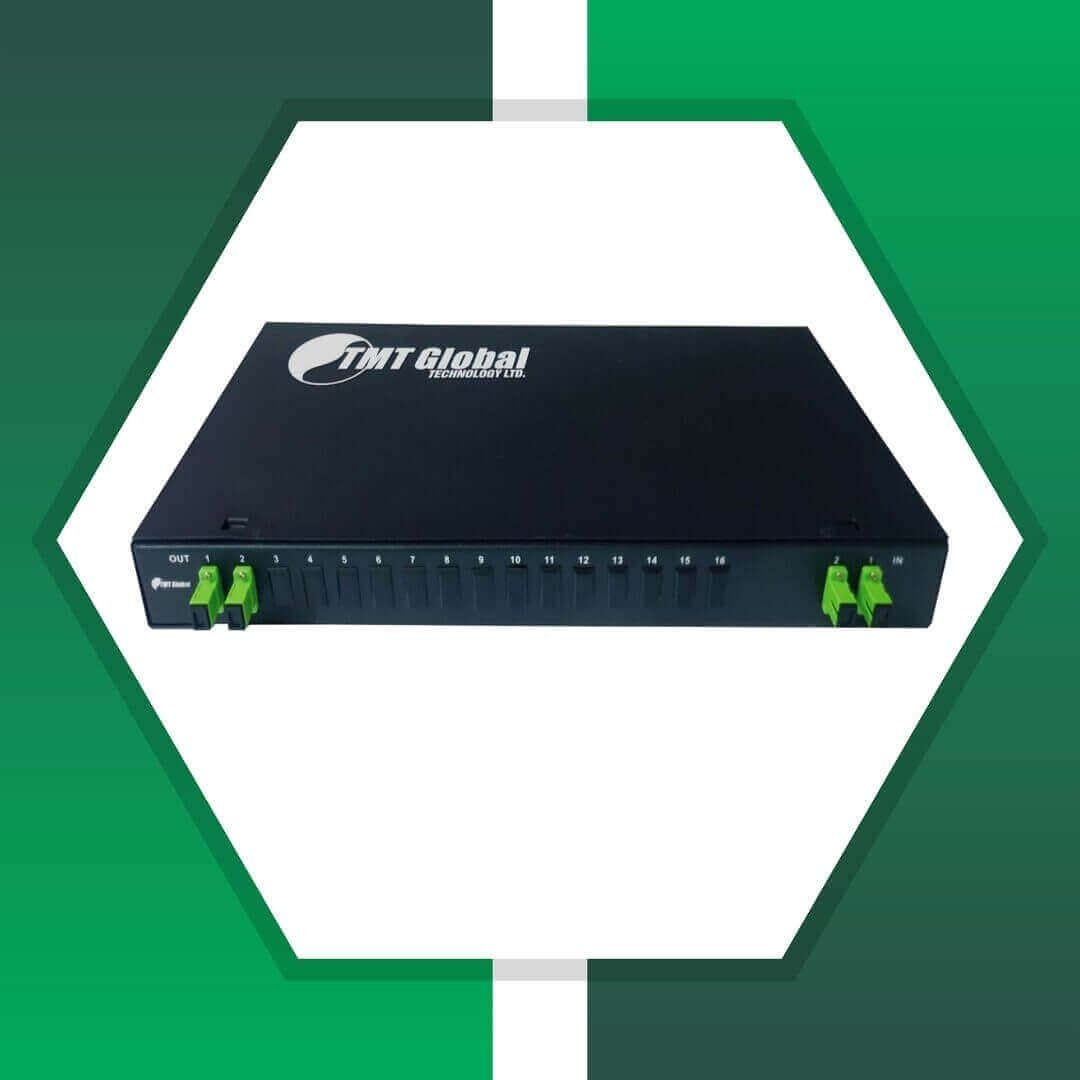

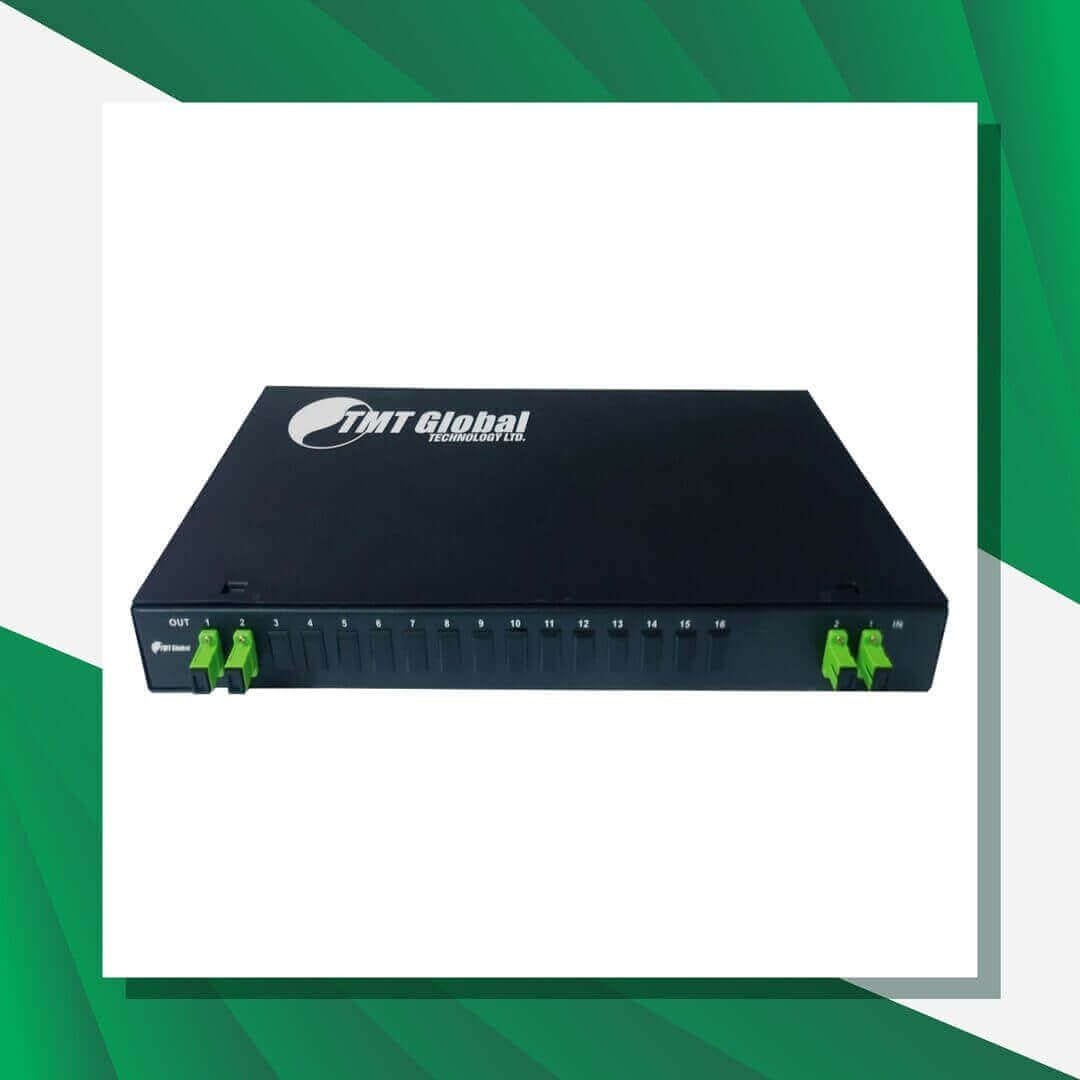

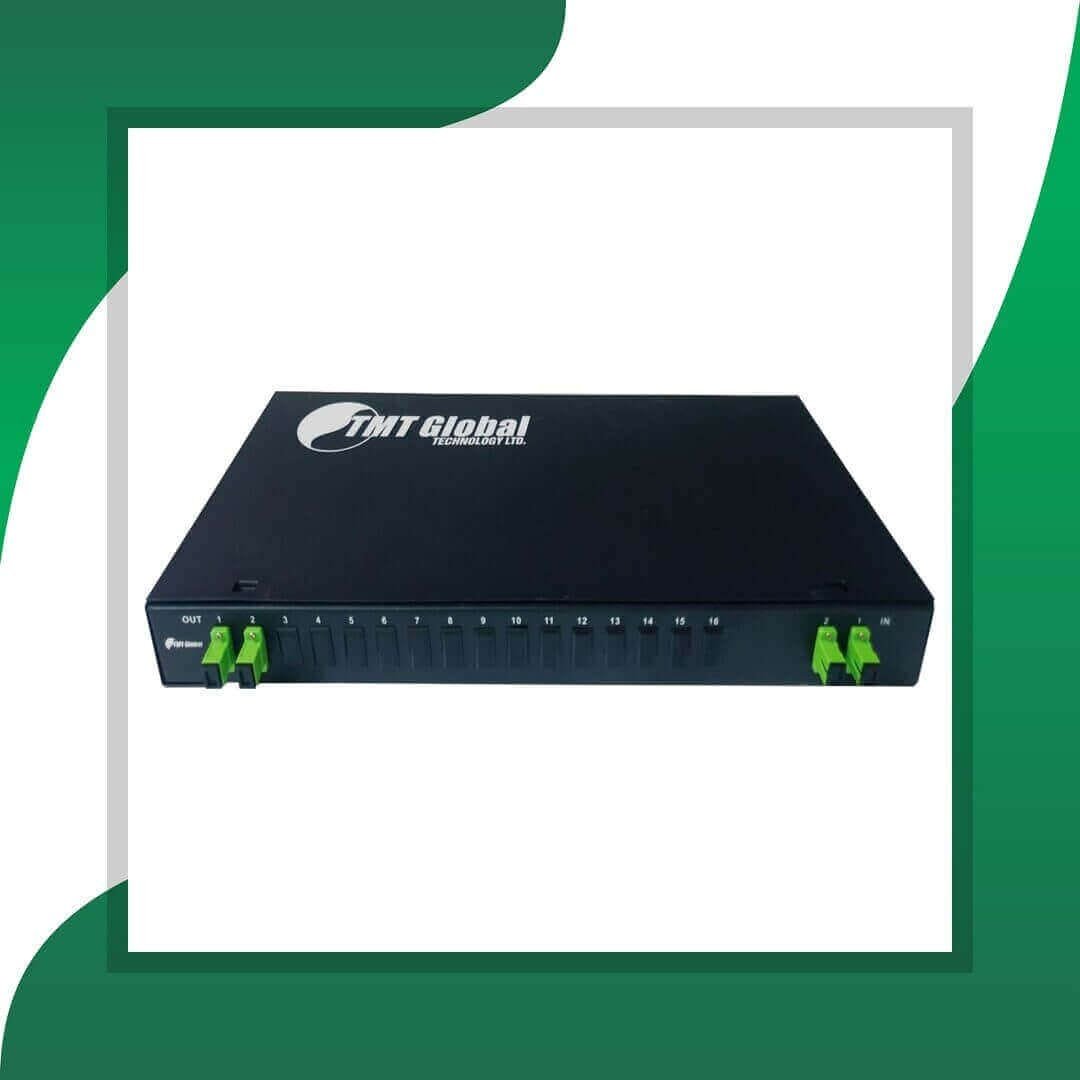

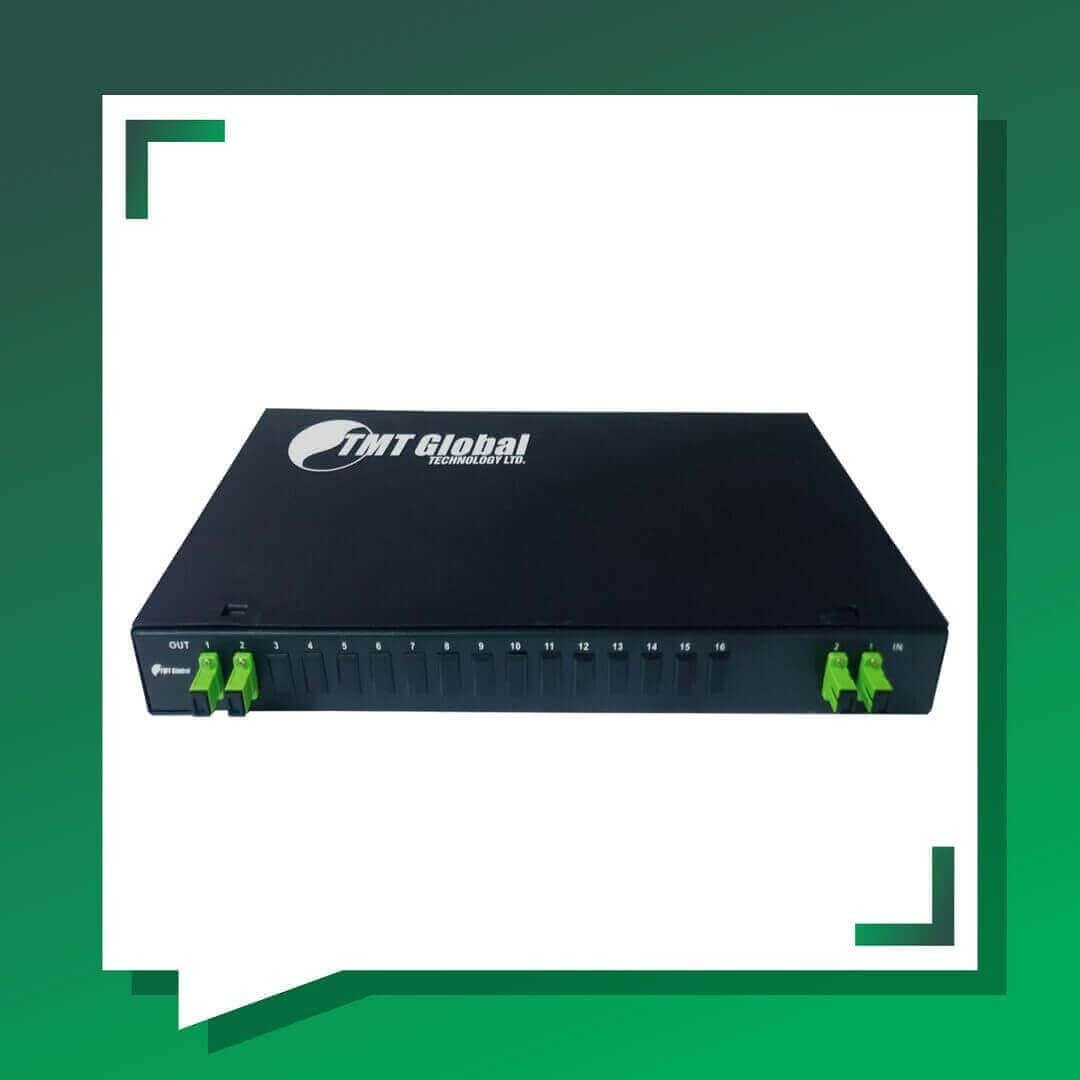

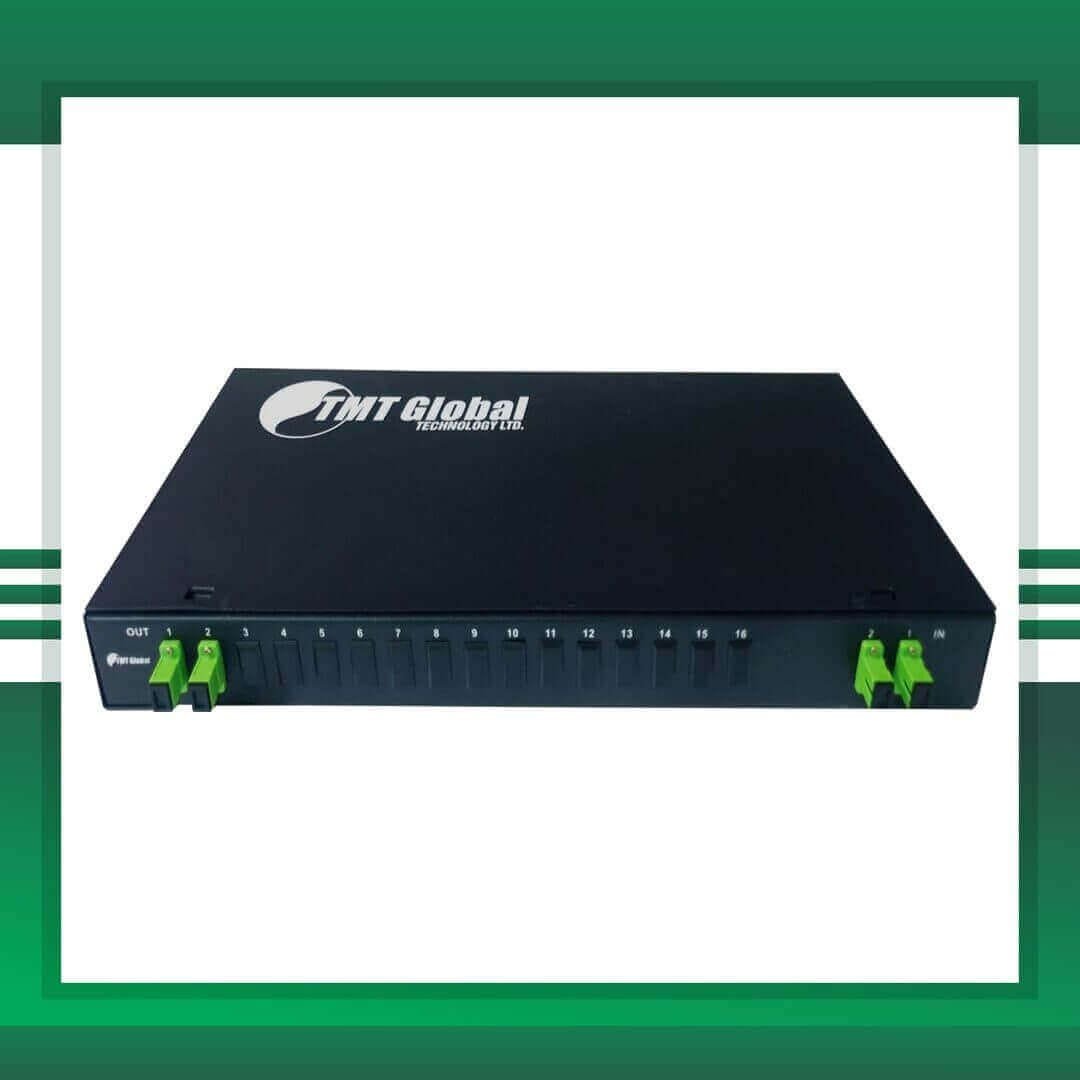

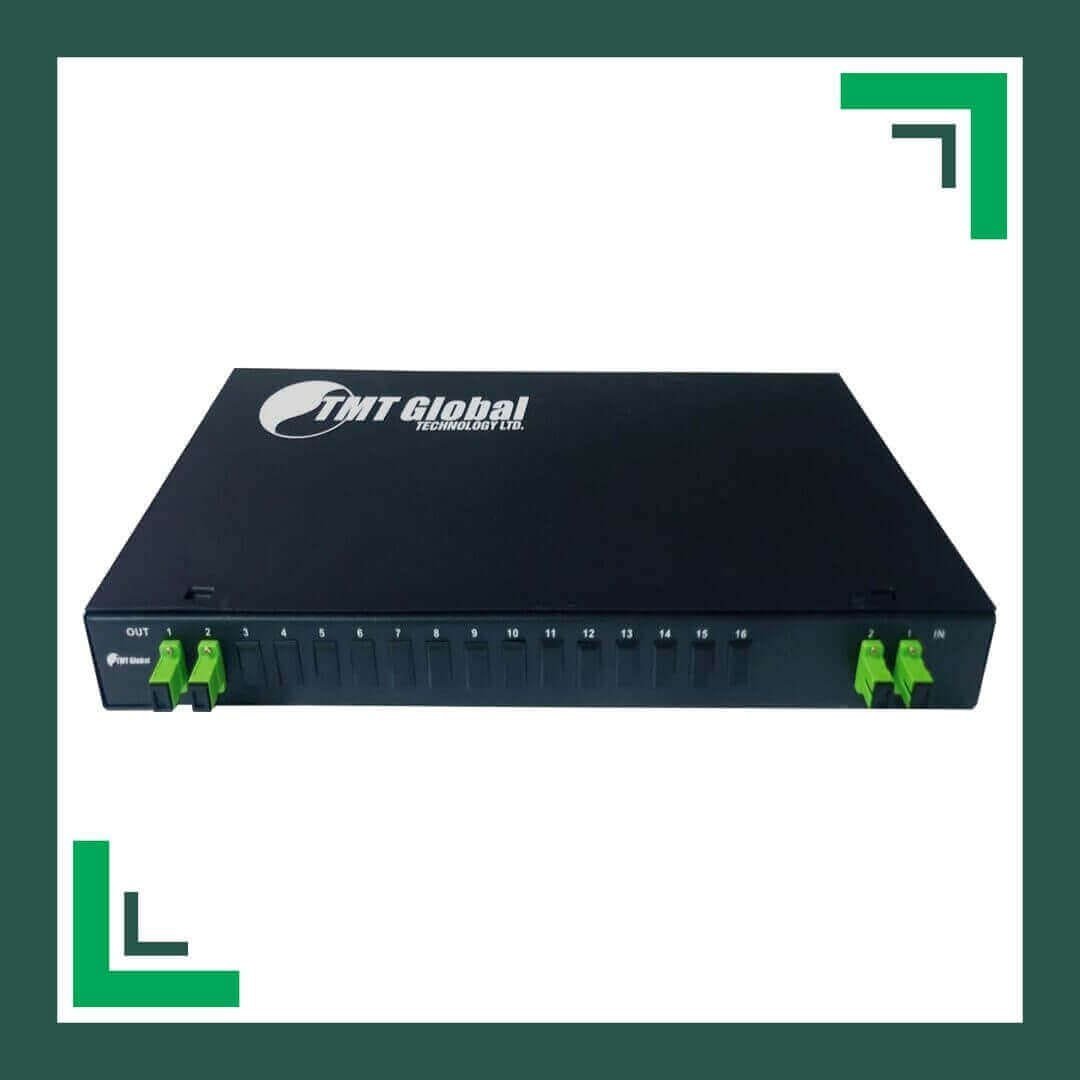

Fiber Splitter SC-APC Rack Mounted 2X2

TMT GLOBAL Fiber Splitter SC-APC Rack Mounted 2X2

TMT GLOBAL provides high-quality fiber optic splitter SC LC single-mode multimode OS2 multimode OM2 OM3 OM4 fiber optic equipment for use in various industrial and building automation indoor and outdoor applications. They can be easily used with their flexible construction in narrow applications like CCTV systems, SMATV systems, audio-video intercom systems, public address systems, access control systems, burglar alarm systems, lighting control systems, gate automation systems, smart home automation, building automation systems, computer systems, and many more ELV systems. The products have unique properties and benefits for different types of use.Fiber Splitter SC-APC Rack Mounted 2X2

Features

Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting

Applications

Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB)

OPTICAL PARAMETERS

Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:16.8dB/Max: 17.8dB
Channel Uniformity: Typ:2.0dB / Max: 2.5dB
PDL: Typ:0.2dB / Max: 0.4dB
Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB
Temperature stability: Typ:0.4dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type :  G.652D,G.657A1/A2
Connector Type :LC/APC
