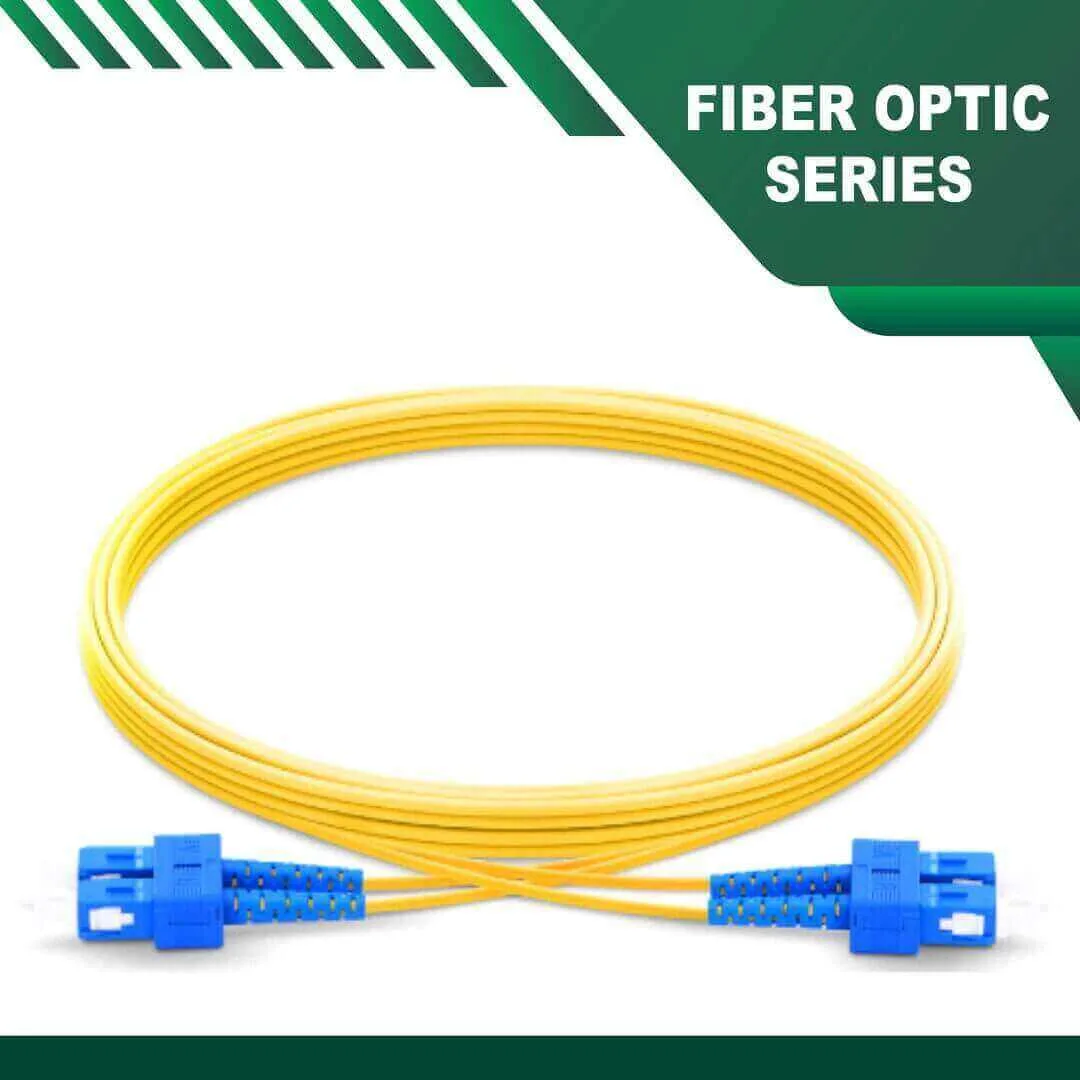

Fiber Optic Patch Cord SM SC-SC-UPC Duplex LSZH

TMT GLOBAL Fiber Optic Patch Cord Single Mode SC-SC-UPC Duplex LSZH

TMT Global  PATCH CABLES  are manufactured and  tested  in  compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed.Fiber Optic Patch Cord SM SC-SC-UPC Duplex LSZH

Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.

Optical Specifications
Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2 Fiber Optic Patch Cord Single Mode SC-SC-UPC Duplex LSZH

General Specification
Mode type : Single Mode
Cable Type : Simplex
Connector Style : SC-LC
Fiber Type : ITU-T G.652D
Polish type :UPC/APC
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength : SM,1310/1550nm
Length : 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Product ID : TMT-D52410Y

Multi mode OM-2                   Multi mode OM-3        Multi mode OM-4            ST-UPC
≤0.3dB                                            ≤0.3dB                               ≤0.3dB                                     ≤0.3dB
≥30dB                                             ≥30dB                                 ≥30dB                                      ≥50dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
