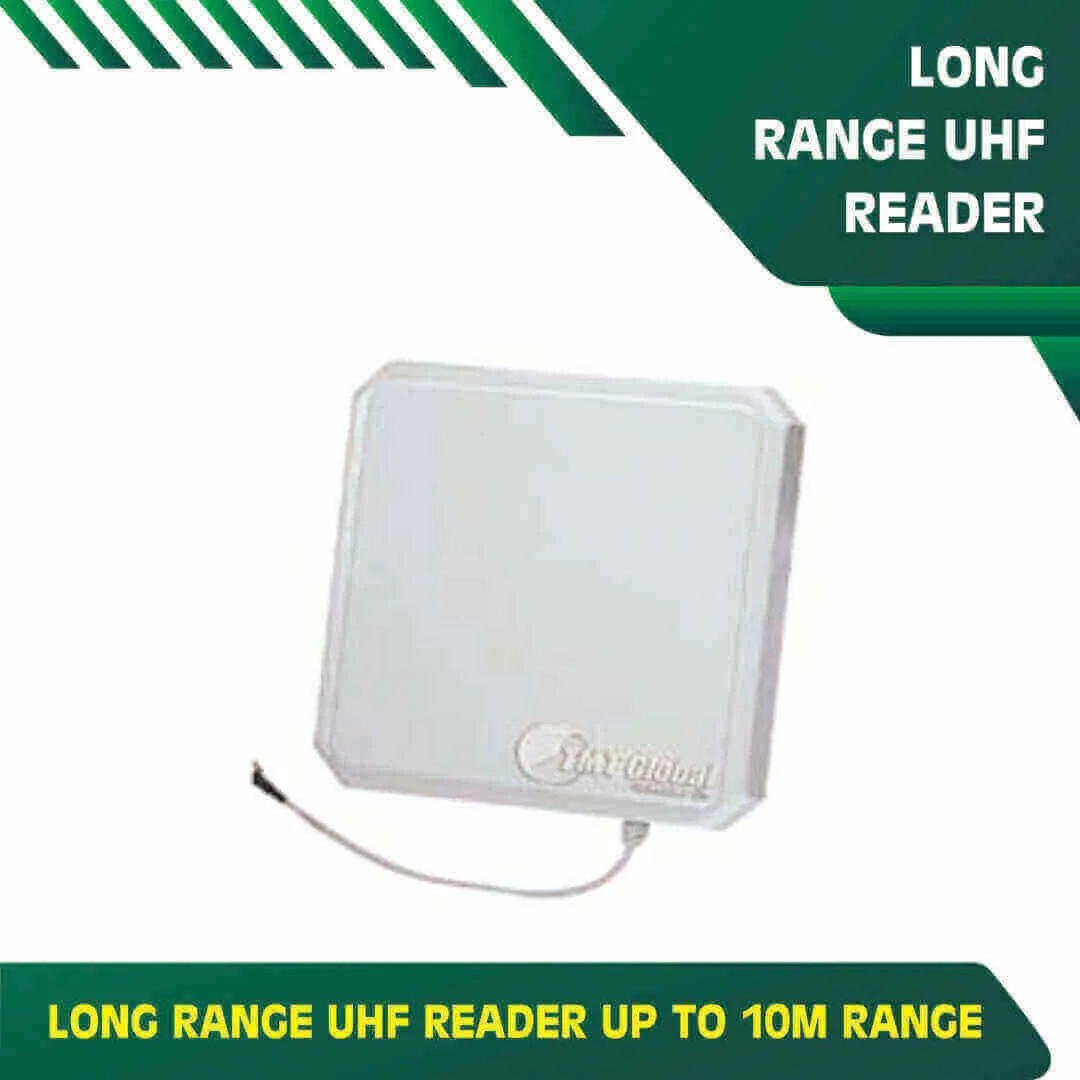

UHF Long-Range Reader 10 m Range
General Specification:
Operating Frequency: 860-868 MHz, RF band Customized (Optional)
Frequency Hopping: FHSS or Fixed Frequency
Power / Current :+20dBm ~ +30dBm @ 50Ω load, 1dBm each step
Antenna : Built-in 12dBi linear Polarization antenna ( Horizontal / Vertical Customized)
Communication Interfaces: RS-232, Wiegand 26/34
Firmware Update: Firmware Upgrade
Tag Protocol : ISO18000-6B, EPC Class 1 Gen 2 (ISO18000-6C)
Reading: Range 0~15m
Power: DC 12V
Power Assumption: 2W (Standby), 10W (Working)
Net Weight: 3.5kg
Gross Weight: 6.23kg
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -60℃ ~ +80℃
TMT Global UHF Long-Range 10 m Reader Series
Discover the innovative TMT Global UHF Long-Range Reader 10m Series, designed for high-performance RFID tracking across various applications. This technology provides remarkable read ranges, making it a perfect fit for logistics, inventory management, and asset tracking. Businesses can enhance their operational efficiency, reduce costs, and improve overall service delivery by adopting these robust readers. TMT Global Technology Ltd has created a reliable solution that functions effectively even in challenging environments, ensuring continuous performance. Explore how these advanced readers can transform your tracking solutions and support your organization’s growth and productivity. Read more about the benefits and applications of this cutting-edge technology in our blog post.
KEY FEATURES
- 10 m and 15 m TMT reader options
- 860–868 MHz regional baseline
- RS-232 + Wiegand 26/34
- EPC Class 1 Gen 2 / ISO18000-6C
- Integrated high-gain antenna architecture
- Vehicle access and logistics applications
APPLICATIONS
- Vehicle parking access
- Gate and barrier control
- Warehouse logistics
- Asset tracking
- Long-range identification
| Performance Index | |
| Â Operating Frequency | Â 860-868MHz, RF band customized (optional) |
| Â Frequency Hopping | FHSS or Fixed Frequency |
|  Power Output | +20dBm ~ +30dBm@50Ω load, 1dBm each step |
| Â Antenna | Built-in 12dBi linear polarization antenna (horizontal/vertical customized) |
| Â Communication Interfaces | RS-232, Wiegand 26/34 |
| Â Optional Interfaces | RS-485, 802.11 WIFI Module and 10M/100M Ethernet interfaces |
|  I/O Interfaces | 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional) |
| Â Firmware Update | Firmware Upgrade |
| Â Application Software Platform | API(C++, C#) development kit (can be customized) |
| Tag Operation | |
| Â Tag Protocol | ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C) |
| Â Reading Range | 0~15m |
| Â Writing Range | 0~5m |
| Mechanical/Electric Performance | |
| Â IP Rating | IP66 |
| Â Indicator | Buzzer and LED(Power, Antenna, Reading/Writing) |
| Â Power | DC 12V |
| Â Power Assumption | 2W(Standby), 10W(Working) |
|  Product Dimension | 445mm x 445mm x 78mm (LxWxH) |
|  Package Dimension | 600mm x 500mm x 110mm (LxWxH) |
| Â Net Weight | 3.5kg |
| Â Gross Weight | 6.23kg |
|  Operating Temperature | -40℃ ~ +60℃ |
|  Storage Temperature | -60℃ ~ +80℃ |
|  Humidity |  5%～ 95%(non-condensing) |
| ORDER INFORMATION | |
| Model No |                     Description |
| TMT-7642 | UHF Long-Range Reader 10 m Range |
| Brand | TMT Global |
|---|
