cat6 utp patch cables ethernet 3m

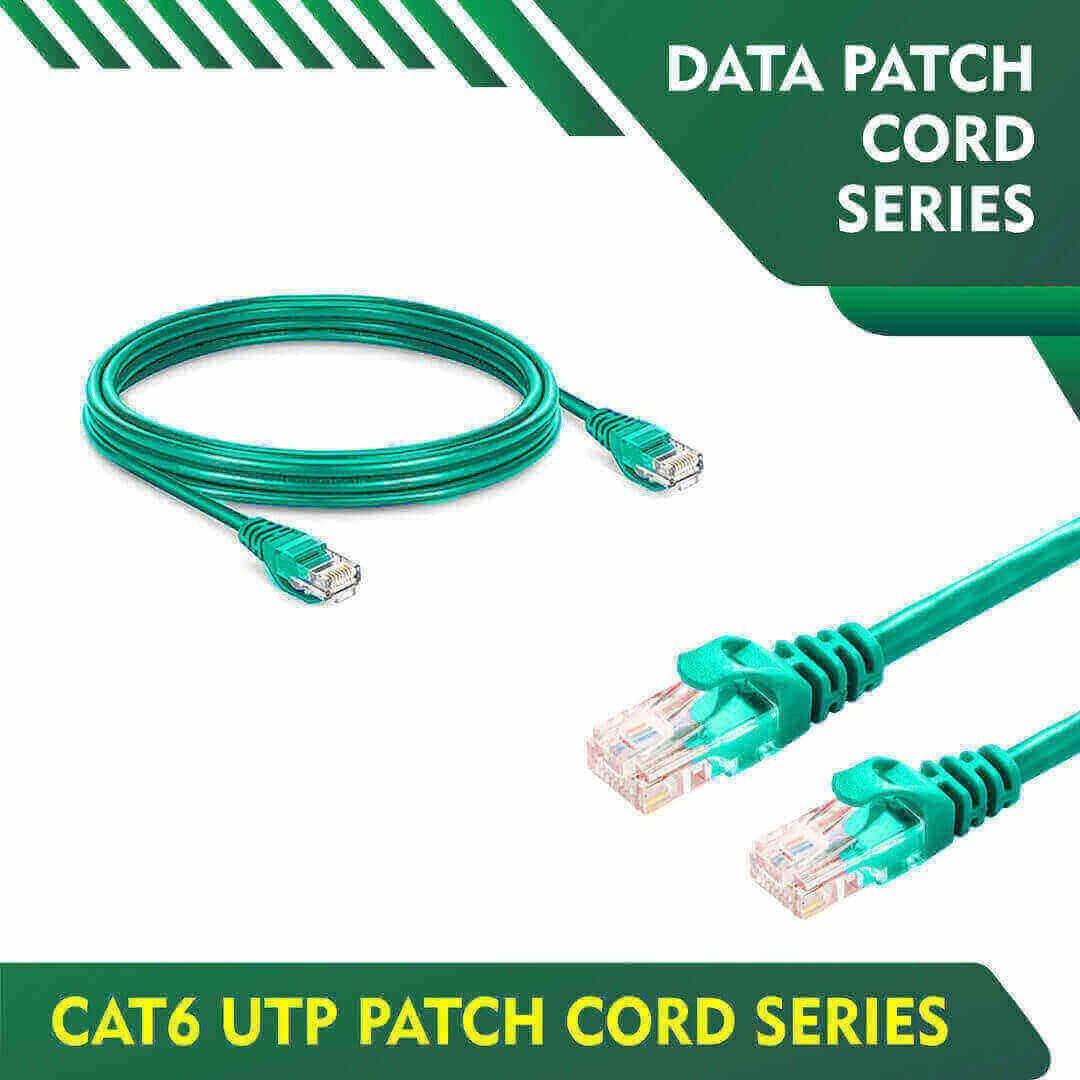

TMT GLOBAL cat6 utp patch cables ethernet 3m

TMT Global cat6 utp patch cables ethernet 3m are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC 11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC 61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.CAT6 UTP PATCH CORD 3M

TMT GLOBAL Cat6 UTP patch cables are high-quality Ethernet cables designed to deliver reliable and fast network connections. With a length of 3 meters, these cables are perfect for connecting computers, routers, switches, and other network devices in both home and office environments. The Cat6 standard ensures superior performance, supporting gigabit speeds and reducing interference for stable and efficient data transmission.

APPLICATION

• 10BASE-T, 100BASE-TX Fast Ethernet,
• 1000BASE-T (IEEE802.3
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)

GENERAL SPECIFICATION
4 Pairs shielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
