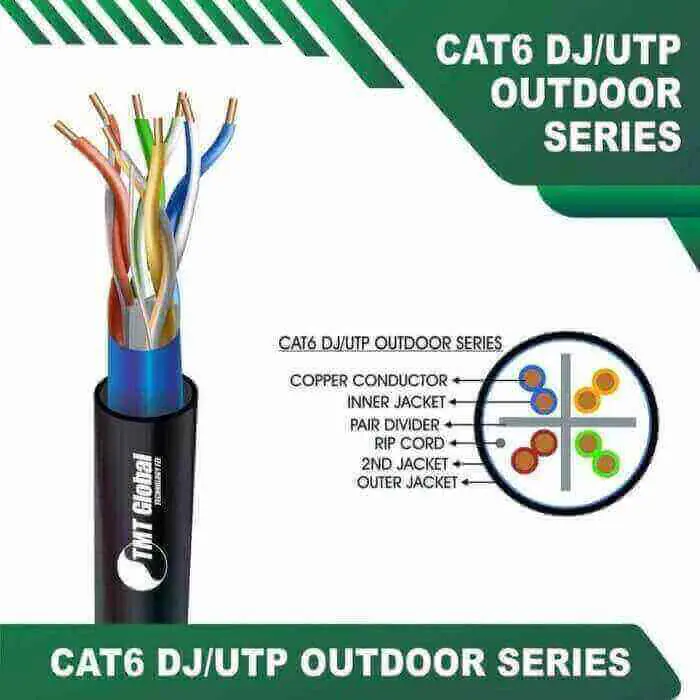

cat6 UTP double PE jacket outdoor Cable 305m TMT-4027

TMT GLOBAL cat6 UTP double PE jacket outdoor Cable 305m TMT-4027

TMT GLOBAL cat6 UTP double PE jacket outdoor Cable 305m TMT-4027 are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). cat6 23awg 4 twisted pair UTP Solid Cable 305m global products range network cable  jacket outdoor cable 305m tmt4027 tmt global products range network products range network cable cat3 pvc indoor outdoor ethernet cable

PHYSICAL AND MECHANICAL PROPERTIES

• Basic Conductor: 23AWG TMT Copper
• Insulation: HDPE
• Number of insulated conductors: 8 twisted in 4 pairs
• Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
• Outer Jacket: LSZH
• Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
• Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
• Pulling force: 100 N MAX
• Short Term Bend Radius: 6xOD (Mm)
• Storage Temperature: -20 To +80C
• Temperature operating range: -20 to +60C
• Installation temperature range: 0 to +50C
• Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS

• Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
• DC Resistance: 93 Ohm/Km max.
• Resistance unbalance: 2% max.
• Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
• Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
• Voltage rating: 72 Vdc max.
• Dielectric strength: 1500 Volts/1 minute min rms
• Velocity of Propagation (NVP): 67-69%
• Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
• Coupling attenuation: IEC 61156-5 TYPE III

General Specification:
• Conductor: TMT Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: N/L
• Outer Jacket: PVC+PE
• Jacket Color: Blue/Black/Grey/Violet/Orange
• Packing: 305m / Wooden/ Plastic Reel
• Model No: TMT-4027
• Item Code: 6X136MDK
