32U Cabinet floor Mounted 600x600mm

Choosing the 32U Cabinet floor Mounted 600x600mm

32U suits a floor distributor or a small server room, with space for several patch panels, switches and power. Floor-standing cabinets take heavier loads, deeper servers and side cable management.

Related options in this range: 32U Floor Standing Cabinet · 37U Floor Standing Cabinet · 27U Floor Standing Cabinet · 27U Cabinet floor Mounted 600 x 600mm · 42U Floor Standing Cabinet

Order code: TMT-32UKKFB. Send us the length, jacket and quantity for a project quotation and datasheet.

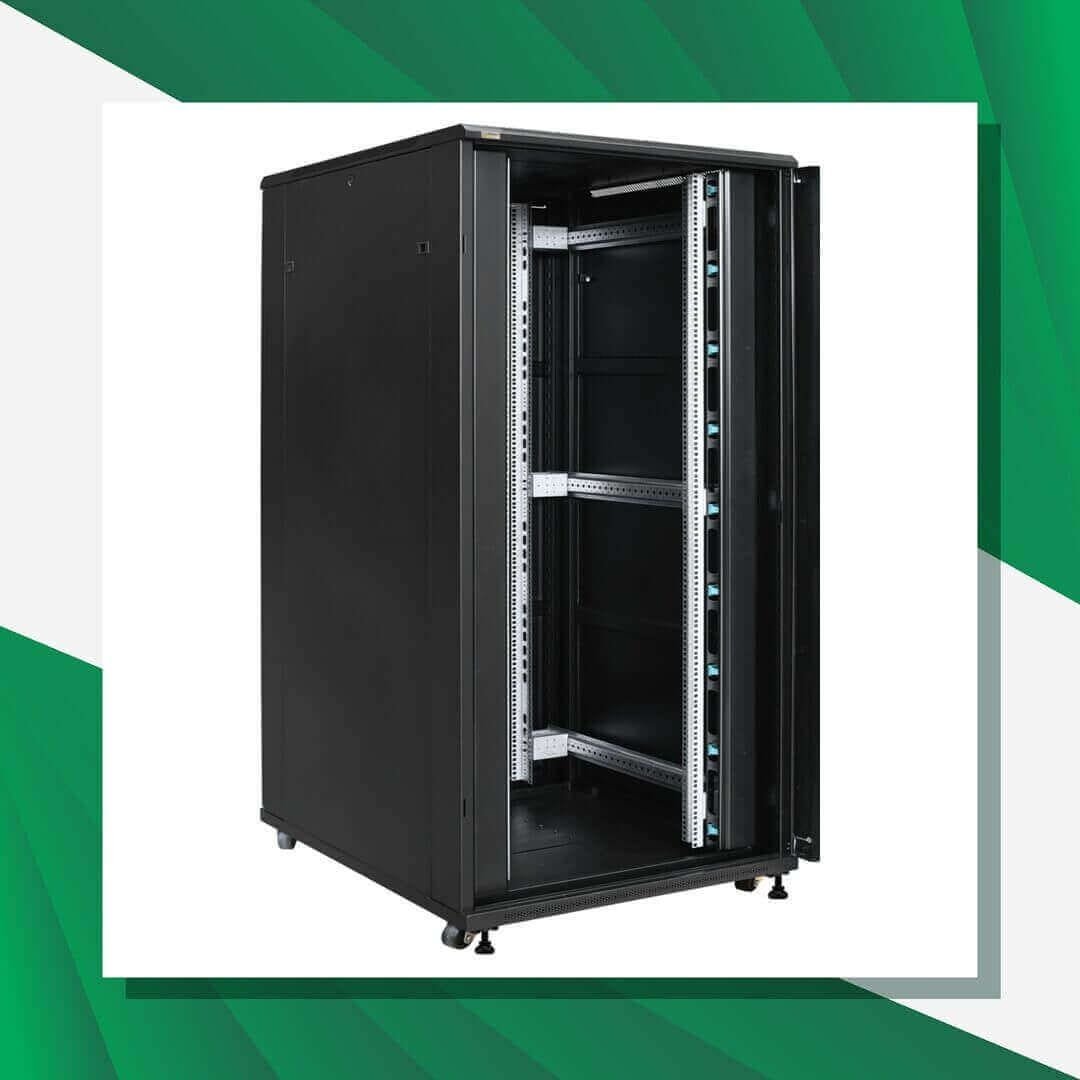

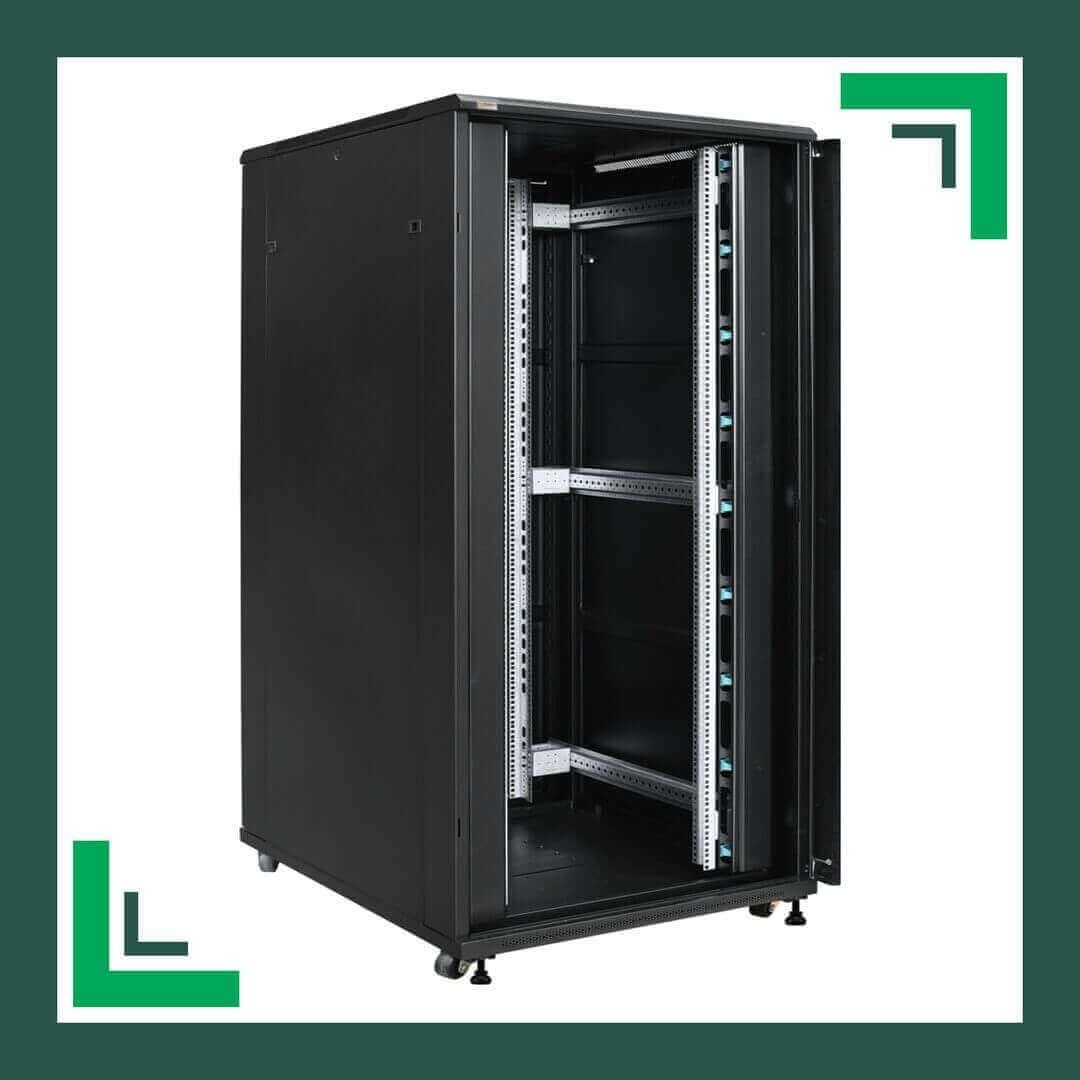

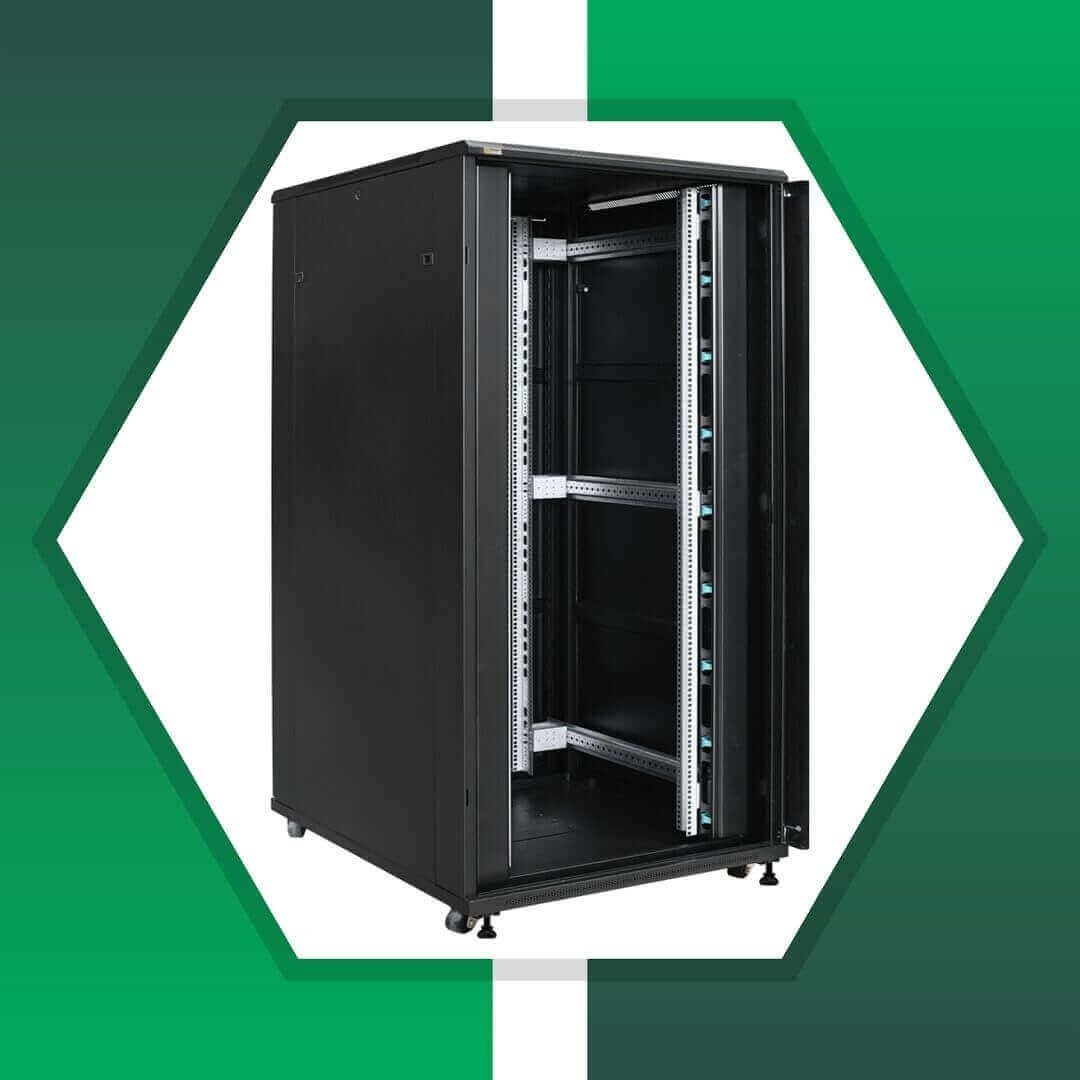

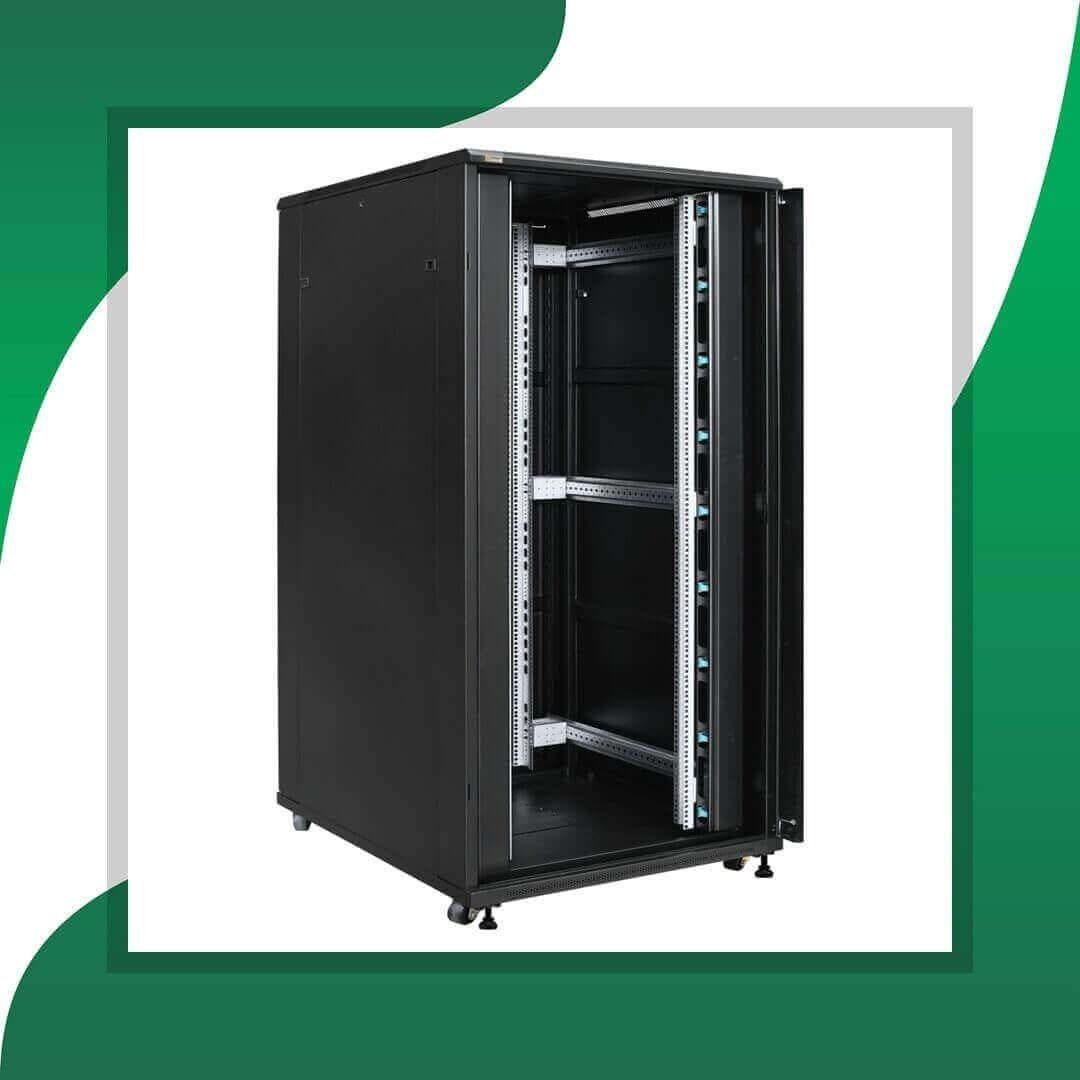

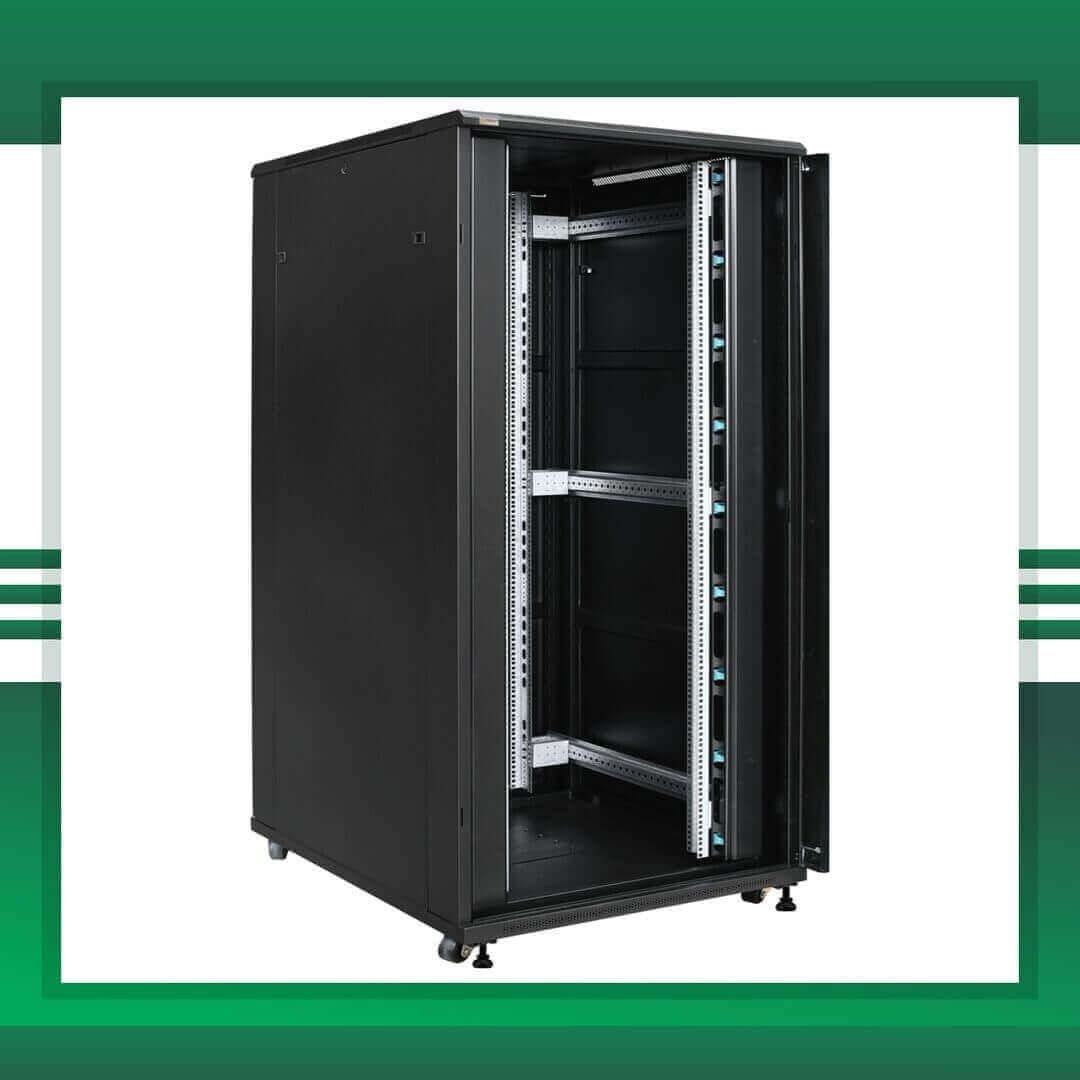

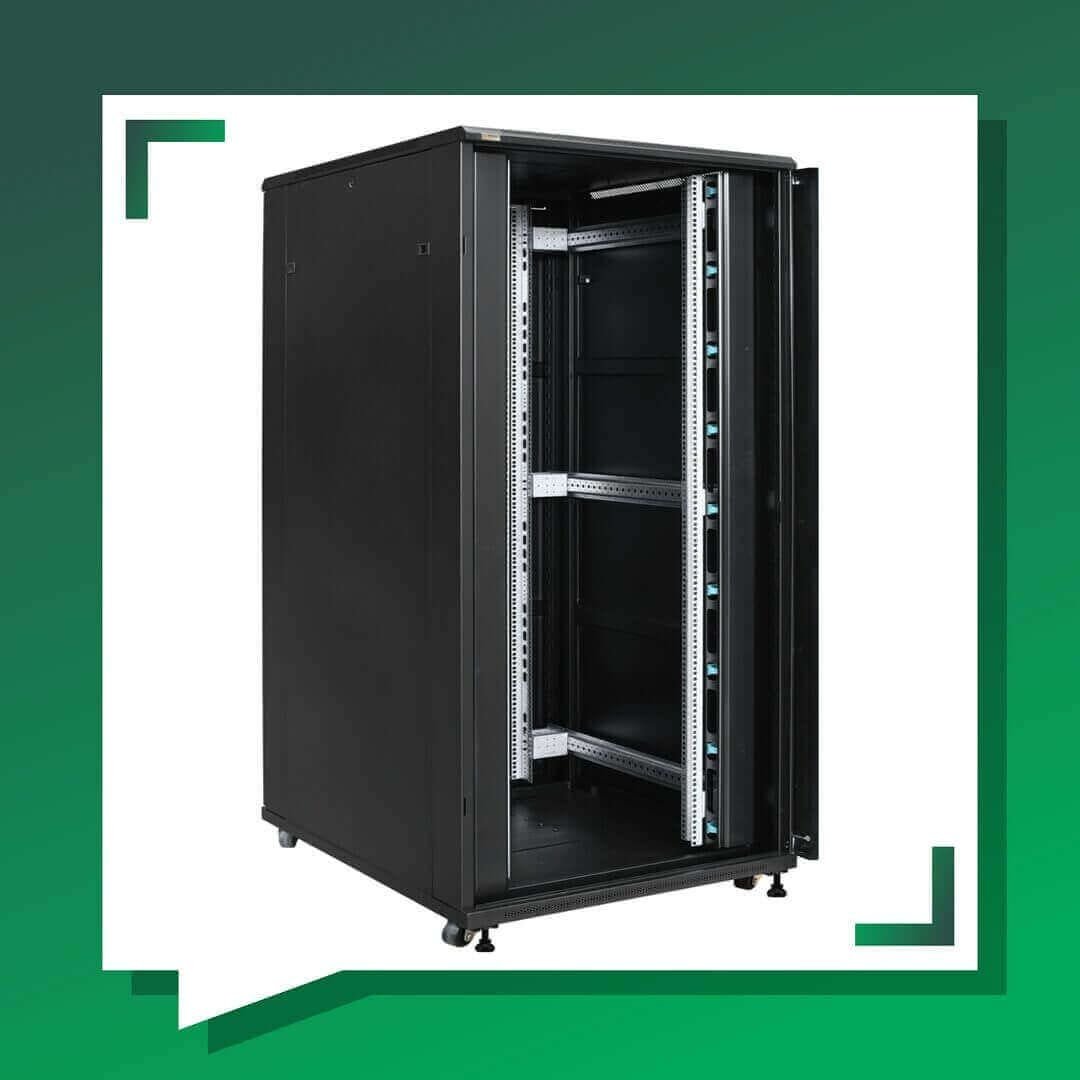

TMT GLOBAL 32U Cabinet floor Mounted 600x600mm

Products description
TMT GLOBAL Cabinet / Racks Manufactured from 1.5mm cold rolled carton sheet coated with polyester powered structure paint. With welded steel frame and gland plates at the top and bottom for cable entry. Two pairs of fully adjustable 2mm 19” profile With universal punching are fitted in every enclosure Wall mounting holes at the rear for easy mounting.32U Cabinet floor Mounted 600x600mm TMT GLOBAL cabinet/racks is designed for indoor wall mounted & Floor Standing using, cold-roll steel, with Vertical Cable Manager trays for
cable distribution and management.

Features
Solid steel construction.
Available on flush, wall mounted and floor standing.
Adjustable 19” mount.
Mechanical open / close lock.
Lock handle.
Inner mount plate with grid mount.
Top and bottom panel cable entry.
Ventilation holes on front panel.
Cabinet can be fitted with 1U patch panel.
Embedded grounding copper coated stud bolts.

Application
Telecommunications,
Fiber to the home (FTTH)
Server Room
Data center ,
LAN / WAN, CATV
IPTV
CCTV

Specifications

• Material: Solid steel construction
• Coating: Polyester powered structure paint.
• Housing thickness: 1.5mm
• Front Door: 3mm tempered glass reinforced  and  metal panel
• Rear Plate: Fixed
• Side panels: Quick release removable side panels.
• Ventilation: Grill cut outs provide on front sides.
• Rating: IP 20
• Color: As per Requirement
• Durability: Lifetime
• Packing: Supplied assembled, unassembled
• Weight: XX
