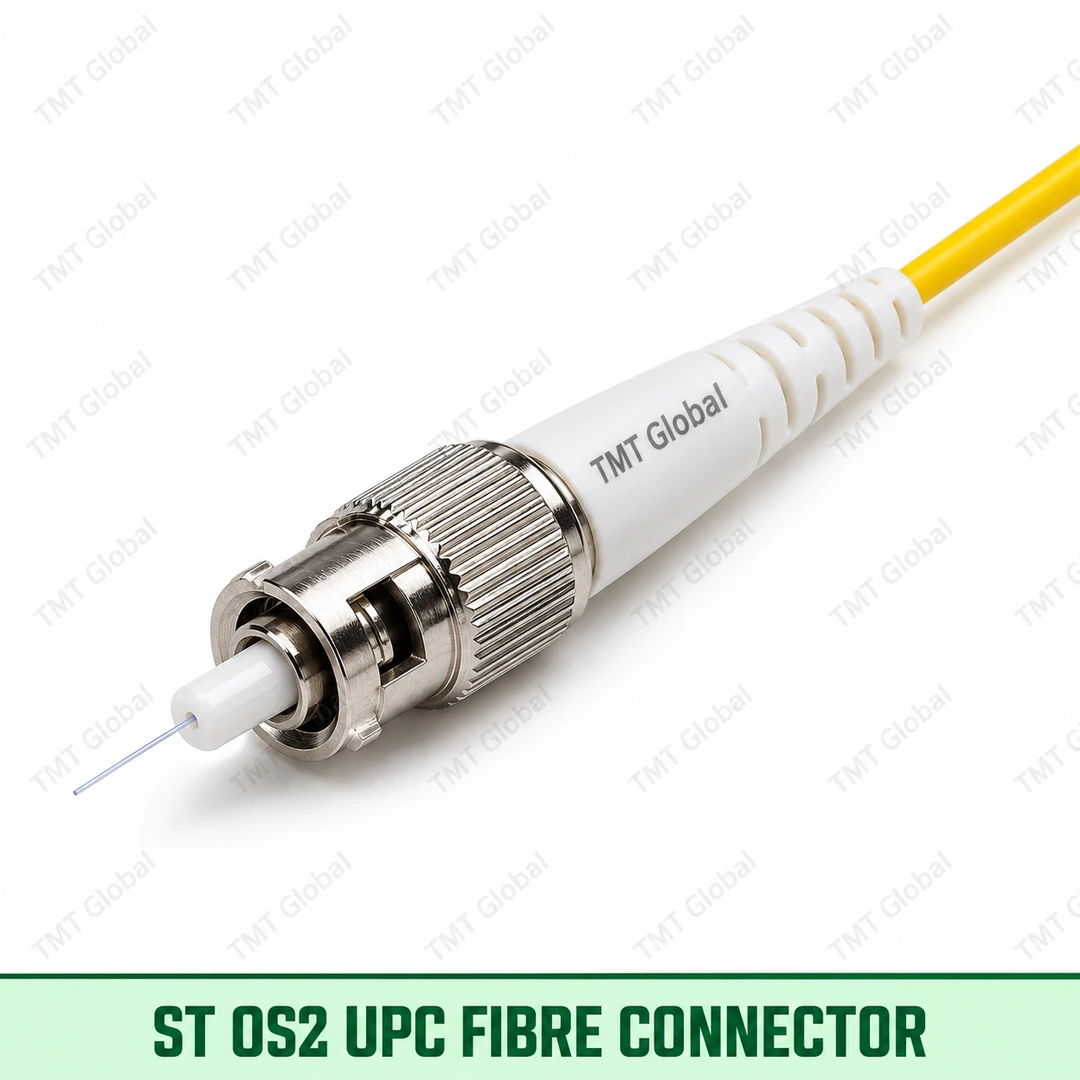

ST OS2 UPC Connector

TMT Global ST OS2 UPC Connector Series

ST OS2 UPC Connector is part of the TMT Global fibre connectivity portfolio for professional optical termination, patching, repair and OEM cable assembly applications. The product is specified for OS2 / G.652.D systems with UPC end-face performance and ST interface compatibility. It is intended for controlled use in TMT patch cords, pigtails, ODFs, fibre patch panels, wall boxes and fibre distribution systems.

KEY FEATURES

• ST connector interface
• OS2 / G.652.D fibre application
• UPC polish / end-face type
• Epoxy-polish installation style
• Boot/cable size: 3.0 mm
• Controlled TMT specification for OEM supply

APPLICATIONS

• Fibre patch cord production
• Fibre pigtail termination
• ODF and patch-panel termination
• FTTH and enterprise fibre networks
• Data-centre fibre connectivity
• Maintenance and repair kits

OEM / PUBLICATION POSITIONING

all certified performance claims must be supported by OEM/manufacturer test evidence.

STANDARDS / TEST BASIS

• IEC 61754 interface family, connector-type dependent
• IEC 61300 series test methods for fibre optic interconnecting devices
• IEC 61755 end-face geometry requirements where applicable
• TIA/EIA-604 FOCIS interface documents where applicable
• RoHS and REACH compliant material declarations required
• OEM must provide optical performance test evidence before final publication

QUALITY / ACCEPTANCE

• visual inspection, ferrule/end-face inspection, insertion loss and return loss test record where applicable
• all certified performance claims must be supported by OEM/manufacturer test evidence.

TECHNICAL SPECIFICATION
