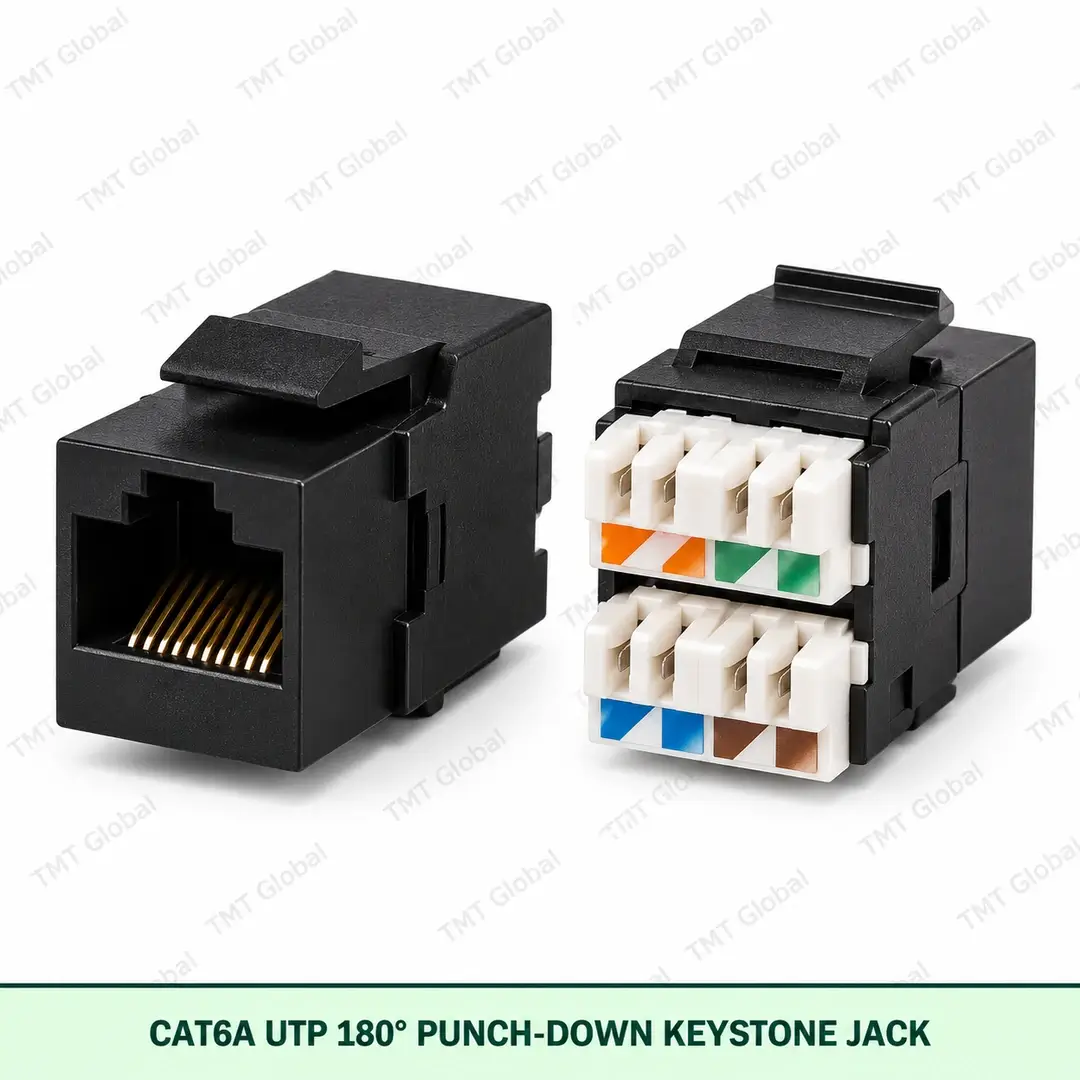

Cat6A UTP 180° Punch-Down Keystone Jack

TMT Cat6A UTP 180° Punch-Down Keystone Jack Series

The TMT Global Cat6A UTP 180° Punch-Down Keystone Jack is a controlled keystone connectivity product for Cat6A / Class EA structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with punch-down idc termination, 180° straight geometry and utp / unshielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.

FEATURES

• Cat6A / Class EA transmission target
• 1–500 MHz performance range
• UTP / Unshielded RJ45 8P8C interface
• Punch-down IDC termination
• T568A / T568B wiring identification
• Compact unshielded modular format

APPLICATIONS

• Work-area outlets
• Patch panels
• Enterprise LAN
• IP CCTV / VoIP
• Commercial buildings

Technical Specification

STANDARDS & COMPLIANCE

• IEC 60603-7-41:2010
• ISO/IEC 11801-1 structured cabling system application
• ANSI/TIA-568.2-D where applicable
• EN 50173 where applicable
• UL 94 V-0 polymer components
• RoHS
• REACH

AUTHORITY FIRE-PERFORMANCE NOTE

Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.

PRODUCT CONTROL STATEMENT

This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
