Cat6A S/FTP 6A4SBSLXXX Series | 24 AWG Network Patch Cord
Features
- Snagless shielded RJ45 connectors, 360° shield termination
- Individually foil-shielded pairs plus overall braided shield
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Supports 10GBASE-T applications
Choosing the Cat6A S/FTP 6A4SBSLXXX Series, 24 AWG Network Patch Cord
Category 6A supports 10GBASE-T to the full 100 m channel, the right choice for Wi-Fi 6/7 access points, new office floors and anything planned to last 15+ years. Factory-made patch cords give tested, repeatable performance between patch panels, switches and outlets, in a range of lengths and colours for clear colour-coding. The 24 AWG conductor gives a thinner, more flexible cord, the better choice for dense patching in crowded racks and short links.
Related options in this range: Cat6A U/UTP 6A3PMUOKXX Series | 23 AWG Outdoor Network Patch Cord · Cat6A F/UTP 6A3SMFLXXX Series | 23 AWG Network Patch Cord · Cat6A S/FTP 6A3SBSLXXX Series | 23 AWG Network Patch Cord · Cat6A S/FTP 6A3SMSLXXX Series | 23 AWG Network Patch Cord · Cat6A U/UTP 6A3RMULXXX Series | 23 AWG Transparent Network Patch Cord
Order code: 6A4SBSLXXX. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global Cat6A S/FTP 6A4SBSLXXX Series Data Patch Cords
The TMT GLOBAL Cat6A S/FTP Patch Cord is engineered for high-bandwidth structured cabling environments requiring the highest available protection against alien crosstalk and electromagnetic interference. Manufactured by TMT Global Technology Ltd, its individually shielded pairs and overall braided shield deliver the strongest shielding performance in the Cat6A range, for installers, systems integrators, and structured cabling contractors specifying premium Cat6A links in dense data centre and industrial environments. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless shielded RJ45 connectors, 360° shield termination
- Individually foil-shielded pairs plus overall braided shield
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
- Supports 10GBASE-T applications
Application
- Structured Cabling
- Data Centres
- High-Density Server Rooms
- 10 Gigabit Ethernet Links
- Maximum EMI / Alien Crosstalk Protection
- Industrial Networks
Electrical & Mechanical Specifications
ISO/IEC 11801 Class E / TIA/EIA-568-C.2
| Parameter | Specification |
| Type | CAT6A S/FTP |
| Frequency Range | 1–500 MHz |
| Characteristic Impedance | 100 ± 15Ω @ 1–500MHz |
| Coupling Attenuation | ≥ 60dB @ 30–500MHz |
| Conductor Resistance | ≤ 9.38Ω / 100m (24AWG) |
| Insulation Resistance | ≥ 10MΩ / 100m |
| Resistance Unbalance | 2% max |
| Dielectric Strength | 1000V / 1 min rms |
| Cable-to-Plug Tensile Strength | 9 Kgf (90N) min |
| Durability | 1200 mating cycles |
| Operating Temperature | -25°C to +70°C |
Physical Properties, Length & Compliance
Physical & Mechanical Properties
| Parameter | Specification |
| Type | CAT6A S/FTP |
| Basic Conductor | 24AWG bare copper |
| Insulation | HDPE |
| Pairs | 4 individually foil-shielded pairs + overall braided shield |
| Impedance | 100Ω ± 15% |
| Outer Jacket | LSZH (halogen-free) |
| Plug Contact Plating | Phosphor bronze, 30µ” gold/nickel |
| RJ45 Plug | 8P8C, shielded metal housing, 360° shield termination |
| Cable OD | Confirm on sample (typ. 8.0–8.5mm) |
| Colour Options | Per available colour range |
| Length Range | 15cm – 90m (multiple lengths available) |
Compliance & Certification
| Parameter | Specification |
| Halogen-Free | Yes — LSZH (halogen-free) jacket construction |
| Fire Performance (Euroclass) | Cca-s1b, d2, a2 per EN 13501-6 / BS EN 13501-6 |
| CE Marking | Yes — DoP under EU/UK Construction Products Regulation |
| Flame Retardant Test | IEC/EN 60332-1-2 compliant |
| Test / Certificate Reference | Insert DoP / test report / notified body reference |
| AWG | 24 awg |
|---|---|
| Brand | TMT Global |

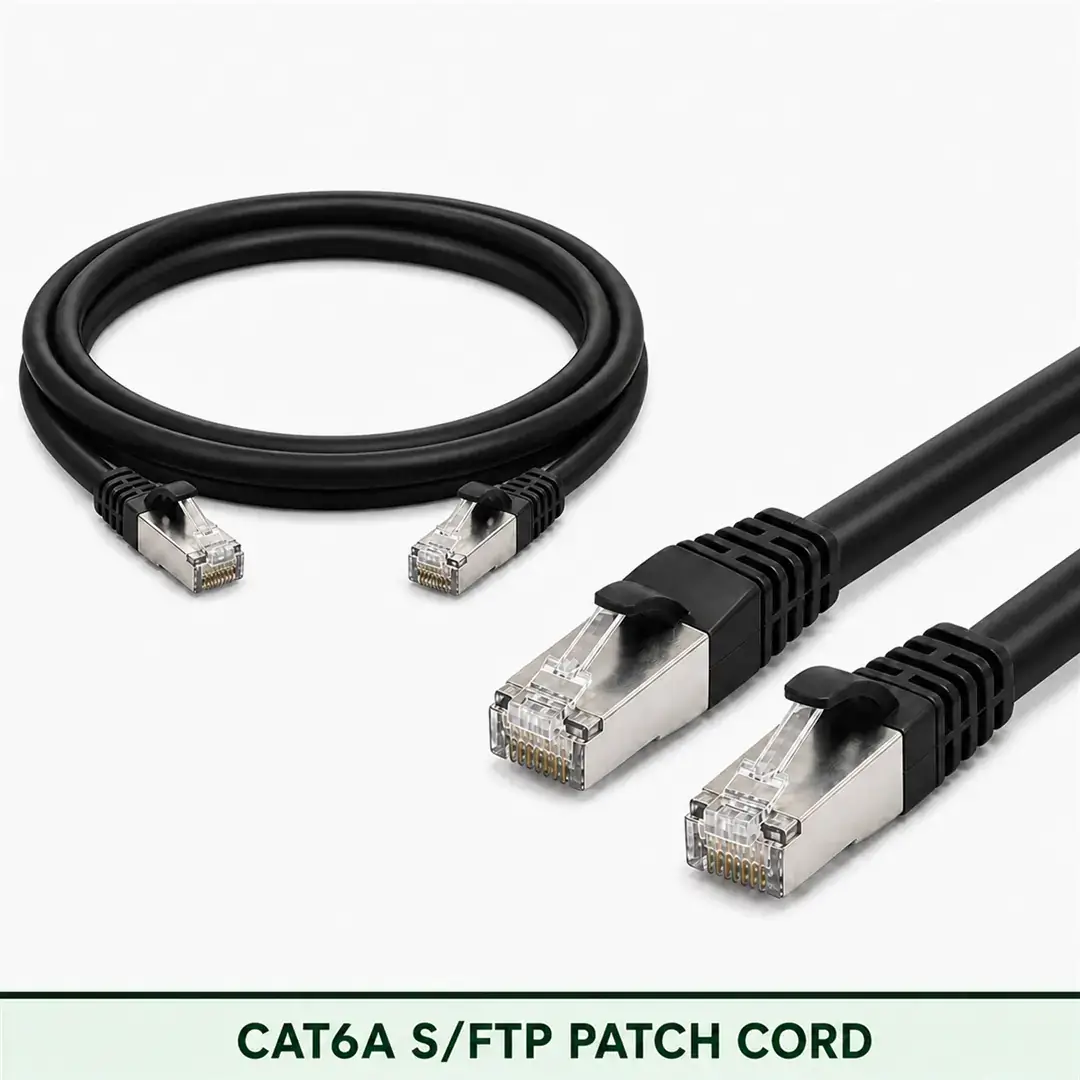

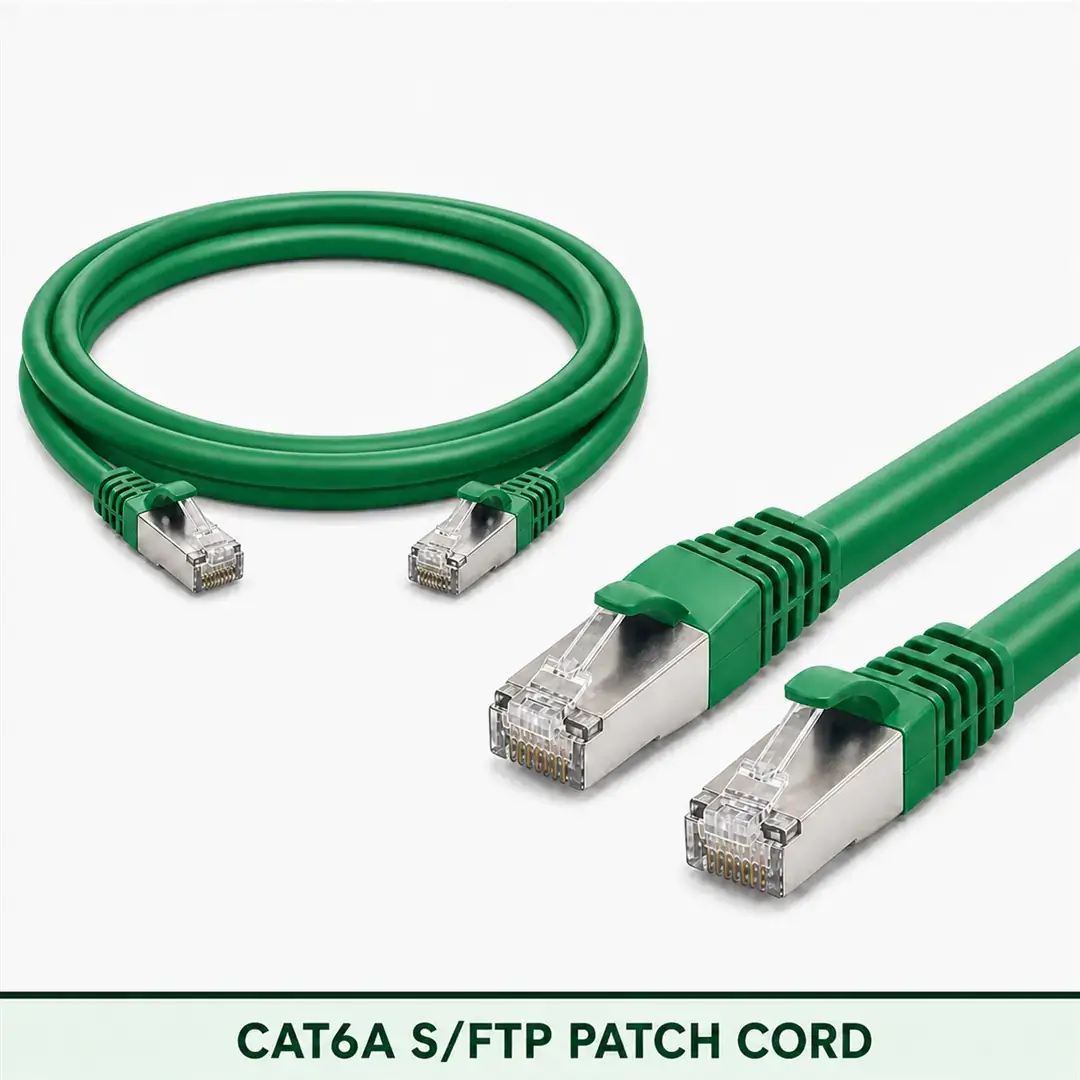

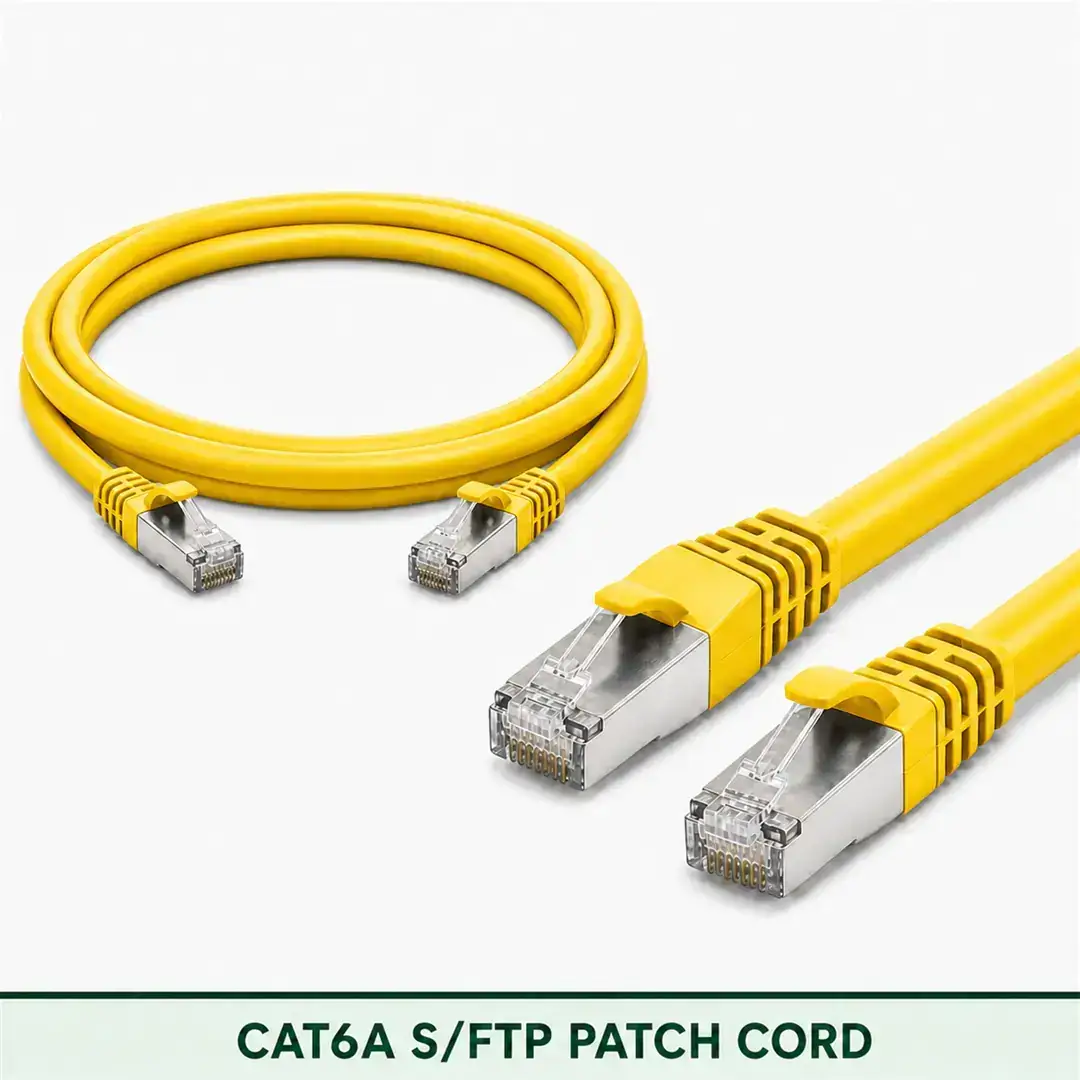

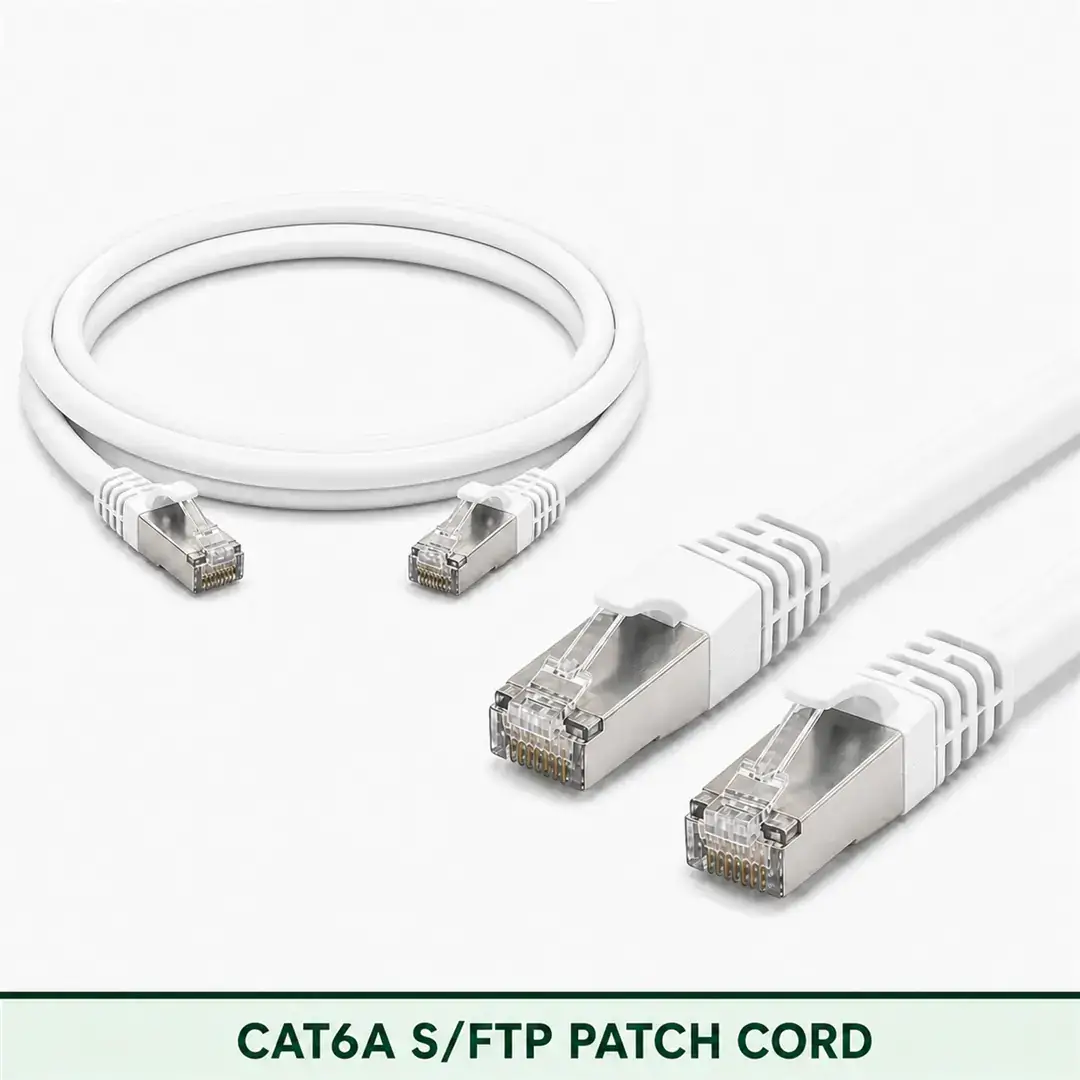

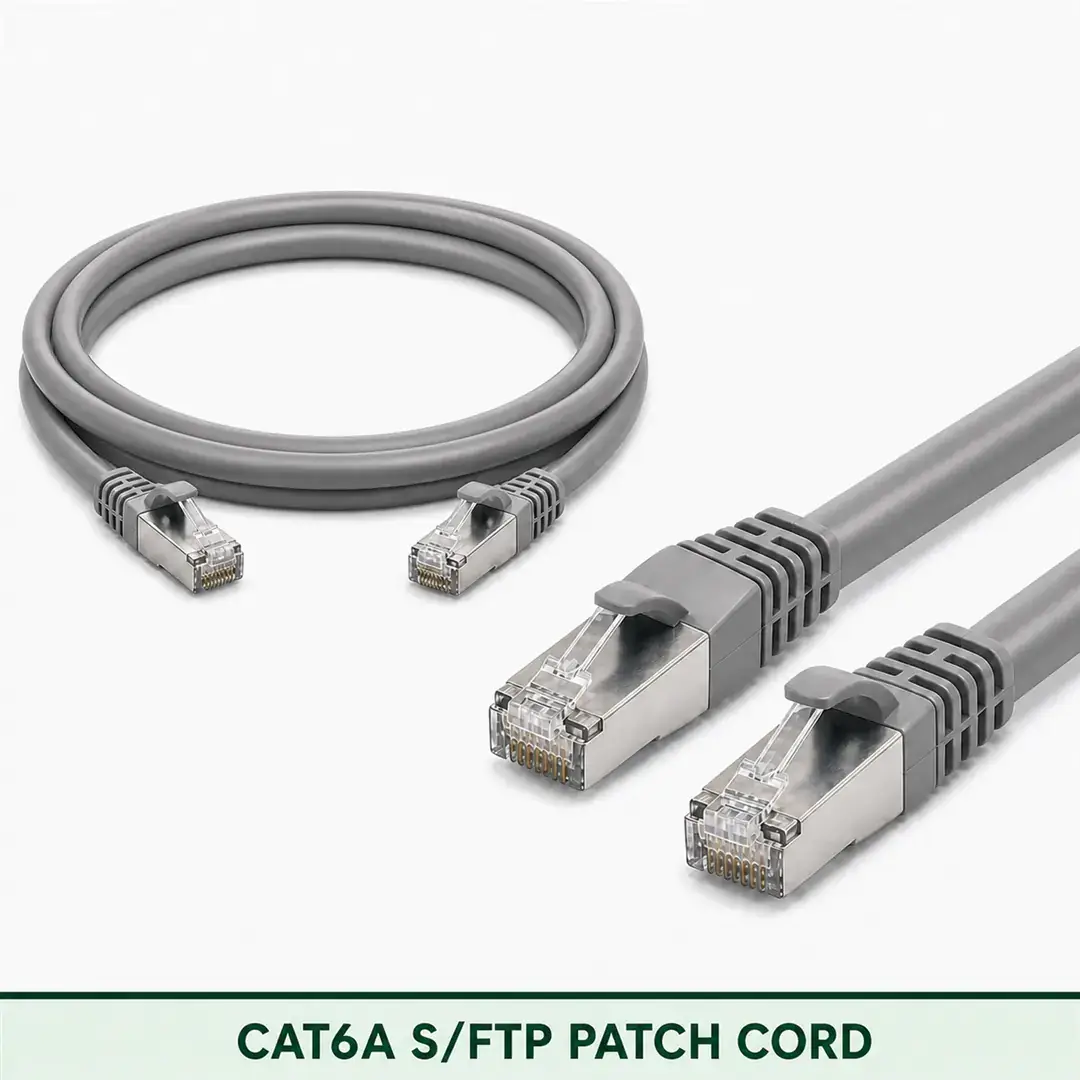

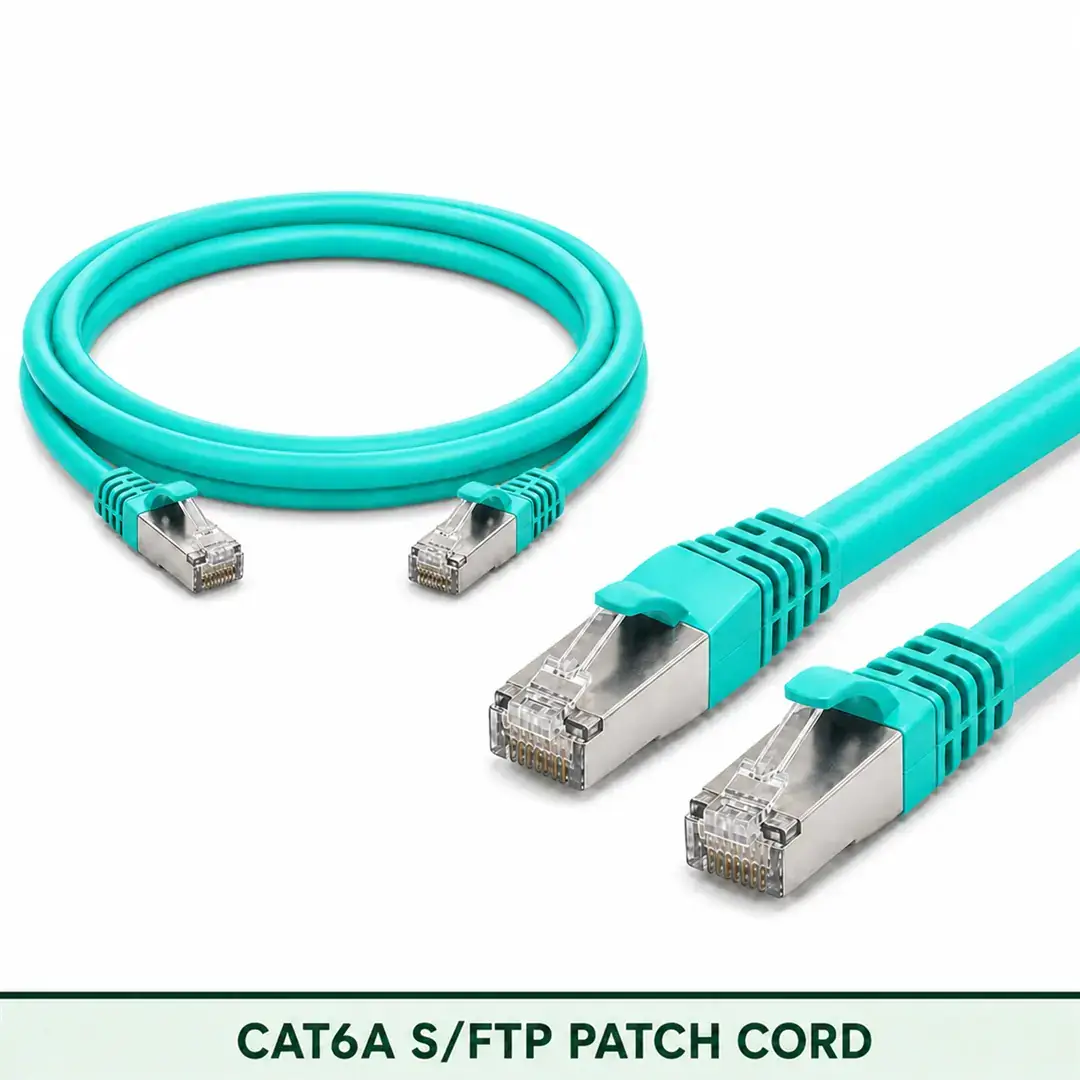

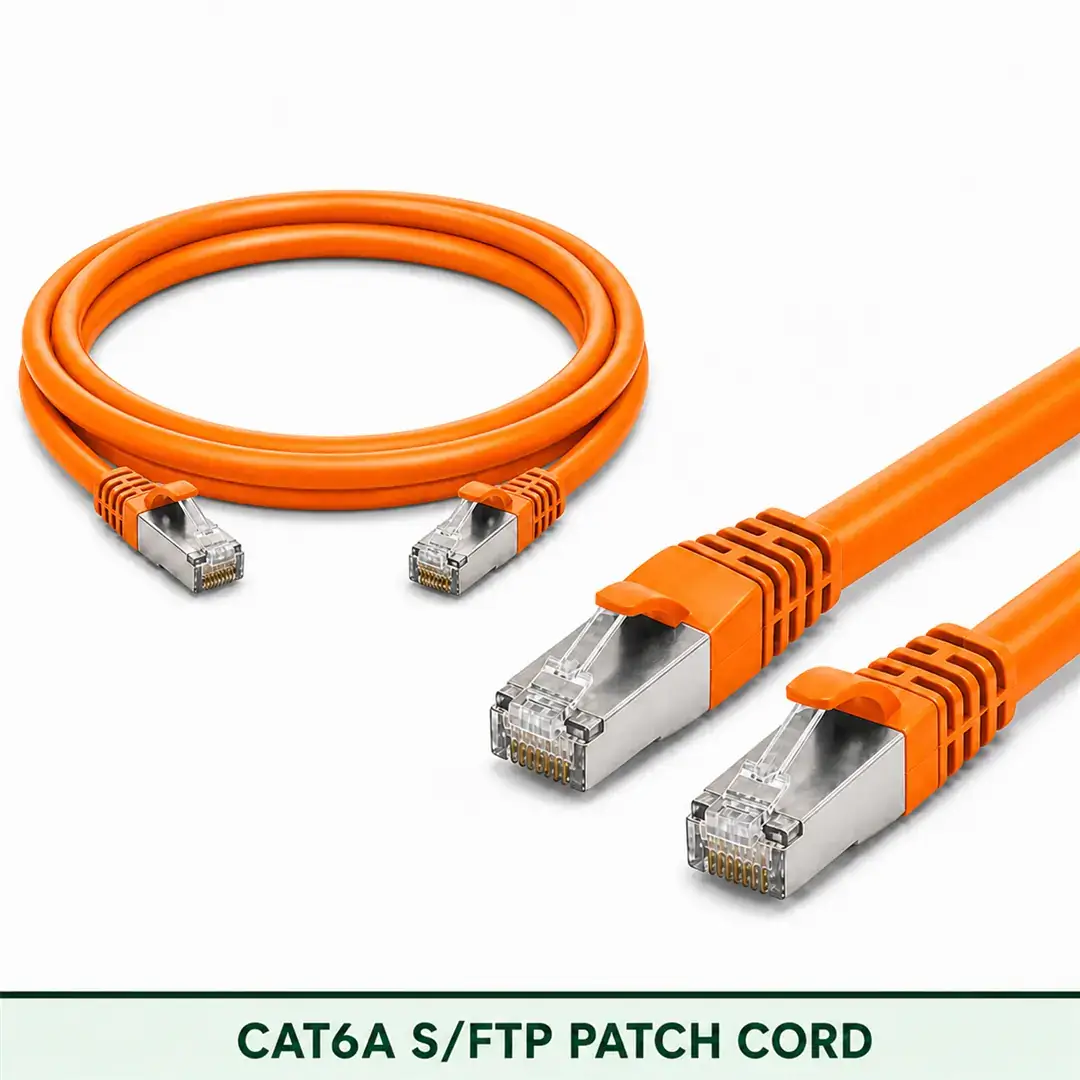

| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | PVC, LSZH |
| Length | 15 cm, 20 cm, 25 cm, 30 cm, 50 cm, 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 6 m, 8 m, 10 m, 12 m, 15 m, 20 m, 25 m, 30 m, 35 m, 40 m, 45 m, 50 m, 60 m, 70 m, 80 m, 90 m |
