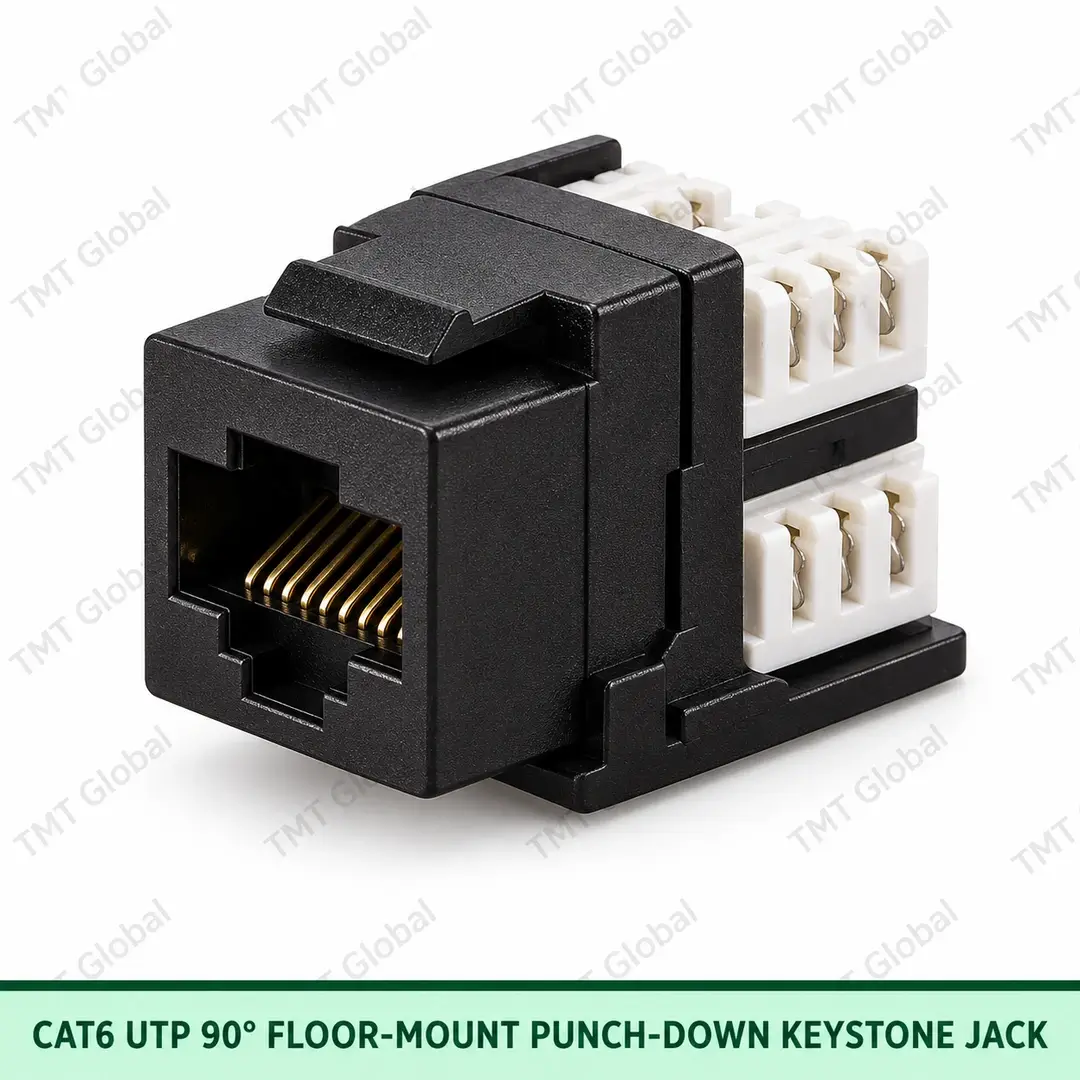

Cat6 UTP 90° Floor-Mount Punch-Down Keystone Jack
FEATURES
- Cat6 / Class E transmission target
- 1–250 MHz performance range
- UTP / Unshielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- Compact unshielded modular format
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
TMT Cat6 UTP 90° Floor-Mount Punch-Down Keystone Jack Series
The TMT Global Cat6 UTP 90° Floor-Mount Punch-Down Keystone Jack is a controlled keystone connectivity product for Cat6 / Class E structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with punch-down idc termination, 90° right-angle / floor-box geometry and utp / unshielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.
FEATURES
- Cat6 / Class E transmission target
- 1–250 MHz performance range
- UTP / Unshielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- Compact unshielded modular format
APPLICATIONS
- Raised-floor boxes
- Floor outlets
- Modular floor systems
- Commercial offices
- Meeting rooms
Technical Specification
| Parameter | TMT Declared Specification |
| Product type | Cat6 UTP 90° Floor-Mount Punch-Down Keystone Jack |
| SKU | TMT-06UCP2 |
| Category / class | Cat6 / Class E |
| Frequency range | 1–250 MHz |
| Connector interface | RJ45, 8P8C |
| Shielding | UTP / Unshielded |
| Orientation | 90° right-angle / floor-box |
| Termination | Punch-down IDC |
| Housing / body | High-impact flame-retardant polycarbonate, UL 94 V-0 |
| Contact material | Phosphor bronze |
| Contact plating | 50 µin gold over nickel at mating area |
| IDC / termination contact | Phosphor bronze, tin plated |
| Conductor compatibility | 22–26 AWG solid copper |
| Wiring scheme | T568A / T568B colour-coded identification |
| Contact resistance | ≤ 20 mΩ initial |
| Insulation resistance | ≥ 500 MΩ @ 100 V DC |
| Dielectric withstand | ≥ 1,000 V DC / 1 min |
| Mating durability | ≥ 750 plug insertion cycles |
| Operating range | -10 °C to +60 °C |
| Packaging | Individual bag or box; master carton per approved TMT packing |
STANDARDS & COMPLIANCE
- IEC 60603-7-4:2010
- ISO/IEC 11801-1 structured cabling system application
- ANSI/TIA-568.2-D where applicable
- EN 50173 where applicable
- UL 94 V-0 polymer components
- RoHS
- REACH
AUTHORITY FIRE-PERFORMANCE NOTE
Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.
PRODUCT CONTROL STATEMENT
This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
| Brand | TMT Global |
|---|
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6 UTP 90° Floor-Mount Punch-Down Keystone Jack | TMT-06UCP2 |  |
