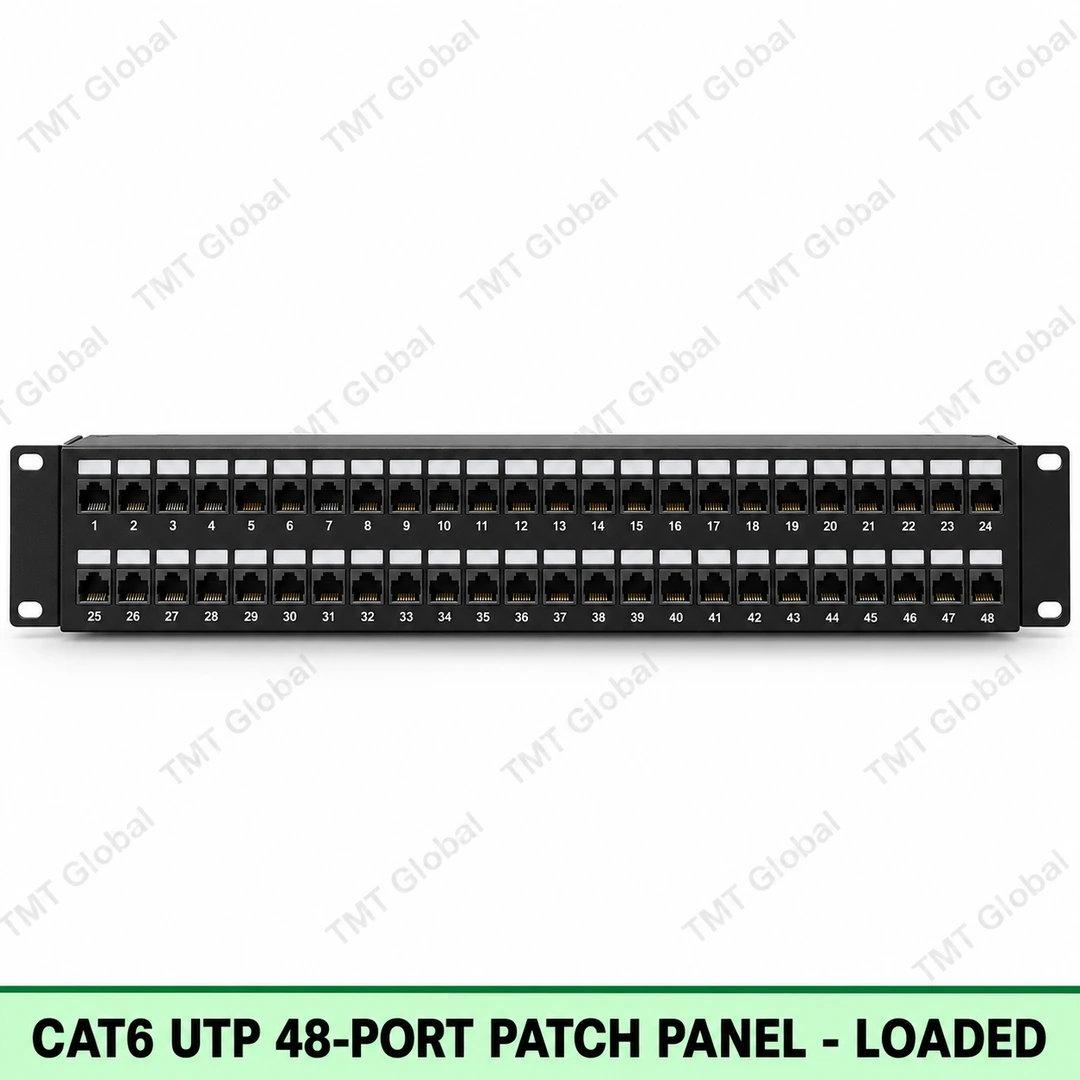

Cat6 UTP 48-Port Patch Panel | Loaded
FEATURES
- 48 loaded Cat6 UTP ports
- 2U 19-inch rack format
- 110/IDC termination blocks
- Rear cable management
- T568A/T568B wiring scheme
- Port numbering and label fields
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
TMT Global Cat6 UTP 48-Port Patch Panel | Loaded Series
Cat6 UTP 48-Port Patch Panel | Loaded is a TMT Global copper patch-panel product for high-density Cat6 UTP termination in larger telecom rooms. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- 48 loaded Cat6 UTP ports
- 2U 19-inch rack format
- 110/IDC termination blocks
- Rear cable management
- T568A/T568B wiring scheme
- Port numbering and label fields
APPLICATIONS
- Data centres
- Large commercial projects
- Campus LAN
- Telecom rooms
- High port-count racks
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical specification
| Brand | TMT Global |
|---|
