CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X132BOK

Choosing the CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X132BOK

Category 6 runs 1 Gb Ethernet over 100 m and 10 Gb over shorter links (up to about 55 m), a cost-effective choice for desks, CCTV and general office networks. U/UTP has no screen: it is the lightest and fastest to install, best for offices and homes away from heavy electrical noise. The black PE outer jacket is UV and moisture resistant for outdoor ducts, external walls and runs between buildings; it is not for indoor risers where low-smoke cable is required.

Related options in this range: CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X135BOK · CAT6 U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6X135BLX Series · CAT6 U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X135BPX Series · CAT6 U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6X132BLX Series · CAT6 U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X132BPX Series

Order code: 6X132BOK. Send us the length, jacket and quantity for a project quotation and datasheet.

Explore the TMT Global Cat6 U/UTP PE outdoor network cable, a robust solution designed for optimal performance in modern network infrastructures. This high-quality cable is constructed with a 23 AWG design featuring four twisted pairs, minimizing interference and enhancing data transfer rates. Ideal for outdoor applications, it is built to endure harsh weather conditions including UV rays and moisture. With a length of 305 meters, it provides excellent installation convenience without the need for connectors or splices. Whether for businesses or home use, investing in TMT Global’s Cat6 Cable promises improved bandwidth, reliability, and overall network speed. Discover how this cable can upgrade your networking setup today!

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

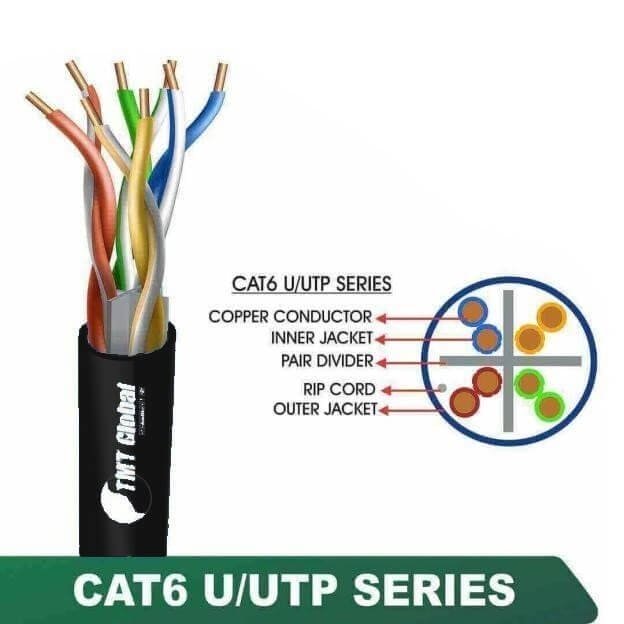

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N

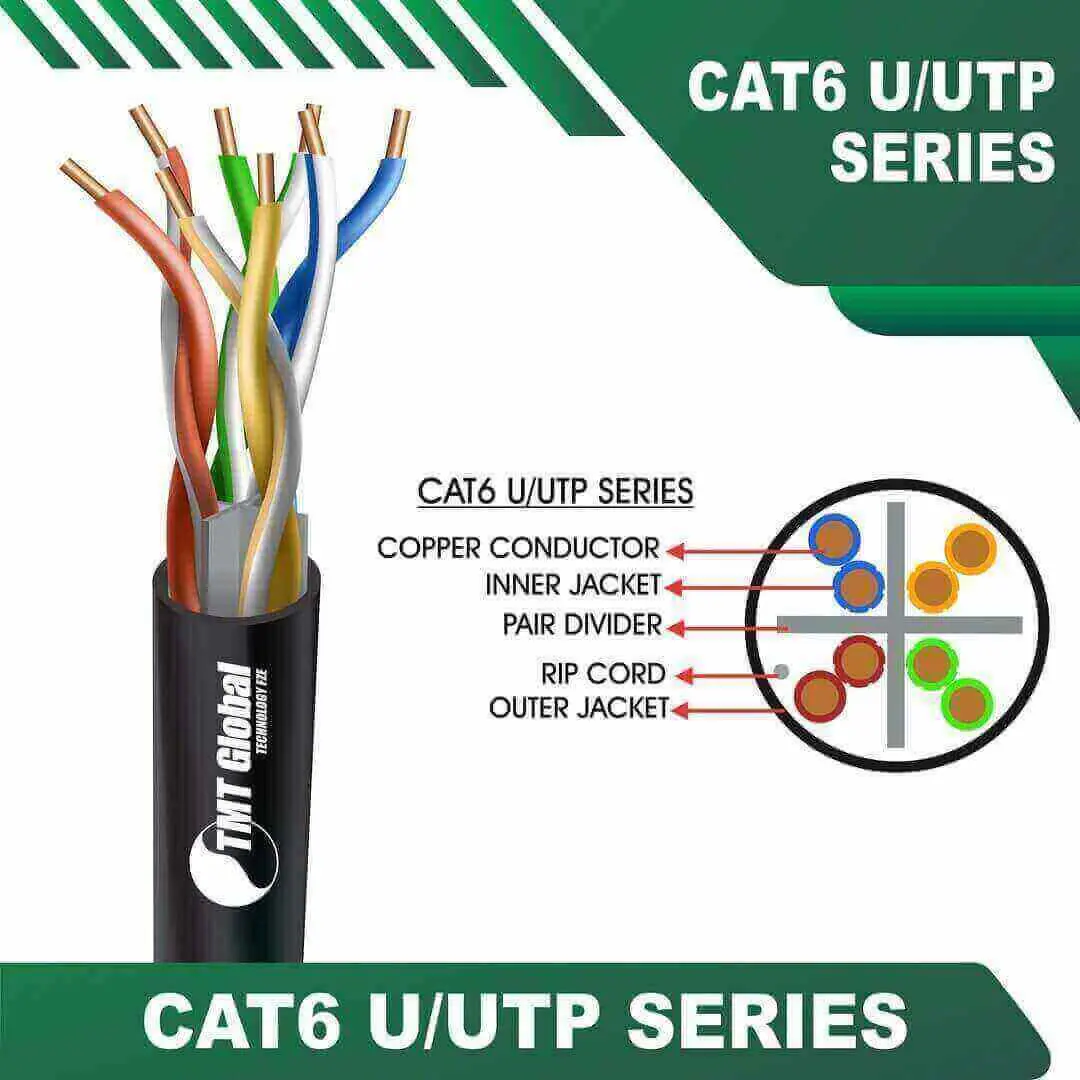

Outer Jacket: PE
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X132BOK
