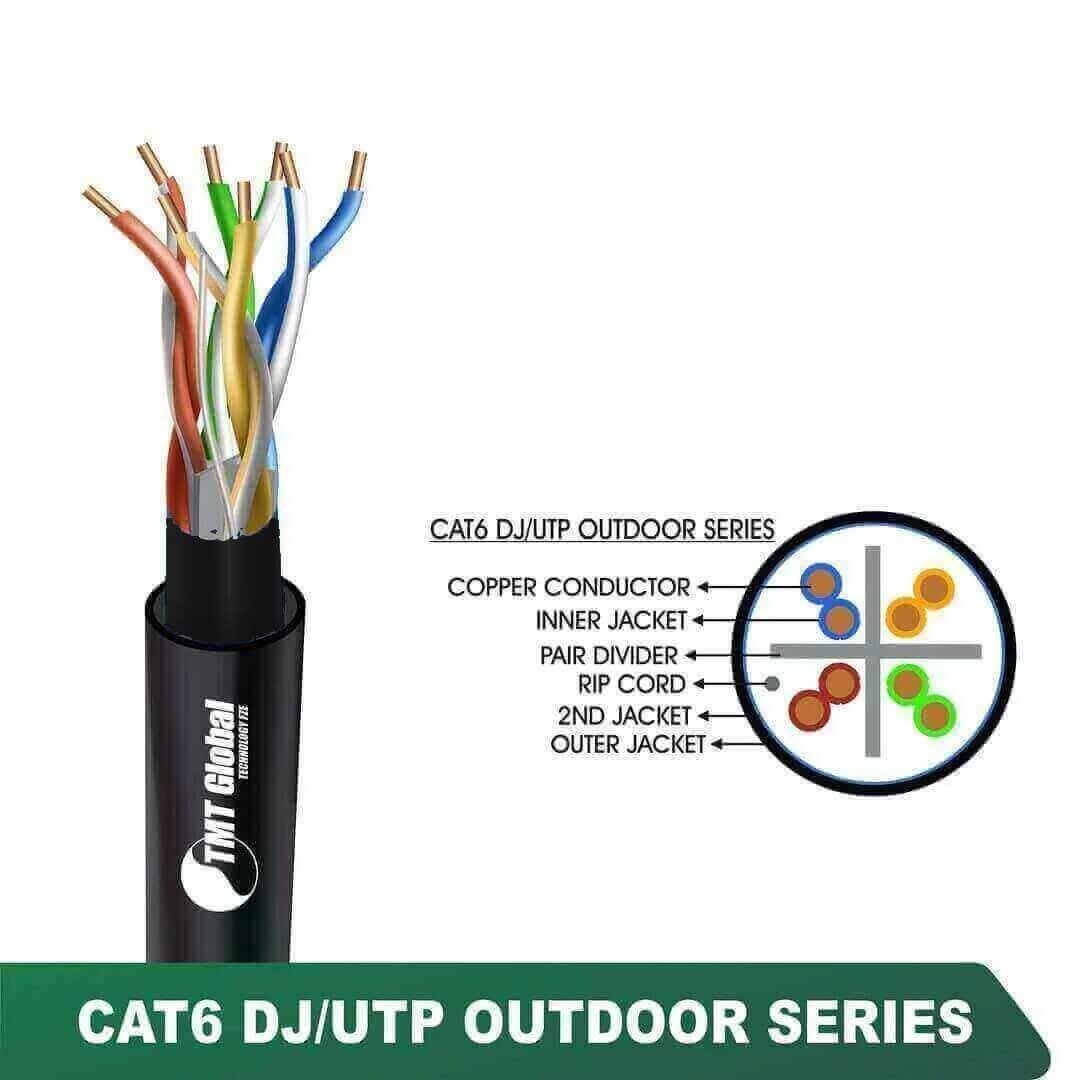

CAT6 U/UTP Double Jacket Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X136MDK

General Specification:
• Conductor: TMT Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: N/L
• Outer Jacket: PVC+PE
• Jacket Color: Black
• Packing: 305m / Wooden/ Plastic Reel

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!

chat with sales

Discover the TMT Global Cat6 U/UTP outdoor network cable, engineered for efficient and reliable data transmission. Designed with a robust construction, this cable is perfect for outdoor installations, featuring a double jacket for added protection and 23 AWG wire gauge for superior performance. With a length of 305 meters, it provides ample cabling for large projects. This Cat6 cable meets ANSI/TIA-568-C.2 standards, ensuring minimal interference and enhanced signal quality, making it ideal for both residential and commercial use. If you seek a reliable solution for high-speed internet connectivity, the TMT Global Cat6 U/UTP cable stands out as an excellent choice for various installation needs.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PVC+ Heavy-duty, black, UV-resistant PE compound for outdoor use.
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 U/UTP Double Jacket Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X136MDK
