Cat7 cable 23 AWG 4 twisted pair S/FTP Bulk Cable 305m

TMT GLOBAL Cat7 23awg 4 twisted pair S-FTP Bulk Cable 305m

TMT Global cat7 cable 23 awg 4 twisted pair SFTP Bulk Cable 305m are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC 11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC 61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and cat7 Provide High Performance levels for structured cabling systems. Cat7 23awg 4 twisted pair S-FTP Bulk Cable 305m

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-600 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-600 MHz
Insulation Resistance: 45 nS/100m max @ 1-600 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-600 MHz

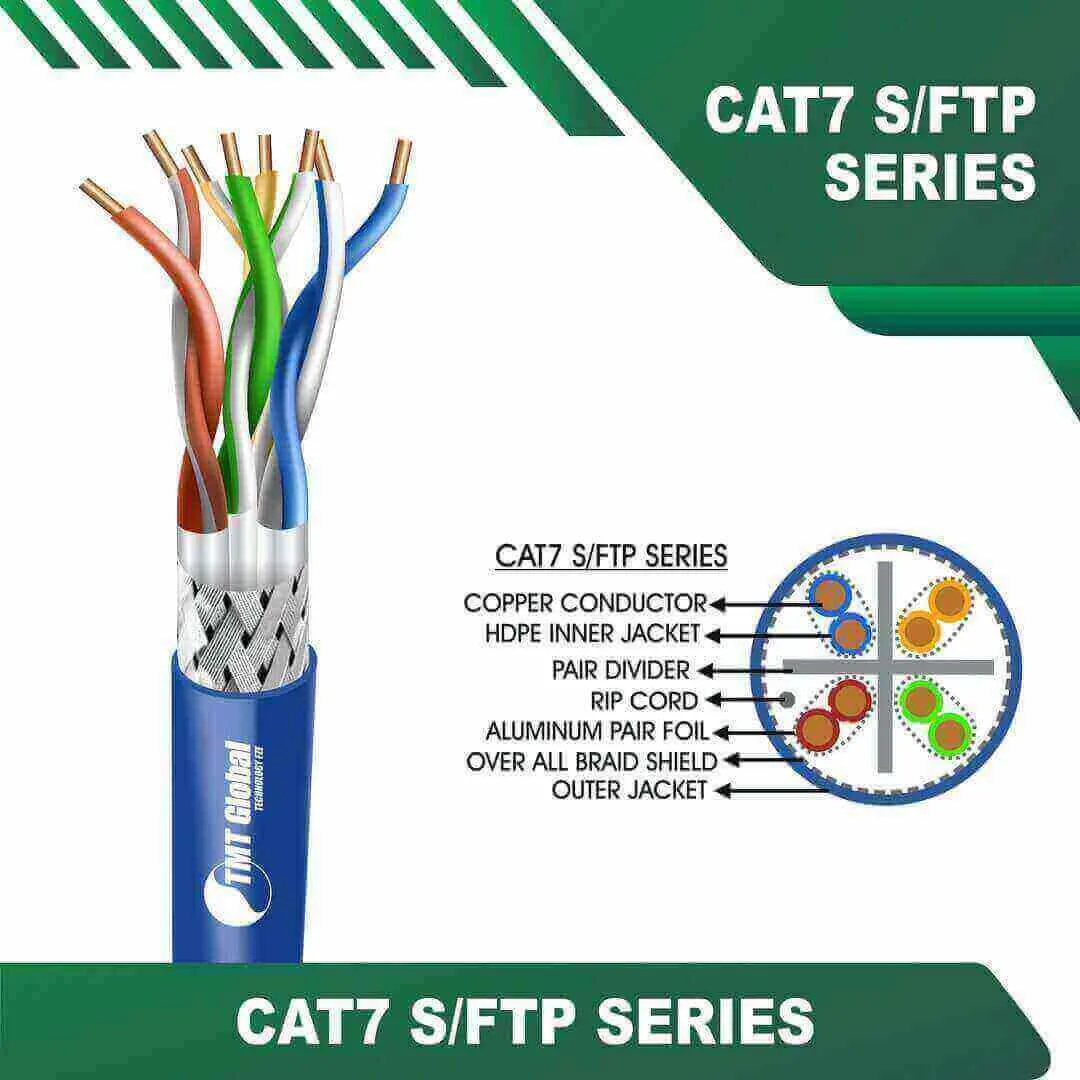

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Braided Shield + aluminum Foil Polyester Tape
Drain wire: copper conductor
Outer Jacket: PVC/LSZH
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8-12 xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT7 S/FTP CABLE PVC 305M
