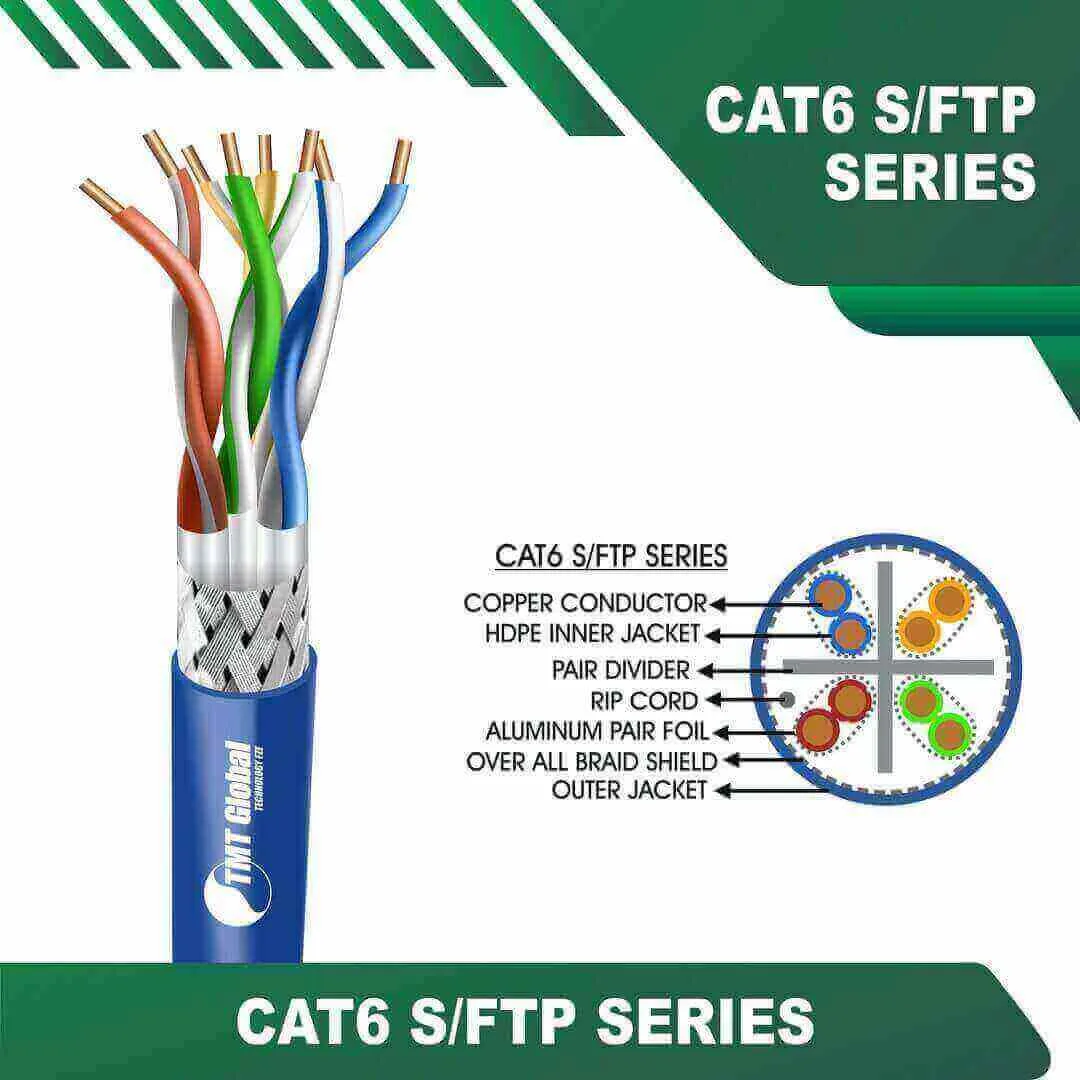

Cat6 23awg 4 twisted pair S-FTP Cable 305m

(1 customer review)

د.إ400.00

Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)

General Specification:

Conductor: TMT Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: Braiding + Pair Aluminum Foil
Outer Jacket: LSZH
Jacket Color: Blue/Black/Grey/Violet/Orange
Packing: 305m / Wooden /Plastic reel
Model No: TMT-4050
Item Code: 6X536MLB

0 People watching this product now!
Description

TMT GLOBAL cat6 23awg 4 twisted pair S-FTP Network Cable 305m

TMT Global Cat6 23awg 4 twisted pair S-FTP Cable 305m  are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.

TMT Global Technology LTD

aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems.



  • APPLICATION

10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE

Additional information
Color

,

,

,

,

,

,

,

,

,

Length

SPECIFICATION PDF

SPECIFICATION PDF

DOWNLOAD

DOWNLOAD
