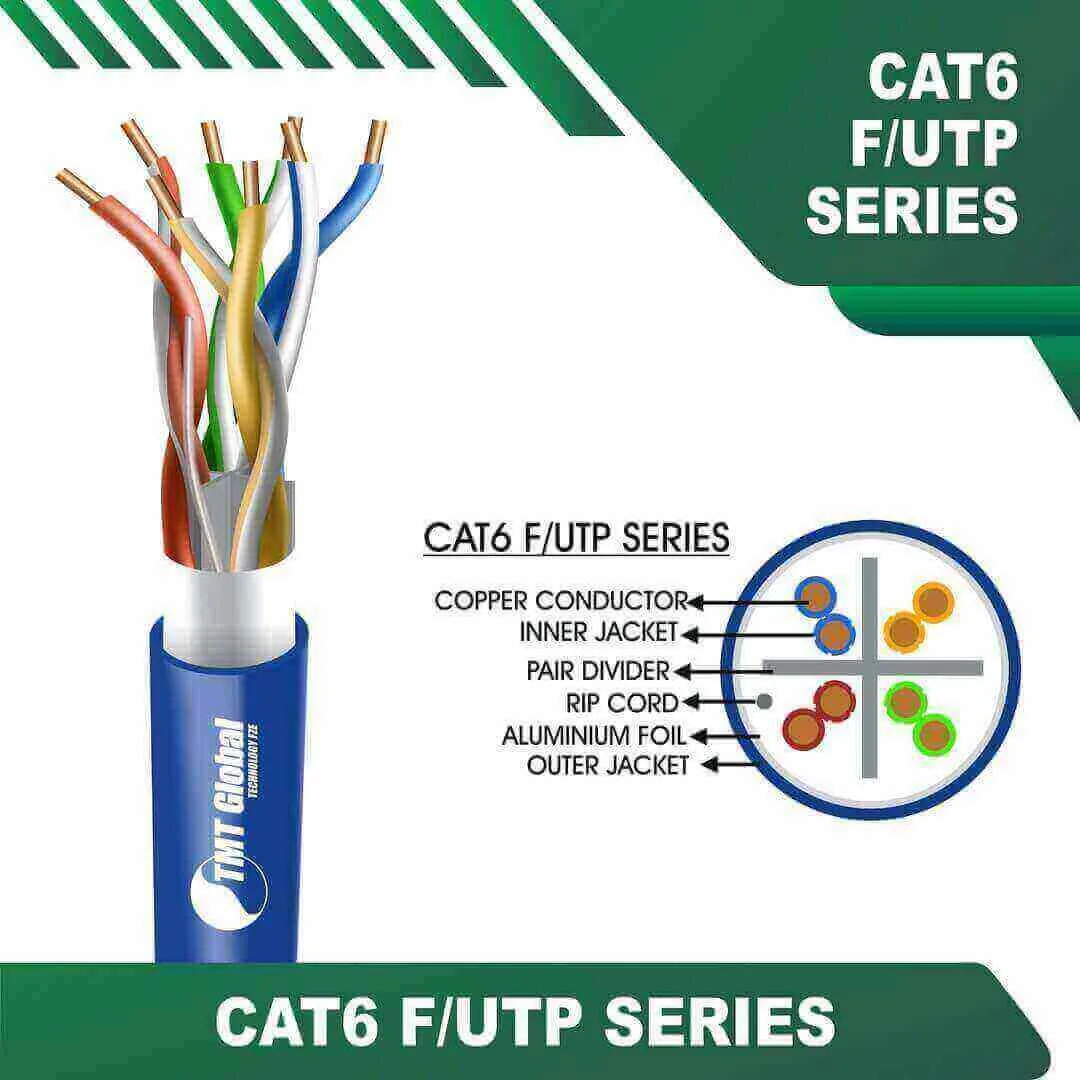

cat6 23awg 4 twisted pair F-UTP Data Cable 305m
د.إ300.00
Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)
General Specification:
• Conductor: TMT Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: Aluminum foil
• Outer Jacket: LSZH
• Jacket Color: Blue/Black/Grey/Violet/Orange
• Packing: 305m / Box
• Model No: TMT-4035
• Item Code: 6X236MLB
TMT GLOBAL cat6 23awg 4 twisted pair F-UTP Network Cable 305m
TMT Global cat6 23awg 4 twisted pair F-UTP Data Cable 305m are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) cat6 vs cat6a vs cat6e ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.cat6 23awg 4 twisted pair F-UTP Data Cable 305m
APPLICATION
10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)
PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
Color |
Aqua ,Black ,Blue ,Green ,Grey ,Orange ,Red ,violet ,White ,Yellow |
---|---|
Length |
305meter |
SPECIFICATION PDF
1 review for cat6 23awg 4 twisted pair F-UTP Data Cable 305m
Only logged in customers who have purchased this product may leave a review.
moeen khan –
perfect quality cable
