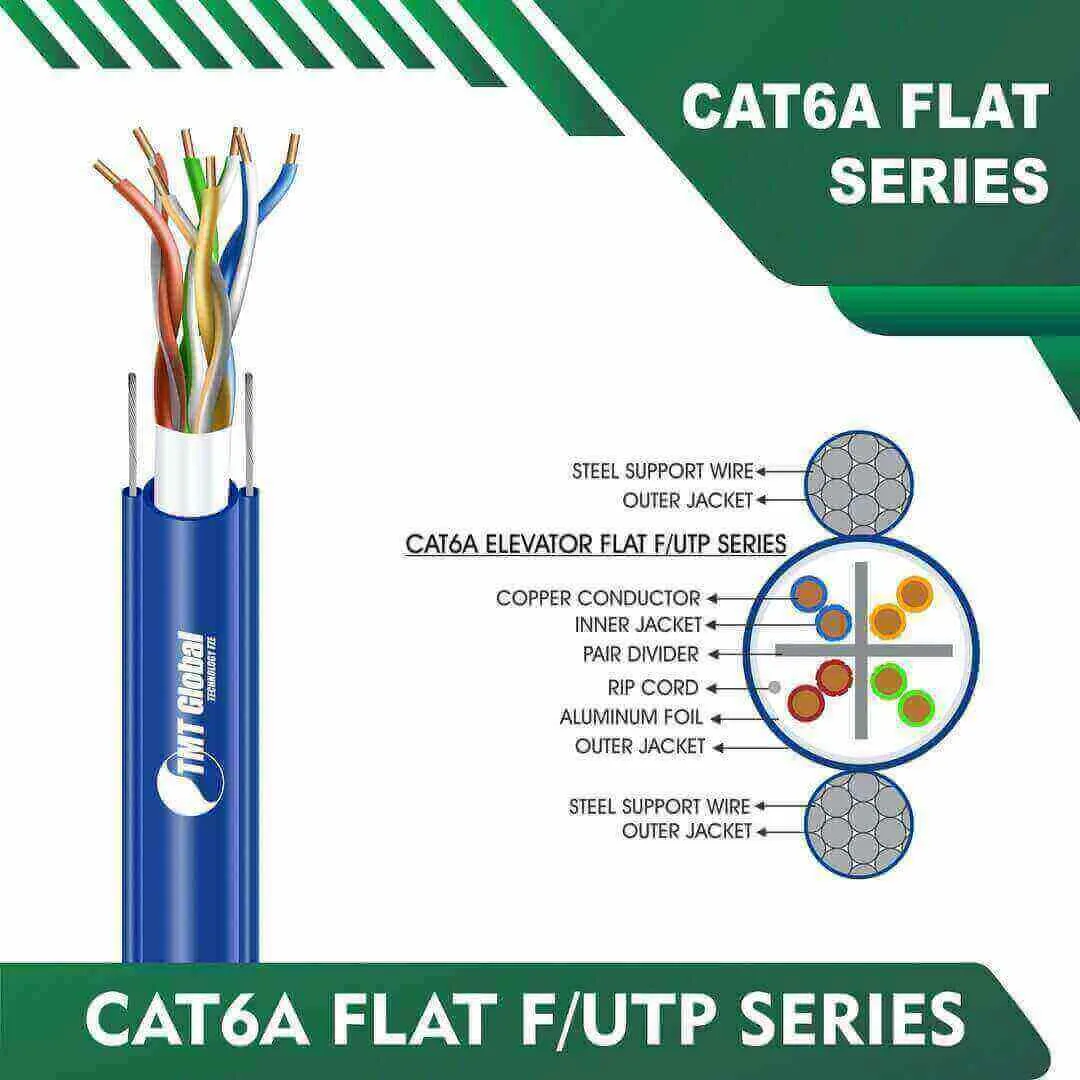

cat6a 23awg 4pair F-UTP Elevator Cable 305m

TMT GLOBAL cat6a 23awg 4 twisted pair F-UTP Elevator Network Cable 305m

TMT Global cat6a 23awg 4pair F-UTP Elevator Cable 305m are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems. cat6a 23awg 4 twisted pair F-UTP Elevator Cable 305m

All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality, Reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability and operating excellence. TMT Global products are routinely tested and certified by various government and third-party testing labs to ensure quality standards.

APPLICATION

10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

GENERAL SPECIFICATION
4 Pairs UnShielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
