48-Core 1U LC High-Density ODF

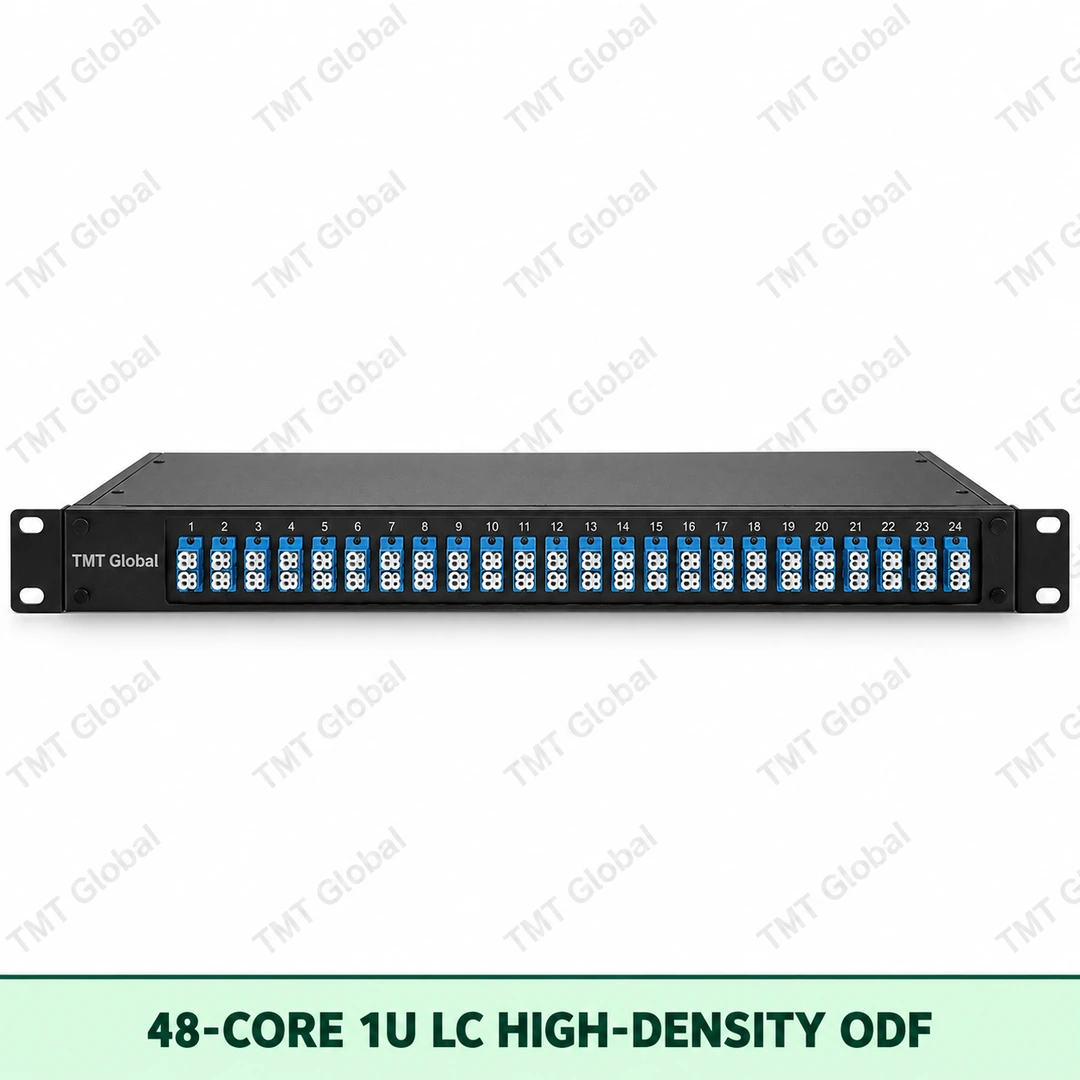

TMT Global 48-Core 1U LC High-Density ODF Series

The TMT Global 48-Core 1U LC High-Density ODF is a controlled fibre distribution platform for organised termination, splicing and patching. The approved product specification fixes the declared capacity, mounting format, access construction, optical interface, loading arrangement, splice capacity and enclosure format. It is intended for professional fibre-optic systems in Europe and the Middle East, with supplier/OEM production required to match the approved TMT specification.

KEY FEATURES

• High-density LC duplex presentation
• 19-inch rack format
• Modular adapter/cassette layout
• Protected patch-cord routing
• Adapter loading controlled by exact SKU

APPLICATIONS

• Data-centre high-density patching
• Enterprise core networks
• Carrier access rooms
• High-port-count cross-connects

OEM / PUBLICATION POSITIONING

Publication status: controlled datasheet content; final project/certification claims remain subject to supplier evidence and TMT release approval.

STANDARDS / TEST BASIS

• Rack mechanics — IEC 60297-3-100 where applicable
• Connector interface — IEC 61754 series where adapters/interfaces are fitted
• Passive component tests — IEC 61300 series where applicable
• System application — ISO/IEC 11801 and EN 50173 context
• Materials — RoHS and REACH supplier declarations required
• Fire note — Cable fire classes apply to installed cables, not the empty ODF chassis
• Evidence — Supplier/OEM conformity and test evidence retained before release

QUALITY / ACCEPTANCE

• Dimensional inspection, fit/function checks, material declarations and applicable interface/component test evidence
• Any material, construction or loading change affecting fit, function, optical performance, durability or compliance requires prior TMT approval
• Acceptance of a purchase order confirms production will match this controlled specification and approved golden sample/BOM

TECHNICAL SPECIFICATION
