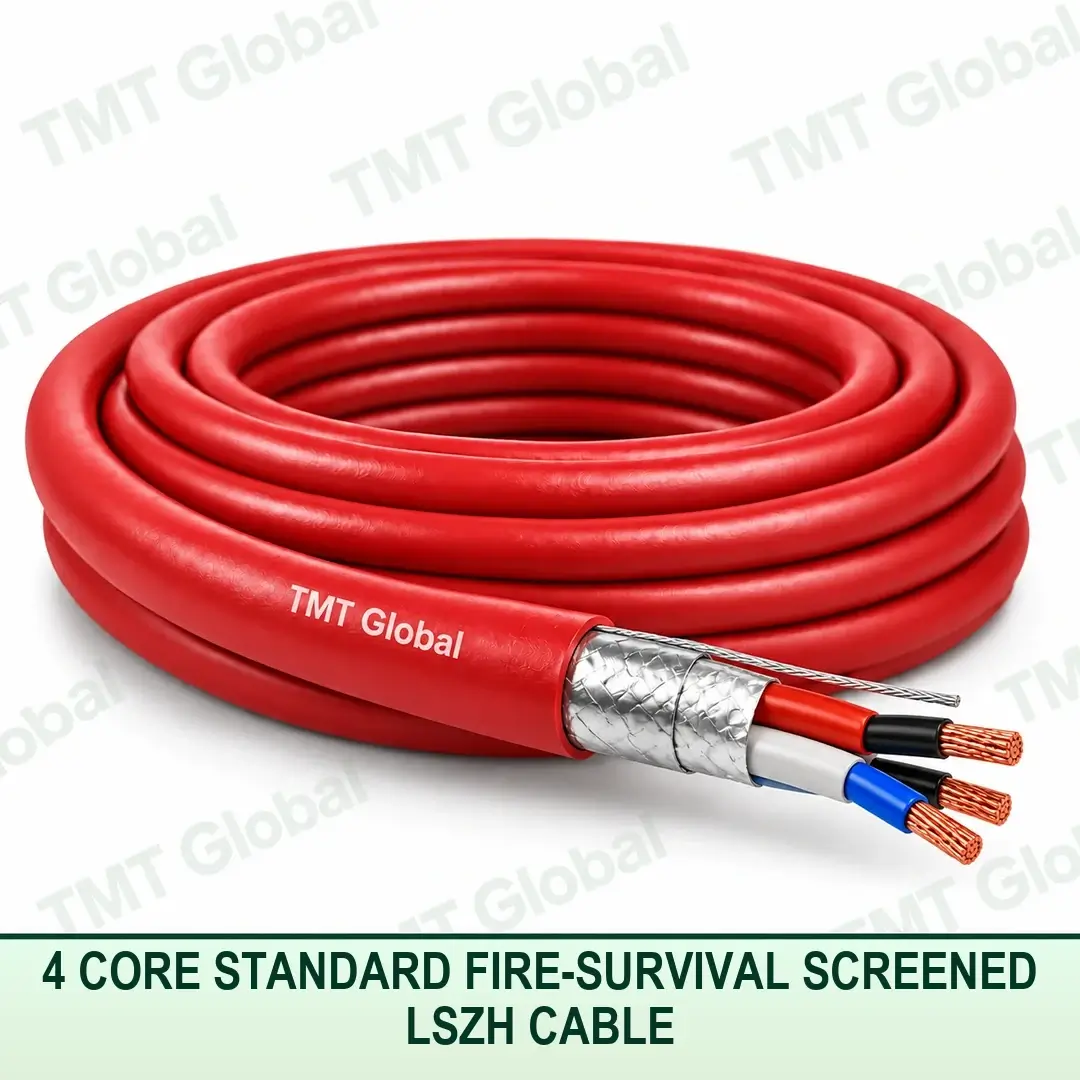

4 Core Standard Fire-Survival Screened LSZH Cable
KEY FEATURES
- Colour-coded multicore fire-life construction
- Overall screened LSZH family baseline
- Standard fire-survival architecture — certification evidence required before claim
- Red / White controlled Series rows
- 305 m standard TMT package
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
Choosing the 4 Core Standard Fire-Survival Screened LSZH Cable
Four cores carry separate circuits that must keep working during a fire, such as alarm sounders, voice alarm speakers or emergency signalling.
Related options in this range: 4 Core Enhanced Fire-Survival Screened LSZH Cable · 3 Core Enhanced Fire-Survival Screened LSZH Cable · 3 Core Standard Fire-Survival Screened LSZH Cable · 2 Core Enhanced Fire-Survival Screened LSZH Cable
Order code: 04C-S-FS. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT 4 Core Standard Fire-Survival Screened LSZH Cable Series
4-core 300/500 V-class fire-resistant screened LSZH cable family for fire alarm, emergency-lighting and other life-safety control circuits, subject to exact factory certification.
KEY FEATURES
- Colour-coded multicore fire-life construction
- Overall screened LSZH family baseline
- Standard fire-survival architecture — certification evidence required before claim
- Red / White controlled Series rows
- 305 m standard TMT package
TYPICAL APPLICATIONS
- Fire detection and alarm circuits
- Emergency lighting control / distribution circuits
- Voice-alarm / life-safety control where approved
- Critical building-services control circuits
- Fixed fire-survival wiring routes
Technical Specification
AWG / SERIES AVAILABILITY
| AWG | 12 awg, 14 awg, 16 awg, 18 awg |
|---|---|
| Brand | TMT Global |
| Colour | Red, White |
| Jacket Type | LSZH |
| Length | 305 m |
