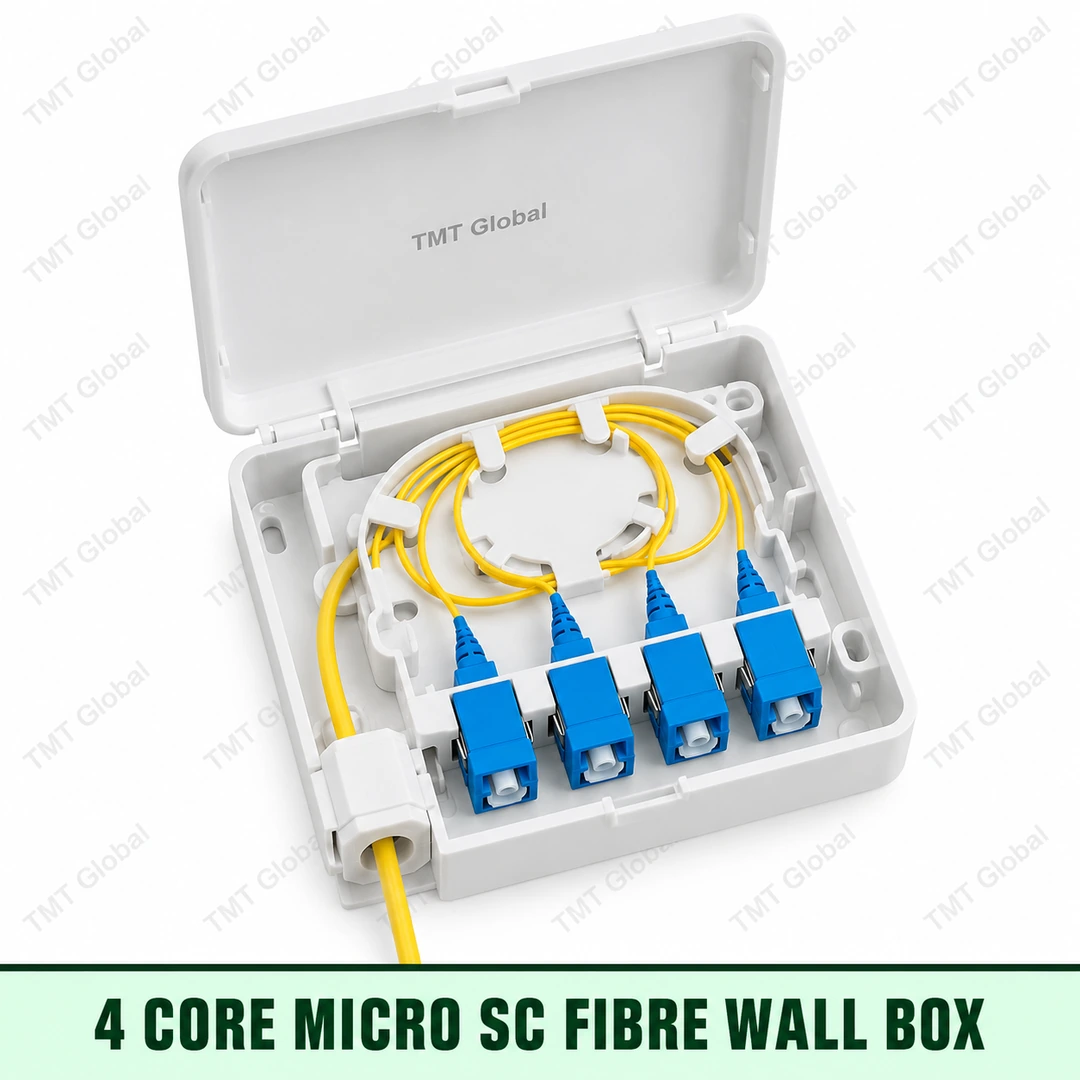

4 Core Micro Fibre Wall Box – SC Simplex

TMT Global 4 Core Micro Fibre Wall Box – SC Simplex Series

The TMT Global 4 Core Micro Fibre Wall Box – SC Simplex is designed for protected fibre termination, splicing and adapter presentation in micro / mini applications. The enclosure provides controlled fibre routing, splice protection and service access for 4-fibre installations, with SC/UPC connectivity and adapter loaded configuration.

KEY FEATURES

• 4-fibre termination capacity / 6-fibre termination capacity
• ABS/PC enclosure construction
• SC/UPC interface configuration / SC/APC interface configuration / LC/UPC interface configuration
• Bend-radius controlled fibre routing
• Splice sleeve and fibre management
• Cable entry and strain-relief provision

APPLICATIONS

• FTTH customer premises
• Building risers and telecom rooms
• Office / LAN fibre links
• CCTV fibre termination

OEM / PUBLICATION POSITIONING

Installation: secure the enclosure to the specified wall/pole surface, anchor incoming cable, maintain fibre bend radius and protect all splices. Ordering: TMT-FWB-MM01 defines the controlled base SKU; colour and minor accessories may be managed as approved options only when they do not change the technical design. Packaging: individual protective pack with SKU identification; mounting hardware/accessories as declared. OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.

STANDARDS / TEST BASIS

• System application — ISO/IEC 11801 structured cabling context
• Connector interfaces — IEC 61754 interface family where adapters are fitted
• Passive component testing — IEC 61300 series where applicable
• Material compliance — RoHS / REACH declarations required where applicable
• Housing fire performance — UL 94 V-0 polymer target only where supported by material evidence
• Outdoor ingress protection — IEC 60529 rating only when supported by enclosure test evidence

QUALITY / ACCEPTANCE

• OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.

TECHNICAL SPECIFICATION
