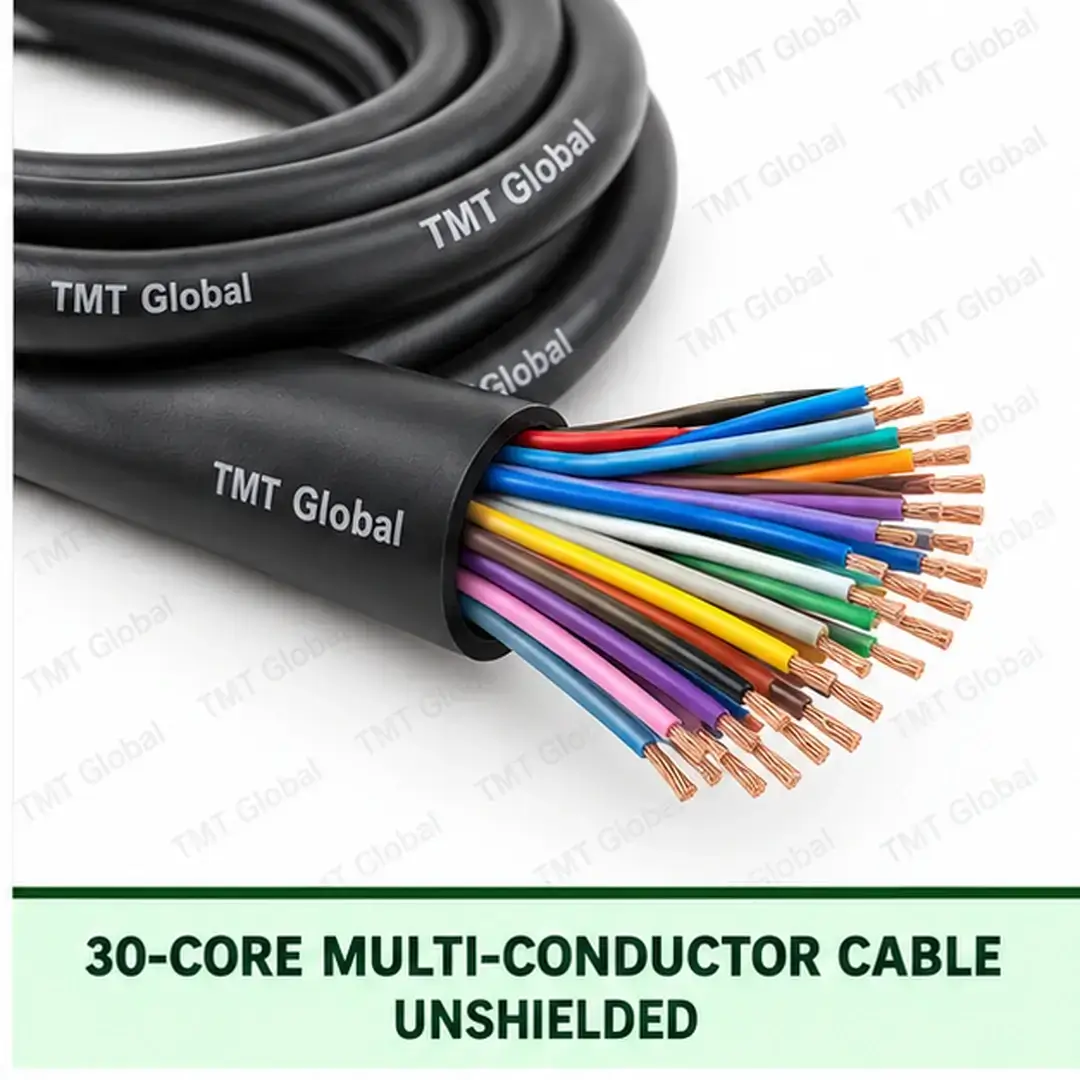

30-Core Unshielded Multi-Conductor Cable

KEY FEATURES

30 individually insulated, colour/number-identified conductors
No metallic screen; for general control and signal bundles where EMC conditions permit
14, 16, 18, 20, 22 and 24 AWG Series options
PVC, LSZH and outdoor PE jacket choices
Bare-copper conductor; solid or stranded by released drawing
Exact searchable ordering code for every standard combination

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!

chat with sales

Choosing the 30-Core Unshielded Multi-Conductor Cable

30 cores make it a distribution cable: one run between a control panel and a junction box can replace several smaller cables. No metallic screen keeps it light, flexible and quick to terminate; choose it for clean electrical environments where the route stays away from mains power and motor drives.

Order code: 30CU-MC. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 30-Core Unshielded Multi-Conductor Cable Series

TMT Global 30-Core Unshielded Multi-Conductor Cable is a configurable high-count cable family for organised control, signal and automation wiring between panels, terminal cabinets, machines and field equipment. The product page fixes the 30-core unshielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

30 individually insulated, colour/number-identified conductors
No metallic screen; for general control and signal bundles where EMC conditions permit
14, 16, 18, 20, 22 and 24 AWG Series options
PVC, LSZH and outdoor PE jacket choices
Bare-copper conductor; solid or stranded by released drawing
Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

Industrial control panels and terminal cabinets
PLC I/O, relay, actuator and machine-interface wiring
Building automation and multi-signal distribution
Sensors, solenoids, valves and interconnection bundles
OEM machinery, utilities and infrastructure projects

Technical Specification

PARAMETER	SPECIFICATION
Product type	High-count multi-conductor control, automation and signal cable
Core configuration	30 individually insulated conductors
Conductor material	Bare copper
Conductor construction	Bare-copper conductors; solid or stranded construction options
Available conductor sizes	14 / 16 / 18 / 20 / 22 / 24 AWG
Core identification	Number-coded or colour-coded conductors
Core insulation	PVC / PE / halogen-free compound options by Series construction
Screening	No metallic screen
Outer-jacket options	PVC / LSZH / PE Outdoor
Cable form	Round
Standard colours	Grey for PVC/LSZH; Black for PE Outdoor
Package length	305 m standard TMT package
Series structure	18 searchable Series SKUs per family (6 AWG × 3 jackets)
Ordering basis	AWG and jacket define the exact Series SKU

SERIES AVAILABILITY MATRIX

AWG	NOMINAL AREA	SERIES AVAILABILITY
14 AWG	2.08 mm²	PVC / LSZH / PE Outdoor • Factory engineering
16 AWG	1.31 mm²	PVC / LSZH / PE Outdoor • Standard / project
18 AWG	0.823 mm²	PVC / LSZH / PE Outdoor • Main market
20 AWG	0.519 mm²	PVC / LSZH / PE Outdoor • Main market
22 AWG	0.326 mm²	PVC / LSZH / PE Outdoor • Main market
24 AWG	0.205 mm²	PVC / LSZH / PE Outdoor • Signal / project standard
