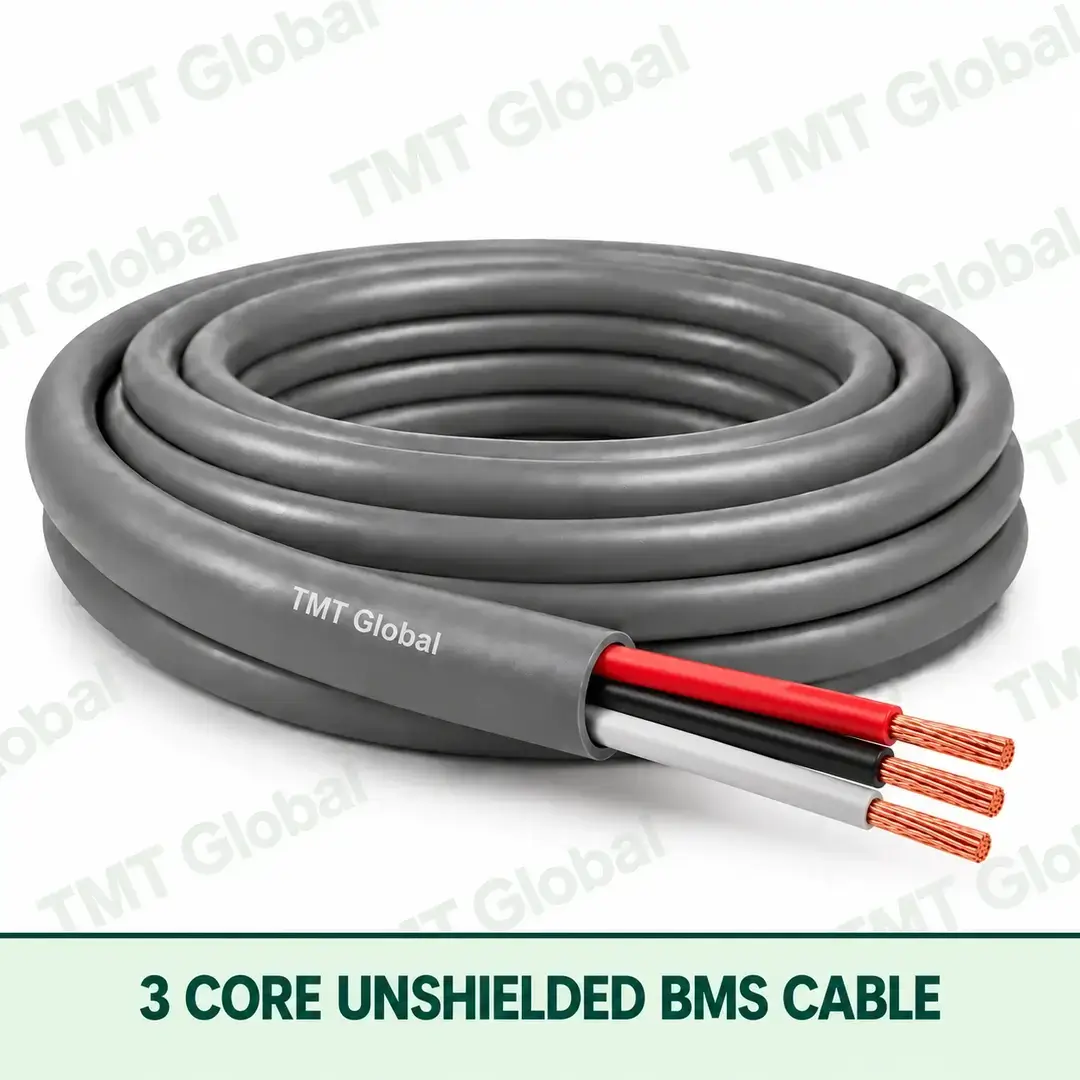

3 Core Unshielded BMS Cable
KEY FEATURES
- 3-core controlled construction
- No metallic screen
- 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote
Choosing the 3 Core Unshielded BMS Cable
Three cores connect a single BMS point, such as a sensor, damper or valve actuator, to its controller. No metallic screen keeps it light, flexible and quick to terminate; choose it for clean electrical environments where the route stays away from mains power and motor drives.
Related options in this range: 2 Core Unshielded BMS Cable · 4 Core Unshielded BMS Cable · 6 Core Unshielded BMS Cable · 3 Core Foil + Braid Shielded BMS Cable · 3 Core Foil Shielded BMS Cable
Order code: 03U-BS. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global 3 Core Unshielded BMS Cable Series
TMT Global 3 Core Unshielded BMS Cable is a configurable building-management-system cable family for low-voltage control, monitoring, input/output and equipment interconnection. The product page fixes the 3-core unshielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search and quotation.
KEY FEATURES
- 3-core controlled construction
- No metallic screen
- 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- BMS controller and field-device wiring
- HVAC control panels and plant rooms
- Sensors, actuators, valves and damper interfaces
- Input/output and low-voltage control circuits
- Commercial buildings, hospitality, healthcare and infrastructure
Technical Specification
| PARAMETER | TECHNICAL SPECIFICATION |
| Product type | BMS control cable |
| Typical use | Low-voltage control, monitoring, input/output and equipment interconnection |
| Core configuration | 3 insulated cores |
| Conductor material | Bare copper |
| Conductor construction | Solid or stranded Series constructions |
| Available conductor sizes | 12 / 14 / 16 / 18 / 20 / 22 / 23 / 24 AWG |
| Screening | No metallic screen |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey for PVC/LSZH; black for PE Outdoor |
| Package length | 305 m |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 12 AWG | 3.31 mm² | PVC / LSZH / PE Outdoor • 305 m • Project engineering |
| 14 AWG | 2.08 mm² | PVC / LSZH / PE Outdoor • 305 m • Project engineering |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m • Made to order |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m • Standard range |
| 20 AWG | 0.519 mm² | PVC / LSZH / PE Outdoor • 305 m • Standard range |
| 22 AWG | 0.326 mm² | PVC / LSZH / PE Outdoor • 305 m • Standard range |
| 23 AWG | 0.258 mm² | PVC / LSZH / PE Outdoor • 305 m • Made to order |
| 24 AWG | 0.205 mm² | PVC / LSZH / PE Outdoor • 305 m • Standard range |
| AWG | 12 awg, 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 23 awg, 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | PVC, LSZH, PE Outdoor |
| Length | 305 m |
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 3 Core Unshielded BMS Cable | 03U-BS | 12 awg | PVC | Grey | 305 m |  | |
| 3 Core Unshielded BMS Cable | 03U-BS | 12 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 12 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 14 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 14 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 14 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 16 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 16 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 16 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 18 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 18 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 18 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 20 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 20 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 20 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 22 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 22 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 22 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 23 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 23 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 23 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 24 awg | PVC | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 24 awg | LSZH | Grey | 305 m | | |
| 3 Core Unshielded BMS Cable | 03U-BS | 24 awg | PE Outdoor | Black | 305 m | |
