3 Core Enhanced Fire-Survival Screened LSZH Cable

KEY FEATURES

Colour-coded multicore fire-life construction
Overall screened LSZH family baseline
Enhanced fire-survival architecture — certification evidence required before claim
Red / White controlled Series rows
305 m standard TMT package

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!

chat with sales

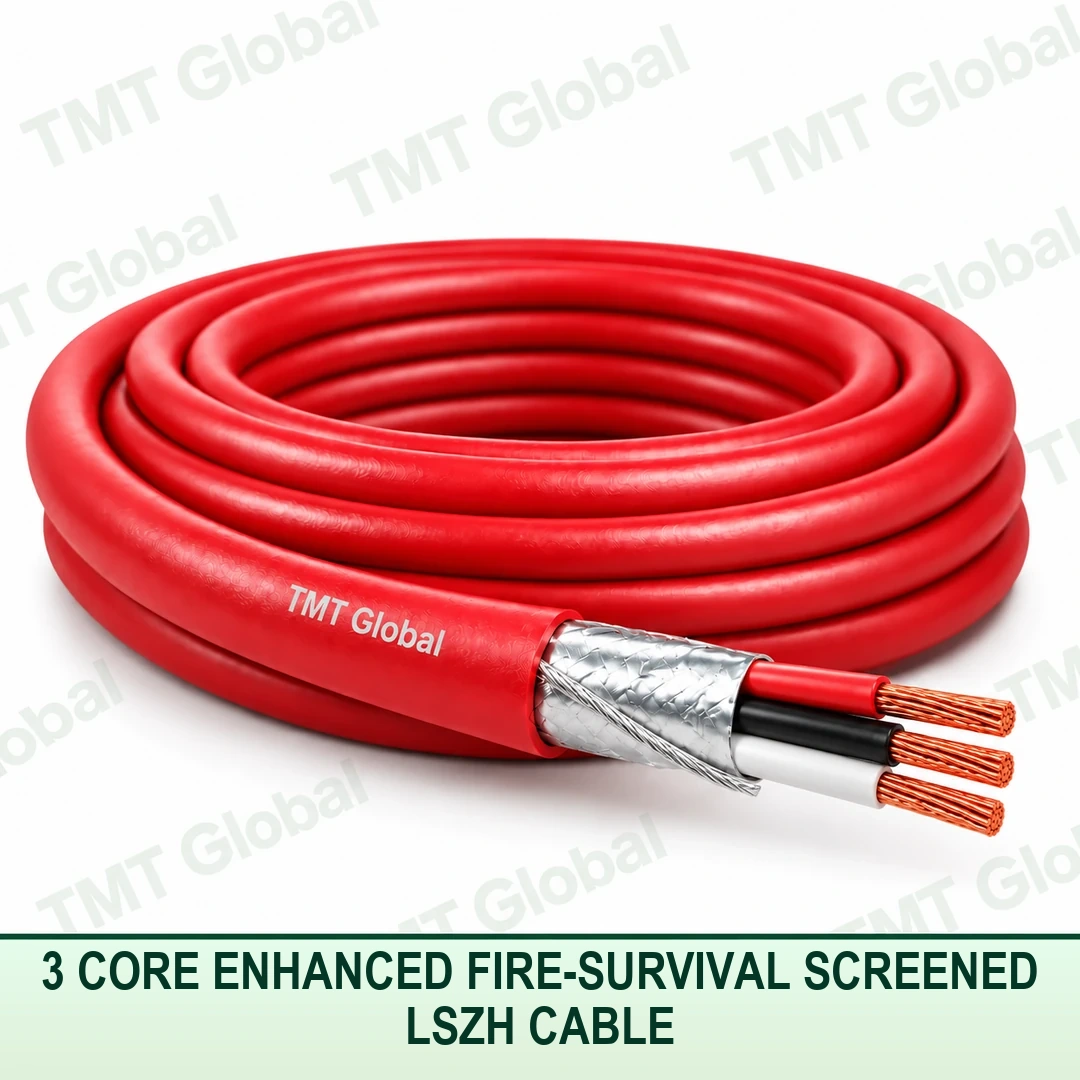

TMT Global 3 Core Enhanced Fire-Survival Screened LSZH Cable Series

3-core enhanced fire-survival screened LSZH cable family for fire alarm, emergency-lighting and other life-safety control circuits, subject to exact BS 7629-1 / fire-test certification.

KEY FEATURES

Colour-coded multicore fire-life construction
Overall screened LSZH family baseline
Enhanced fire-survival architecture — certification evidence required before claim
Red / White controlled Series rows
305 m standard TMT package

TYPICAL APPLICATIONS

Enhanced fire-alarm circuits
Emergency lighting in complex / phased-evacuation projects
Voice-alarm / life-safety systems where specified
High-rise and critical building routes
Extended circuit-integrity applications

Technical Specification

TECHNICAL SPECIFICATION	VALUE
Product family	3 Core Enhanced Fire-Survival Screened LSZH Cable
Series	03C-S-FE
Primary application	Fire alarm, emergency lighting and life-safety control circuits
Core / geometry	3 conductors
Conductor material	Bare copper
AWG	16 / 14 / 12
Screening	Overall foil screen + drain / circuit protective conductor arrangement
Outer sheath	LSZH
Sheath colours	Red / White
Fire-survival level	Enhanced
Standard package	305 m
