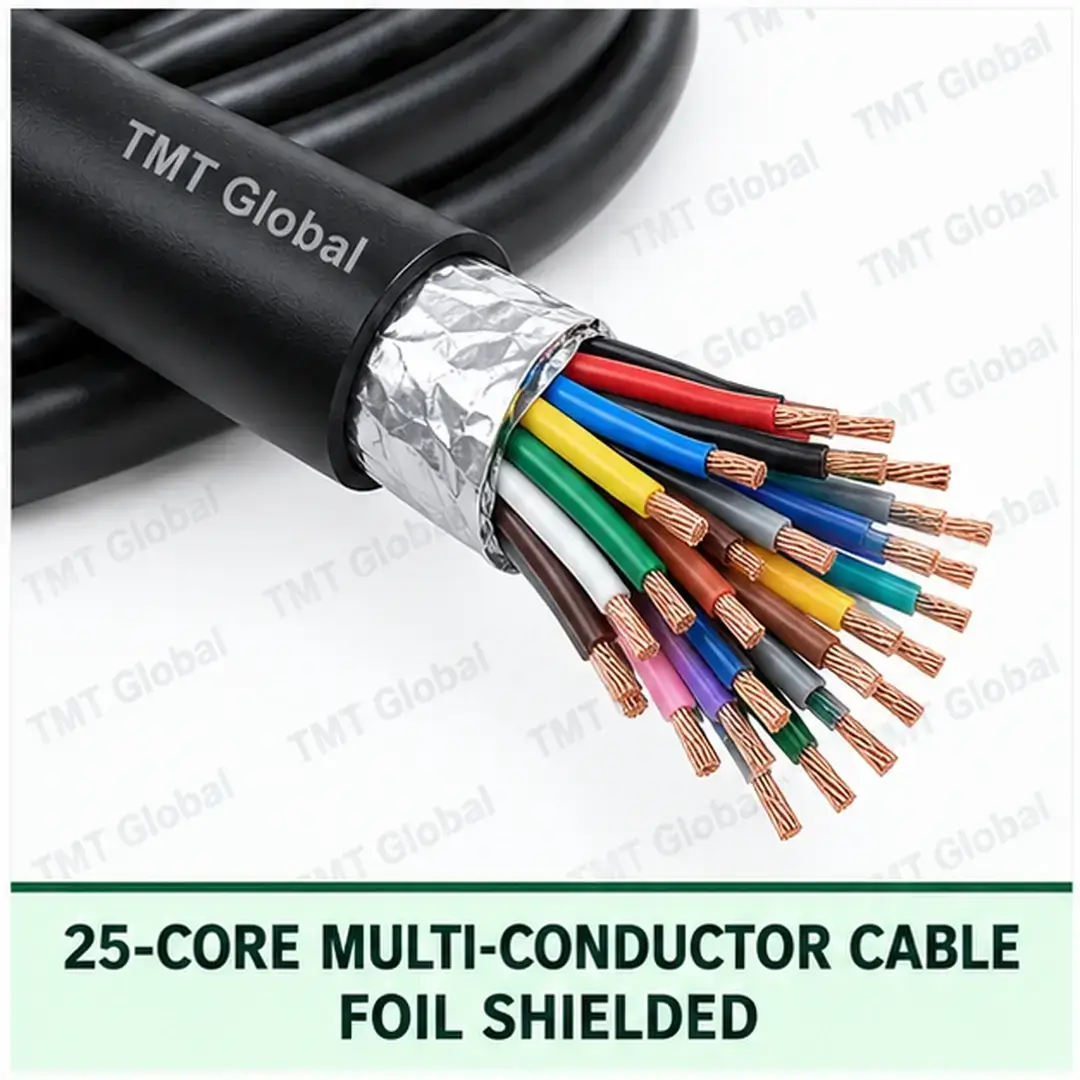

25-Core Foil Shielded Multi-Conductor Cable

Choosing the 25-Core Foil Shielded Multi-Conductor Cable

25 cores make it a distribution cable: one run between a control panel and a junction box can replace several smaller cables. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 17-Core Foil Shielded Multi-Conductor Cable · 20-Core Foil Shielded Multi-Conductor Cable · 26-Core Foil Shielded Multi-Conductor Cable · 30-Core Foil Shielded Multi-Conductor Cable · 25-Core Foil + Braid Shielded Multi-Conductor Cable · 25-Core Unshielded Multi-Conductor Cable

Order code: 25CS-MC. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 25-Core Foil Shielded Multi-Conductor Cable Series

TMT Global 25-Core Foil Shielded Multi-Conductor Cable is a configurable high-count cable family for organised control, signal and automation wiring between panels, terminal cabinets, machines and field equipment. The product page fixes the 25-core foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 25 individually insulated, colour/number-identified conductors
• Overall aluminium/polyester foil screen with tinned-copper drain wire
• 14, 16, 18, 20, 22 and 24 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Bare-copper conductor; solid or stranded by released drawing
• Exact searchable ordering code for every standard combination

TYPICAL  APPLICATIONS

• Industrial control panels and terminal cabinets
• PLC I/O, relay, actuator and machine-interface wiring
• Building automation and multi-signal distribution
• Sensors, solenoids, valves and interconnection bundles
• OEM machinery, utilities and infrastructure projects

Technical Specification

SERIES AVAILABILITY MATRIX
