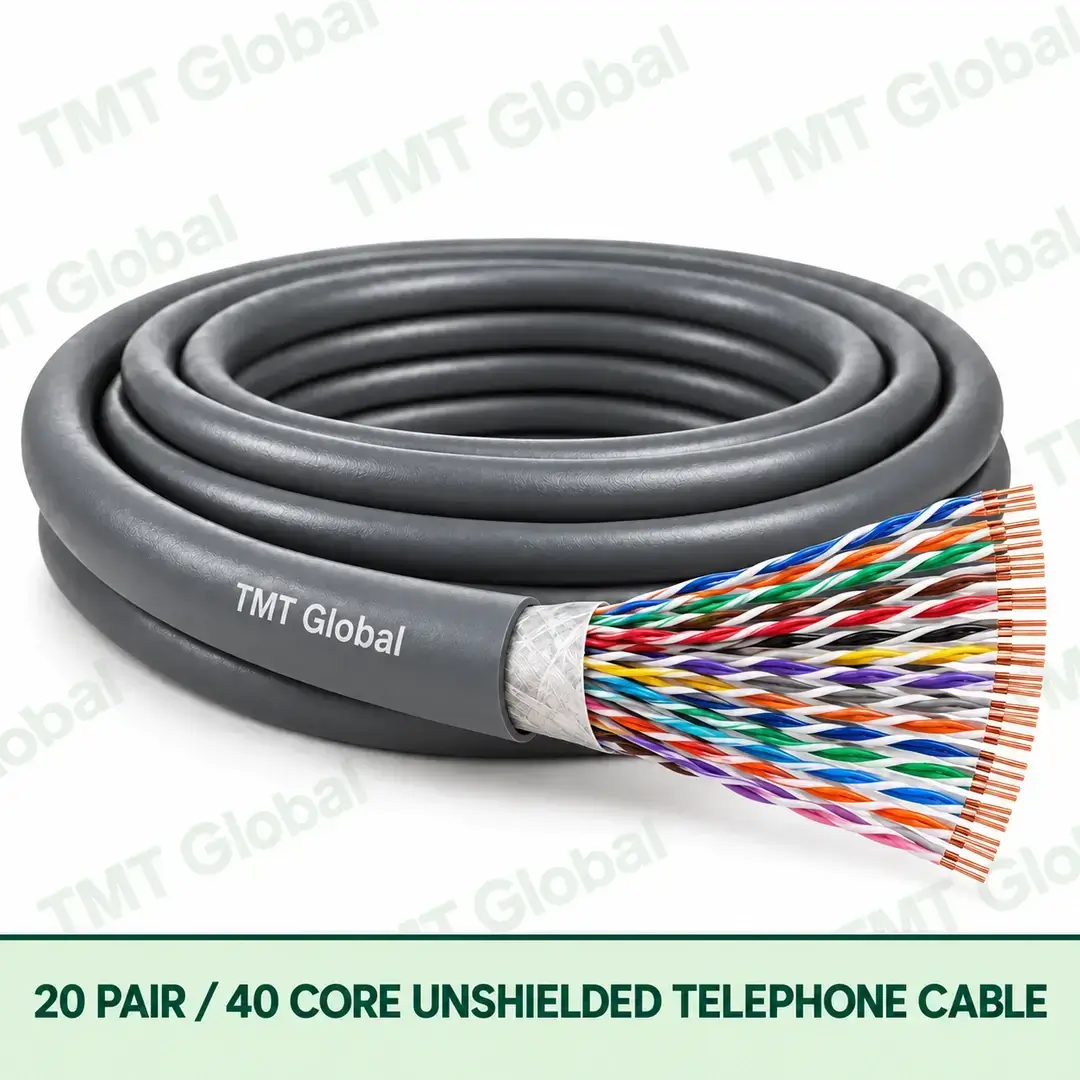

20 Pair / 40 Core Unshielded Telephone Cable

KEY FEATURES

20 colour-coded twisted pairs / 40 solid copper conductors
Unshielded voice / telecom construction
22, 24 AWG Series options
PVC, LSZH, PE Outdoor jacket choices
Round Multi-Pair physical construction
Exact searchable ordering code for every approved combination

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

0 People watching this product now!

chat with sales

Choosing the 20 Pair / 40 Core Unshielded Telephone Cable

20 pairs make it a riser or building backbone cable between the main frame and floor distribution boxes. No metallic screen keeps it light, flexible and quick to terminate; choose it for clean electrical environments where the route stays away from mains power and motor drives.

Order code: 40UR-TL. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 20 Pair / 40 Core Unshielded Telephone Cable Series

TMT Global 20 Pair / 40 Core Unshielded Telephone Cable is a configurable copper voice and low-speed communication cable family for telephone, PBX, intercom, analogue extension and building telecom distribution. The product page fixes the 20-pair unshielded twisted-pair construction, while the TMT Series ordering table provides exact conductor-size and jacket item codes for search, quotation and project selection.

KEY FEATURES

20 colour-coded twisted pairs / 40 solid copper conductors
Unshielded voice / telecom construction
22, 24 AWG Series options
PVC, LSZH, PE Outdoor jacket choices
Round Multi-Pair physical construction
Exact searchable ordering code for every approved combination

TYPICAL APPLICATIONS

Telephone extensions, PBX and analogue voice circuits
Intercom, door-entry and low-speed communication links
Telecom room, riser and building voice distribution
Low-level signalling and communication equipment interconnection
Indoor or outdoor routes according to the released jacket construction

Technical Specification

PARAMETER	TMT DECLARED FAMILY REQUIREMENT
Product type	Copper telephone, PBX, intercom and low-speed voice communication cable
Pair / core configuration	20 twisted pairs / 40 colour-coded insulated conductors
Conductor material	Bare copper
Conductor class	Solid copper standard; stranded only where specifically released for flexible applications
Available conductor sizes	22 AWG / 24 AWG
Pair construction	Controlled twist lays and pair colour code according to released factory drawing
Core insulation	PVC / PE / halogen-free compound according to the released product construction
Screening	No metallic screen
Outer-jacket options	PVC / LSZH / PE Outdoor
Cable form	Round Multi-Pair
Standard colours	Grey indoor; black outdoor
Electrical release	Conductor resistance, capacitance, capacitance unbalance, insulation resistance and dielectric test values by released construction
Operating range	Target 0 °C to +70 °C indoor; outdoor range by approved PE compound and factory drawing
Package length	305 m standard TMT cable package

AWG TECHNICAL RELEASE MATRIX

AWG	COMMERCIAL STATUS	FACTORY-VERIFIED DATA REQUIRED
22 AWG	Lower-resistance multi-pair project option	Conductor diameter / stranding, DCR @ 20 °C, capacitance, pair unbalance, OD, weight and approved jacket / fire performance
24 AWG	Primary multi-pair voice size	Conductor diameter / stranding, DCR @ 20 °C, capacitance, pair unbalance, OD, weight and approved jacket / fire performance
