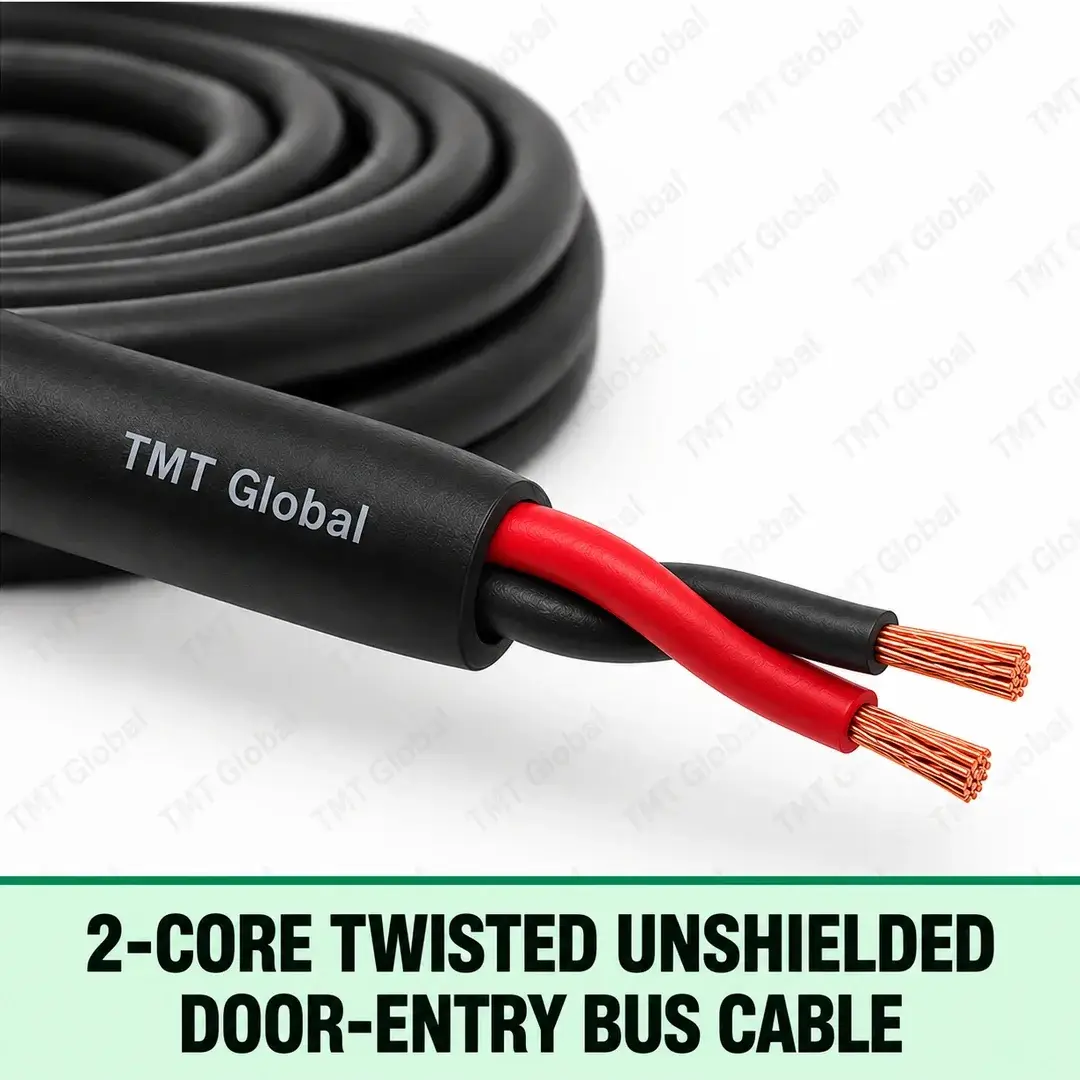

TMT Global 2-Core Twisted Unshielded Door-Entry Bus Cable, black jacket, no foil or braid, exactly one red and one black insulated stranded copper conductor twisted together, two conductor tips only.

2-Wire Twisted Unshielded Door-Entry Bus Cable

KEY FEATURES

  • 2-wire twisted bus
  • Unshielded twisted conductors
  • PVC / LSZH / PE Outdoor
  • 305 m standard package
  • Factory evidence required for system/electrical claims

Full specifications & datasheet: tmtglobal.co.uk →

Supplied in the UAE by TMT Global UAE from our Sharjah warehouse (Industrial Area 18) and Dubai office (Naif), for projects in Dubai, Sharjah, Abu Dhabi and across the Emirates. Request a quote

View / Print DatasheetContact Sales
0 People watching this product now!
chat with sales
Description

TMT 2-Wire Twisted Unshielded Door-Entry Bus Cable Series

TMT Global 2-Wire Twisted Unshielded Door-Entry Bus Cable is a controlled Security & ELV cable family for professional door-entry and intercom installations. Dedicated two-conductor twisted bus cable for digital door-entry and video-intercom systems using two-wire signalling and power architectures. The TMT family is system-neutral; compatibility and distance must be qualified against the target intercom platform. Exact released size/schedule and jacket variations remain searchable Series rows under this product page.

KEY FEATURES

  • 2-wire twisted bus
  • Unshielded twisted conductors
  • PVC / LSZH / PE Outdoor
  • 305 m standard package
  • Factory evidence required for system/electrical claims

APPLICATIONS

  • 2-wire audio/video door entry
  • Apartment intercom bus
  • Villa / gate intercom links

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
AWG16 awg, 18 awg, 20 awg, 22 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
